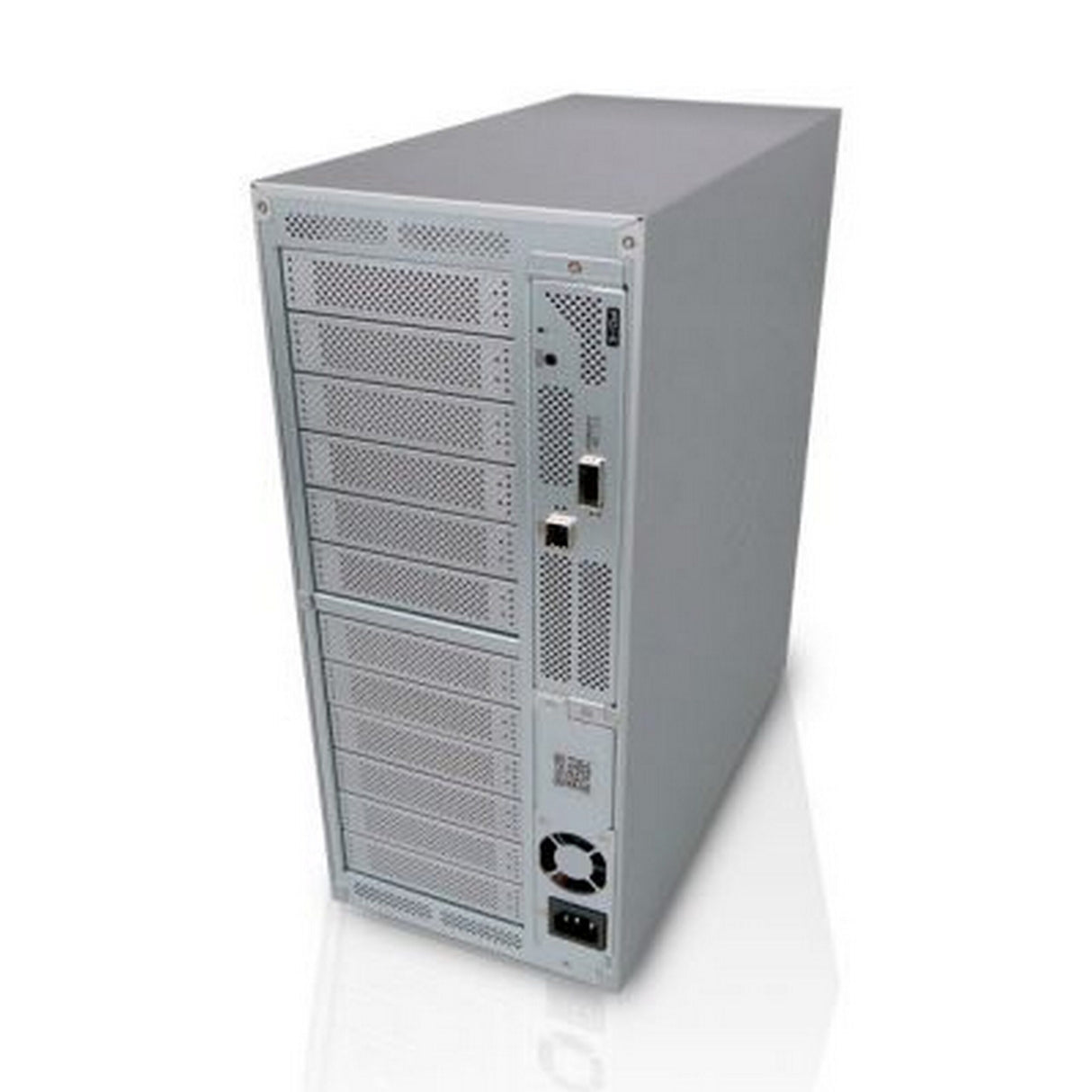

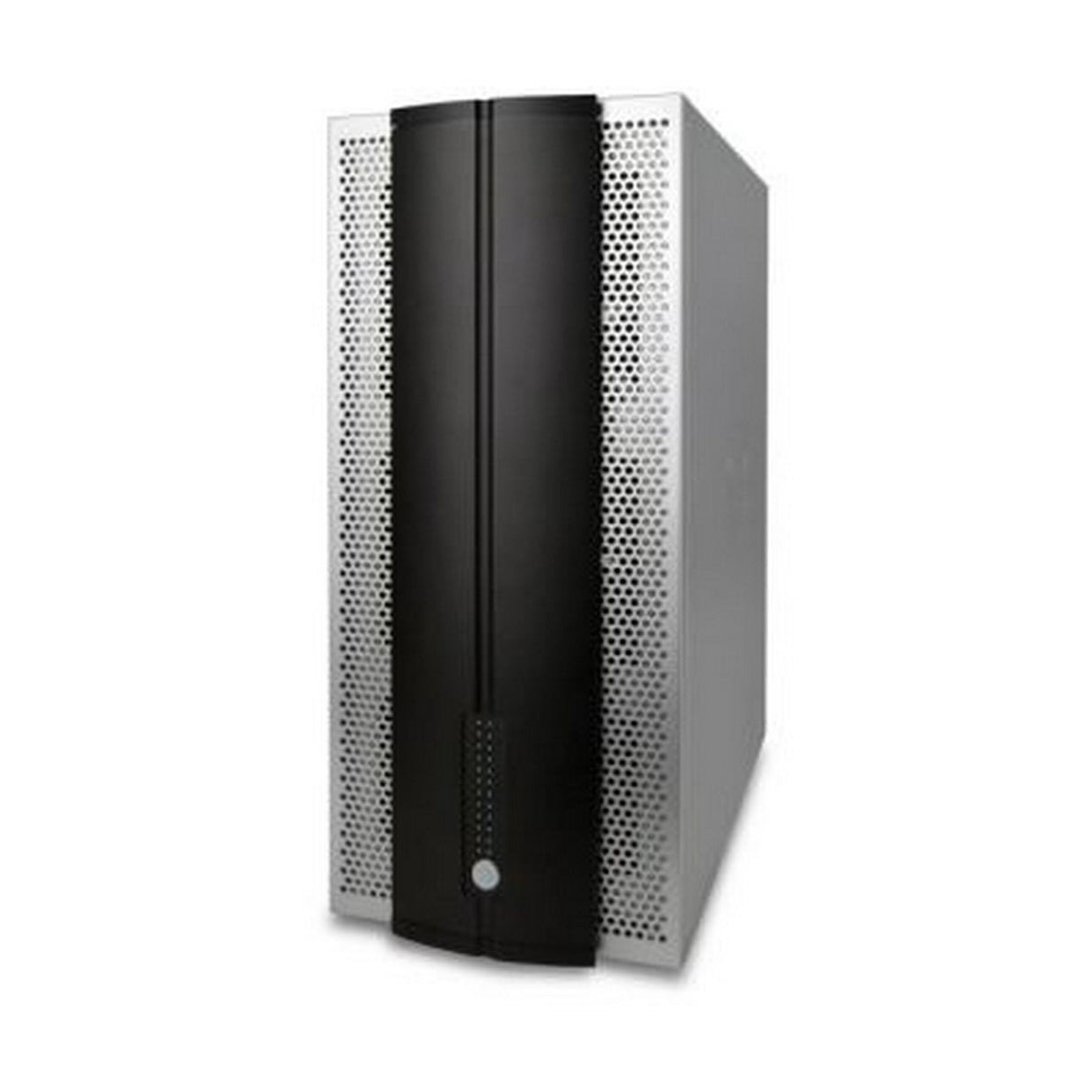

Accusys A12S3-PS 12-Bay Tower RAID System with Single Power Supply

Accusys A12S3-PS 12-Bay Tower RAID System with Single Power Supply

A12S3-PS with 12 units of SAS/SATA/SSD HDD support, over 2500MB/s read and 2000 MB/s write performance, making A12S3-PS both powerful yet versatile to handle most tasks associated with 4K editing software and storages. A12S3-PS based on PCIe3.0 technology offers both impressive speed and capacity, which is why production companies select ExaSAN to avoid the high cost and complexity associated with more traditional DAS and SAN solution.

Technical Specifications

System Type
12-bay Tower RAID system
Host Interface
PCIe 3.0
Data Transfer Rate
32 Gb/s
Disk Interface
SAS / SATA * 12
Disk Type
3.5" / 2.5" / SSD
RAID Level
0, 1, 5, 6, 0+1, JBOD
Cache Memory
2G DDRlll 1866 with ECC-protected
JBOD Expansion
JBOD * 3
Operating Temperature
0 deg C ~ 40 deg C
Storage Temperature
-20 deg C~ 70 deg C
Operating Humidity
5%~85%, Non-condensing
RAID Controller Functions
Online RAID Set Expansion and RAID LEVEL Migration
Online bad block data recovery and reallocation
Online disk scrubbing with data refresh and parity
Disk health monitorning by S.M.A.R.T
Array Roaming and Drive Traveling
Mirror Snapshot for fast backup and restore
Disk Lag Proof Technology to guarantee disk timely response
Equalization Mode to smooth the performance of sequential I/Os and reduce large fluctuation
Management
Java-based RADIGuard X GUI
Event log saving in text file for quick trobleshooting
Event notification by email (SMTP)
LED indicator for RAID & disk drives status in front
400W (A12S3-PS: Single or A12S3-PS+: Redundant). 110V~240V power supply
Two 12cm x 12 cm Fan with Smart Fan Control feature
Dimensions
L:369mm, W:175mm, H:394.6mm
Weight
13.64kg / 30 lbs
