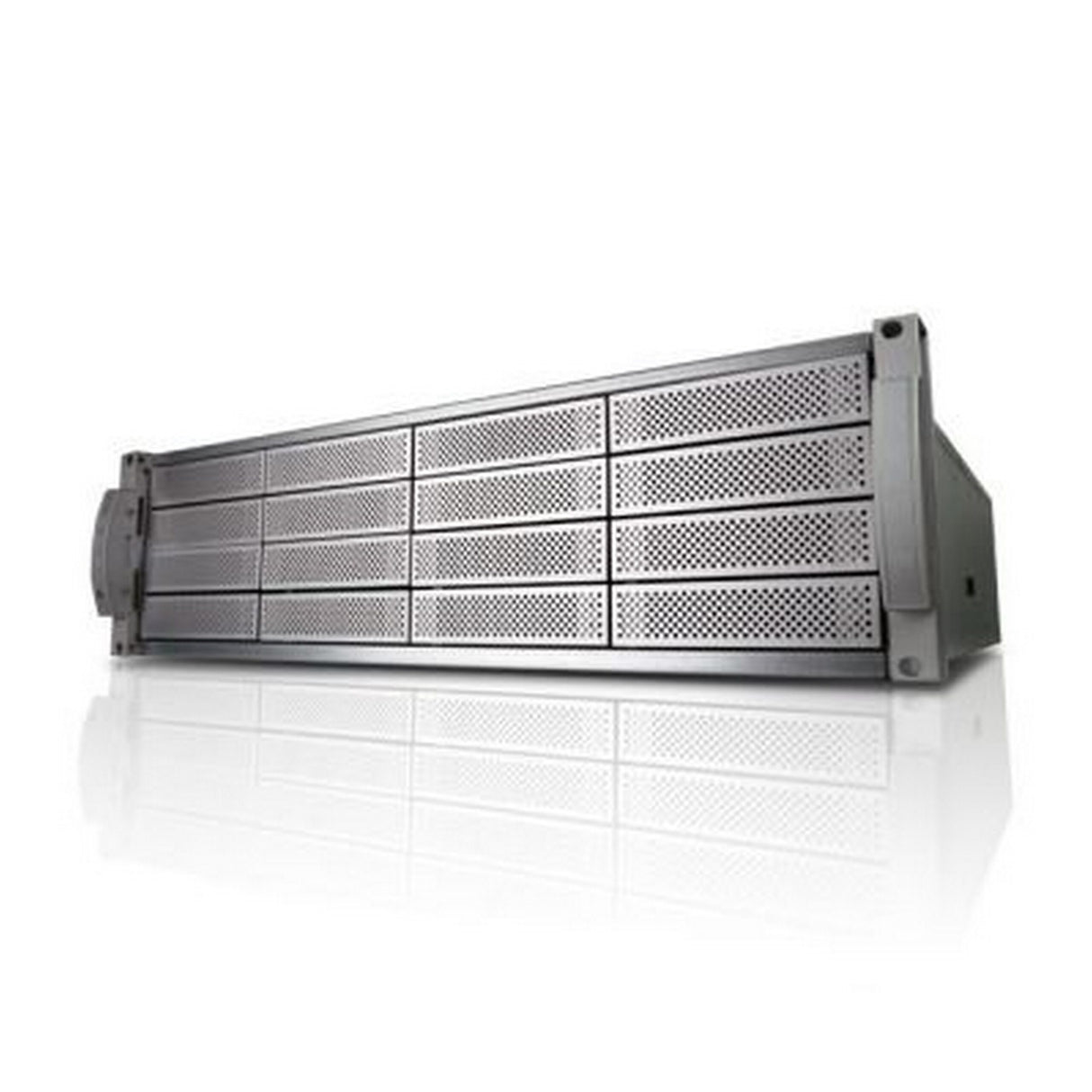

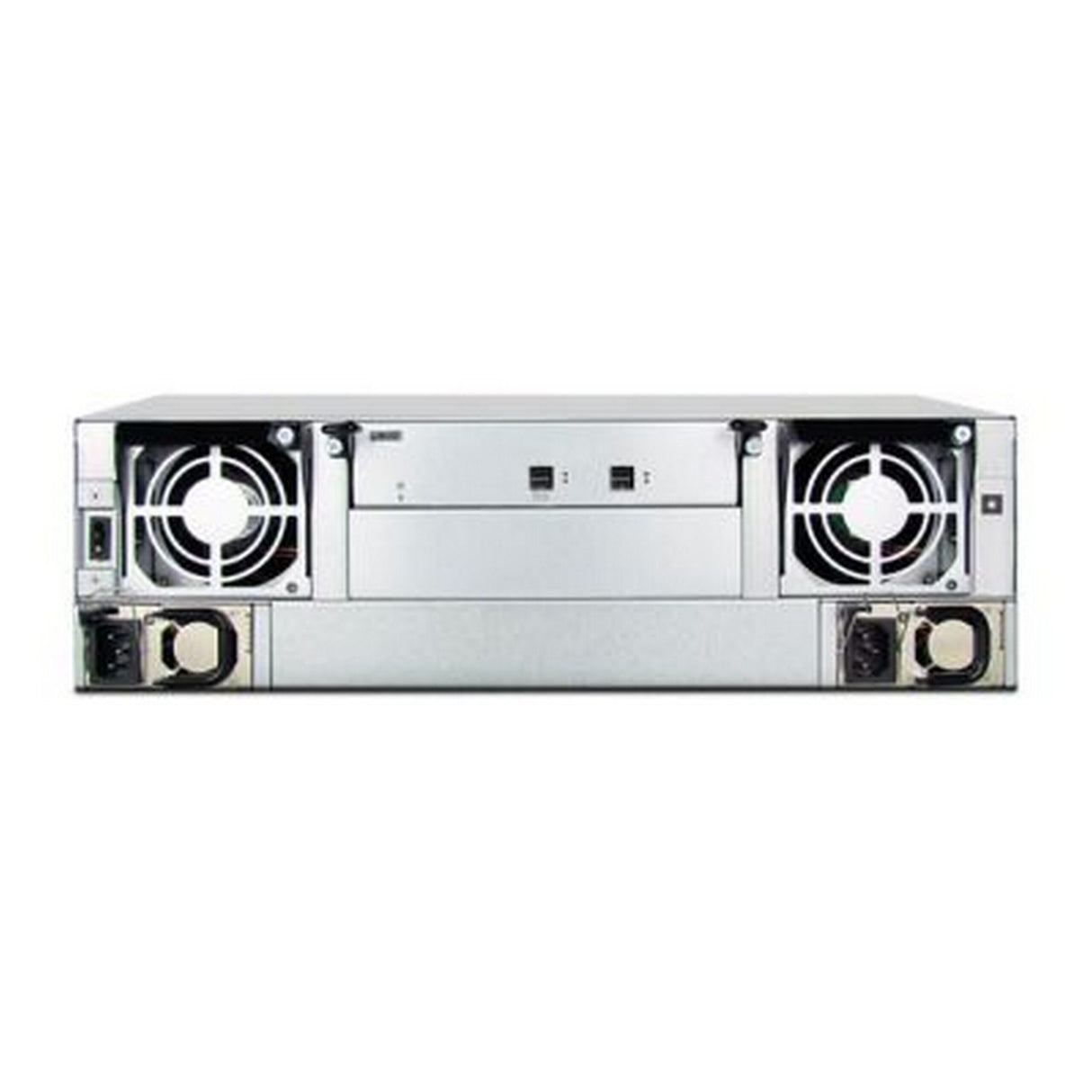

Accusys A16S3-PS 16-Bay Rackmount RAID System with Redundant Power Supply

Accusys A16S3-PS 16-Bay Rackmount RAID System with Redundant Power Supply

With support for 16-bays of both SAS and SATA SSD/HDD and performance speeds of over 2500MB/s (read) and 2100 MB/s (write) the A16S3-PS proves to be both powerful and versatile enough to handle most tasks associated with 4K editing software and storage. The A16S3-PS is based on PCIe3.0 technology offering both impressive performance and capacity, which is why production companies select ExaSAN to avoid high costs and to avoid the complexities associated with more traditional DAS and SAN solutions.

Technical Specifications

System Type
16-bay Rackmount RAID system
Host Interface
PCIe 3.0
Data Transfer Rate
32 Gb/s
Disk Interface
SAS / SATA * 16
Disk Type
3.5" / 2.5" / SSD
RAID Level
0, 1, 5, 6, 0+1, JBOD
Cache Memory
2G DDRlll 1866 with ECC-protected
JBOD Expansion
JBOD * 3
Operating Temperature
0 deg C ~ 40 deg C
Storage Temperature
-20 deg C~ 70 deg C
Operating Humidity
5%~85%, Non-condensing
RAID Controller Functions
Online RAID Set Expansion and RAID LEVEL Migration
Online bad block data recovery and reallocation
Online disk scrubbing with data refresh and parity
Disk health monitorning by S.M.A.R.T
Array Roaming and Drive Traveling
Mirror Snapshot for fast backup and restore
Disk Lag Proof Technology to guarantee disk timely response
Equalization Mode to smooth the performance of sequential I/Os and reduce large fluctuation
Management
Java-based RADIGuard X GUI
Event log saving in text file for quick trobleshooting
Event notification by email (SMTP)
LED indicator for RAID & disk drives status in front
400W (Single). 110V~240V power supply
Two 12cm x 12 cm Fan with Smart Fan Control feature
Dimensions
L:567mm, W:447mm, H:131mm
Weight
19.4kg
