Adder ALIF2122T-US INFINITY Dual Head Digital USB 2.0 IP KVM AV Extender Transmitter

The ADDERLink ALIF2122T-US INFINITY Dual Head Digital USB 2.0 IP KVM AV Extender Transmitter functions as a top-performing IP KVM extender in the ALIF matrix setup. It enables the transfer of critical computing equipment to a safe, climate-regulated area, away from the user's desk, all while maintaining an impeccable desktop interface.

Perfect digital video, real time control
Employing a spatially-lossless encoding mechanism alongside 1:1 pixel mapping, the ADDERLink INFINITY (ALIF) 2122 ensures flawless replication of pixels and precise color representation in video playback, devoid of any visual distortions. The digital video content remains unchanged from the moment it is transmitted from the remote computer to when it is received.

Single CATx cable or fiber with immunity from interference
Employing conventional IP technology provides the flexibility to opt for either a single structured cable (CATx) or a fiber connection, ensuring the establishment of dependable connections free from any interference.

Extension distances

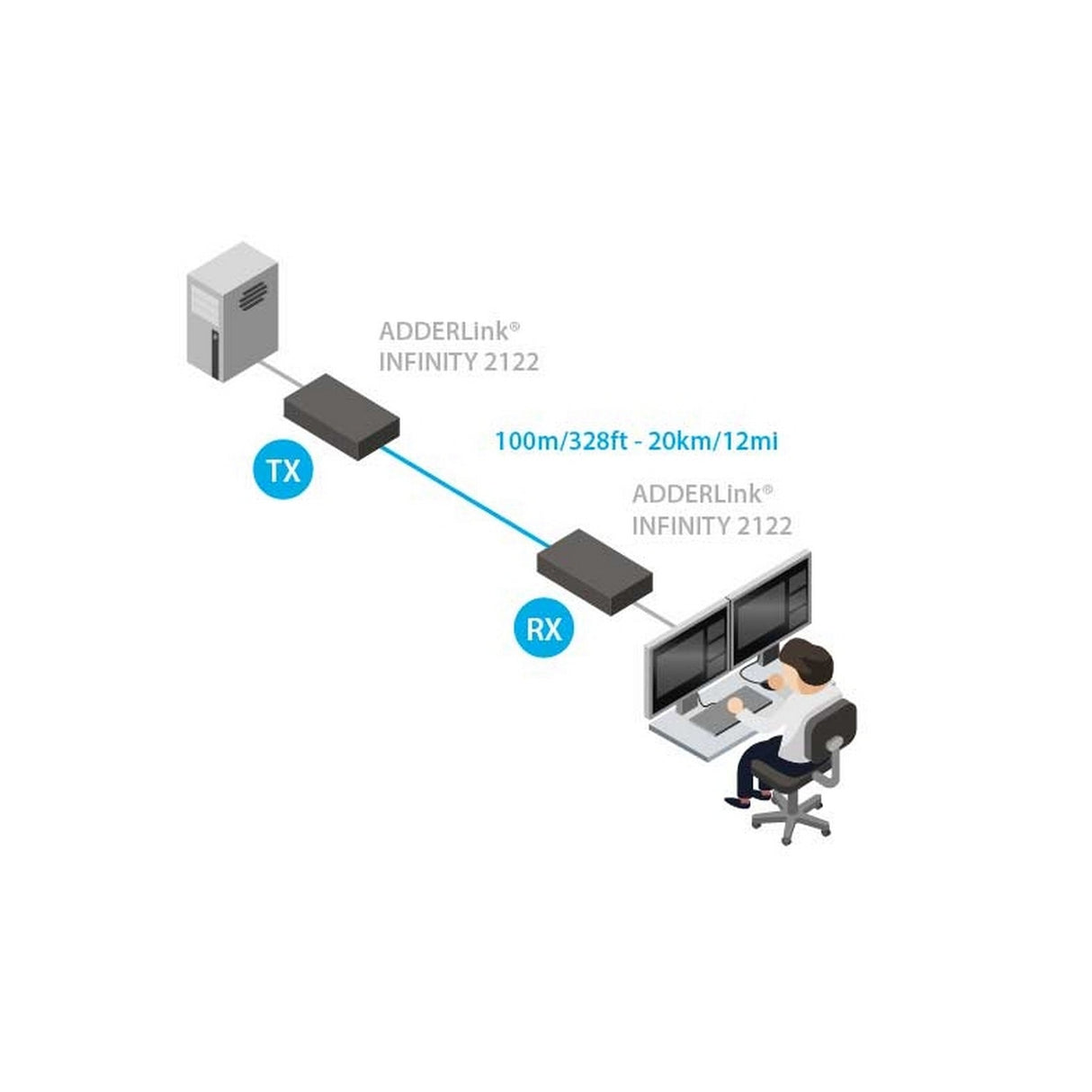

The extension distance is not confined to just a 100m/328ft cable length; it can be prolonged by incorporating a 1GbE network device to achieve an extra 100m/328ft. The units come equipped with SFP cages that can accommodate fiber optic transceivers, allowing for significantly larger extension distances of up to 20km/12mi.

Support for Mac Pro® (Dithered Video)
Dithering is a technique employed by certain graphics cards to create the illusion of a greater color depth than what is truly present. However, this process can lead to a notable increase in the standard video data rates. To address this issue, the ALIF2122 TX incorporates a unique feature known as Magic Eye, which enables dithering without compromising the overall performance of the link.

USB2.0 with class control
The system allows for the connection of various USB devices, including mouse and keyboard, graphics tablets, jog shuttles, joysticks, and 3D explorers, as well as mass storage devices. In situations where security is a top priority, the system offers the option to disable non-HID devices, eliminating the need to physically block USB ports in order to prevent the use of mass storage devices.

EDID management
The implementation of intelligent EDID management enables the computer to receive accurate information about the monitor's true characteristics. As a result, the video display is optimized and does not require any further configuration, ensuring a seamless viewing experience.

Please Note: the ALIF2122T-US transmitter requires at least one ADR-ALIF2122R-US receiver to operate (sold separately).

Key Features

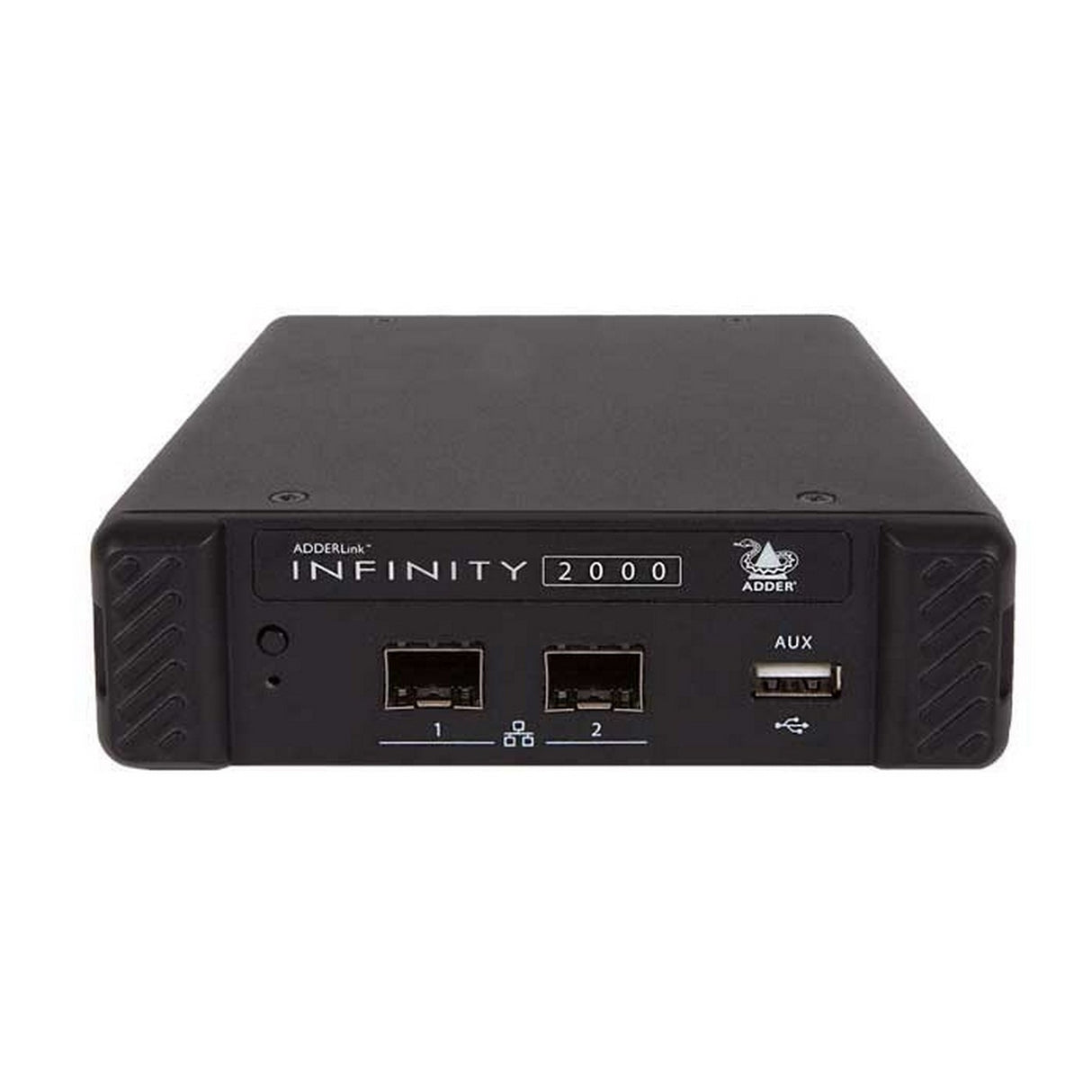

• 2 x SFP ports provide optimal flexibility and compatibility with CATx or fiber modules, allowing for distances of up to 20km.
• High video resolutions are supported, including 1x 2560x1600 @60Hz or 2x 1920x1200 @60Hz, ensuring excellent visual quality.
• A wide range of USB devices are supported, such as mass storage, keyboard, mouse, tablet, and touch, offering versatility and convenience.
• Specifically designed to cater to Mac Pro®, ensuring seamless compatibility and optimal performance.
• Enjoy reliable and uninterrupted connectivity with redundant network operation, guaranteeing a stable and consistent connection.

Technical Specifications

Operating Systems and Software Compatibility
Software: All commonly known software and operating systems including Windows®, Linux®, macOS®, and Sun OS. Hardware: RS232 is supported via USB to RS232 accessory

Video Resolutions
The system supports up to 1x 2560x1600 @60Hz or 2x 1920x1200 @60Hz
USB2.0 with Class Control
Supports USB2.0 devices (low, full and high speed). Security feature allows the blocking of non-HID devices. Isochronous devices are not supported (e.g. USB audio or video devices)
Audio
USB audio 2 channel 16bit @48KHz (Bi-directional)
Serial Comms
RS232 or other serial standards can be passed between the units to a maximum baud rate of 115,200 by using serial to USB converters
Computer Connections Transmitter (TX)

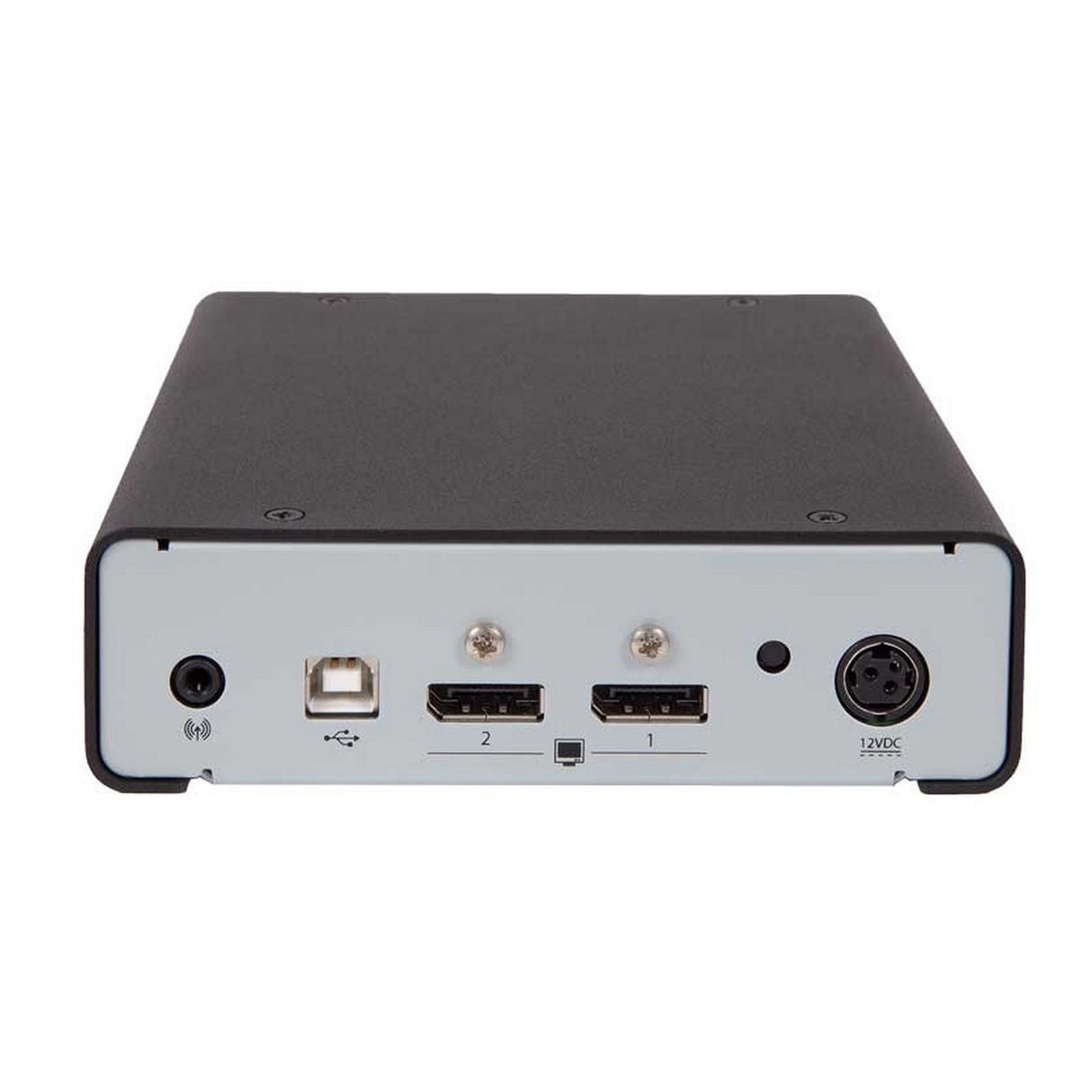

2x DisplayPort connections, 1x 3.5mm socket for Audio in, 1x USB Type B, 1x USB Type A for auxiliary connections and 2x SFP for 1GbE network connections
Peripheral Connections Receiver (RX)
2x DisplayPort connections, 1x 3.5mm socket for Audio out, 1x 3.5mm socket for headset/microphone, 4x USB Type A and 2x SFP for 1GbE network connections
Physical Design
Transmitter (TX)
1U compact case, robust metal construction
Dimensions: 39mm/1.5"(H) x 136mm/5.3(W) x 150mm/5.9"(D)
Weight: 0.8kg/1.7Ibs
Approvals
CE, UKCA, FCC, ICES, cULus
Power
External power supply
Input: 100-240V AC 47/63Hz
Output: 12V 1.5A (18W)
Typical power consumption: 7W
Operating temperature
Operating temperature: 0 to 40°C/32 to 104°F
Storage temperature: 0 to 40°C/32 to 104°F
Storage and operating relative humidity: 10-90% non-condensing
Altitude: < 2000m
Mean Time Between Failure
ALIF2122T 461,000 hrs
ALIF2122R 345,000 hrs
Calculated according to Telcordia SR332 Issue 4 @55°C
Item Includes
1x ALIF2122 Transmitter
1x SFP CATx RJ45
1x PSU and IEC lead
Warranty
2 Year Limited
