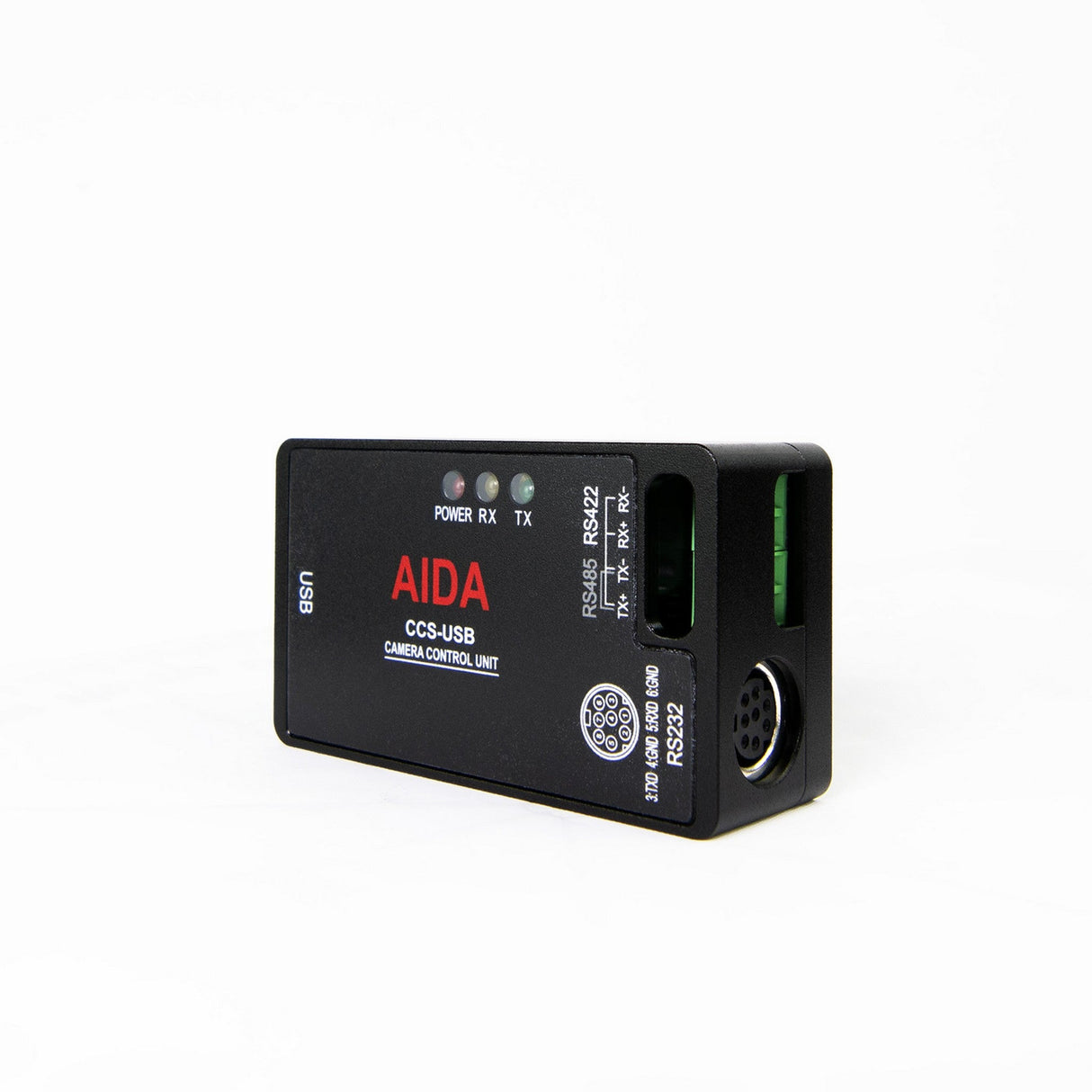

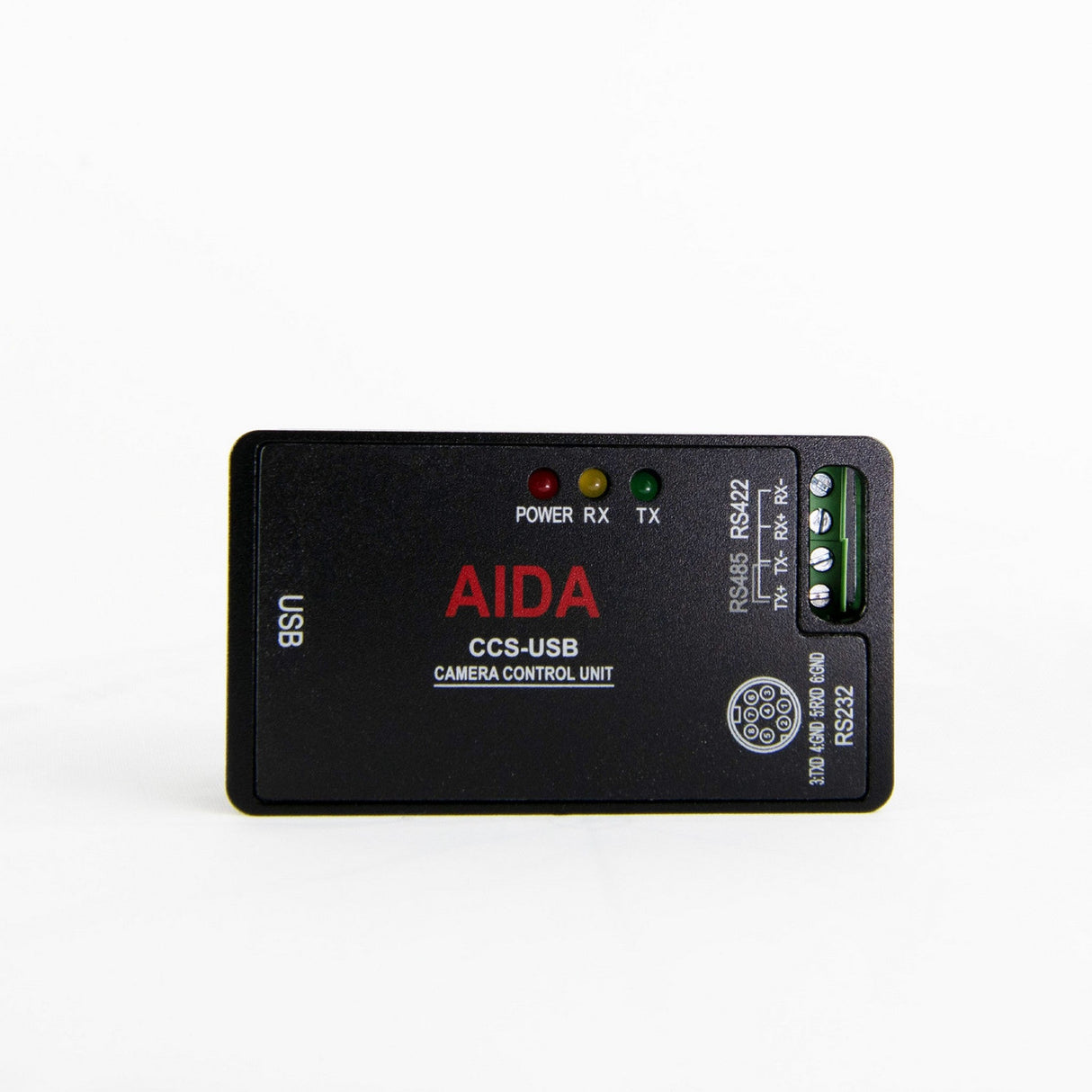

Aida CCS-USB VISCA Camera Control Unit and Software
The CCS-USB camera control unit and software for PC features multi serial port control, making this the go-to software for all your camera control needs. Simply connect the control unit to your computer via USB, then connect your camera to its onboard RS232, RS485 or RS422 and the software will automatically set up your COM ports. Control up to 7 primary cameras utilizing advanced SONY VISCA protocol and up to 255 cameras utilizing PELCO protocol. Compatible with Windows and Mac OSX operating systems. Includes an RS232 to Cross-RJ45 converter for longer communication relays when you need it most. The camera control unit is designed for mobility and versatility, its compact in size and rugged design truly make the CCS-USB small but mighty and the one CCS to control them all.
Key Features
- SONY VISCA Compatible and work with most of major VISCA protocol products
- Support PELCO Pan / Tilt / Zoom / Focus protocol
- Control up to 7 VISCA control cameras and 255 third party control cameras
- User friendly software interface
- Support RS-232, RS-485, RS-422

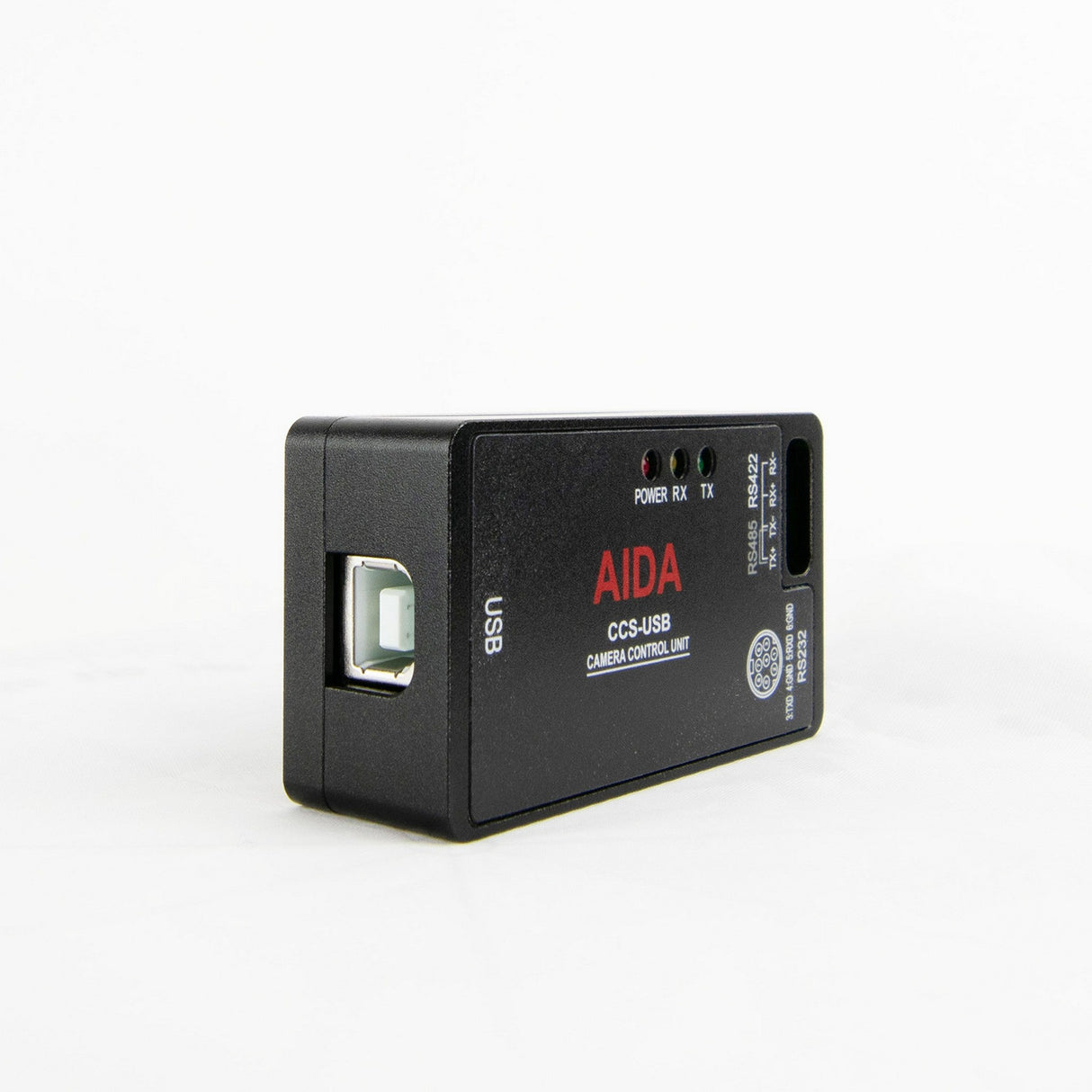

- USB interface for easy installation
- Windows and MAC OSX compatible

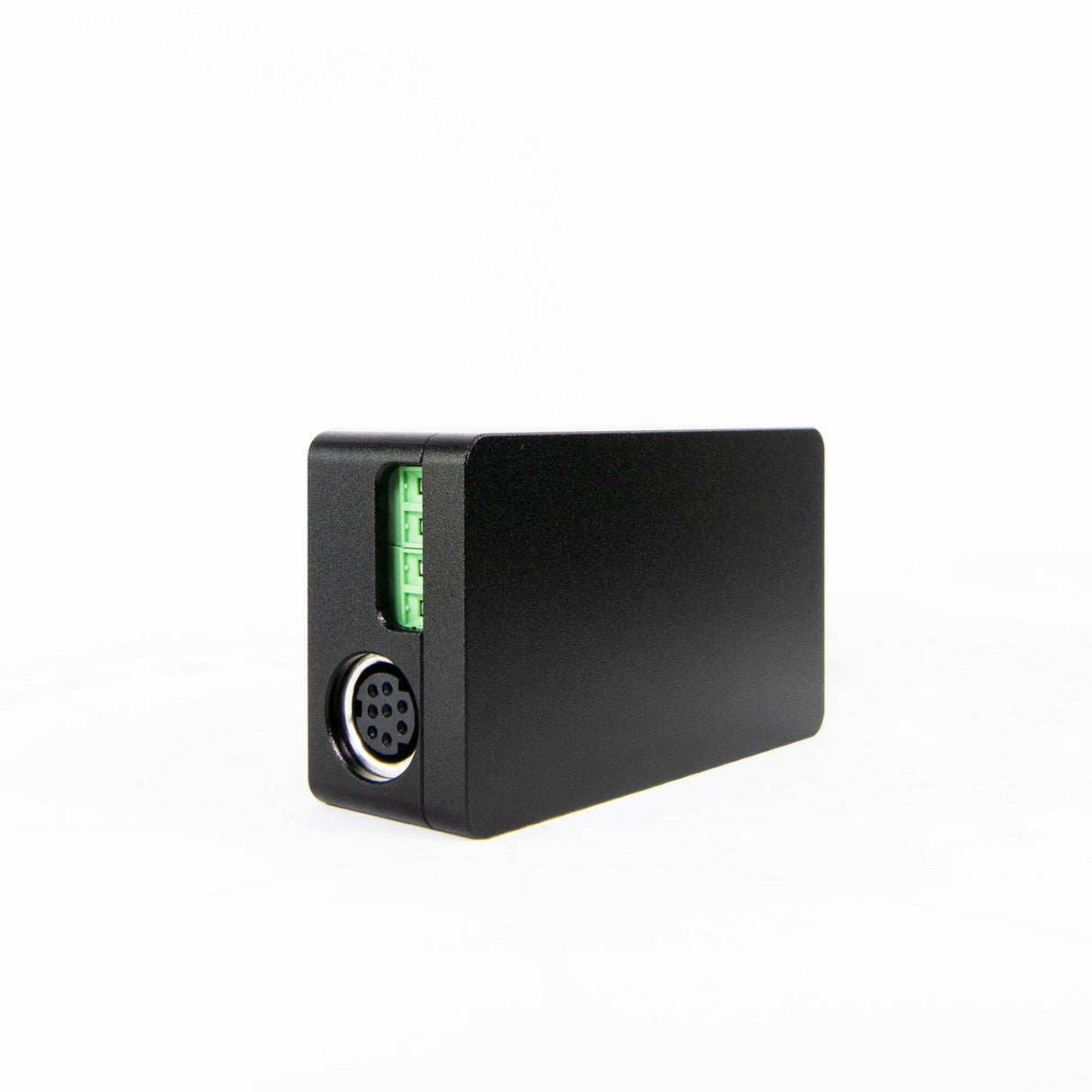

- Compact and rugged design
Technical Specifications
Control
Camera Interface
RS-232C
RS-485/RS-422: Terminal Block Connector
Protocol
VISCA for Camera Settng up to 7 Cameras
PELCO for Pan/Tilt/Zoom Control up to 255 Cameras
User Interface
Graphic User interface
PC interface
USB
Compatibility
All VISCA Protocol Camera
All PELCO Protocol Camera
Main Functions on VISCA Control
Contrast, Satura..on, Sharpness, Gamma
Exposure
Auto, Shutter Priority, Iris Priority, Manual, Flickerless
White Balance
Auto, Manual, ATW
Backlight
WDR, BLC
Physical
Camera Control

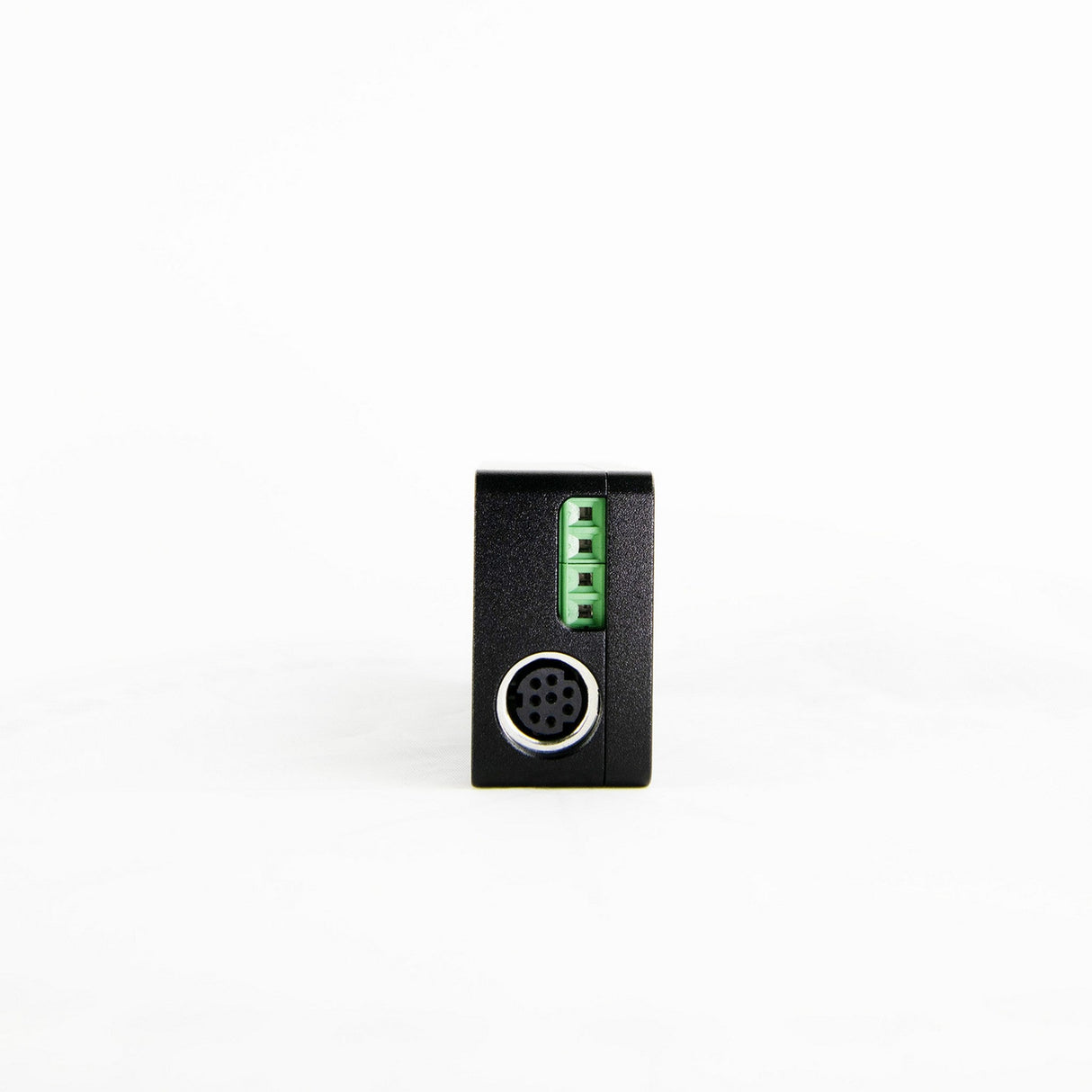

RS-232C: 8 Pin Mini Din Connector
RS-485/RS-422: Terminal Block Connector
Accessory
CBL-RJ45 (RS232 to Cross-RJ45 converter cable)
Operation Temp
32 F - 104 F
Dimension
62m x 35m x 19mm / 2.44" x 1.37" x 0.74"
Weight
50g / 0.11Lbs
Power
USB Powered
