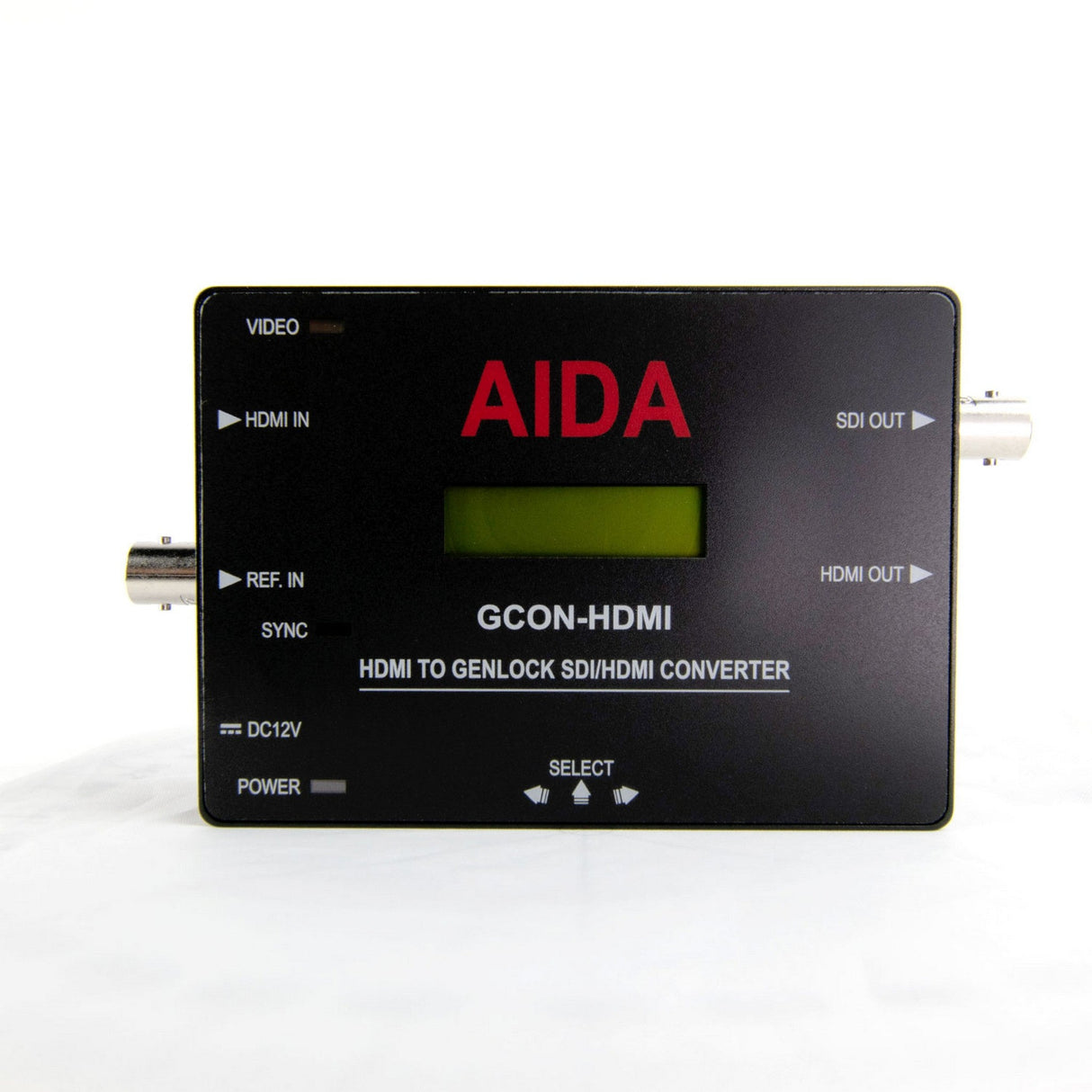

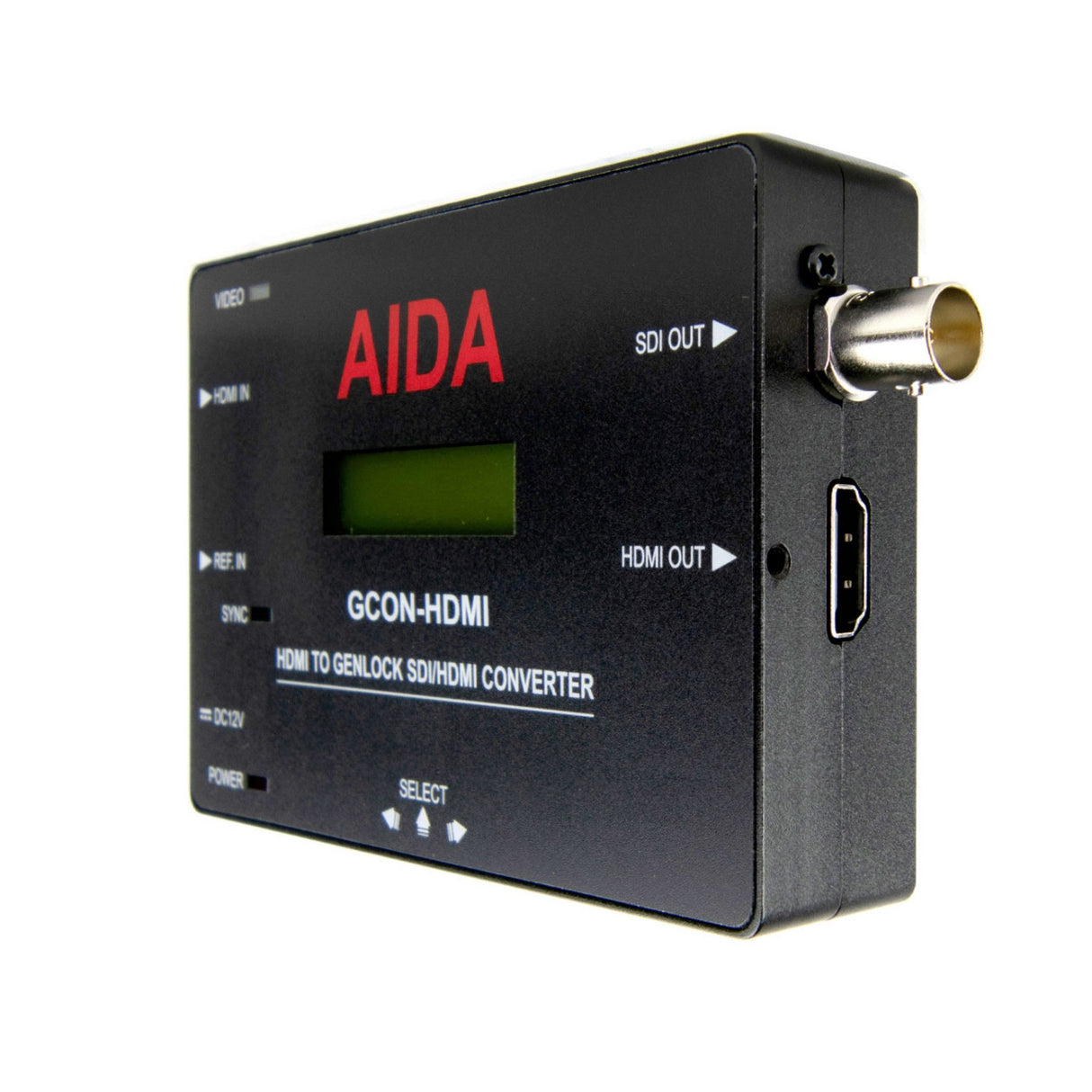

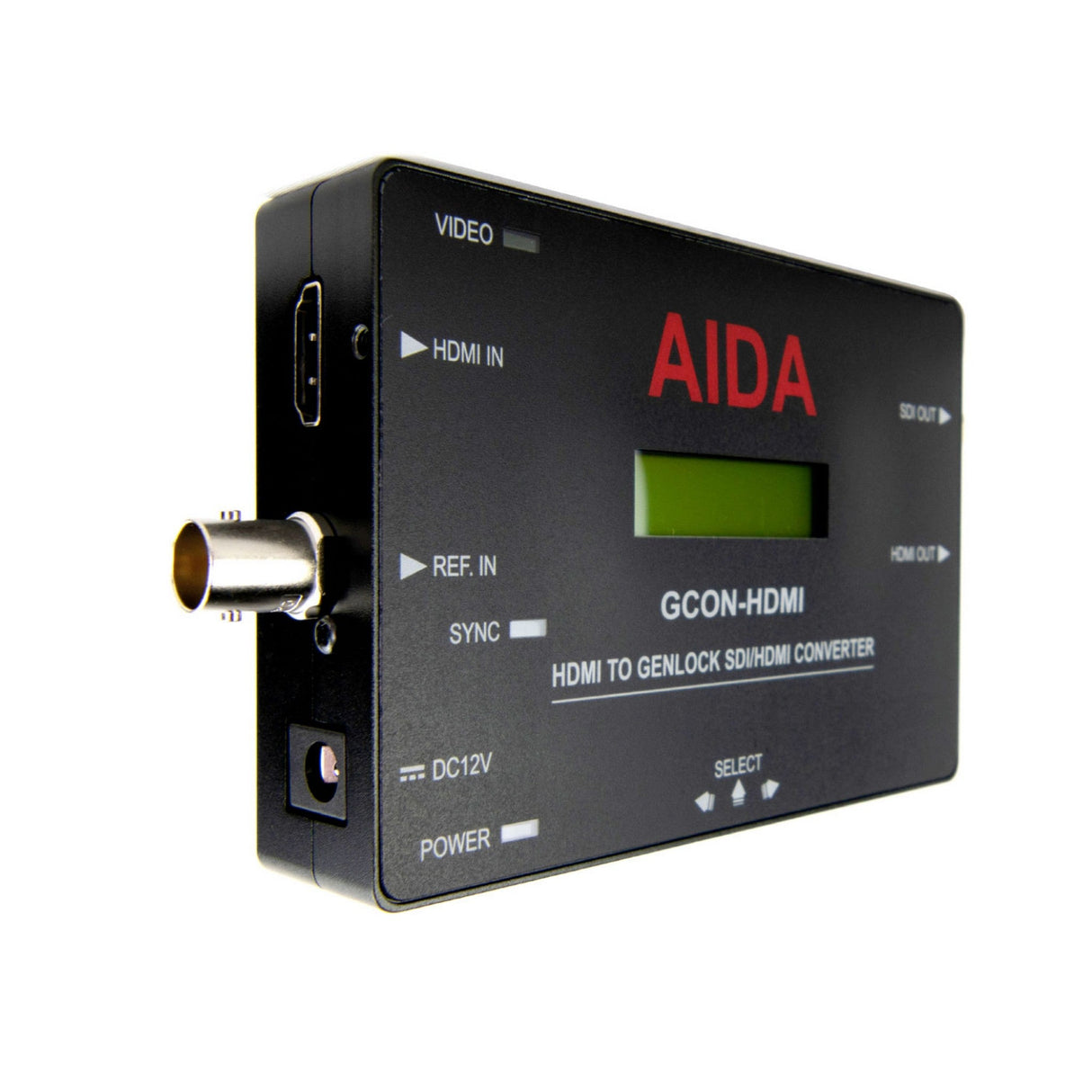

Aida GCON-HDMI HDMI to Genlock SDI/HDMI Converter

GCON-HDMI converts HDMI source to Genlock SDI/3G-SDI and HDMI with zero latency keeping the integrity of the original source feed intact. GCON-HDMI supports 1080p resolutions up to 60 fps. Featuring Tri-Level Sync Genlock synchronizes GCON-HDMI and other system components for seamless vertical interval switching between sources. GCON-HDMI supports ancillary data in both SMPTE 352 payload ID and audio and relays it through its SDI output. With its rugged and portable design makes GCON-HDMI a perfect camera sidekick to where it’s needed most.

Key Features

• HDMI up to 1080p60 full HD Resolution Input
• Simultaneous SDI and HDMI Loop Output
• Highly compatible with Tri Level reference input SMPTE 292M & 424M Compliant and multi-video format including 59.94Hz
• SMPTE 352M Ancillary Data supported
• Embedded audio pass through via SDI & HDMI
• Adjustable V-sync & H-sync phases
• Divisional picture comparison
• Built in Pattern Generator
• Built in LCD menu screen
• Built in menu control button
• Versatile, compact and rugged design

Technical Specifications

Video
Video Input
HDMI 1.3
Resolution/Rate
1080 60p/59.94p/50p/30p/29.97p/ 25p
1080 60i/59.94i/50i
720 60p/59.94p/50p/30p/25p
Color Space
4:2:2 (YCbCr) 10bit
Video Output
Genlocked HD-SDI/3G-SDI
Genlocked HDMI 1.3a
Function
Genlock Control
ON/OFF
H Sync & V Sync Adjustment
Audio Control
Audio Bits (16, 20, 24 Bits)
Payload ID
ON/OFF
Pattern Generate
Thirteen Patterns
Audio
Audio Input
8 Channels Embedded HDMI Audio
Standard
SMPTE
SMPTE 292M, SMPTE 424M
Synchronization
Genlock
External Tri-Level Input
Physical
Control
OSD Button & Text LCD
Operation Temp
32 F - 104 F
Dimension
130mm x 75m x 24mm / 5.11" x 2.95" x 0.94"
Weight
173g / 0.38Lbs (With default 3.6mm Lens)
Power
6W at 12VDC (+9 - +15VDC)
