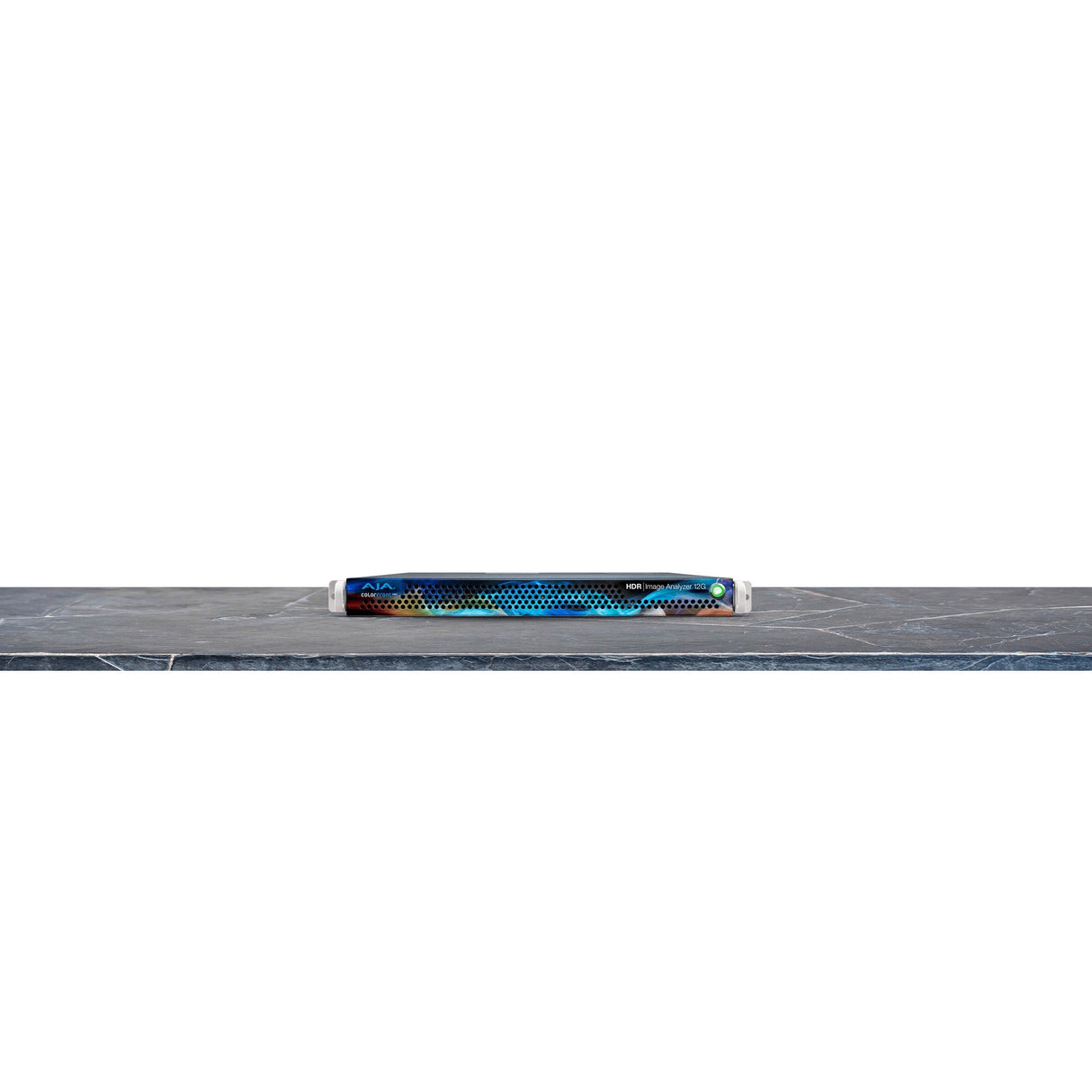

The AJA HDR Image Analyzer 12G delivers a comprehensive array of tools for the effective analysis of the latest 4K/UltraHD HDR standards. Over a single cable with 12G-SDI, the HDR-IA-12G supports HLG, PQ, Rec.2020 and Rec.709 from 8K/UltraHD2/4K/UltraHD/2K/HD content in a convenient real time 1RU device.

Developed in partnership with Color front, AJA HDR Image Analyzer 12G supports a wealth of inputs from camera LOG formats to SDR (REC 709), PQ (ST 2084) and HLG and offers color gamut support for BT.2020 alongside traditional BT.709. AJA hardware prowess ensures high reliability and performance, with 4x 12G-SDI bidirectional I/O, and DisplayPort connections.

Specifically designed to be used wherever needed, the 1RU form factor fits into a range of environments, providing the confidence you need for consistent and predictable HDR production and mastering.

HDR Image Analyzer 12G provides the necessary connectivity to support advanced 8K/UltraHD2 HDR and SDR production monitoring and analysis workflows.

Providing the same high quality and precision analysis tools available for all other video formats, this powerful analyzer is a smart investment for today's needs as well as ensuring you are ready for tomorrows. The HDR Image Analyzer 12G offers powerful monitoring and analysis for Live Production, DIT Pipelines, Broadcast Monitoring, Postproduction, QC (Quality Control) and Final HDR Mastering.

Key Features

• HDR Waveform, Histogram and Vectorscope Monitoring
• UltraHD UI for native-resolution picture display including PQ support for HDR capable displays
• Configurable layouts allow you to put the tool you need in the window you need it
• Support for display referred SDR (Rec.709), HDR ST2084/PQ, and HLG analysis
• Support for scene referred ARRI, Canon, Panasonic, RED and Sony camera color spaces
• Precision CIE graph, vectorscope, waveform, and histogram support
• False color mode to easily spot out of gamut/out of brightness pixels
• NIT levels and audio phase metering
• Line mode to focus a region of interest onto a single horizontal or vertical line
• File base error logging with timecode

Technical Specifications

SDR/HDR Image Analyzer Tool
HDR Waveform, Histogram and Vectorscope Monitoring

Video Format
(8K) 8192 x 4320p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(UltraHD2) 7680 x 4320p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 48, 50, 59.94, 60
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1080i 50, 59.94, 60
(HD) 720p 50, 59.94, 60
Video Input Digital
4x 12G-SDI BNC
12G-SDI, SMPTE-259/292/296/424/425/2081/2082, 12-bit, 10-bit and 8-bit
SDI I/O
SDI connections are bidirectional
8K/UltraHD2 with 12G-SDI, all four connections must be used for input only
4K/UltraHD with 12G-SDI, input and loop out are simultaneous
4K/UltraHD with 3G-SDI, all four connections must be used for input only
2K/HD, input and loop out are simultaneous
Note: When connections are configured for 12G-SDI or 6G-SDI, only UltraHD2/8K/UltraHD/4K formats are supported.
Audio Input Digital
16-channel 24-bit SDI embedded; 48 kHz synchronous
Audio Output Digital
16-channel 24-bit SDI embedded; 48 kHz synchronous
Computer Monitor Output
4x Display Port Outputs: Up to UltraHD 60p
Reference Input
Signal: Analog video sync (Blackburst or Tri-Level)
Size (w x d x h)
1RU form factor
17.2” x 16.9” x 1.7” (436.88 x 429.26 x 43.18 mm)
Weight
28 lb (12.7kg) in box
18 lb (8.2kg) server only
Power
100-240 VAC 50/60 Hz (Dual, redundant power supplies)
190W typical, 245W Maximum
Environment
Safe Operating Temperature
5 to 35 C (41 to 95 F)
Safe Storage Temperature (Power OFF)
-40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 8-90% noncondensing
Non-Operating Relative Humidity: 5-95% noncondensing
Warranty
Three-year warranty
