AJA HELO Affordable H.264/MPEG-4 Streaming / Recording Device for 3G-SDI and HDMI

AJA HELO Affordable H.264/MPEG-4 Streaming / Recording Device for 3G-SDI and HDMI

The AJA HELO is a powerful H.264 streaming and recording stand-alone appliance. HELO brings both SDI and HDMI I/O into a single appliance with the ability to simultaneously stream out to your Content Delivery Network (CDN) as well as encode and record beautiful H.264 files to either SD, SDHC or SDXC cards, USB storage or NFS or CIFS mounted network based storage simultaneously.

Portable and Packed to Go
HELO's small and robust form factor is essential for your busy schedule. Live events, webcasts, production and post locations vary and you need a device that can take the heat. HELO is designed to travel well, fit wherever needed and continuously deliver; all with full size connectivity.

It's a Fast World. Capture It.
1080p 60 is the de facto standard today for delivery of sports, live events, crystal clear video conferencing, webinars and games capture. Simply connect any video device to HELO via 3G-SDI or HDMI and record H.264 files and stream as needed. HELO is the perfect compliment to any professional workflow, easily connecting to a range of HD capable devices. HELO offers both 3G-SDI and HDMI source inputs in a single device with the ability to encode up to 1080p 60 in beautiful and efficient H.264. Stream out to your CDN and record to SD, SDHC or SDXC cards, USB storage or NFS or CIFS mounted network based shares simultaneously.

Encode
HELO encodes to H.264/MPEG-4 ensuring bandwidth efficiencies with widely compatible files. From tablets to smartphones, desktops to Smart TVs, no translation necessary. 2-Channel stereo audio can be encoded at up to 24-bit 48kHz at data rates ranging from 32kbps to 256kps in MPEG-4 AAC-LC, allowing you to make the most appropriate choice for your project's needs.

Stream
A USB connection and robust web browser based UI allows you to setup and configure your CDN connection before you even arrive at your event. Once there, simply press the Stream button and deliver your project across HELO's Ethernet connection, which allows support for RTP/RTSP, RTMP, RTMPE for Facebook live as well as Unicast. HTTP Live Streaming (HLS) support adds compatiblity with Apple's popular iOS devices and more. HELO's web based GUI even provides a video preview window so that you can ensure you are getting just what you expect.

Record

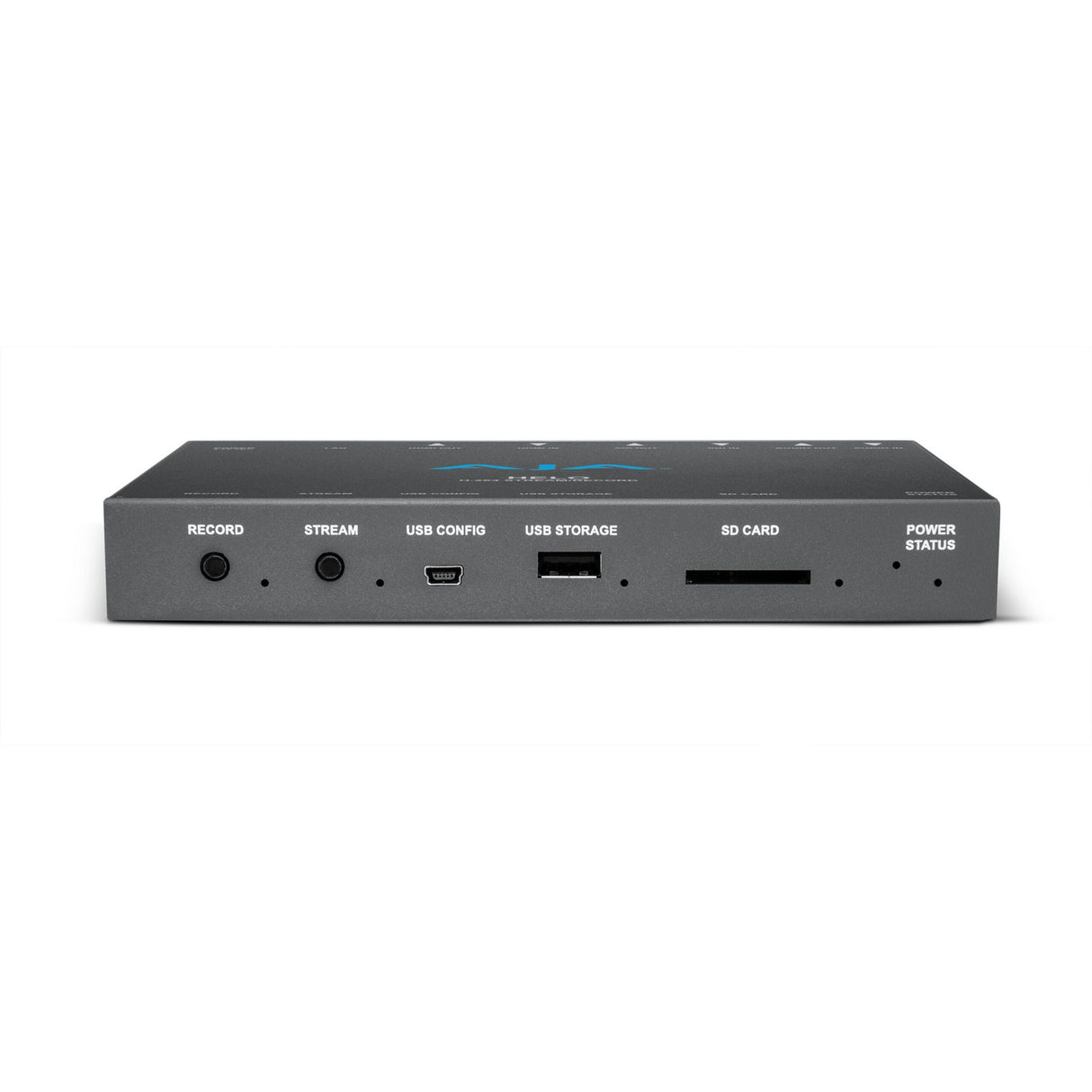

Live means Now. Live means Pressure. HELO offers a dedicated Record button right on the front of HELO's small and mobile interface for immediate recording. It also provides simultaneous recording while streaming and redundant recording of one file to two media destinations simultaneously. This enables you to hand a client a copy of the event right after recording ends, while maintaining a master in house.

Calendar Integration
HELO opens up a world of new streaming workflows for AV, live events, houses of worship, webcasting, corporate communications, production and post. HELO offers a scheduler that triggers pre-planned start and stop of recording and streaming media simplifying projects that require definitive schedules. The schedule may be programmed locally through HELO's web UI, by importing ICS files or by linking to external calendar providers such as Google Calendar.

Web Server Built-In
AJA eMini-Setup and HELO's easy to use web browser interface make HELO simple to setup, configure and update firmware at any time. You can connect to HELO either via its direct USB port to set static/dynamic IP addresses though AJA eMini-Setup software or over the network using HELO's web server generated UI.

Key Features

• Portable, stand-alone 3G-SDI and HDMI source inputs
• Encode up to 1080p 60 in H.264/MPEG-4
• 2-Channel stereo audio encoded up to 24-bit 48kHz
• Data rates from 32kbps to 256kbps in MPEG-4
• Record to SD, SDHC or SDXC cards, USB storage, NFS, CIFS, or SMB
• USB Slot and SD card slot
• Video input and output 3G-SDI, SMPTE-259/292/296/424, 10-bit, Single Link 4:2:2, 4:4:4, BNC and HDMI
• Support for RTP/RTSP, RTMP, RTMPs, HLS, and Unicast
• AV Mute with user graphics upload support for pre-live feeds
• Error logging for quick analysis of streaming issues
• WebUI Regionalization for Chinese, Japanese and Korean
• Web based GUI preview window

Technical Specifications

Video Formats
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60*
(HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1080i 25, 29.97, 30
(HD) 720p 50, 59.94, 60
(SD) 525i, 625i
*2K inputs are center cut to 1080p and are only supported on SDI input
Video Codec Support
H.264/MPEG-4 Encoder
Video Encoding Parameters
100kbps - 20Mbps (TBD) streamed output
100kbps - 20Mbps (TBD) recorded output
Up to 1080p 60
Supports Baseline, Main and High
2.0, 3.0, 3.1, 4.0 and 4.1 level support
Audio Encoding Parameters
32kbps - 256kbps
32, 44.1 and 48kHz 2-Channel stereo
MPEG-4 AAC-LC
Protocols
RTMP, RTSP/RTP, Unicast and Multi Unicast (3-10 Clients)
Storage
1x USB 2.0 slot, (Can be NTFS 3.1 or FAT32)
1x SD Card slot, SD and SDHC cards (NTFS 3.1)
Mounted Network Share
Video Input Digital
1x 3G-SDI, SMPTE-259/292/296/424, 10-bit
Single Link 4:2:2, 4:4:4 (1x BNC)
1x HDMI Standard Type A connector
HDMI v1.4a, RGB or YCbCr
Video Output Digital
1x 3G-SDI, SMPTE-292/296/424, 10-bit
Single Link 4:2:2 or 4:4:4 (1x BNC)
1x HDMI Standard Type A connector
HDMI v1.4a, RGB or YCbCr
Audio Input Digital
2-Channel, 24-bIt'sDI embedded audio, 48kHz sample rate, synchronous
2-Channel, 24-bit HDMI embedded audio, 48kHz sample rate, synchronous
Audio Input Analog
2-Channel, Analog (Line Level, Unbalanced stereo 1x 3.5mm TRS connector)
Audio Output Digital
2-Channel, 24-bIt'sDI embedded audio, 48kHz sample rate, synchronous
2-Channel, 24-bit HDMI embedded audio, 48kHz sample rate, synchronous
Audio Output Analog
2-Channel, Analog (Line Level, Unbalanced stereo 1x 3.5mm TRS connector)
Network Interface
10/100/1000 Ethernet (RJ-45)
Embedded web server for Configuration and Control
User Interface
Stream Button
Record Button
Web UI
Simple Web Configuration via AJA eMini-Setup (OSX and PC)
Environment
Operating Temperature: 32°F - 104°F (0°C - 40°C)
Operating Relative Humidity: 10 - 90% noncondensing
Operating Altitude: <10,000ft (<3,000m)
Safe Storage Temperature (Power OFF): -40°F - 140°F (-40°C - 60°C)
Dimensions
Size (WxDxH): 7.00" x 4.66" x 1.02" (177.8mm x 139.8mm x 25.8mm)
Weight: 0.8lbs (0.4kg)
Power: 100 - 240V, 50/60Hz Universal Input, +5 - 20V DC 13W Max
Warranty
3 Years
