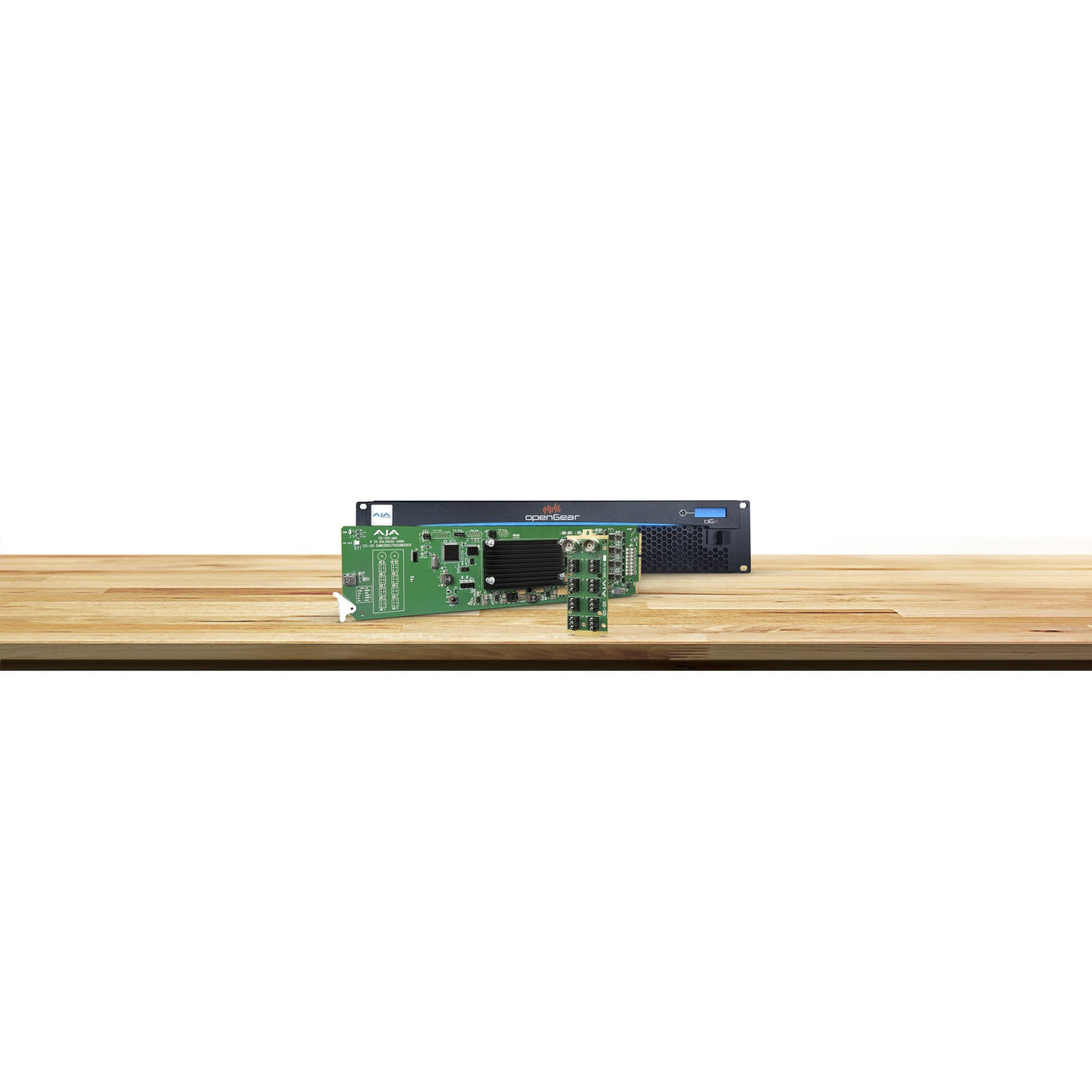

AJA OG-12G-AMA openGear 12G-SDI Analog Audio Embedder/Disembedder with Rear Module

AJA OG-12G-AMA openGear 12G-SDI Analog Audio Embedder/Disembedder with Rear Module

The AJA OG-12G-AMA is an openGear 8-channel analog audio embedder/disembedder, that supports 12G-SDI input and output up to 4K/UltraHD, and automatically detects and configures to the input video standard. It uses 3-pin terminal block connectors that can be set to perform audio input or output functionality.

Analog audio levels and audio embedding/disembedding are selectable, with embedding/disembedding on a channel pair basis to pass 12G-SDI input audio or embed input analog audio from 3-pin terminal block connectors.

Designed for use in high density openGear 2RU frames, including AJA’s OG-X-FR frame. Ross DashBoard Software supports Windows, macOS, and Linux and provides convenient, configuration, monitoring, and control options for openGear cards and frames via a connected computer or over local network with DashBoard's web UI.

Key Features

• 12G-SDI analog audio embedder/embedder
• 8-channel balanced analog audio I/O
• 8x 3-Pin Terminal Block connectors (included)
• Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
• Monitor and control with Ross DashBoard software
• 8 watts max per card

Technical Specifications

Video Formats
4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920x1080i 50, 59.94, 60
(HD) 1280x720p 50, 59.94, 60
(SD) 625i 50
(SD) 525i 59.94
RGB and YCbCr, 4:4:4/4:2:2, 10-bit
Video Input Digital
1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082, Single Link SD/HD/2K/UltraHD/4K, Single Link 3G-SDI Level A, B DL, or B DS, SMPTE 425
Video Output Digital
1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082, Single Link SD/HD/2K/UltraHD/4K, Single Link 3G-SDI Level A, B DL, or B DS, SMPTE 425
Audio Inputs and Outputs
8x Analog Audio Connections (4 pairs total), Each pair configurable to Inputs or Outputs
Digital Audio Converters
24-Bit
Embedded Audio
SMPTE 272M (SD): 20-bit, 48 kHz synchronous, SMPTE 299M (12G/6G/3G/1.5G): 24-bit, 48 kHz synchronous, Incoming embedded audio can be passed, removed, or overridden, Up to 16-channels supported
Analog Audio Levels
Configured via Mini-Config software: Pro 1: 0 dBfs = +24 dBu, Pro 2: 0 dBfs = +18 dBu, Pro 3: 0 dBfs = +15 dBu, Consumer 1: 0 dBfs = +12 dBu
Power
0.5 lb (0.3 kg)
Item Includes
1x AJA OG-12G-AMA
Warranty
5-Year Warranty
