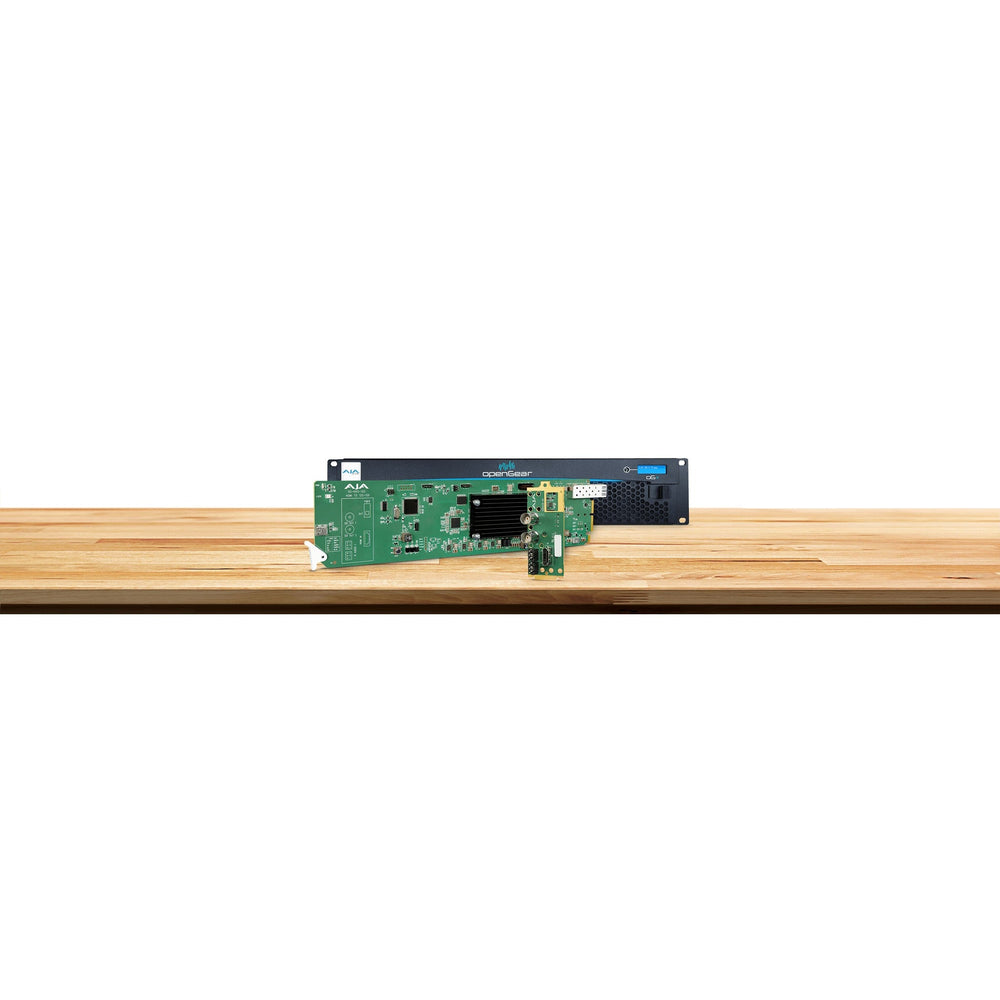

AJA OG-HA5-12G openGear HDMI 2.0 to 12G-SDI Conversion with Rear Module

AJA OG-HA5-12G openGear HDMI 2.0 to 12G-SDI Conversion with Rear Module

The AJA OG-HA5-12G converts an HDMI 2.0 input to 12G-SDI for 4K/UltraHD single link outputs. OG-HA5-12G includes two 12G-SDI distribution amplifier outputs with 8 or 2-channels of embedded audio from an HDMI source.

OG-HA5-12G also supports Extended Display Identification Data (EDID) emulation, which ensures the connected source continuously supplies custom preferred video formats on output.

OG-HA5-12G-T and OG-HA5-12G-T-ST Fiber SFP equipped models are single channel transmitters capable of extending HDMI 4K/UltraHD signals over long distances, up to 10km over a single LC or ST Fiber link, respectively. These models ship with SFPs installed and include all functionality of the OG-HA5-12G, with the added benefit of extending audio and video signals further.

Key Features

• Convert HDMI 2.0 to 4K/UltraHD 60 fps to 12G-SDI with a second mirrored output
• Supports up to 60p input at 4:4:4/4:2:2/4:2:0
• Supports 12-bit workflows
• EDID LFR & HFR Emulation up to UltraHD 60p
• Real time HDMI HDR Infoframe data reporting
• HDR signaling metadata pass-through and optional override
• Simple Frame Rate Conversion (FRC) between Fractional and Integer rates
• Embedded audio can be selected from the HDMI or Analog audio inputs
• Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC)
• Monitor and control via Ross DashBoard software
• 14 watts max per card

Technical Specifications

Video Formats
(4K) 4096x2160p
(UltraHD) 3840x2160p
(2K) 2048x1080p
(HD) 1920x1080p
(HD) 1920x1080i
(HD) 1280x720p
(SD) 720x576p
(SD) 720x576i
(SD) 720x480p
(SD) 720x480i
Video Input Digital
1x HDMI Type A connector, HDMI v2.0
HDR Infoframe decoder as defined in CTA-861.3 and HDMI v2.0b
HDR VPID generation with pass-through or override for Colorimetry and Transfer Characteristic
YCbCr 4:2:2/4:4:4/4:2:0
RGB 4:4:4, SMPTE or Full level
8, 10, or 12-bit (HFR 4K/UltraHD 4:4:4 limited to 8-bit)
(4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920x1080i 50, 59.94, 60
(HD) 1280x720p 50, 59.94, 60
(SD) 720x576i 25
(SD) 720x480i 29.97
Video Output Digital
1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
YCbCr 4:2:2/4:4:4
RGB 4:4:4, SMPTE or Full level
10-bit, 12-bit*
1x 12G-SDI
(4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30
(UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30,50, 59.94, 60
(Ultra HD) 3840x2160PsF 23.98, 24, 25, 29.97, 30
1x 6 Gb SDI DL
(4K) 4096x2160p 23.98, 24, 25, 29.97, 30
(4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30
(UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
(Ultra HD) 3840x2160PsF 23.98, 24, 25, 29.97, 30
1x 3 Gb SDI (Level A or B DL)
(2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920x1080i 50, 59.94, 60
(HD) 1280x720p** 50, 59.94, 60
1x 1.5 Gb SDI
(2K) 2048x1080p 23.98, 24, 25, 29.97, 30
(2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920x1080p 23.98, 24, 25, 29.97, 30
(HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920x1080i 50, 59.94, 60
(HD) 1280x720p 50, 59.94, 60
1x 270 Mb SDI
(SD) 625i 50
(SD) 525i 59.94
Power: openGear frame compatible, 14.0 watts max per card
Item Includes
1x AJA OG-HA5-12G
Warranty
5-Year Warranty
