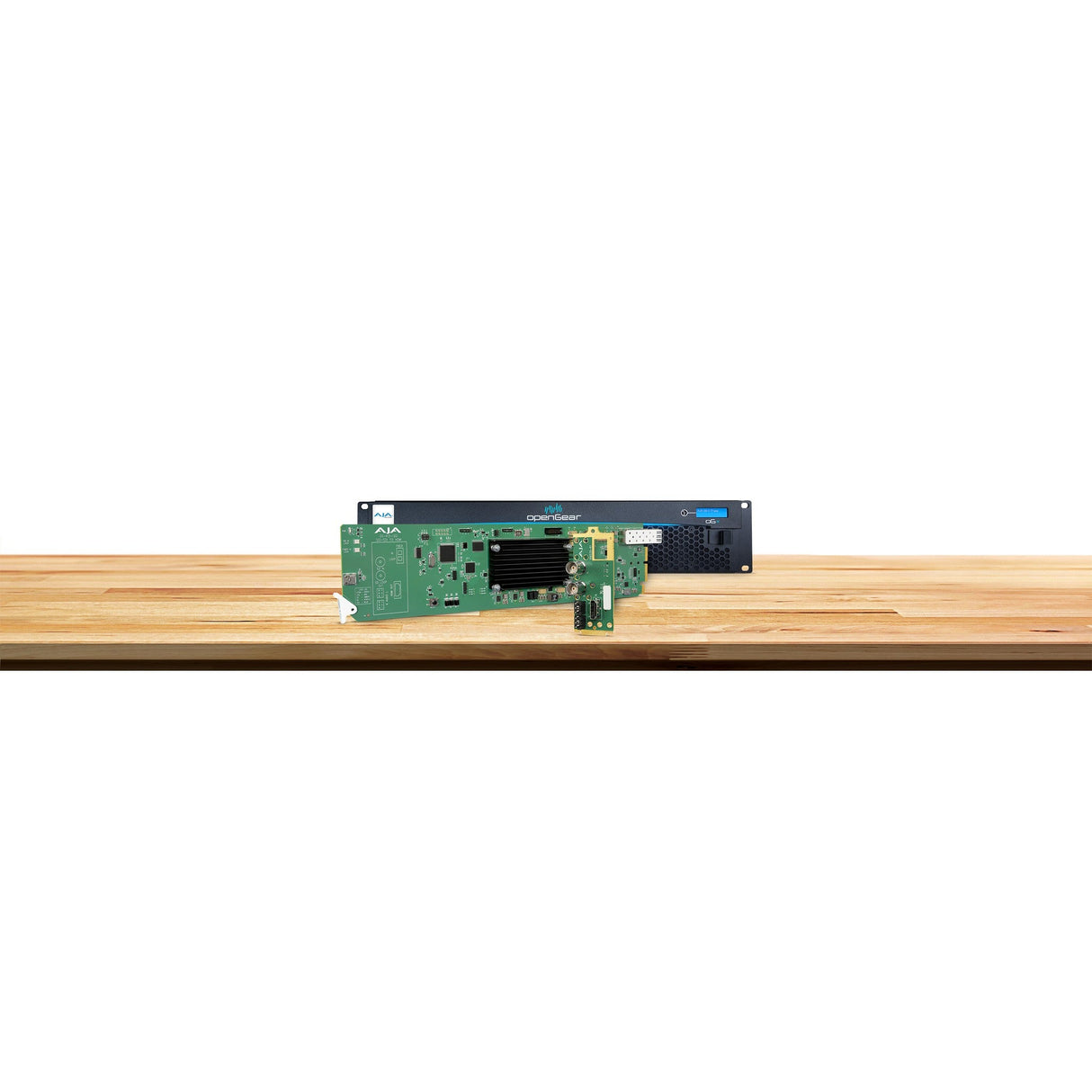

The AJA OG-Hi5-12G converts 12G-SDI to HDMI 2.0, with pristine image fidelity and HFR support up to 60p for 4K/UltraHD, in the popular openGear form factor. The OG-Hi5-12G provides an easy to deploy monitoring connection from professional 4K 12G-SDI devices to devices with HDMI 2.0 inputs. The OG-Hi5-12G can also generate HDR metadata in accordance with HDMI v2.0 and CTA-861-G.

It features a 12G-SDI single link input with a reclocked SDI loop out for SDI monitoring or pass on for SDI pipelines.

Fiber SFP-equipped OG-Hi5-12G models are available, including the OG-Hi5-12G-R receiver, which can receive 4K signals over long distances from a Fiber connected source, and the OG-Hi5-12G-TR transceiver, which delivers a 4K/UltraHD SDI or Fiber source signal to an HDMI destination with pass on of the source through SDI or Fiber to a secondary destination. The Video Source Auto Switch Over feature (SDI and Optical Inputs) in OG-Hi5-12G-R and OG-Hi5-12G-TR provides automatic input changeover with configurable Switch Over Priority selection (Last Valid Input, Priority SDI, and Priority Optical).

Key Features

• Convert 12G-SDI to HDMI 2.0 at up to 4K 60p
• Support for 4:4:4/4:2:2/4:2:0 HDMI 2.0 output
• Supports 12-bit workflows
• HDR signaling metadata pass-through and optional override
• Embedded audio support 8-channel 24-bit
• Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC)
• 12G-SDI loop out
• Fiber SFP models available
• Monitor and control via Ross DashBoard software
• 13 watts max per card

Technical Specifications

Video Formats
(4K) 4096x2160p
(UltraHD) 3840x2160p
(2K) 2048x1080p
(HD) 1920x1080p
(HD) 1920x1080i
(HD) 1280x720p
(SD) 720x576i
(SD) 720x480i
Video Input Digital
1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
YCbCr 4:2:2/4:4:4
RGB 4:4:4, SMPTE or Full level
8, 10, 12-bit
Two Sample Interleave (2SI) 4K/UltraHD source mapping
1x 12 Gb SDI
(4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1x 6 Gb SDI
(4K) 4096x2160p 23.98, 24, 25, 29.97, 30
(UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
1x 3 Gb SDI (Level A or B DL)
(2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920x1080i 50, 59.94, 60
(HD) 1280x720p* 50, 59.94, 60
1x 1.5 Gb SDI
(2K) 2048x1080p 23.98, 24, 25, 29.97, 30
(2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920x1080p 23.98, 24, 25, 29.97, 30
(HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920x1080i 50, 59.94, 60
(HD) 1280x720p 50, 59.94, 60
1x 270 Mb SDI
(SD) 625i 50
(SD) 525i 59.94
Video Output Digital
1x HDMI Type A connector*, HDMI v2.0b
HDR infoframe generation with pass-through or override for Colorimetry and Transfer Characteristic
YCbCr 4:2:2/4:4:4/4:2:0
RGB 4:4:4, SMPTE or Full level
8, 10, 12-bit (HFR 4K/UltraHD 4:4:4 limited to 8-bit)
(4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920x1080i 50, 59.94, 60
(HD) 1280x720p 50, 59.94, 60
(SD) 720x576i 50
(SD) 720x480i 59.94
Item Includes
1x AJA OG-Hi5-12G
Warranty
5-Year Warranty
