AKG HT470 D5 BD8 50mW | Professional Wireless Handheld Transmitter

AKG HT470 D5 BD8 50mW Professional Wireless Handheld Transmitter

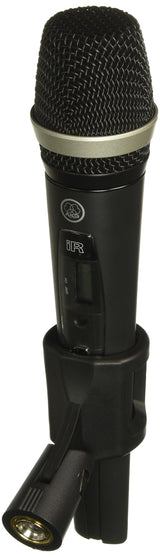

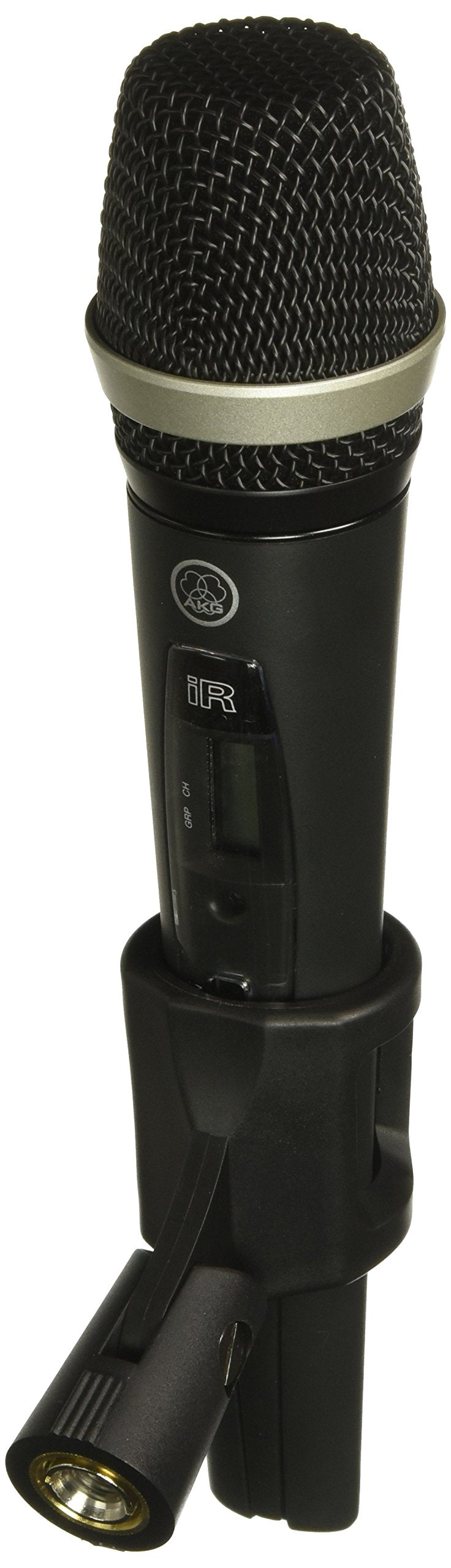

The rugged HT470 is an analog professional wireless handheld transmitter with pilot tone transmission to prevent unexpected startup noise. It continuously sends transmitter data, including low-battery information, to the receiver. An infrared data link in conjunction with the automatic frequency setup makes the HT470 extremely simple to use. The unique dipole-antenna design ensures reliable transmission even when one pole of the antenna is covered completely by the user's hand.
An enhanced battery identification automatically detects the used battery type and allows up to 14 hours of operation on one AA-size battery. The display shows the remaining operating time in hours.

Key Features

• Pilot Tone transmission
• Leading edge dipole-antenna design
• Infrared synchronization
• Up to 50mW transmission power
• Integrated charging contacts
• Band 8(570 - 600 MHz)
• D5 Dynamic

Technical Specification

Audio
Audio frequency bandwidth: 35 to 20000 Hz
Signal to Noise: 120 dB-A
THD at 1 kHz: 0.7 Prozent
Miscellaneous
Operating temperature range: -10 to 55 Celsius
Peak deviation: 48 kHz kHz
Radio
Switching bandwidth: 30 MHz
Recommended simultaneous channels: 24
Number of selectable frequencies: 1220 (selectable in 25kHz steps)
Frequency Selection: Selectable frequency in 25kHz steps
Wireless channels within device Radio range (Line of sight): 100m (depending on antenna system)
Switchable RF power: no
Modulation Pilot Tone: yes
Transmitter
Nominal deviation: 20 kHz kHz
Radio Output Power (min/max): 10 to 50 mW
Microphone head versions: C5
Interchangeable Microphone Head: no
