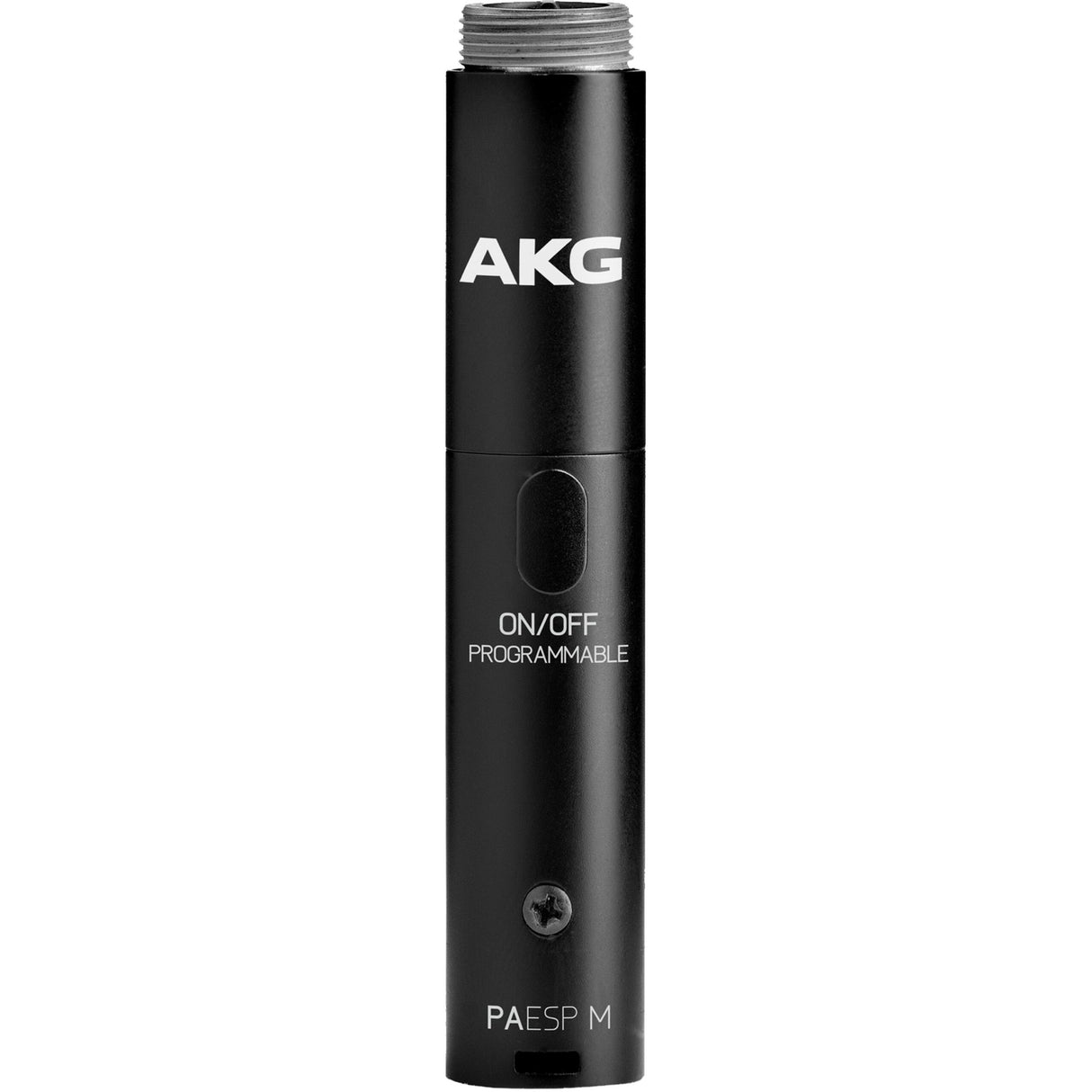

AKG PAESP M DAM+ Series Reference Phantom Power Module
Description
Description
AKG PAESP M DAM+ Series Reference Phantom Power Module
The DAM+ Series PAESP M is a programmable phantom power module for fixed and mobile installation. With its wide voltage range the module will fit most available microphone mixers. It comes with a unique BCD (binary coded decimal) switch to recall one of the operating modes. Several functions can be adjusted, e.g. bass roll off, LED ring mode (on, off, follow mic function) as well as the mic switch mode (push to mute, push to talk, push on - push off). The PAESP M features a completely noiseless microphone switch. Rather than actually disconnecting the signal, it reduces the level by 26dB, thus avoiding the irritating crackling sound when phantom powering is interrupted. The switch is inconspicuously placed but easily accessible for simple handling even by inexperienced talkers. The integrated system connector with gold-plated contacts securely fits all available mounting modules of the DAM+ Series.
Key Features
- Programmable on/mute/off switch
- Selectable operating modes
- RFi Shield technology
- Accepts 9-52 V input
- Feeds all Modular Plus Series capsules
Technical Specifications
Audio frequency bandwidth
20 - 20000 Hz
Bass cut filter
150 Hz
Electrical impedance
< 600 Ohms
Recommended load impedance
> 2000 Ohms
Powering Interface
Voltage
9 to 52 V
Current
4 mA
Dimensions
Height
100.5 mm (3.96 in)
Diameter
19.1 mm (0.75 in)
Net Weight
63 g (2.22 oz)
Audio Output
Type
Balanced XLR
Gender
Male
Contacts
3-pin
