Allen & Heath ZED-22FX | 16 Mono 4 Stereo Channel Neutrik XLR Mic 1/4 Inch FX Mixer
Allen & Heath ZED-22FX | 16 Mono 4 Stereo Channel Neutrik XLR Mic 1/4 Inch FX Mixer is backordered. Please call for ETA 877-779-8964
Condition: New
Description
Description

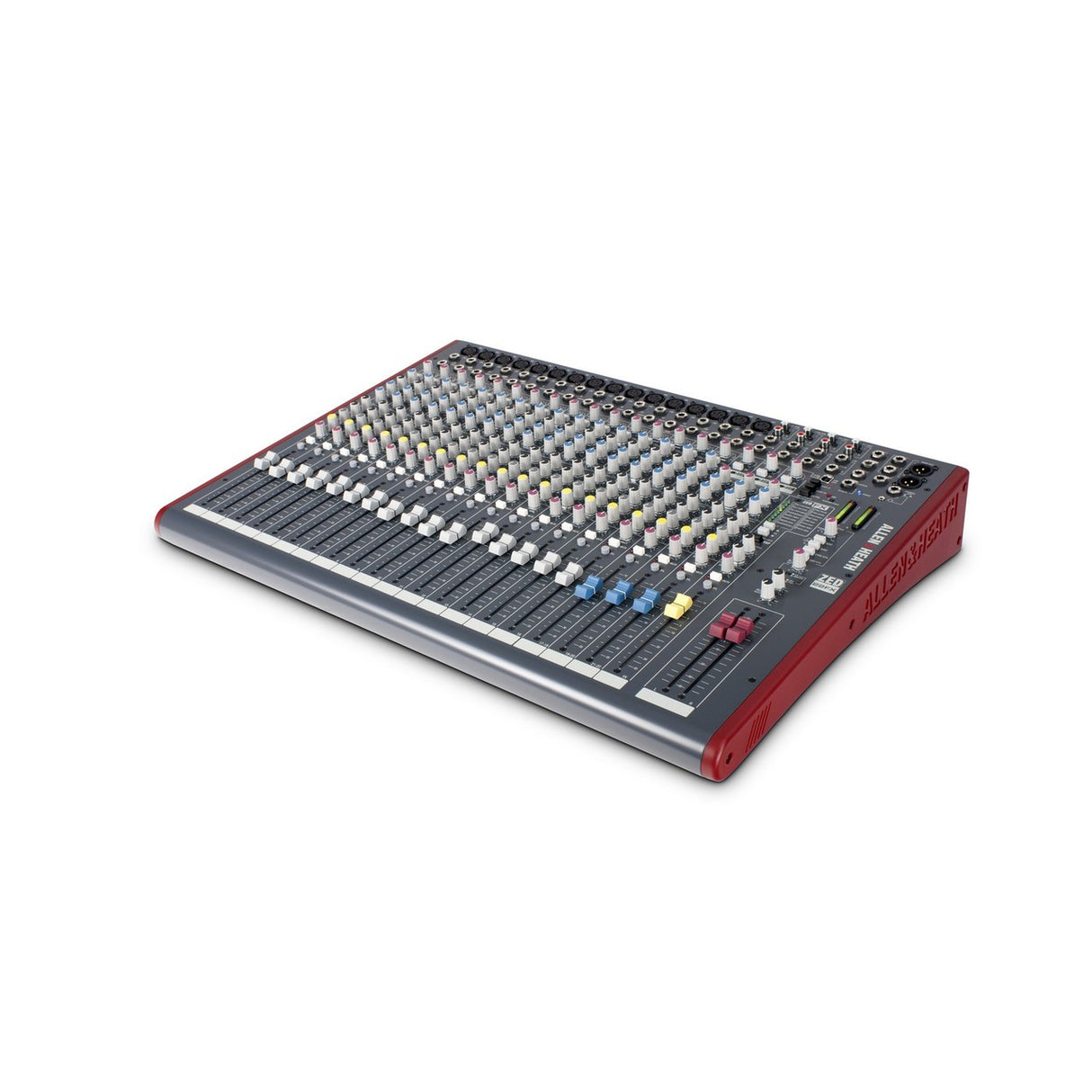

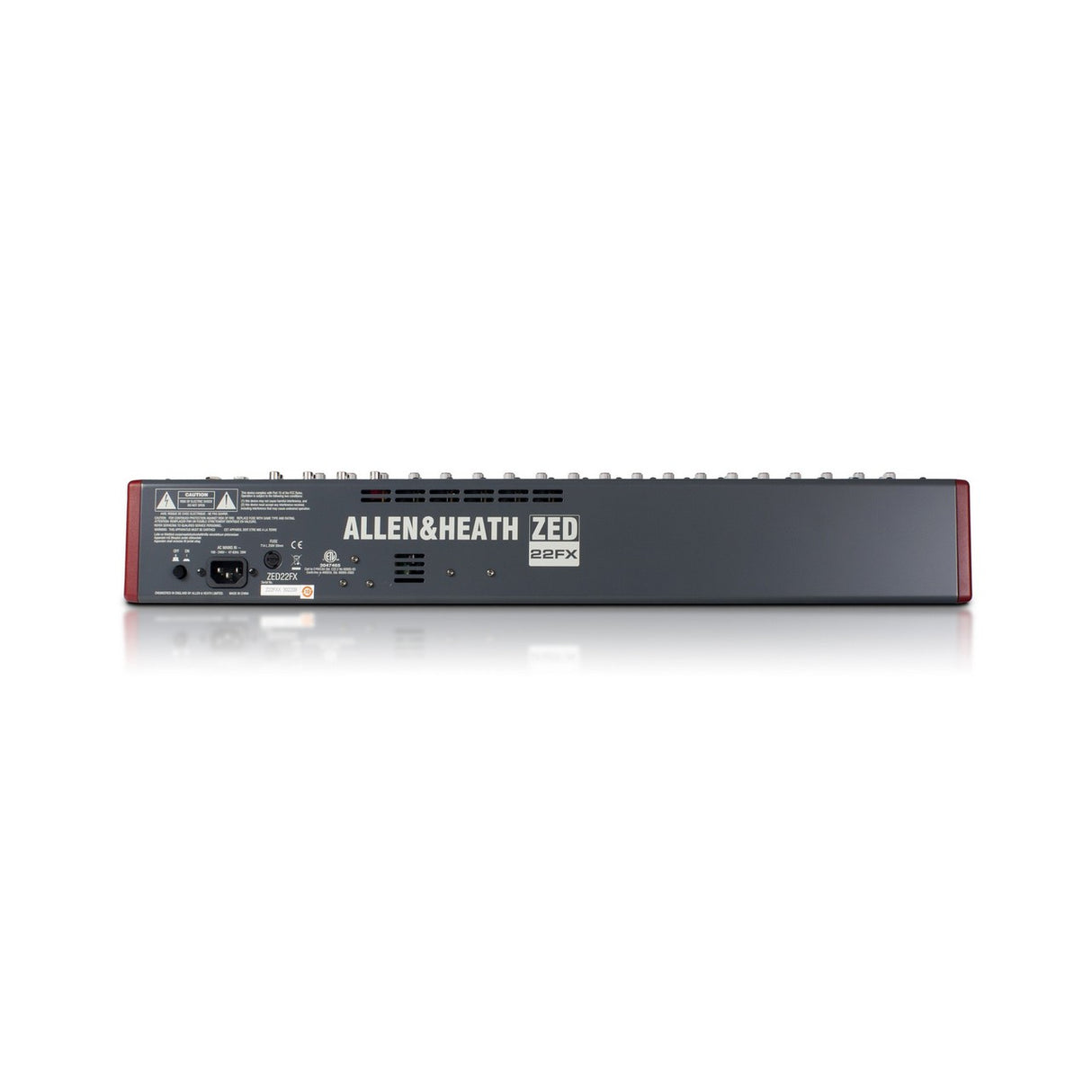

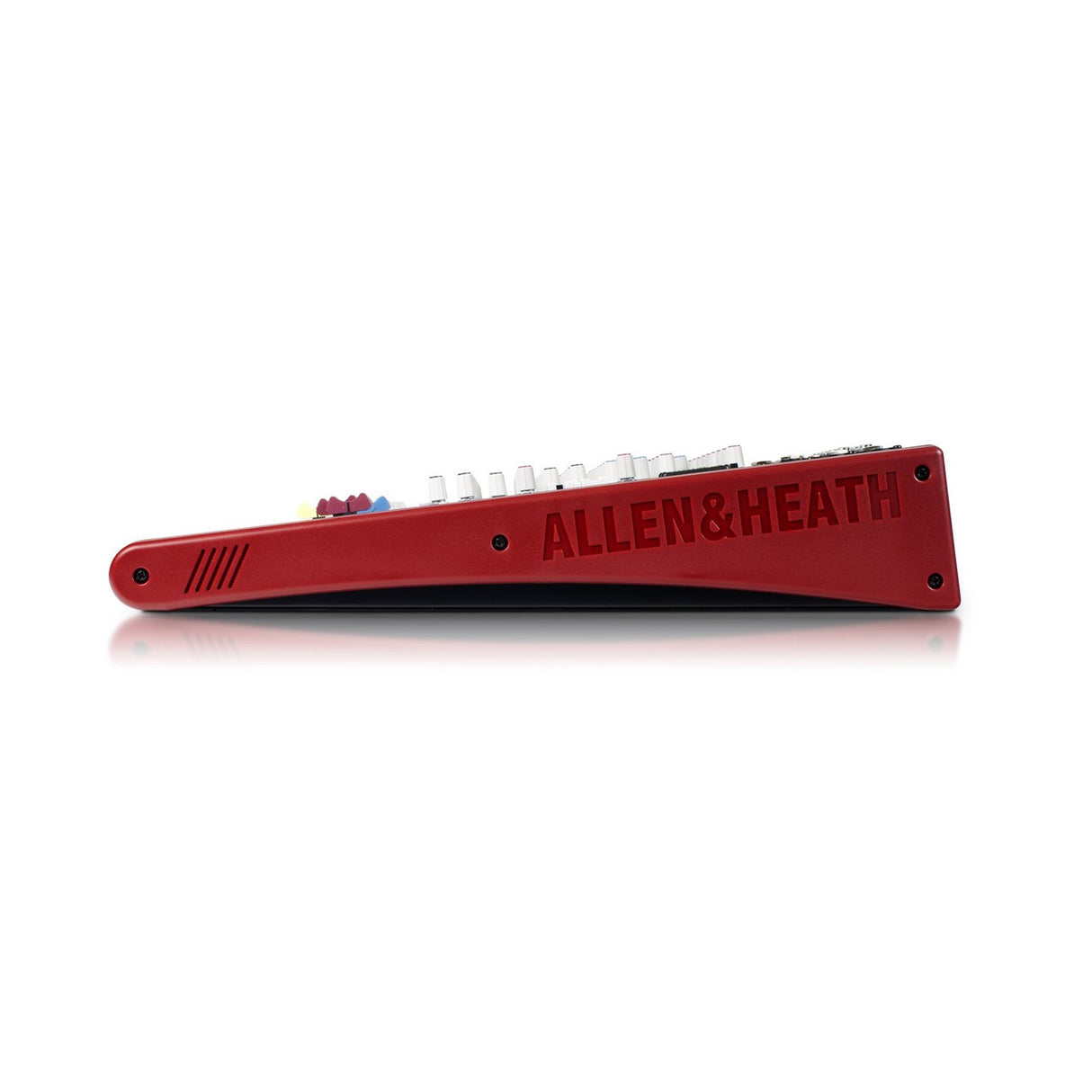

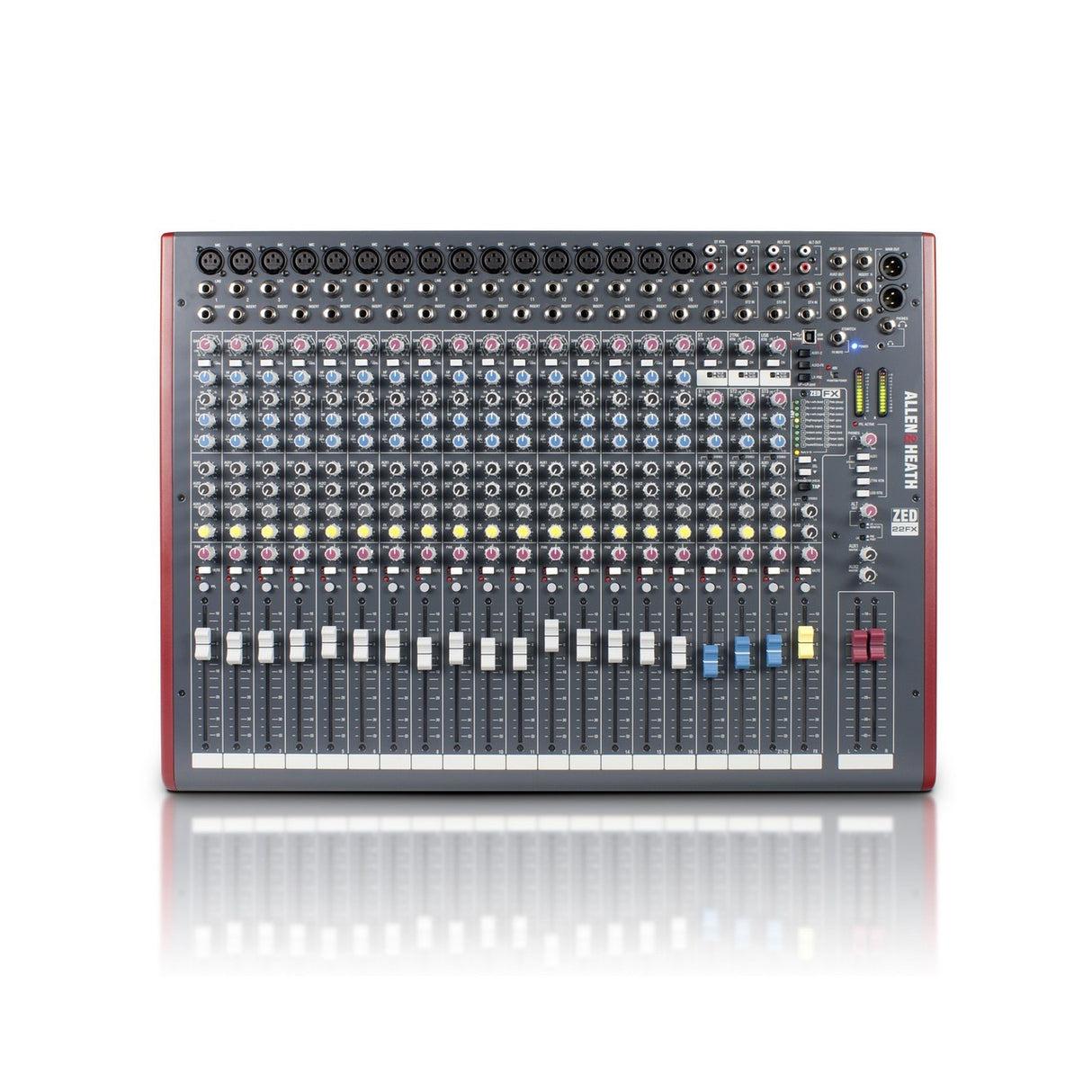

Allen & Heath ZED-22FX 16 Mono 4 Stereo Channel Neutrik XLR Mic 1/4 Inch FX Mixer
ZED-22FX is ideal for groups who need to travel light. Featuring configurable USB audio in/out makes it easy to capture stereo recordings.
The ZED-22FX easily accommodates vocals, drums, guitar, bass and keys whilst also providing a dedicated FX bus and 16 internal time-delay effects giving the whole mix extra ambience.
Key Features
- 16 mono channels
- 16 internal time-delay effects
- Neutrik mic XLR
- Neutrik 1/4 inch jacks
- Channel insert
- Super wide gain DuoPre mic line input
- 3 band EQ with MusiQ
- 2 pre-fade Aux sends
- 1 post-fade Aux send
- 1 internal FX send
- Illuminated mute
- Sound image pan
- Illuminated PFL & peak warning indicator
- ALPS 100mm faders
- 4 stereo channels with 2-band EQ and inputs for extra sources
- Stereo returns & playback
- All inputs with level control
- 12 bar meters
- Mono/stereo function on auxes 1&2
- Monitor output section
- Alt stereo output source
- Configurable USB stereo audio in/out
- Cakewalk SONAR LE bundled with mixer
Technical Specifications
Operating Levels
Input
Mono channel (XLR) Input:
+6 to -63dBu for nominal (+17dBu in max)
Mono channel Line Input (Jack socket):
+10 to -26dBu (+30dBu maximum)
Insert point (TRS Jack socket):
0dBu nominal +21dBu maximum
Stereo Input (Jack sockets):
0dBu nominal (control = Off to +10dB)
Stereo input (phono sockets):
0dBu nominal (control = Off to +10dB)
Output
L, R & Mono Outputs (L&R XLR, Mono Jack):
0dBu nominal. +21dBu maximum.
Aux Outputs (Jack sockets):
0dBu nominal. +21dBu maximum.
Alt Outputs (phono sockets):
0dBu nominal. +21dBu maximum.
Rec Outputs (phono sockets):
0dBu nominal. +21dBu maximum.
Frequency Response
Mic in to Mix L/R Out, 30dB gain:
+0.5/-1dB 20Hz to 20kHz.
Line in to Mix L/R out 0dB gain:
+0.5/-1dB 10Hz to 30kHz
Stereo in to Mix L/R out:
+0.5/-1dB 10Hz to 30kHz
THD+n
Mic in to Mix L/R Out, 0dB gain 1kHz +10dBu out:
0.004%
Mic in to Mix L/R Out, 30dB gain 1kHz:
0.014%
Line in to Mix L/R out 0dB gain 0dBu 1kHz:
0.005%
Stereo in to Mix L/R out 0dB gain +10dBu 1kHz:
0.003%
Headroom
Analogue Headroom from nominal (0Vu):
21dB
USB in & out headroom from nominal (0Vu):
14dB
USB Audio CODEC (Coder/Decoder)
USB Audio In/Out:
USB 1.1 compliant 16bit.
Sample Rate:
32, 44.1, or 48kHz
Noise
Mic Pre EIN @ max gain 150R input Z 22-22kHz:
-127dBu
Mix L/R out, L/R faders = 0, 22-22kHz ZED-12FX:
-88dBu
Mix L/R out, L/R faders = 0, 22-22kHz ZED-16FX:
-86dBu
Mix L/R out, L/R faders = 0, 22-22kHz ZED-22FX:
-84dBu
Width:
25.4 Inches
Height:
3.6 Inches
Length:
18.3 Inches
Unpacked Weight:
23.1 lb
Packed Weight:
33 lb
