American Audio Media Operator BT | All in One MP3 Wireless Media Player

American Audio Media Operator BT All in One MP3 Wireless Media Player

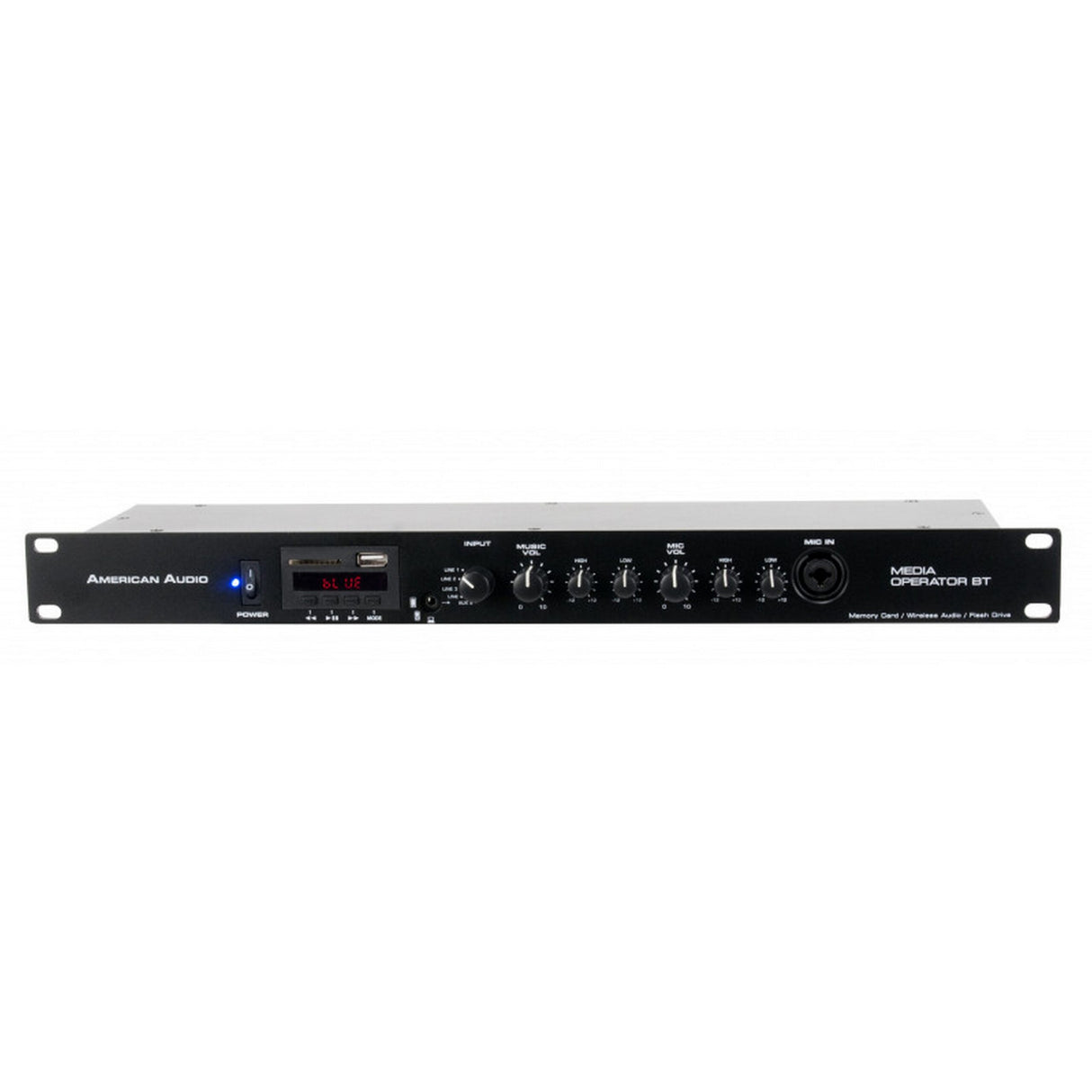

The American Audio, Media Operator BT is a fast, simple and reliable all-in-one MP3 media player designed for permanent installations where easy control of music is a must (ie. restaurants, fitness studios, retail locations, etc.) and great for mobile entertainers as well. The Media Operator BT offers digital playback from SD cards or USB sticks/drives.

The Media Operator BT includes full MP3 playback control as well as a microphone input (XLR / 1/4 inch combo), master volume control and 3x line output options. Plug the unit directly into powered speakers, an amplifier or secondary mixer through the balanced XLR, 1/4 inch or stereo RCA outputs.

Key Features

• SD Card* / USB 2.0 / full functioning MP3 Player *SD Card is not Included
• Track Time Display
• Track Search Buttons
• Easy-to-use
• Bright LCD Display
• Reads SD/SDHC cards up to 32GB
• Up to 1000 MP3 songs on a 1G SD Card** (MP3 recorded at 128bit rate**) **Capacity may vary
• 4x RCA line Inputs and 1x 35mm Auxiliary Jack Input

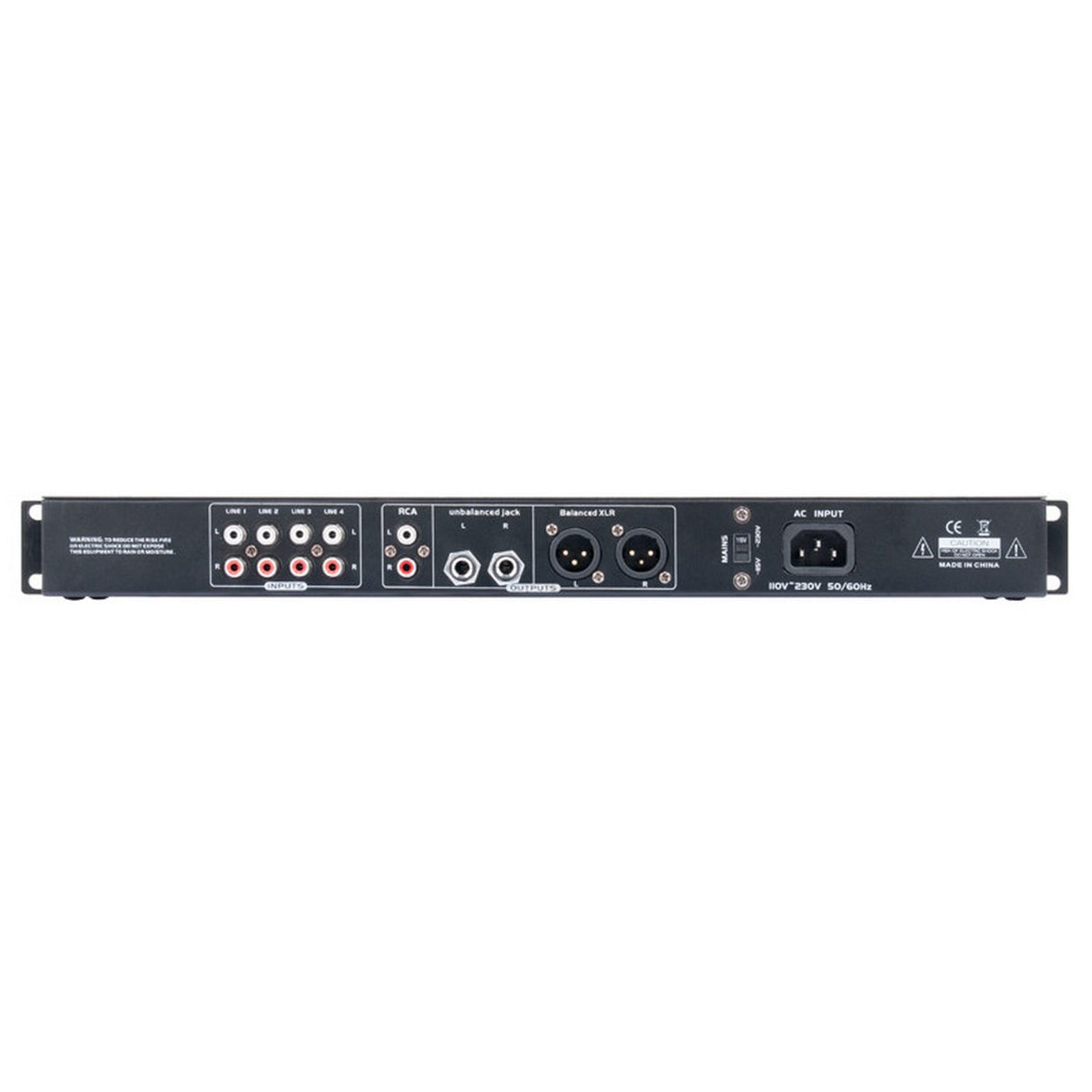

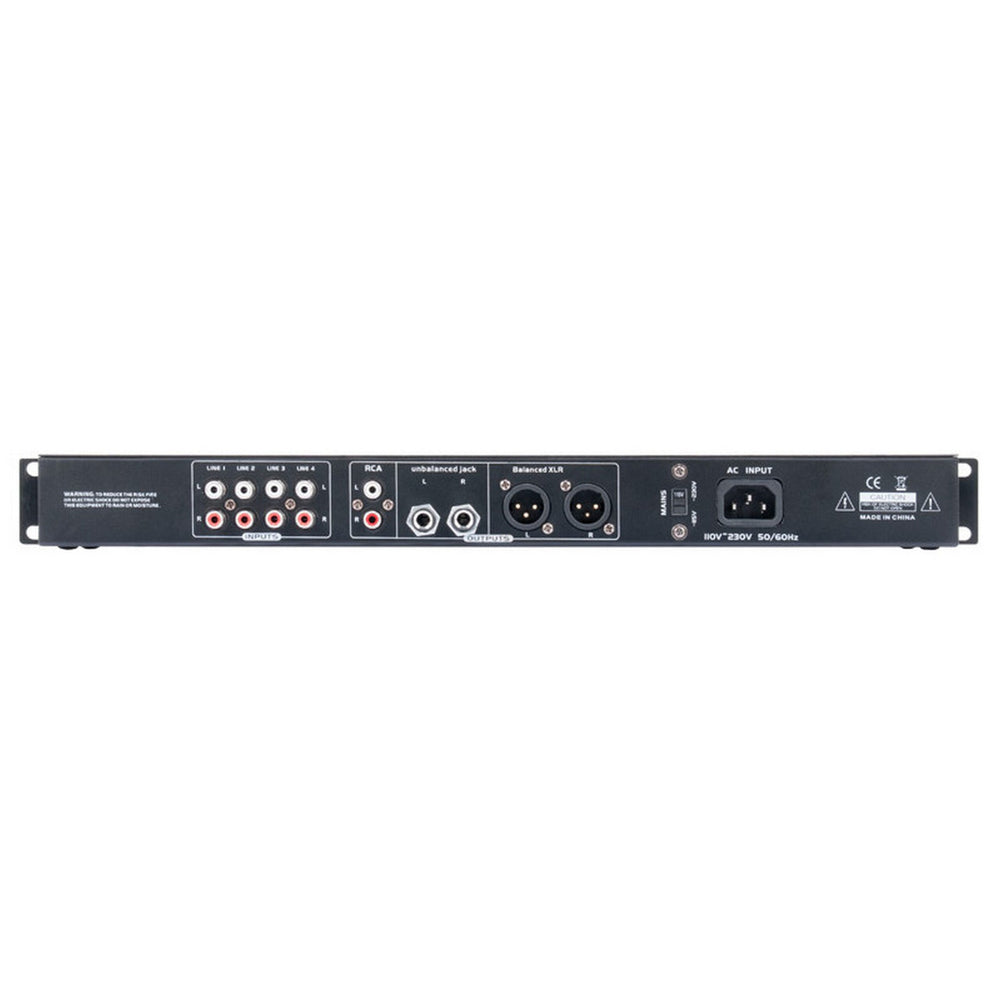

• 1x RCA, 1x L/R Unbalanced 1/4 inch Jack, 1x L/R Balanced XLR Outputs
• Master music output volume control
• Individual EQ Treble / EQ Bass control for Music
• Combo Mic input: 1/4 inch jack and XLR
• Master mic output volume control
• Individual EQ Treble / EQ Bass control for Mic

Technical Specifications

Frequency Response
20Hz-20kHz, +/-0.5 dB
Input Sensitivity
1V
(a-w rms) S/N Ratio
100dBA
THD(typical)
0.1%
(SMPTE)
0.1%
Input Impedance
20kHz (Balanced) 10kHz (Unbalanced)
Slew Rate
20V/US
Connection
RCA Jack XLR
Input Voltage
AC110-230V, 50Hz-60Hz
Dimensions (L x W x H)
19 x 4 x 1.75 in. / 483 x 193 x 44 mm (1 rack space)
Weight
4 lb. / 1.7 kg.
