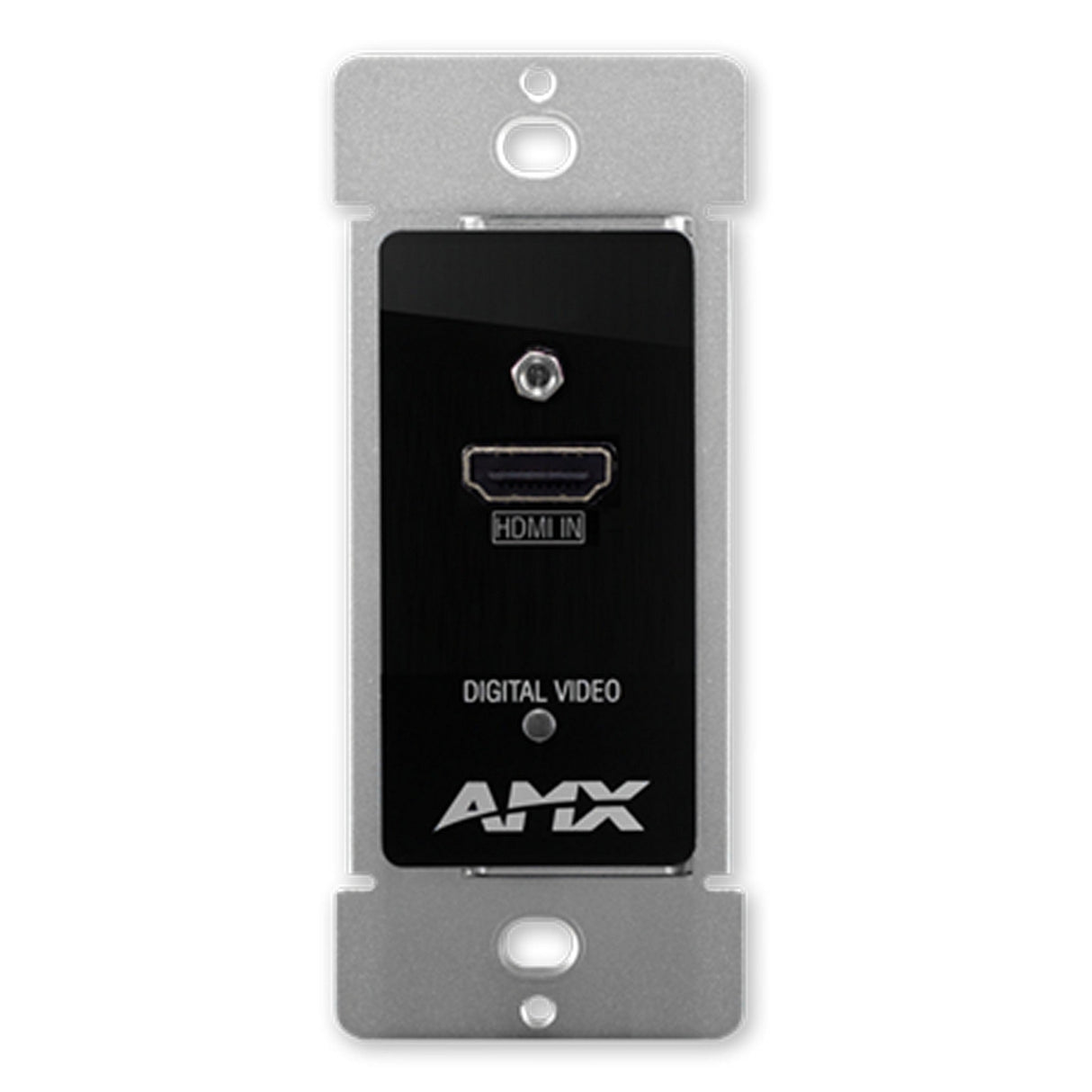

AMX DX-TX-DWP-4K-BL DXLink 4K HDMI Decor Style Wallplate Transmitters, Black

AMX DX-TX-DWP-4K-BL DXLink 4K HDMI Decor Style Wallplate Transmitters, Black

The DXLink 4K HDMI Decor Style Wallplate Transmitter sends HDMI/HDCP, along with embedded audio up to 80 meters over one shielded Cat6A or Cat7 standard twisted pair cable to an Enova DGX Digital Media Switcher.

Key Features

• 4K and Ultra High Definition (UHD) Support - Experience high-quality video resolution for 4K devices
• Only One Cable - Send audio and video over one twisted pair cable
• Send HDMI signals 80 meters - Extend the reach of the HDMI signals far beyond the capabilities of typical HDMI cabling
• Standard Twisted Pair Cable - Save time and effort in installation by leveraging cost effective twisted pair cable, see the Cabling for Success with DXLink white paper for more details
• Easy Installation - Mounts in standard decor style wallplates

Technical Specifications

Dimensions (HWD)
4 1/5” (10.67 cm) x 1 1/4” (3.23 cm) x 1 3/4” (4.45 cm)
Twisted Pair Cable Type & Length
Shielded Cat6A or Cat7; up to 262 ft. (80 m) for full 4K, 328 ft. (100 m) for 1080p and below
HDMI
Compatible Formats: HDMI, HDCP, DVI (DVI requires conversion cable)
HDMI Support
Progressive Resolution Support: 480p up to 4096 x 2160 @ 60 Hz* (*Y/Cb/Cr 4:2:0); Interlaced Resolution Support: 480i, 576i, 1080i; 4K Resolution Support: 3840 x 2160p @ 24/25/30 Hz up through 4096 x 2160p @ 60 Hz, 4:2:0*
HDMI Audio
Audio Format Support: Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM (Dolby Digital and DTS support up to 48 kHz, 5.1 channels)
FG Numbers
FG1010-330-BL (Black)
FG1010-330-WH (White)
