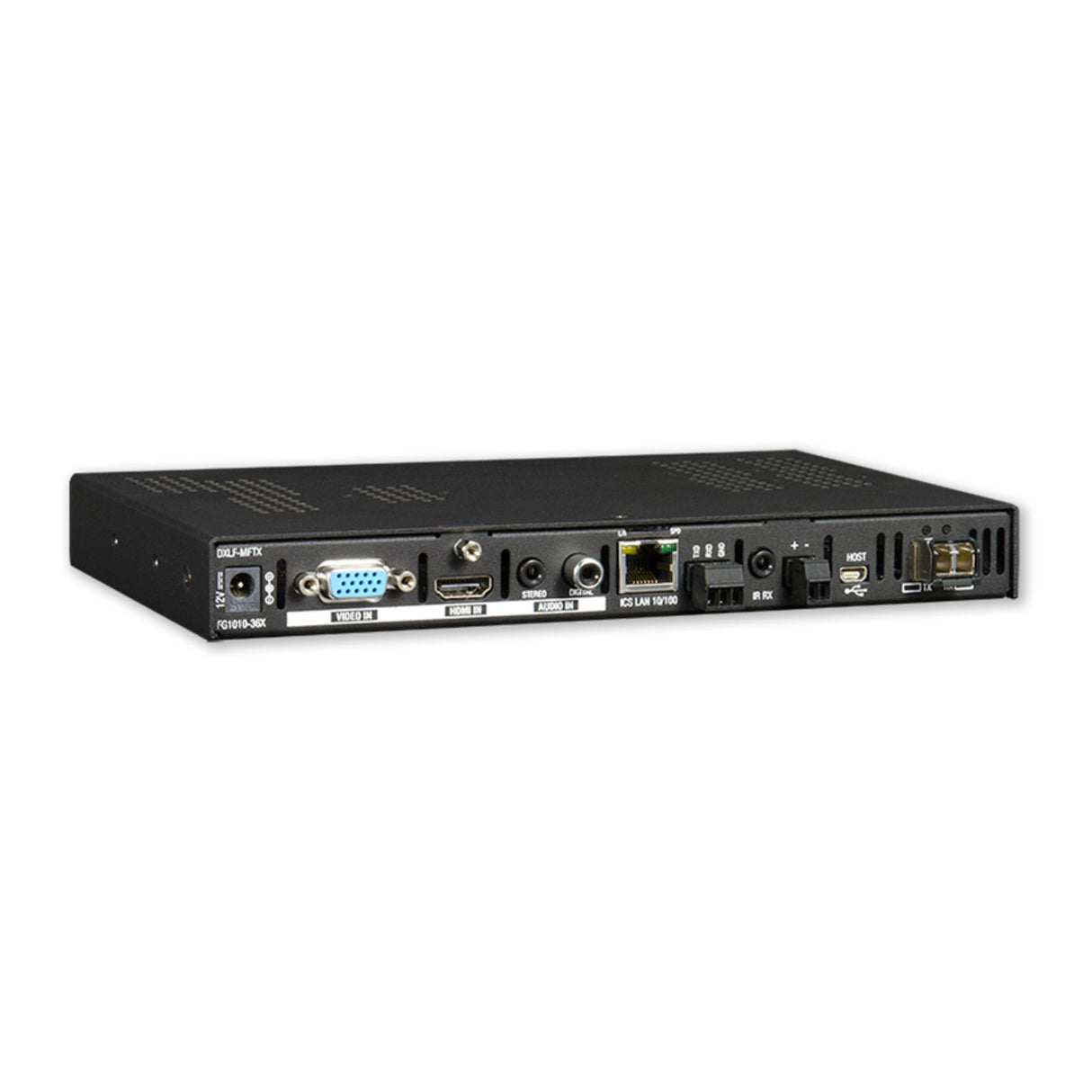

AMX DXF-TX-MMD DXLink Multi-Format Multimode Fiber Transmitter, Duplex

AMX DXF-TX-MMD DXLink Multi-Format Multimode Fiber Transmitter, Duplex

The DXLink Multi-Format Fiber Transmitter sends analog and digital audio and video signals including HDMI with HDCP up to 300 meters over multimode fiber. Use the DXLink Fiber Transmitter in conjunction with the Enova DGX 8, 16, 32 or 64 to transmit clear, uncompressed video at the fastest data rate in the industry - 10 Gbps. The DXF-TX-MMD also sends and receives control commands from the Enova DGX Digital Media Switcher with integrated NetLinx providing a total control and distribution solution to all end points.

Key Features

• HDCP Compliance Over Fiber - Transmit HDCP compliant video including HDMI up to 300 m
• Industry Leading Data Rate - DXLink is leading the way with an optical transport rate of 10 Gbps
• Secure and Isolated - Fiber inherently provides extra security and electrical isolation making it the transport method of choice for many mission-critical secure environments
• InstaGate Pro Technology - Easily integrate HDCP into system designs and enjoy hassle free matrix switching to all compliant displays, no tools, no delays and no key constraints - it just works
• Native NetLinx Control Everywhere - Control connected source devices using the built-in IR and RS-232 ports
• Field Serviceable Fiber Modules - Easily remove and replace SFP modules in the field
• Multi-Format Analog Port and HDMI Port - Supports legacy analog signals - RGBHV, Component, S-Video, and Composite, and digital HDMI/HDCP, DisplayPort and DVI signals
• Ethernet Connectivity - Provides ICSLan Ethernet support at the Transmitter - add Ethernet connectivity to a Touch Panel, plug in a WAP or stream IP audio/video to an Ethernet enabled source device

Technical Specifications

Dimensions (HWD)
1” x 8 3/4” x 5 1/5” (2.54 x 22.12 cm x 13.08 cm)
DxLink Fiber
Fiber Connector: LC Duplex conforming to ANSI TIA/EAI 604-10 (FOCIS 10A); Fiber Cable Type: OM3 50/125µm; Fiber Cable Length: 300m (984 ft)
USB (HID)
(1) USB Mini A/B Connector (“HOST”)
Front Connectors
Advanced Configuration Interface: (1) USB Mini-B Connector (“PROGRAM”); Local Loopback Output Connector: (1) HDMI Type A Female, non-scaling

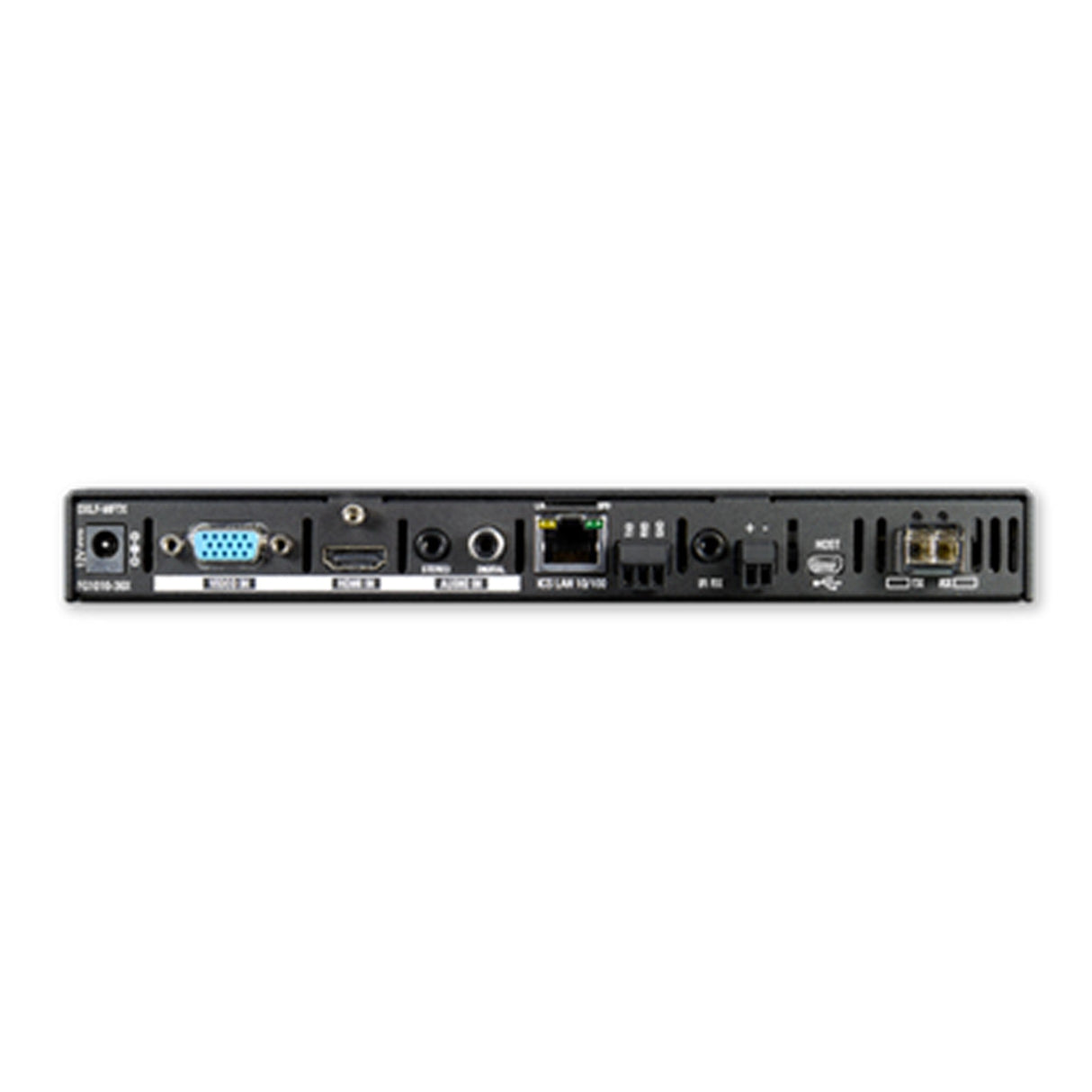

Back Connectors
Video Input: (1) HD-15 (RGBHV, RGBs, RGsB, Y/Pb/Pr, Y/c / S-Video, composite (breakout cable is required for RGB formats); HDMI Input: (1) HDMI Type A Female; Analog Stereo Input: (1) 3.5mm Mini-Stereo Jack; S/PDIF Digital Audio Input: (1) RCA Jack
HDMI
Compatible Formats: HDMI, HDCP, DVI
HDMI Support
Progressive Resolution Support: 480p up to 1920x1200 @ 60 Hz; Interlaced Resolution Support: 480i, 576i, 1080i; 3D Format Support: Yes
HDMI Audio
Audio Format Support: Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM, Dolby Digital and DTS support up to 48kHz, 5.1 channels; Audio Resolution: 16 bits to 24 bits
HDCP & DDC/EDID
HDCP Support: Supports AMX HDCP InstaGate Pro Technology When used with an Enova DGX Digital Media Switcher the key support is up to 16 sinks per output, independent of source device; DDC/EDID Support: Yes
Analog Video Compatible Formats
RGBHV, RGBs, RGsB, YPbPr (HDTV), Y/c (S-Video), C (Composite)
Analog Video Resolution Support
Progressive Resolution Support: 480p up to 1920x1200 @ 60 Hz; Interlaced Resolution Support: 480i, 576i, 1080i
Audio (Analog & Digital S/PDIF)
S/PDIF Audio Format Support: Dolby Digital, DTS, 2 CH L-PCM, Dolby Digital and DTS support up to 48kHz, 5.1 channels; S/PDIF Resolution: 16 to 24 bits
FG Numbers
FG1010-362
