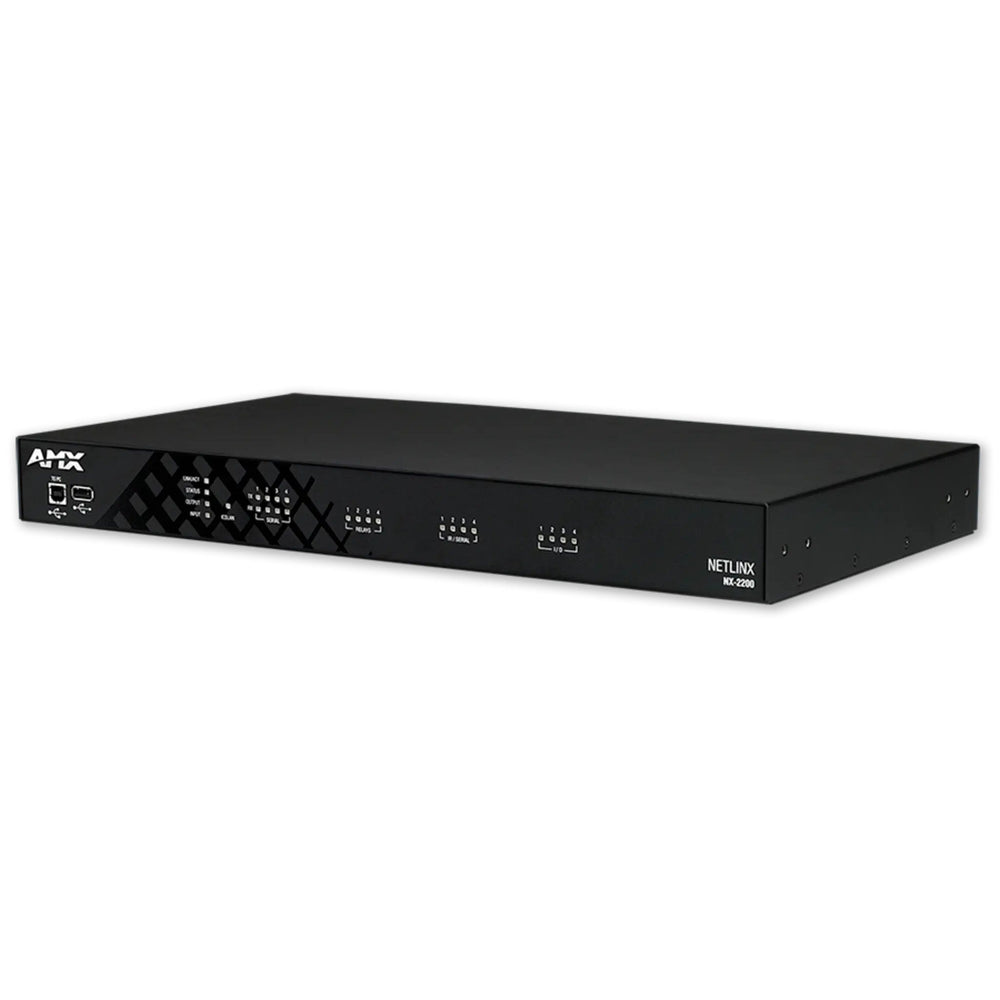

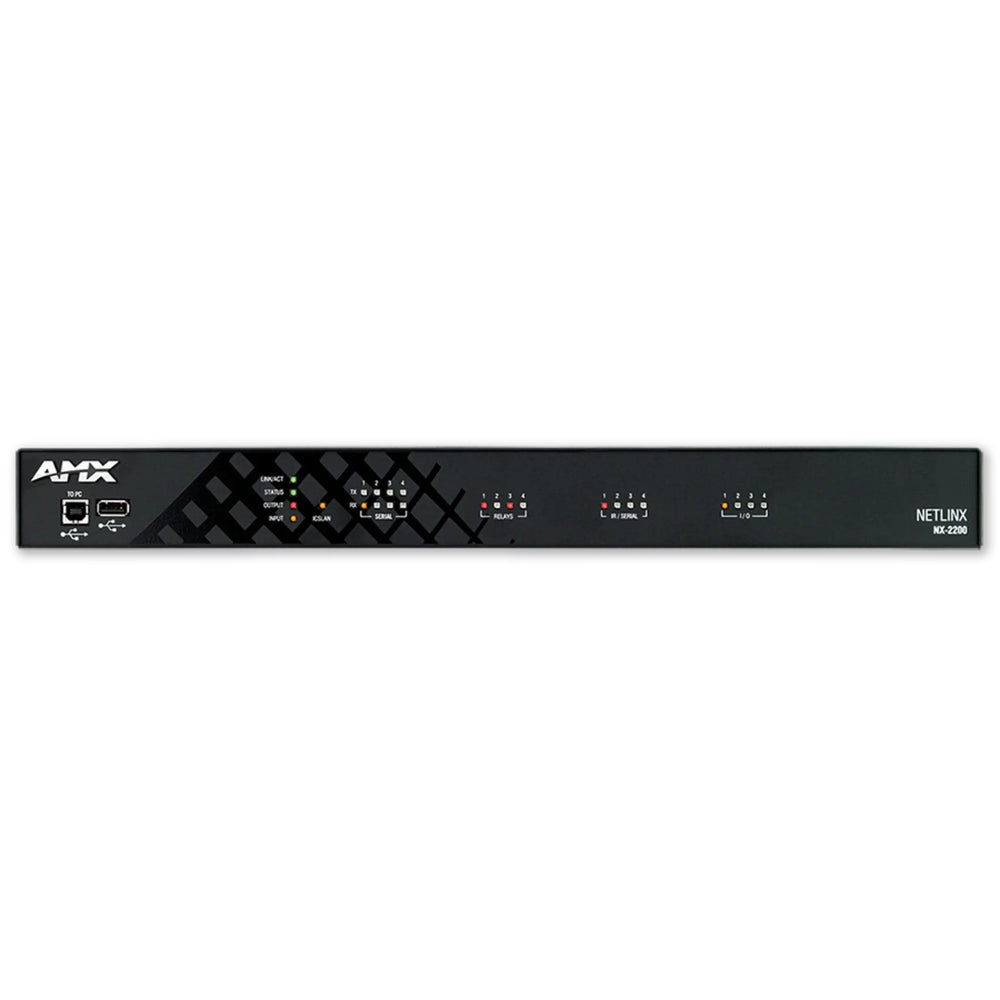

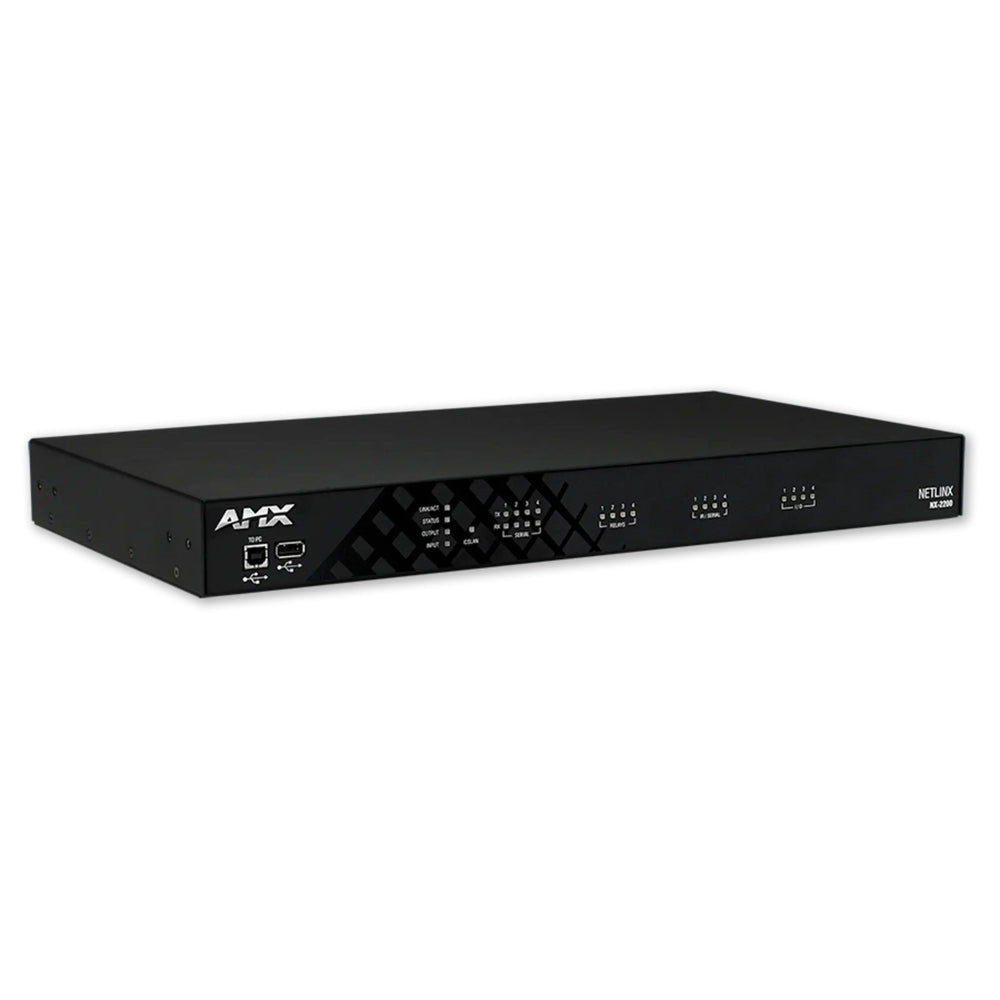

AMX NX-2200 NetLinx NX Integrated Controller

AMX NX-2200 NetLinx NX Integrated Controller

The NX-2200 / NetLinx NX Integrated Controller is a programmable network appliance specifically designed to control AV and building technology using multiple analog and digital formats. The NX-2200 provides a scalable platform for the future by combining high performance, backward compatibility and extensive network security features. The NX-2200 is ideal for control and automation of medium-sized rooms and multi-room applications, as it includes more ports and security capabilities than the NX-1200.

Key Features

• Dual NIC - The LAN port is used to connect the master to an external network, and the ICSLAN ports connect to AMX or third-party A/V equipment isolated from the primary network, providing rock-solid security
• IPv6 - Supports Internet Protocol version 6 (IPv6), the communications protocol that provides an identification and location system for computers on networks and routes traffic across the Internet
• IEEE 802.1X - Supports IEEE Standard for Port-based Network Access Control with the ability to grant or deny network access to devices wishing to attach to a LAN based on credentials tied to the device rather than to a user
• X.509 Certificate Services - NX supports customer-provided certificates for access to protected networks
• Full LDAP Integration - Supports multiple user-defined login groups for accessing the master, as well as provides an AMX programmer the capability to require network login to access certain areas of the touch panel
• High Performance Architecture, Flexible Programming Platform (RPM, NetLinx and Java) - Easily scalable to support a wide range of applications for today and tomorrow
• Full Line Compatible (Backwards and Cross-Compatibility) - Standardized port numbers and new configuration import/export tools mean fewer coding changes
• TLS / SSH Client - Provides NetLinx programmers the ability to manage secure port TLS and SSH communications with a remote device or server
• Cryptographic Support - In accordance with FIPS 140-2, a U.S. government computer security standard used to accredit cryptographic modules for the protection of sensitive or valuable data
• Network Syslog - Supports standard device logging to a syslog server
• Enhanced Diagnostics on Serial and IR Ports - Provides real time error feedback when Serial and IR ports are disconnected or improperly wired
• File Import / Export from USB Drive - Backup and restore configuration and program data and update firmware from a standard USB flash drive
• Hardware / Software Built for 24/7/365 Operation - Provides outstanding reliability and improved diagnostics
• Ultra-Fast 1600 MIPS processor
• 512 MB Onboard RAM
• 1 M Non-Volatile Memory
• 8 GB SDHC FLASH Memory
• 1 RU
• 1 AXLink Interface
• 1 10/100 LAN Interface
• 4 Digital I/O Ports
• 1 RS232/422/485 Port
• 3 RS232-Only Ports
• 4 IR/Serial Output Ports
• 4 Relay Ports

Technical Specifications

Dimensions (HWD)
1 4/5” x 17” x 9 1/8” (45.15 mm x 431.80 mm x 231.64 mm)
Weight
6.08 lb. (2.758 Kg)
Memory
Memory Card: 8 GB SD, NVRAM: 1 MB, DDRAM: 512 MB, Note: Supports external USB Solid State Drives
Power Consumption
Active Power Consumption: 4.2 W

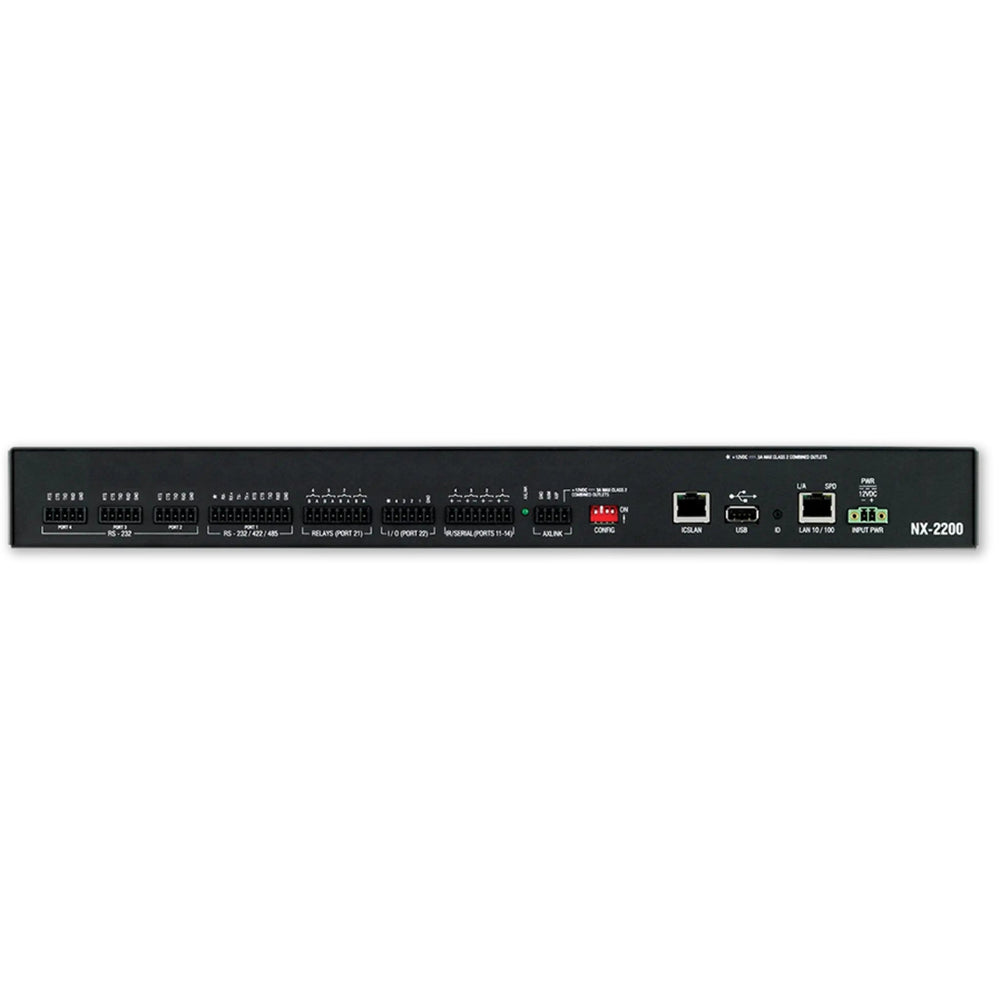

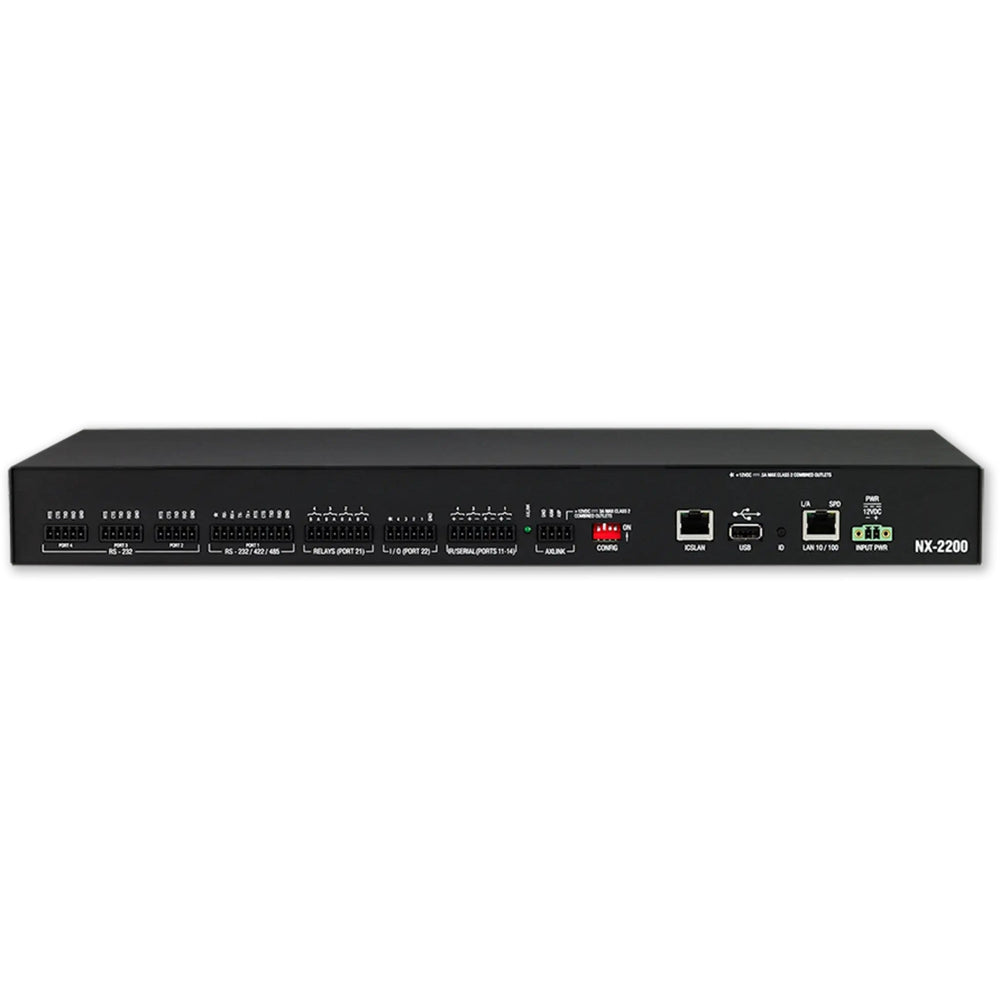

AxLink Port
(1) 4-position 3.5mm Screw Terminal, provides data and power to external AxLink control devices
AxLink Indicator
(1) AxLink LED (green) indicates the state of the AxLink port
RS-232/422/485 Ports
(1) 10-position 3.5mm Screw Terminal, NetLinx Port 1, XON/XOFF (transmit on / transmit off), CTS/RTS (clear to send/ready to send), 300 - 115,200 baud
RS-232 Port
(3) 2-position 3.5mm Screw Terminal, NetLinx Ports 2-4, XON/XOFF (transmit on / transmit off), CTS/RTS (clear to send/ready to send), 300 - 115,200 baud
Serial Indicator
(4) sets of LEDs (red/yellow) indicate when serial Ports 1 - 4 are transmitting and receiving data
IR/Serial
(4) 2-position 3.5mm Screw Terminal, 4 IR Transmit / 1-way Serial ports, NetLinx Ports 11-14, Support high-frequency carriers up to 1.142 MHz, 4 IR/Serial data signals can be generated simultaneously
IR/Serial Indicators
(2) LEDs (red) indicate when each of the IR/Serial ports (11-14) are transmitting control data
I/O Channels
(4) One 6-position 3.5mm Screw Terminal, 4-channel binary I/O port for contact closure with each input being capable of voltage sensing, NetLinx Port 22, Channels 1-4
I/O Indicator
(4) LEDs (yellow) indicate each of the I/O channels (1-4) are active
Relays
(4) One 8-position 3.5 mm Screw Terminal, (4) single-pole, single-throw relays, NetLinx Port 21, Channels 1-4, Each relay can switch up to 24 VDC or 28 VAC @ 1 A, Each relay is independently controlled
Relay Indicators
(4) LEDs (red) indicate when each of the relay channels (1-4) are active (closed)
FG Numbers
FG2106-02
