Anton Bauer VCLX NM2 600Wh Battery Package with 3-Pin XLR Cable
Description
Description

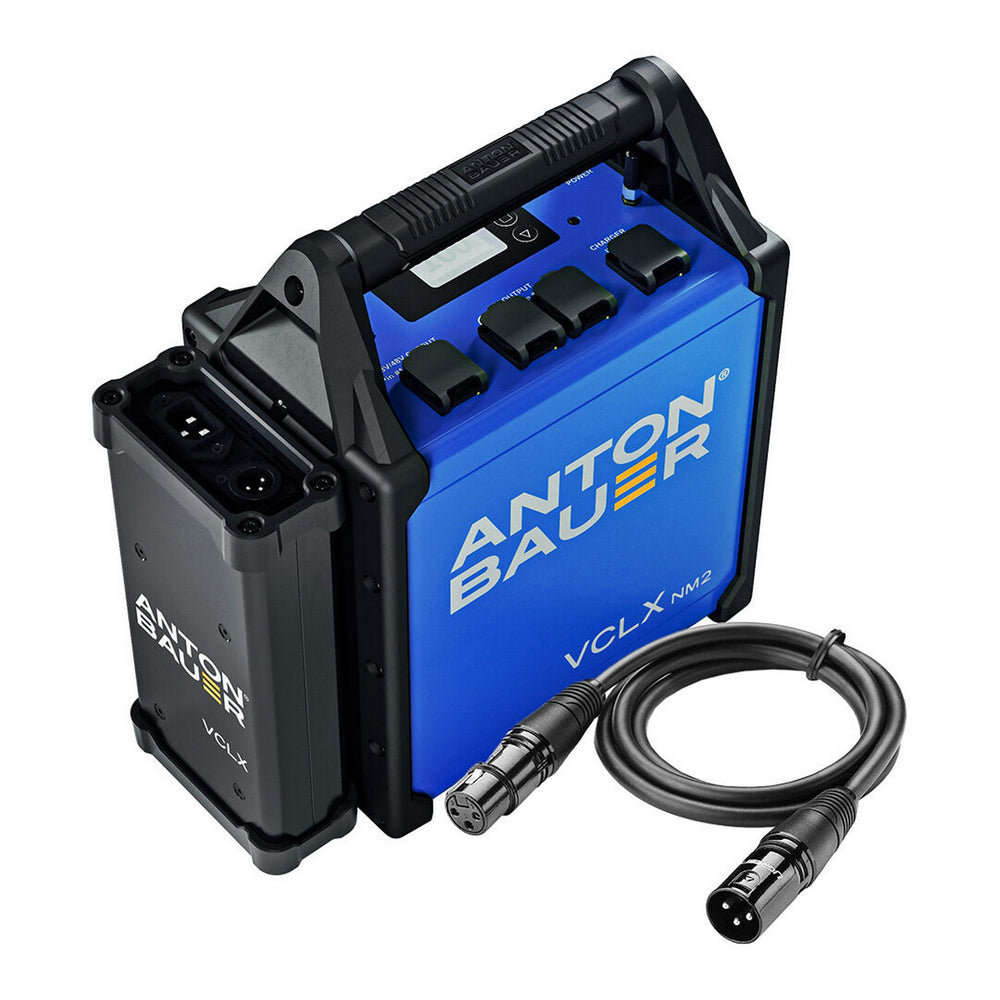

The Anton Bauer VCLX NM2 600Wh Battery Package with 3-Pin XLR Cable is a NiMH battery, with a capacity of 600Wh and voltage options of 14.4V, 28V, and 48V. It boasts dual simultaneous outputs, making it ideal for high-current applications. The power output comprises two 4-pin XLR connectors for 14.4V and one 3-pin XLR connector for 28V or 48V.
When combined with the VCLX 2 charger, this battery stands out in the block battery market for its fastest charging capabilities, thanks to an advanced charge algorithm. Users can access detailed information like product ID, learned capacity, cycle count, time-stamped errors, battery pack condition, and more through the VCLX or Anton Bauer's Fleet Management program via built-in Wi-Fi. Safety features are controlled by smart electronic fuses, issuing warnings on the LCD and resetting automatically when safe. These events are logged with date and time stamps for review via Fleet Management.
Featuring a 2.4” LCD screen, it allows real-time monitoring of remaining battery capacity for peak performance. To safeguard against battery damage, a low voltage cut-off feature deactivates the battery at 12 volts.
The VCLX NM2 package includes the VCLX NM2 battery, VCLX NM2 charger, and a 48” charging cable.
Key Features
- The Anton/Bauer VCLX NM2 Battery is a high-capacity NiMH battery that offers multiple voltage outputs.
- It features dual simultaneous outputs, with two 4-pin XLR connectors for 14.4V and one 3-pin XLR connector for either 28V or 48V.
- The battery can be charged quickly using the VCLX 2 charger, thanks to its advanced charge algorithm.
- Information about the battery's performance and condition can be accessed through the VCLX or Anton Bauer's Fleet Management program, which utilizes the built-in Wi-Fi.
- The battery includes smart electronic fuses that provide warnings and automatically reset when it is safe to do so, with all events recorded for review.
Technical Specifications
Range
VCLX
Capacity
600 Wh
Voltage
Multi
Chemistry
Nickel Metal Hydride
Power Tap
No
USB
Yes
XLR Inputs
Yes
XLR Connector
Yes
Width
12.99 in
Height
10.04 in
Depth
6.02 in
Weight
2.93 lb
Warranty
2 years
Built-In Discharge
No
Battery Max Load
700
Camera Interface
2 X 4-Pin XLR (14.4v), 1 X 3-Pin XLR (28v or 48V)
