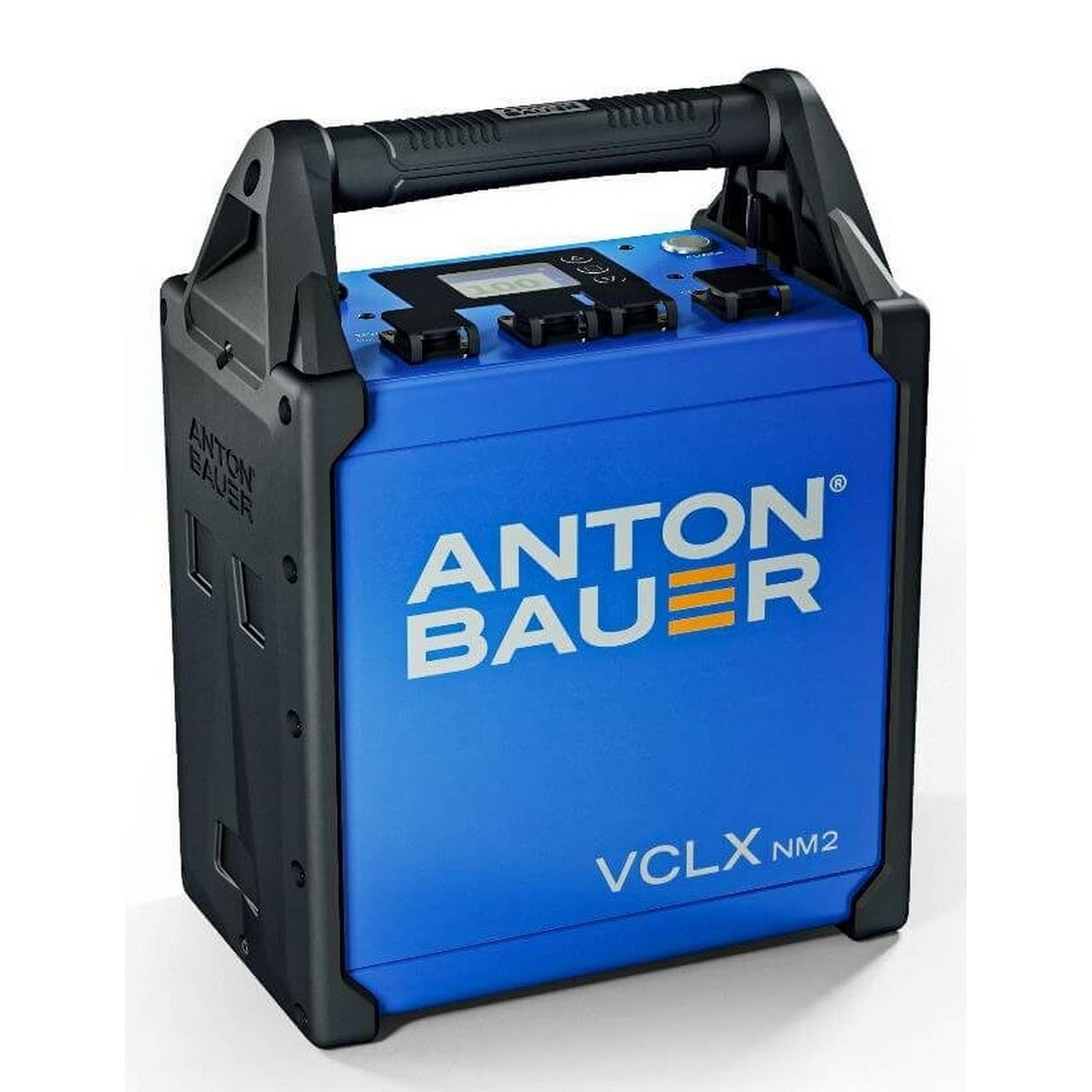

Anton Bauer VCLX NM2 600Wh Free-Standing Battery

The Anton Bauer VCLX NM2 600 Wh Free-Standing Battery is a 600Wh NiMH battery that operates at 14.4V, 28V, and 48V, offering dual simultaneous outputs, making it perfect for high-current applications. It features two 4-pin XLR connectors for 14.4V and one 3-pin XLR connector for 28V or 48V power output.

This battery is compatible with the VCLX 2 charger and boasts an advanced charging algorithm that delivers the quickest charge in the block battery market. Vital battery information such as product ID, learned capacity, cycle count, time-stamped errors, battery pack condition, and more can be accessed on the VCLX or through Anton Bauer's Fleet Management program, facilitated by the built-in Wi-Fi. Smart electronic fuses internally monitor and manage warnings on the LCD screen, resetting automatically when safe. All events are logged with time stamps for review via Fleet Management. Additionally, a 2.4” LCD screen displays the remaining battery capacity accurately, enabling real-time onboard diagnostics for optimal battery and equipment performance.

For added protection, the battery includes a low voltage cut-off feature that shuts off automatically at 12 volts to prevent damage.

Key Features

• The Anton/Bauer VCLX NM2 Battery is a 600Wh NiMH battery with outputs at 14.4V, 28V, and 48V.

• It features dual simultaneous outputs for high-current applications.

• Power output is available through two 4-pin XLR connectors for 14.4V and one 3-pin XLR connector for 28V or 48V.

• This battery is compatible with the VCLX 2 charger and offers fast charging due to an advanced charge algorithm.

• Information such as product ID, learned capacity, cycle count, errors, battery pack condition, and more can be viewed on the VCLX or through Anton Bauer's Fleet Management program.

• The built-in Wi-Fi enables connectivity for monitoring and management.

• Smart electronic fuses internally control warnings and automatic resets for safety.

• Events are recorded internally with date and time stamps for review via Fleet Management.

• A 2.4” LCD screen displays remaining battery capacity accurately for real-time diagnostics.

• The battery includes a low voltage cut-off feature to protect against damage by automatically shutting off at 12 volts.

Technical Specifications

Range
Cine
Capacity
600 Wh
Voltage
Multi
Chemistry
Nickel Metal Hydride
Power Tap
No
USB
Yes
Width
12.99 in
Height
10.04 in
Depth
6.02 in
Warranty
2 years
