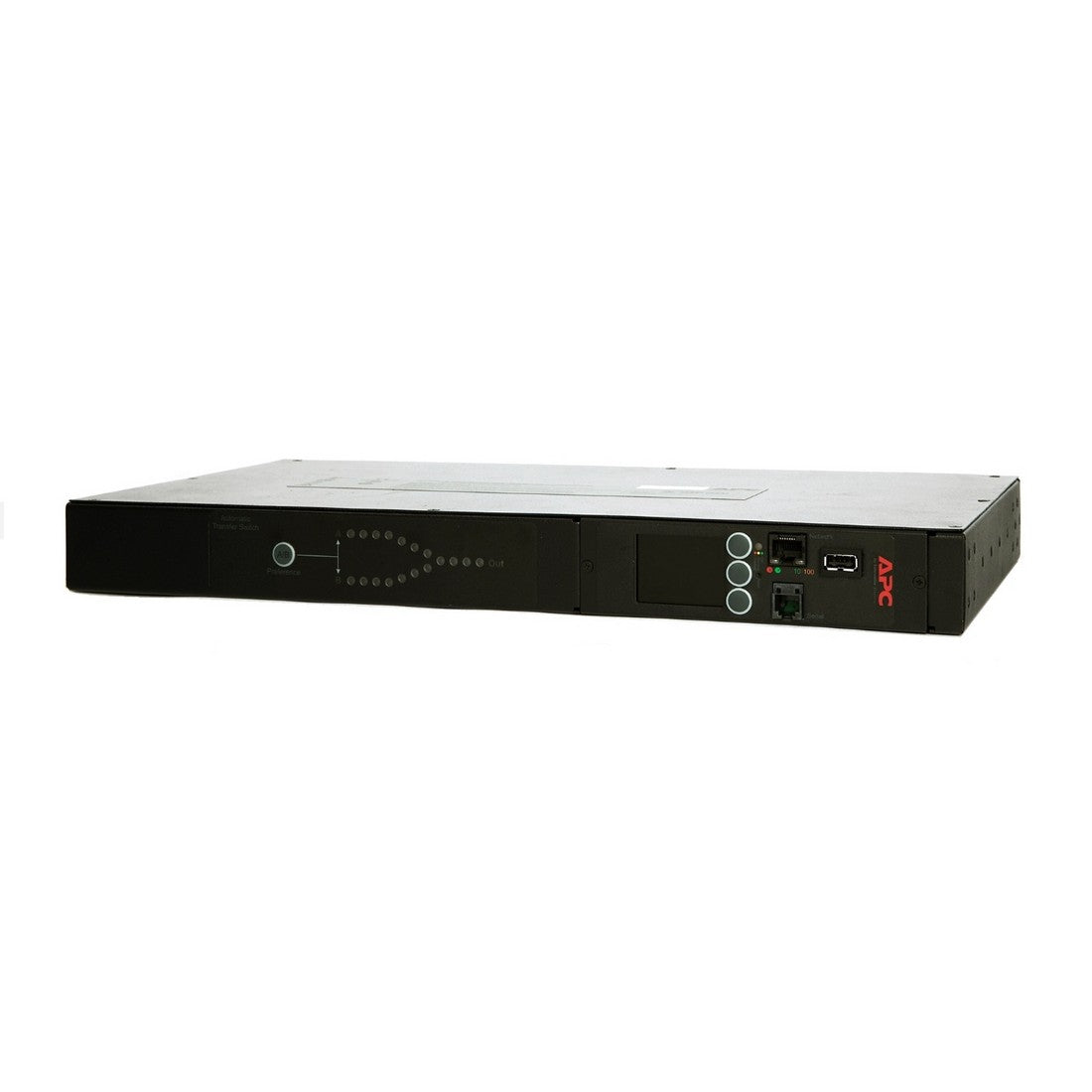

APC AP4452 120V 20A Rack Automatic Transfer Switch, NEM A L5-20P

APC AP4452 120V 20A Rack Automatic Transfer Switch, NEM A L5-20P

120V 20A Rack Automatic Transfer Switch, NEM A L5-20P.

Key Features

• 10 kAIC Overcurrent Protection - Provides protection in the event of a significant overcurrent event.
• Command line interface - Offers simultaneous remote management access through Telnet and SSH
• Current Monitoring - Monitors the aggregate current draw per power distribution unit.

Technical Specifications

Main Input Voltage
120 V
Main Output Voltage
120 V
Input Connection Type
NEMA L5-20P
Number of rack unit
1U
Cable length
8 ft (2.44 m)
Number of cables
2
Provided Equipment
Mounting Hardware
Rack Mounting brackets
Serial configuration cable
Physical
Color
Black
Height
1.73 in (4.4 cm)
Width
17.01 in (43.2 cm)
Depth
9.29 in (23.6 cm)
Net Weight
9.70 lb. (US) (4.4 kg)
Mounting Location
Front
Rear
Mounting preference
No preference
Mounting Mode
Rack-mounted
Input
Input Frequency
50/60 Hz
Line Rated Current
16 A
Max line current
20 A
Input current limits
20 A
Load Capacity
1920 VA
Output
Maximum Total Current Draw per Phase
20 A

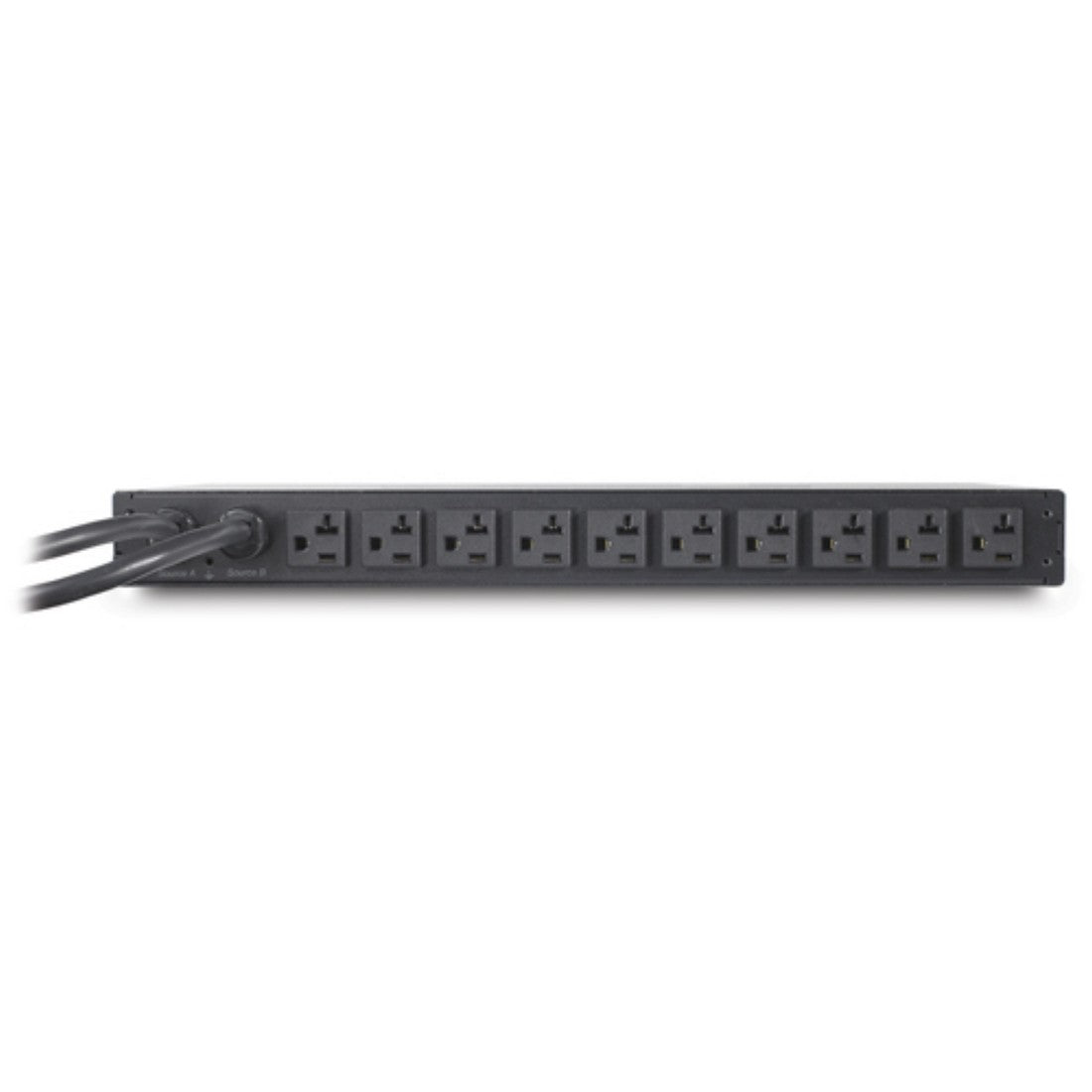

Number of power socket outlets
10 NEMA 5-20R
Protection Type
Without circuit breaker
Conformance
standards
EN 55022 Class A
FCC Part 15 class A
Environmental
Ambient air temperature for operation
23…113 Degrees F (-5…45 Degrees C)
Relative Humidity
5…95 %
Operating altitude
0...10000 ft
Ambient Air Temperature for Storage
-13…149 Degrees F (-25…65 Degrees C)
Storage Relative Humidity
5…95 %
Storage altitude
0…50000 ft (0.00…15240.00 m)
Ordering and shipping details
GTIN
731304333500
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
4.49 in (11.4 cm)
Package 1 Width
14.02 in (35.6 cm)
Package 1 Length
23.62 in (60 cm)
Package 1 Weight
13.60 lb(US) (6.17 kg)
