Ashly FR-8 8-Channel Network Programmable Fader Remote
Description
Description

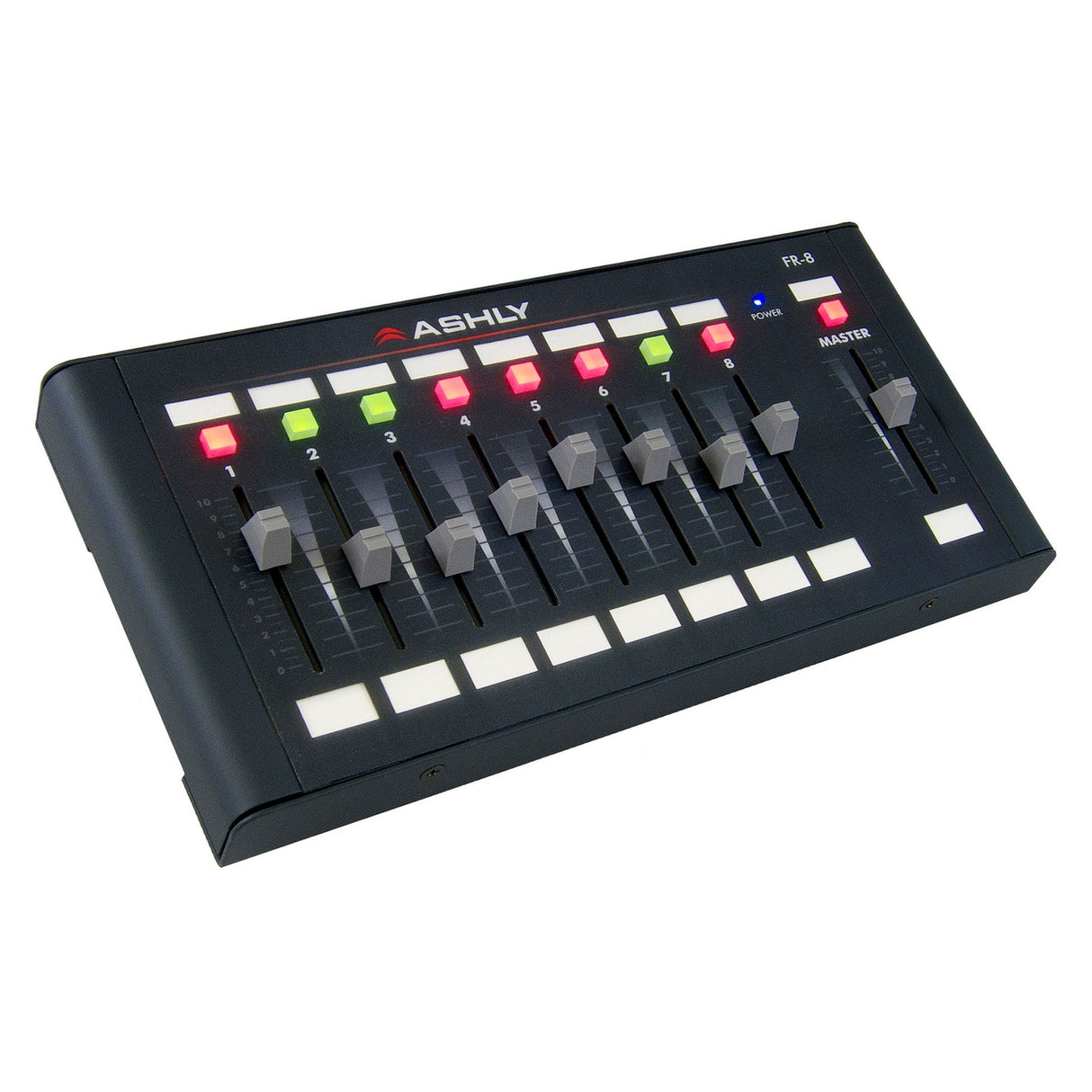

Ashly FR-8 8-Channel Network Programmable Fader Remote
The FR-8 and FR-16 are Ethernet devices that provide fader-based remote-level control for ne products with DSP capabilities. The FR-8 controls up to 8-user assigned inputs, outputs, or mixer outputs, and the FR-16 controls up to 16. Controllable products are: nXp amplifiers, ne24.24M, ne 2-channel Power Amplifiers w/ DSP, ne Multi-Channel Power Amplifiers w/DSP, ne4800/8800 DSP Processors, and all Pema Power Amplifiers.
Each slider can be programmed to allow the amount of volume control you deem appropriate for the amateur operator. The LED button at the top of each slider can be programmed as a “Mute” or A/B Source select. The FR’s can be used as either tabletop or wall-mount mixers. An optional rack-mount kit is available.
Key Features
- IEEE 802.3af power-over-Ethernet (PoE, Class 2)
- Automatic IP addressing
- Assignable fader scaling
- Mute/unmute buttons with signal or A/B input source select option
- Assignable signal level LED breakpoints
- Communication failure indicator
- User-defined labels per channel
- Panel lock-out contact closure
- Use along with neWR-5 wall remote
- Wall mount with or without standard North American wall boxes or portable tabletop use
