Audient EVO 8 4 In 4 Out USB Audio Interface
Description
Description

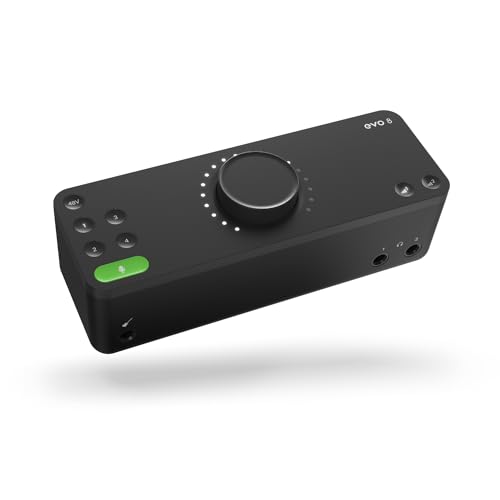

Audient EVO 8 4 In 4 Out USB Audio Interface
Whether recording your latest track, producing a beat, or creating a podcast EVO 8’s advanced and versatile feature set lets you take control of any recording session. Made for the smart creative, EVO 8 will deliver a powerful recording solution no matter your artform. Whether recording your latest track, producing a beat, or creating a podcast EVO 8’s advanced and versatile feature set lets you take control of any recording session. Building on Audient’s 20+ years of audio design experience, EVO 8 gives you unrivalled audio quality on your desktop.
Key Features
- 4 x EVO Mic Pres
- 2 x Headphone Outputs
- Class Leading Converters
- Low Latency Software Mixer
- Smartgain
- Loopback
- USB 2.0 Bus Powered
- Phantom Power
Technical Specifications
Mic Gain Range
58dB
Line Gain Range
58dB (-10dB pad)
Phantom Power
48V +/-4V @ 10mA/Channel (only 2 channel available on USB-A host computers
Mic EIN
<-128dBu
CMRR
>85dB @ 1kHz
Maximum Input Level
+16dBu
Input Impedance (Mic)
>3k Balanced
Input Impedance (Line)
>10k Balanced
Frequency Response
+/-0.5dB 10Hz to 40kHz
Crosstalk
<-105dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz)
<0.0015%
SNR
100dB
XLR
Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” Jack
TIP (Hot), RING (Cold) & SLEEVE (Shield)
D.I
D.I Gain Range
58 dB
Maximum Input Level
+10dBu
Input Impedance
1Meg? Unbalanced
Frequency Respons
+/-0.5dB 10Hz to 20kHz
THD+N @ 0dBu (1kHz)
<0.3%
SNR
100dB
1/4” Jack
TIP (Hot) & SLEEVE (Shield)
ADC Inputs
Digital Reference Level
0dBFS = +8dBu
Frequency Response
+/-0.5dB 10Hz to Fs/2
Crosstalk
-105dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz)
<0.001%
Dynamic Range
113dB A-weighted
DAC Outputs
Maximum Output Level
+11dBu
Digital Reference Level
0dBFS = +11dBu
Output Impedance
<100 Balanced
Frequency Response
+/-0.5dB 10Hz to Fs/2
Crosstalk
<-110dBu @ 1kHz
THD+N @ -1dBFS (1kHz)
<0.0015%
Dynamic Range
113dB A-weighted
1/4” Jack
TIP (Hot), RING (Cold) & SLEEVE (Shield)
Headphone Output
Output Impedance
<50
Frequency Response
+/-0.5dB 10Hz to Fs/2
Crosstalk
-110dBu @ 1kHz
THD+N @ -1dBFS (1kHz)
<0.0015%
Dynamic Range
113dB A-weighted
Max Level Into 30ohms
+0.5dBu, 0.0025% THD+N, 1.16Vpk Power: 45mW
Max Level Into 60ohms
+4.22dBu, 0.0015% THD+N, 1.78Vpk Power: 52mW
Max Level Into 600ohms
+10.1dBu, 0.0018% THD+N, 3.52Vpk Power: 20mW
1/4” Jack
TIP (Left), RING (Right) & SLEEVE (Shield)
Weights
Unit
0.475kg
Packaged
0.815kg
Dimensions
Unit
190mm (w) x 70mm (h) x 70mm (d)
Packaged
230mm (w) x 105mm (h) x 95mm (d)
