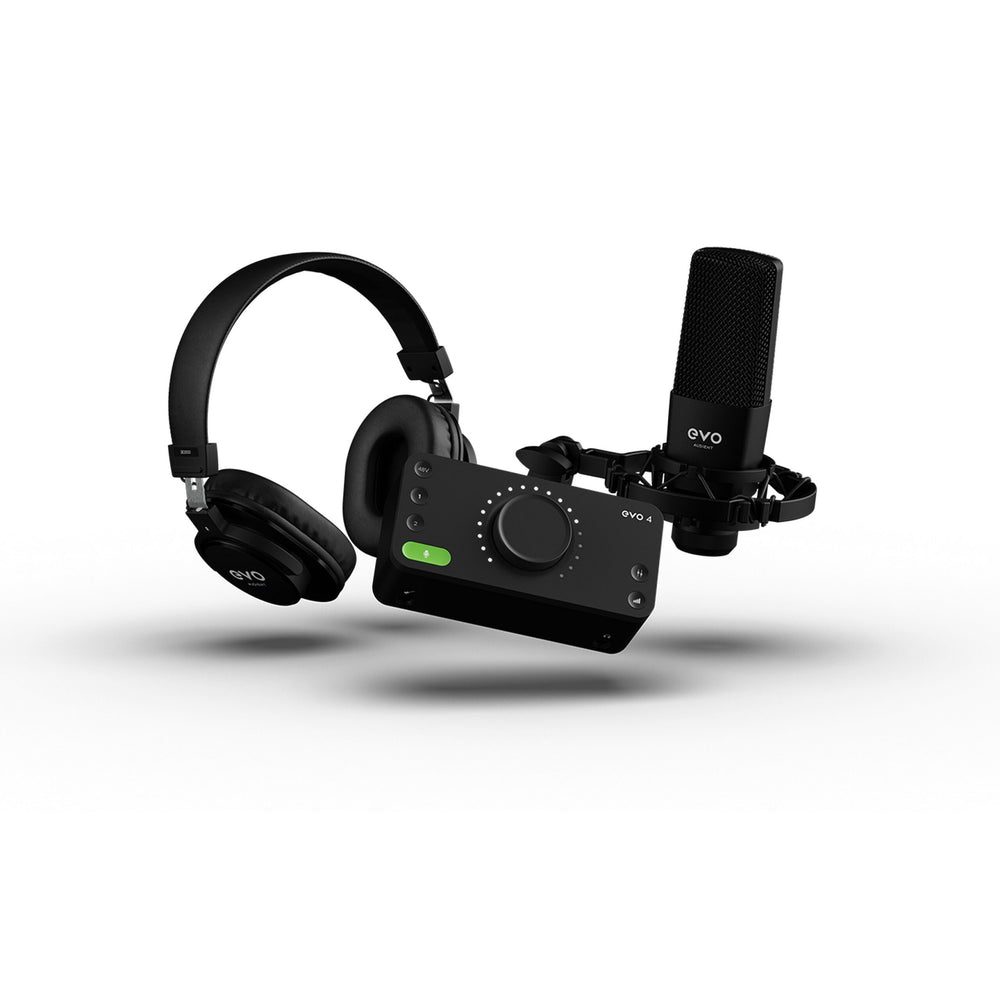

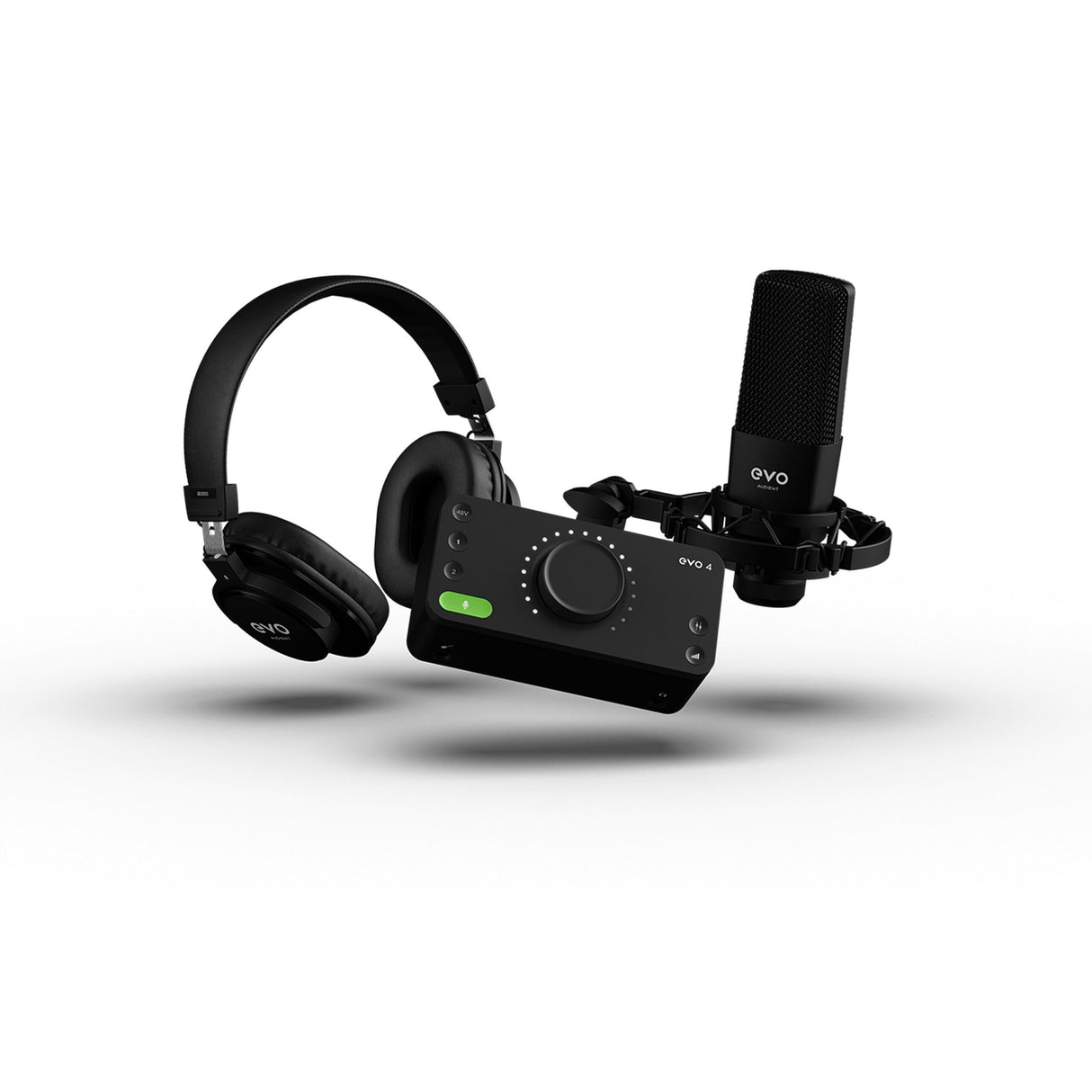

Audient EVO Start Recording Bundle

Audient EVO Start Recording Bundle

Start your journey into the world of audio recording with the Start Recording Bundle, a professional, powerful and versatile solution for home recording. Experience a combination of outstanding audio performance and innovative technology to make sure you achieve studio quality recordings from the start. Capture your microphones and instruments by recording audio directly to your computer with EVO 4’s intuitive feature set. Combining leading tech specs with astounding performance and sound quality, EVO 4 is the ultimate interface for beginners and pros alike. Building on Audient’s 20+ years of audio design experience, get unrivalled audio quality on your desktop with the clean, warm and accurate EVO preamps - offering 58dB of gain range.

Key Features

• 2 x EVO Mic Pres
• Class Leading Converters
• Smartgain
• Smart Touchpoints
• JFET Instrument Input
• Speaker Outputs
• Headphone Output
• Platform Compatible
• 1 x SR1 Condenser Microphone
• 1 x SR2000 Monitoring Headphones
• Monitor Mix
• Monitor Pan
• Audio Loop-back
• USB2.0 Bus Powered
• Phantom Power
• DAW Controlled Mic Pres
• 24bit / 96kHz
• Free Software + Plugins
• 1 x EVO Shockmount
• 1 x XLR Cable

Technical Specifications

Microphone Preamplifier
Mic Gain Range
58dB
Line Gain Range
58dB (-10dB pad)
Phantom Power
48v +/-4v @ 10mA/Channel
Mic EIN
<-128dBu
CMRR
>85dB @ 1kHz
Maximum Input Level
+16dBu
Input Impedance (Mic)
>3k Balanced
Input Impedance (Line)
>10k Balanced
Frequency Response
+/-0.5dB 10Hz to 40kHz
Crosstalk
<-105dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz)
<0.0015%
SNR
100dB
XLR
Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” Jack
TIP (Hot), RING (Cold) & SLEEVE (Shield)
D.I
D.I Gain Range
58 dB
Maximum Input Level
+10dBu
Input Impedance
1Meg? Unbalanced
Frequency Respons
+/-0.5dB 10Hz to 20kHz
THD+N @ 0dBu (1kHz)
<0.3%
SNR
100dB
1/4” Jack
TIP (Hot) & SLEEVE (Shield)
ADC Inputs
Digital Reference Level
0dBFS = +8dBu
Frequency Response
+/-0.5dB 10Hz to Fs/2
Crosstalk
-105dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz)
<0.001%
Dynamic Range
113dB A-weighted
DAC Outputs
Maximum Output Level
+11dBu
Digital Reference Level
0dBFS = +11dBu
Output Impedance
<100 Balanced
Frequency Response
+/-0.5dB 10Hz to Fs/2
Crosstalk
<-110dBu @ 1kHz
THD+N @ -1dBFS (1kHz)
<0.0015%
Dynamic Range
113dB A-weighted
1/4” Jack
TIP (Hot), RING (Cold) & SLEEVE (Shield)
Headphone Output
Output Impedance
<50
Frequency Response
+/-0.5dB 10Hz to Fs/2
Crosstalk
-110dBu @ 1kHz
THD+N @ -1dBFS (1kHz)
<0.0015%
Dynamic Range
113dB A-weighted
Max Level Into 30ohms
+0.5dBu, 0.0025% THD+N, 1.16Vpk Power: 45mW
Max Level Into 60ohms
+4.22dBu, 0.0015% THD+N, 1.78Vpk Power: 52mW
Max Level Into 600ohms
+10.1dBu, 0.0018% THD+N, 3.52Vpk Power: 20mW
1/4” Jack
TIP (Left), RING (Right) & SLEEVE (Shield)
Weight & Dimensions
Weights
Unit
360g
Packaged
600g
Dimensions
Unit
140mm (w) x 67mm (h) x 67mm (d)
Packaged
172mm (w) x 88mm (h) x 97.5mm (d)
EVO SR1 Condenser Microphone
Element
14mm back electronic condenser capsule
Polar Pattern
Uni-directional(Super-cardioid)
Frequency Response
20Hz-18kHz
Sensitivity
30dB-3dB (0dB=1V/Pa at 1kHz)
Output Impedance
15030% (at 1kHz)
Load Impedance
1000
Self Noise
16dB A
Max. Input SPL
134dB (at 1kHz 1% T.H.D)
S/N Ratio
78dB
Phantom Power Requirement
5V or 48V
Electrical Current
3mA
EVO SR2000 Monitoring Heaphones
Operating Principle
Closed
Fashion
Supra-aural
Transducer Type
Dynamic
Loudhailer
40MM
Impedance
32ohm
Sensitivity/ Max. SPL
95-3dB/105-3dB
THD
<0.3%
Frequency Response
15HZ-22KHZ
Max. Power
400MW
Rating Power
250MW
Cable Type
Straight
Cable Length
About 3M (straight)
Plug
3.5MM+6.3MM
Net Weight
233g(with cable)
Norminal Headband Pressure
Approx.2.8N
