Audient ORIA Immersive USB-C Audio Interface and Monitor Controller

Atmosphere Simplified
Introducing Audient ORIA Immersive USB-C Audio Interface and Monitor Controller, the world's first audio interface and monitor controller crafted specifically for immersive audio. Tailored for crafting immersive audio mixes, ORIA allows you to calibrate, manage, and monitor multi-channel speaker setups ranging from stereo to 9.1.6 and everything in between. Ideal for music, film, TV, gaming, and VR production.

Perfect Match
ORIA is not only a robust USB-C audio interface offering 16 outputs for up to 9.1.6 mixing workflows but can seamlessly integrate into your current studio setup as a standalone monitor controller with its ADAT Inputs.

Enhanced Speaker Processing
Managing multi-channel speaker systems demands a precisely tuned room, yet room calibration can be arduous and time-consuming.

Fully Equipped
ORIA's Advanced Speaker Processing enables room calibration and the creation of custom onboard calibration Profiles for various monitoring formats, simplifying mix reference checks in different setups.

SoundID Reference Microphone
Included with a SoundID Reference Microphone and a 60-day trial of SoundID Reference for Multichannel software, ORIA allows you to develop custom SoundID Profiles for different monitoring formats and target modes, ensuring consistently accurate and low-latency immersive audio.

CPU Relief
ORIA's Advanced Speaker Processing, whether using manual or SoundID calibrations, operates directly through its lightning-fast onboard DSP Dual Processor Architecture. This provides low-latency audio and frees up your computer's CPU for more demanding tasks.

Efficient Profile Recall
Switch between speakers, listening levels, and target curves instantly using Profiles. Transition effortlessly from calibrated stereo nearfield speakers to a 9.1.6 immersive setup with Dolby X-Curve at the touch of a button.

Speaker Management

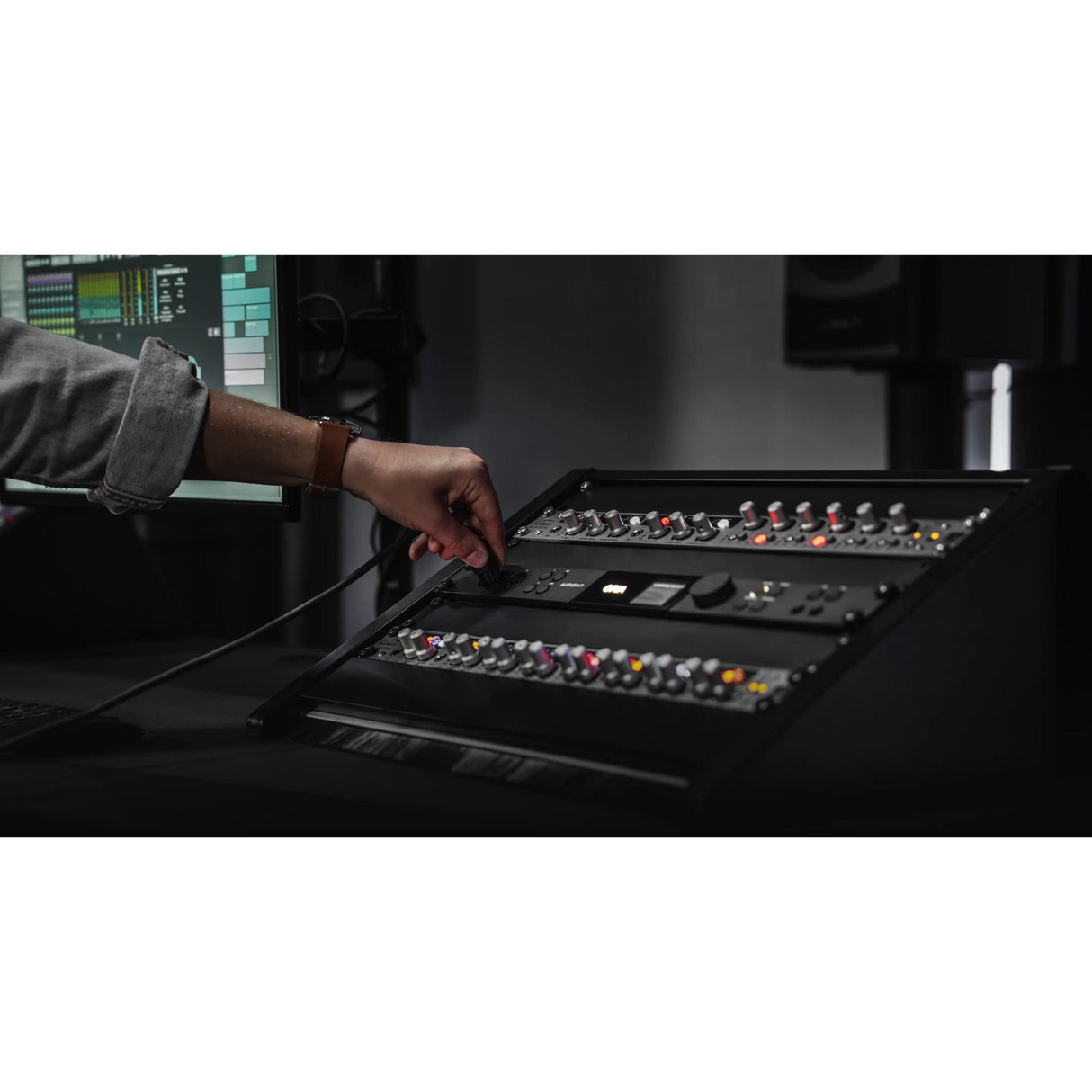

Experience true immersive monitor control with fast navigation through your session. Featuring color-coded speaker groups, individual and group speaker mute/solo, global Volume Control, Cut & Dim, and Global Delay (Lip-sync) for post-production workflows.

Metering

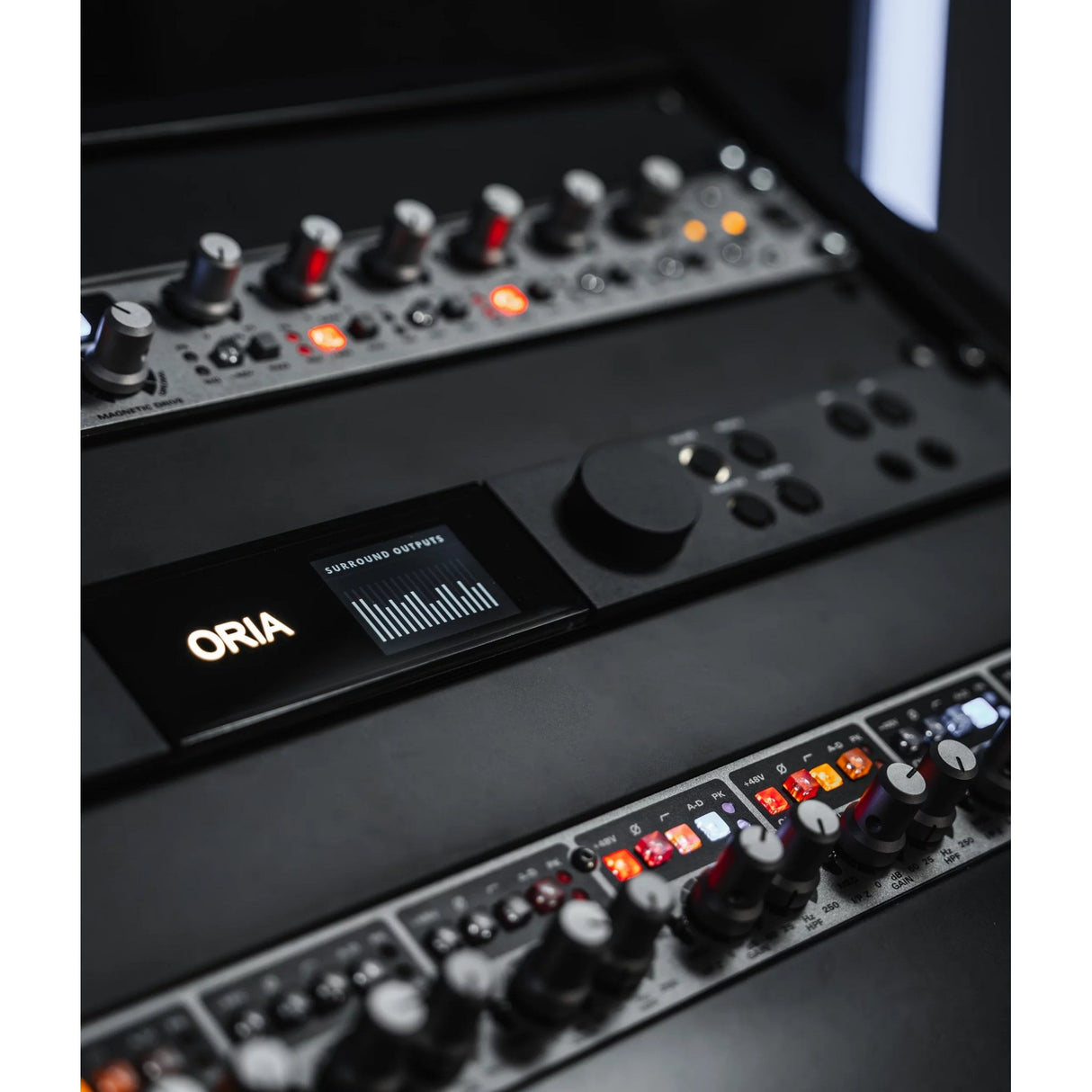

Monitor your levels from multiple locations, including ORIA's front panel LCD screen, desktop software, or iPad remote. For more detailed information, expand ORIA's desktop metering via a separate window for additional visual feedback.

Dolby Atmos Compatibility
Connect ORIA with the Dolby Renderer to manage down mix functionality directly from ORIA's user interface. Perfect for quickly assessing your mix in different monitoring setups like 7.1, 5.1, stereo, and more.

Remote iPad Control

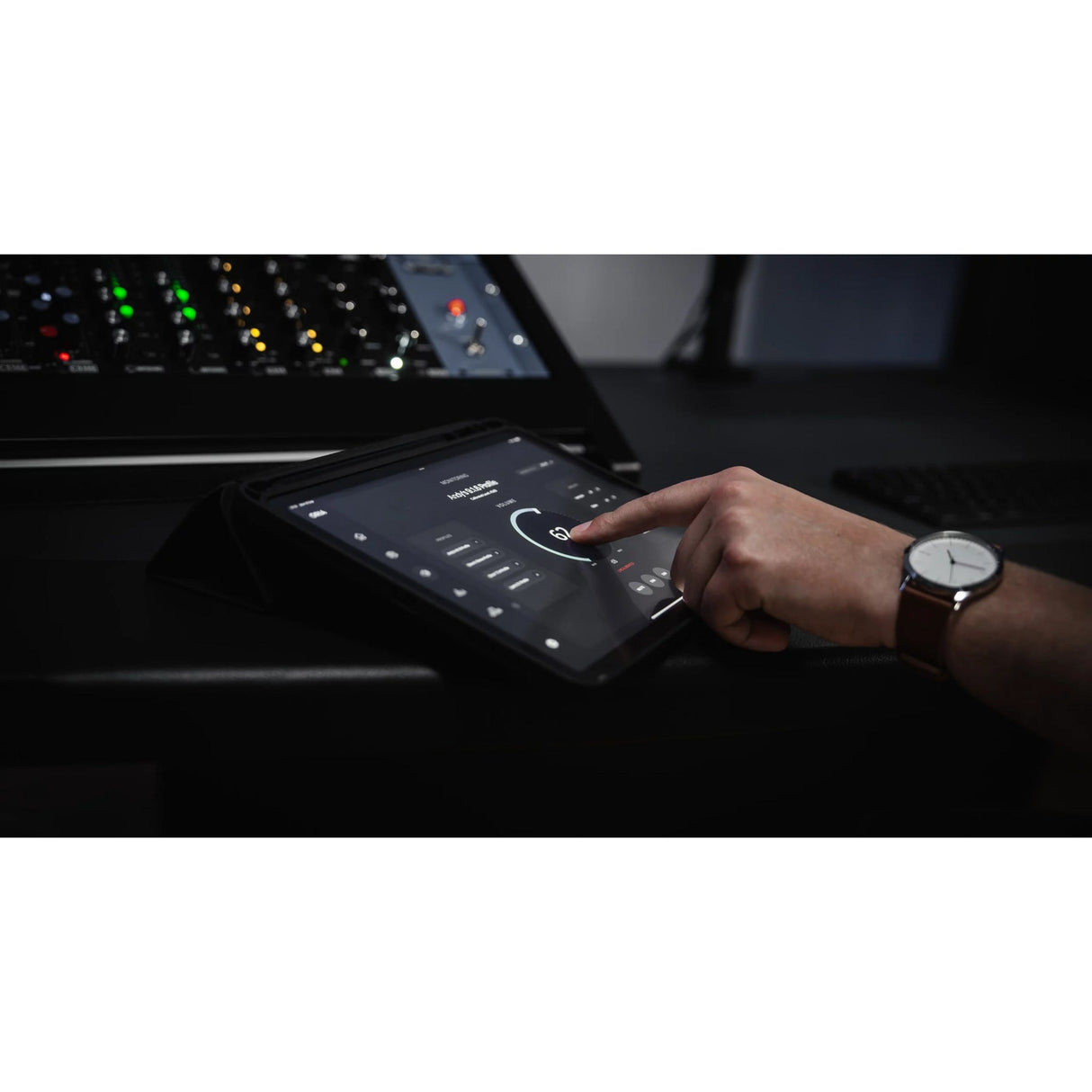

Stay in control with ORIA's iPad Control App, providing remote access to all control features from a centralized hub. Adjust levels, test speakers, switch profiles, and monitor metering directly from your desktop.

Establish Connections

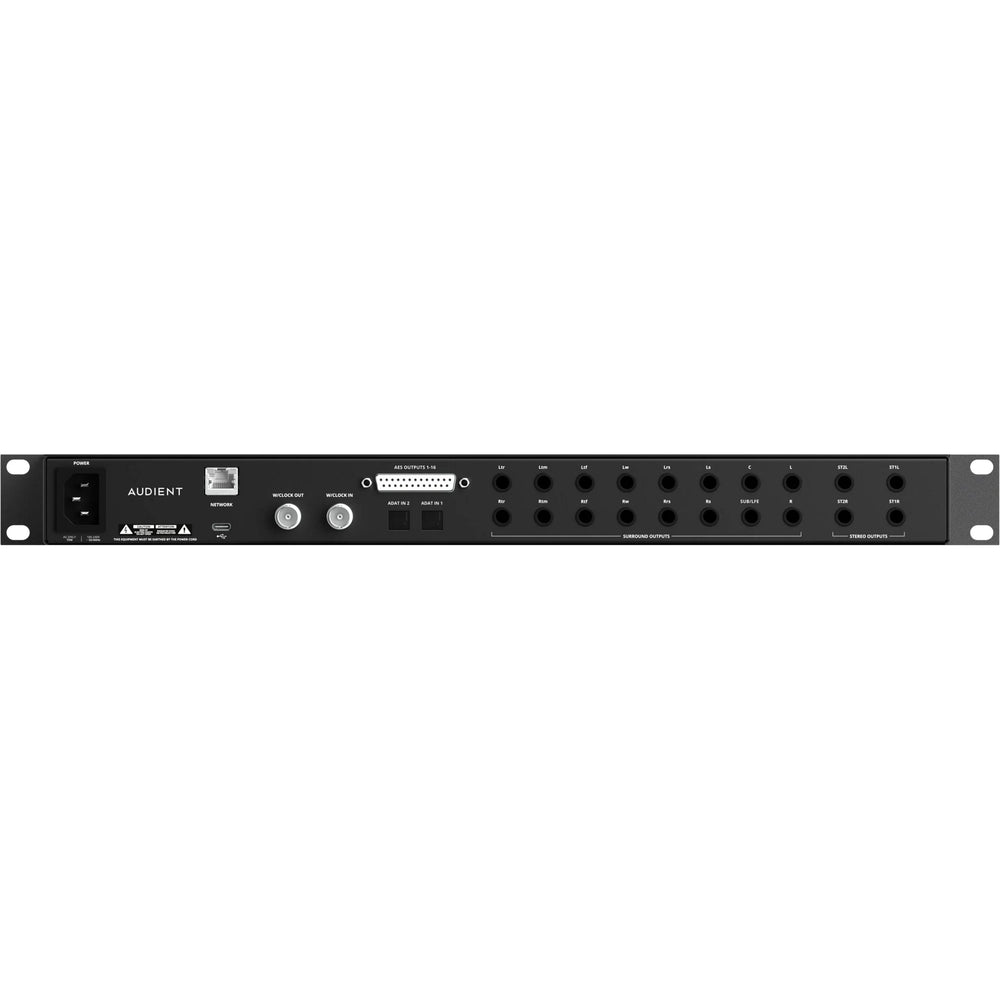

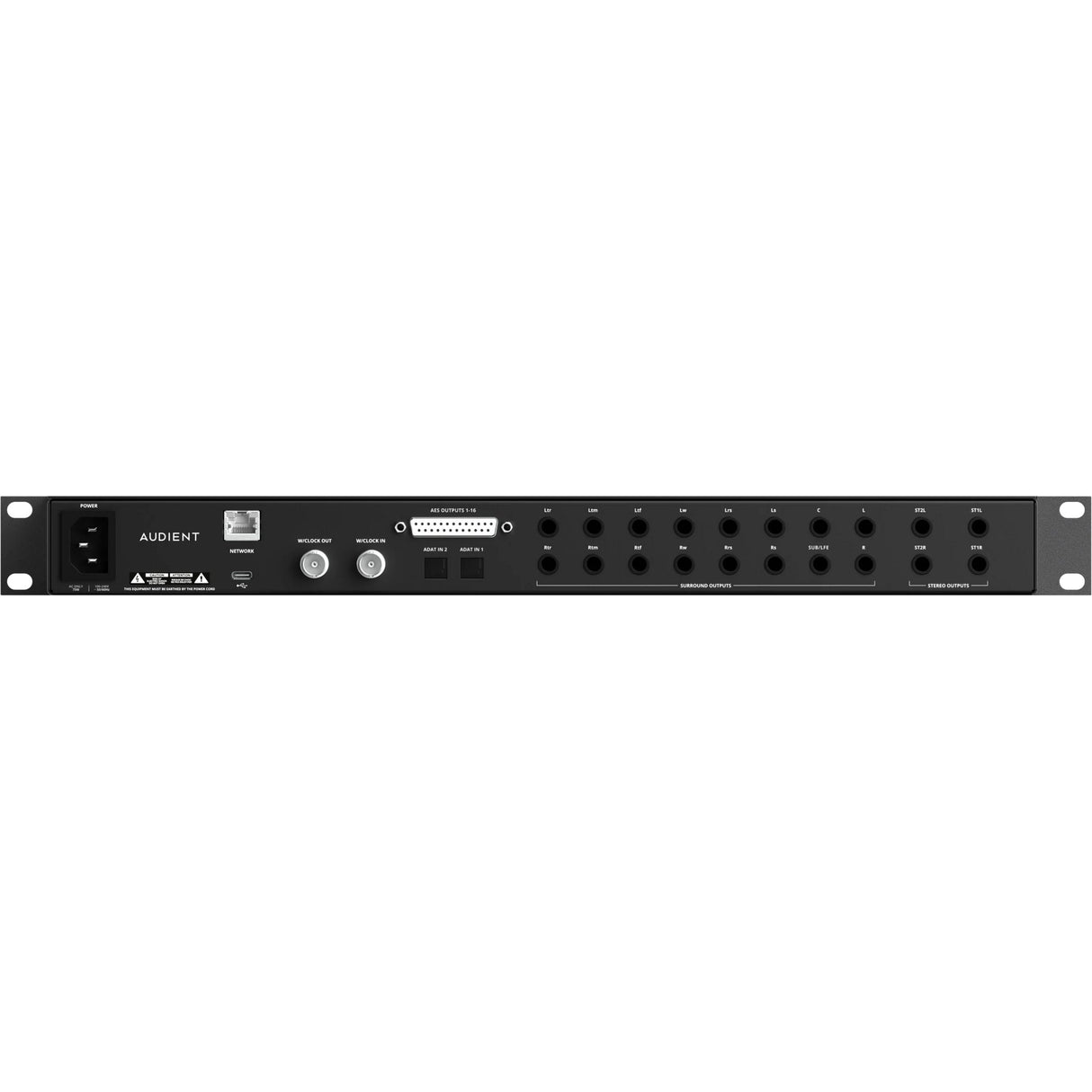

With a wide range of connectivity options, ORIA offers ample I/O for professional multi-channel setups. Link your surround speakers via line or AES outputs, connect nearfield speakers to the dedicated Stereo Outputs, and integrate an external interface or preamp using the ADAT inputs.

Premium Converters
Mix confidently with ORIA's high-performance AD/DA converters boasting a massive 126dB of dynamic range. Hear intricate details, identify issues, and enhance your mix decisions with total clarity, elevating your mixes to a higher level.

Key Features

• Capable of supporting speaker setups up to 9.1.6

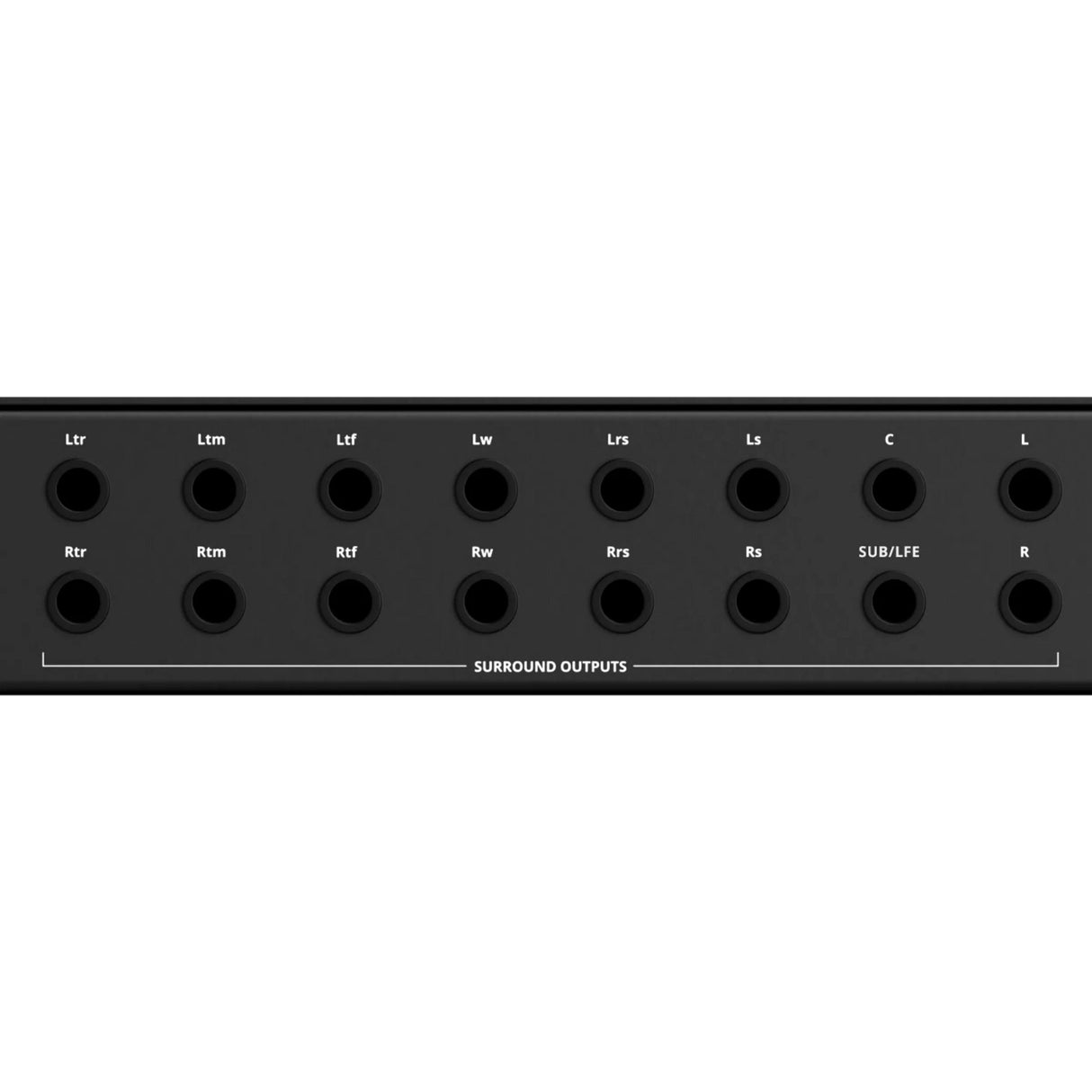

• Equipped with 2 x 16 channel surround outputs in both analogue and AES formats

• Features 2 x stereo line outputs with relay switching

• Includes 2 x independent stereo headphone outputs

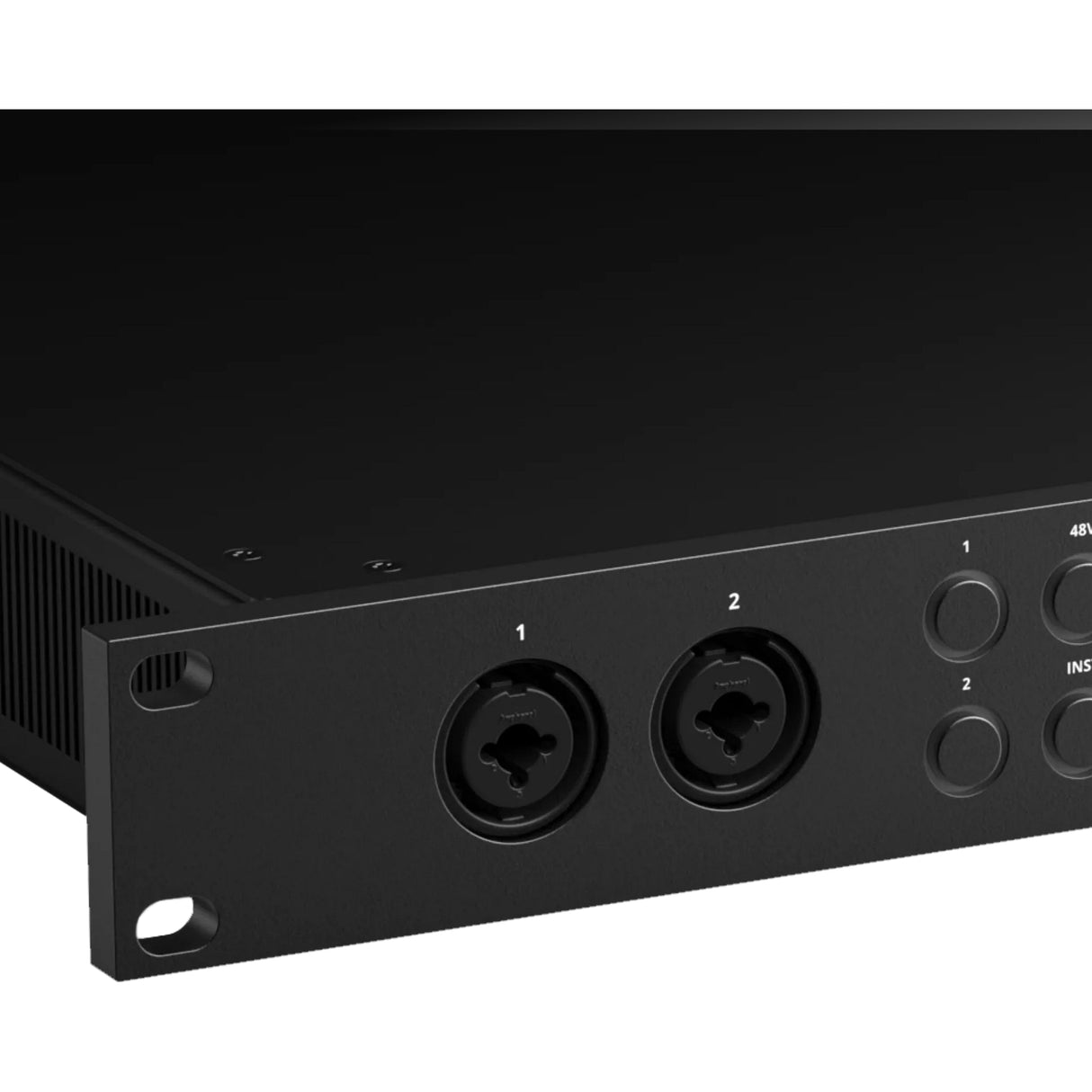

• Comes with 2 x Audient mic preamps for microphone, DI, and line inputs

• Offers 2 x ADAT inputs

• Supports word clock input and output

• Utilizes ORIA Motion UI

• Provides 24-bit / 96kHz audio resolution

• Equipped with USB 2.0 and USB Type-C connectivity options

• Includes Sonarworks SoundID Reference Measurement Microphone

• Optional AoIP Card (Dante) available for 16 input channels.
  Immersive Monitoring Control

• Switching between input and output

• Controlling the master volume

• Ensuring lip sync with global delay

• Solo and mute options for individual speakers

• Solo and mute options for speaker groups

• Metering for each channel, both pre and post

• Integrated Dolby Renderer for down mix cycling

• Programmable function button for customization

• Enhancing the audio experience with various features

• Providing flexibility and control over audio settings
  Onboard Room Calibration DSP

• Output EQ can be adjusted individually for each output.

• There is a delay option available for each output.

• The output trim can be customized for each output.

• Bass management is included in the per output crossover feature.

• Sonarworks Integrated allows for profile switching.

• The global bypass can be configured to suit your preferences.

Technical Specifications

Microphone Inputs
Gain: 60dB
Max Input Level: +18dBu
Crosstalk: <105dB
THD+N: 0.0015% / -96dB
EIN: -129dB
CMRR: -85dB
SNR: 100dB
Frequency Response: ±0.5dB 20Hz to 40kHz
Input Impedance: 1.5kΩ Balanced
Line Inputs
Gain: -10dB to +50dB
Max Input Level: +18dBu
THD+N: 0.0015% / -96dB
Input Impedance: 4.7kΩ Balanced
D.I / Instrument Input
Gain: 60dB
Max Input Level: +18dBu
THD+N: 0.16%
SNR: 100dB
Frequency Response: ±0.5dB 20Hz to 40kHz
Input Impedance: 370kΩ Unbalanced
Line Outputs
Lineup Level: +18dBu
THD+N: 0.0006%, -105dB
Dynamic Range: 126.5dB
Crosstalk: -123dB
Frequency Response: ±0.3dB 10Hz to 40kHz
Output Impedance: <100Ω Balanced
Headphone Outputs
Lineup Level: +18dBu
THD+N: 0.0007% (-103dB)
Dynamic Range: 124dB
Crosstalk: -115dB
Frequency Response: ±0.25dB 10Hz to 40kHz
Output Impedance: <50 Ω Unbalanced
Max Level @ 30R: 5.47V Peak, 3.87Vrms, 997mW
Max Level @ 60R: 7.4V Peak, 5.29Vrms, 912mW
Max Level @ 600R: 8.6V Peak, 6.09Vrms, 123mW
USB-C
Connector: USB Type C
Included Cable: USB Type-C to Type-C
Number of Input Channels: 34 (2x Analogue, 16 Digital, 16 AOIP*)
Number of Output Channels: 38 (20 Line Outs, 2x Stereo Headphone Outs, 16x AES)
*With AOIP card fitted

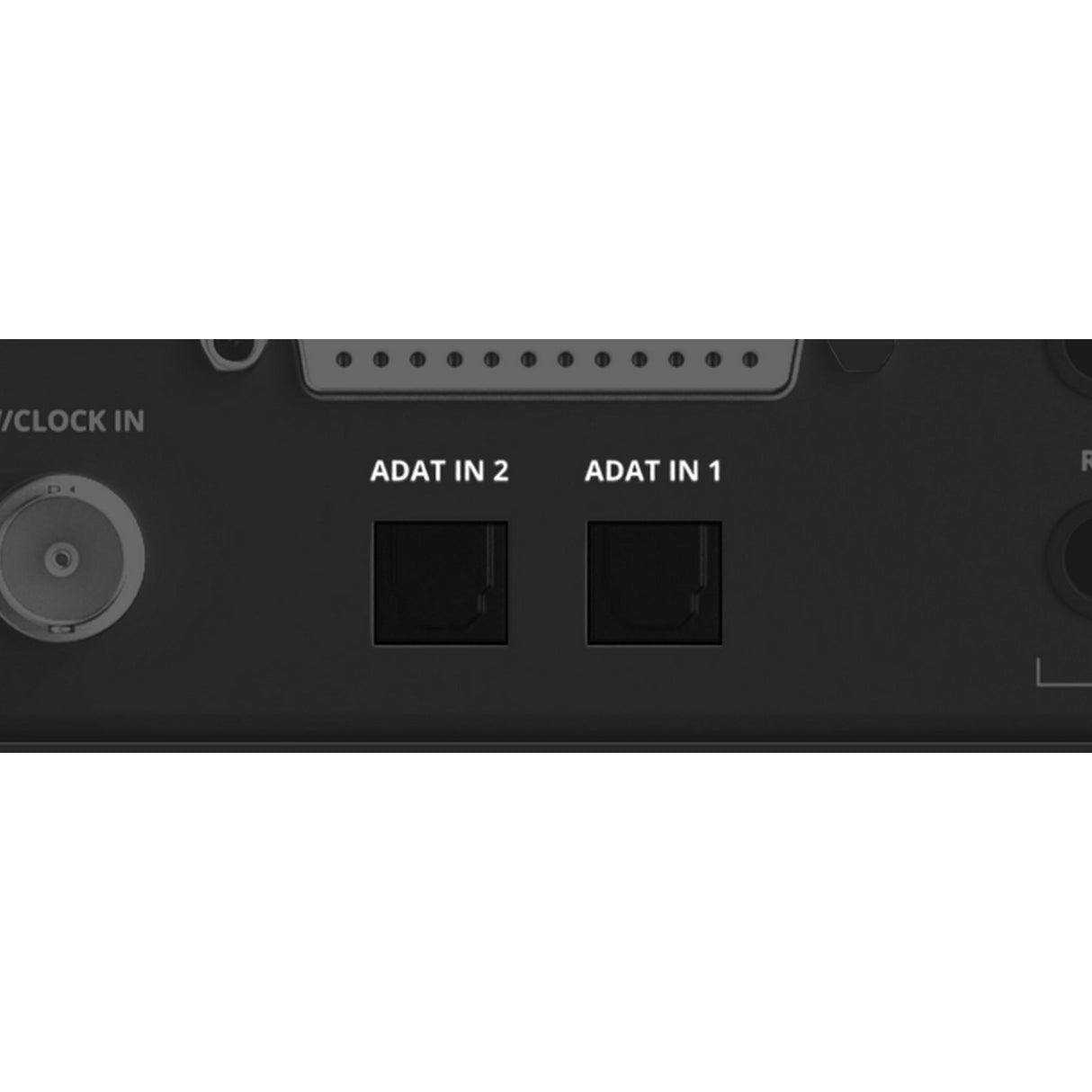

Digital Inputs
ADAT 16 Channels: 44.1kHz to 48kHz
ADAT 8 Channels (SMUX): 88.2kHz to 96kHz
Digital Outputs

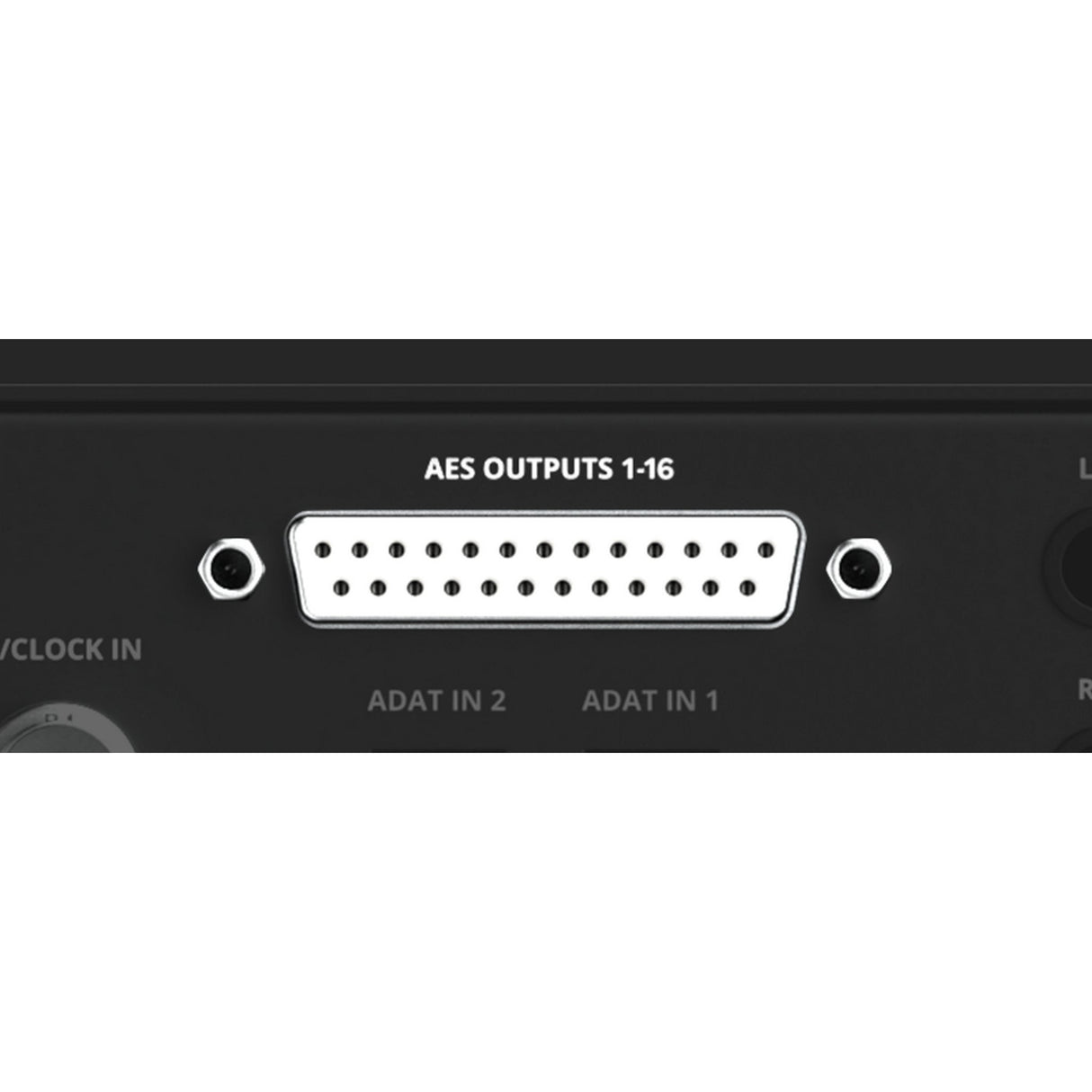

AES Outputs: 16 Audio Channels (8x AES Data Streams)

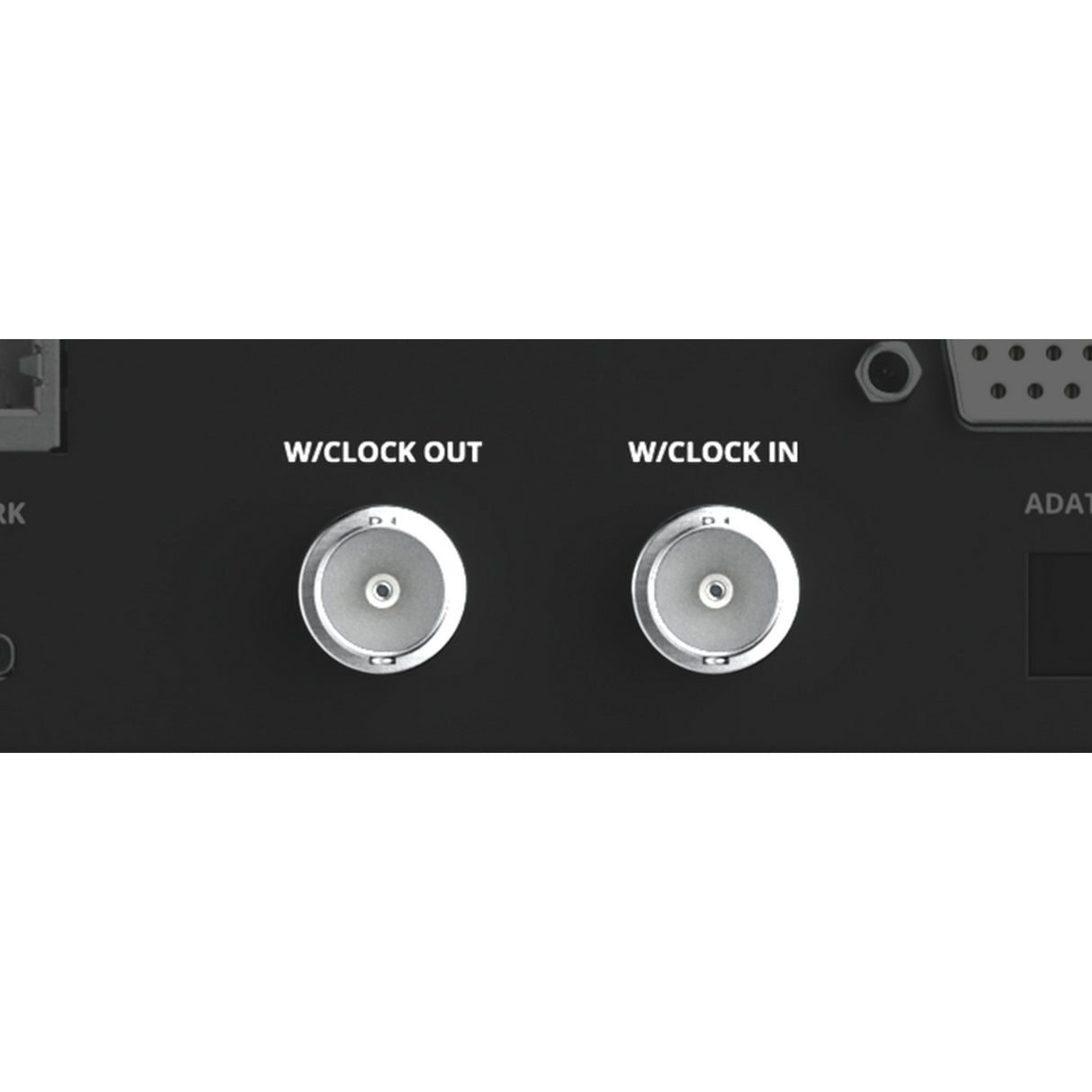

Word Clock Input and Output
Word Clock: 44.1kHz to 96kHz
DSP Latency
Round Trip:
44.1kHz - 6.5ms
48kHz - 6.3ms
88.2kHz - 5.5ms
96kHz - 5.4ms

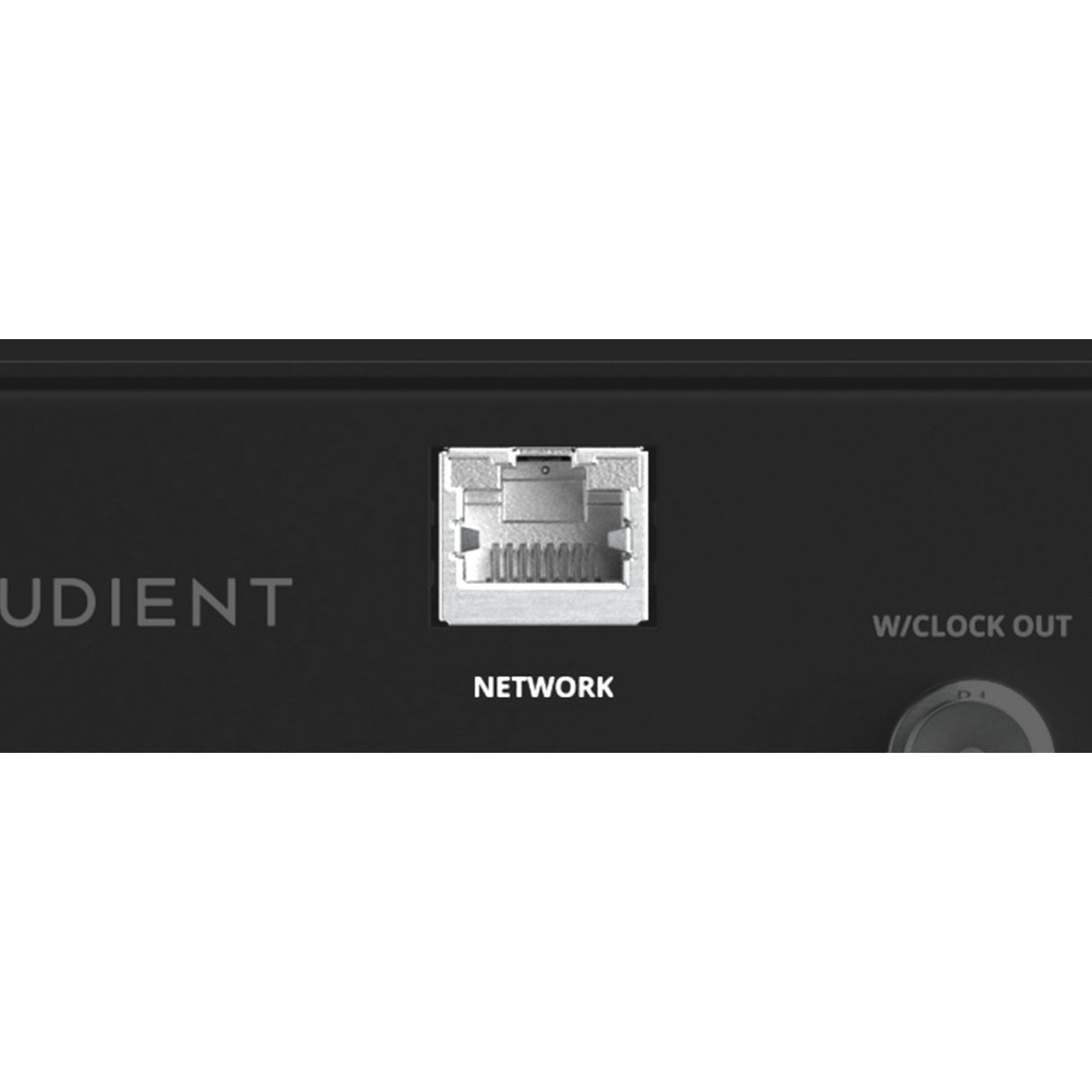

AOIP (Optional Dante Expansion Card)
AOIP Inputs: 16 (44.1kHz to 96kHz)
Power Supply
Input Voltage: 85 - 264 VAC
Input Frequency: 47 - 63Hz
