Aurora ASP-88-4K | 4K UHD 8x8 HDMI Matrix Switcher
Description
Description
Aurora ASP-88-4K 4K UHD 8x8 HDMI Matrix Switcher

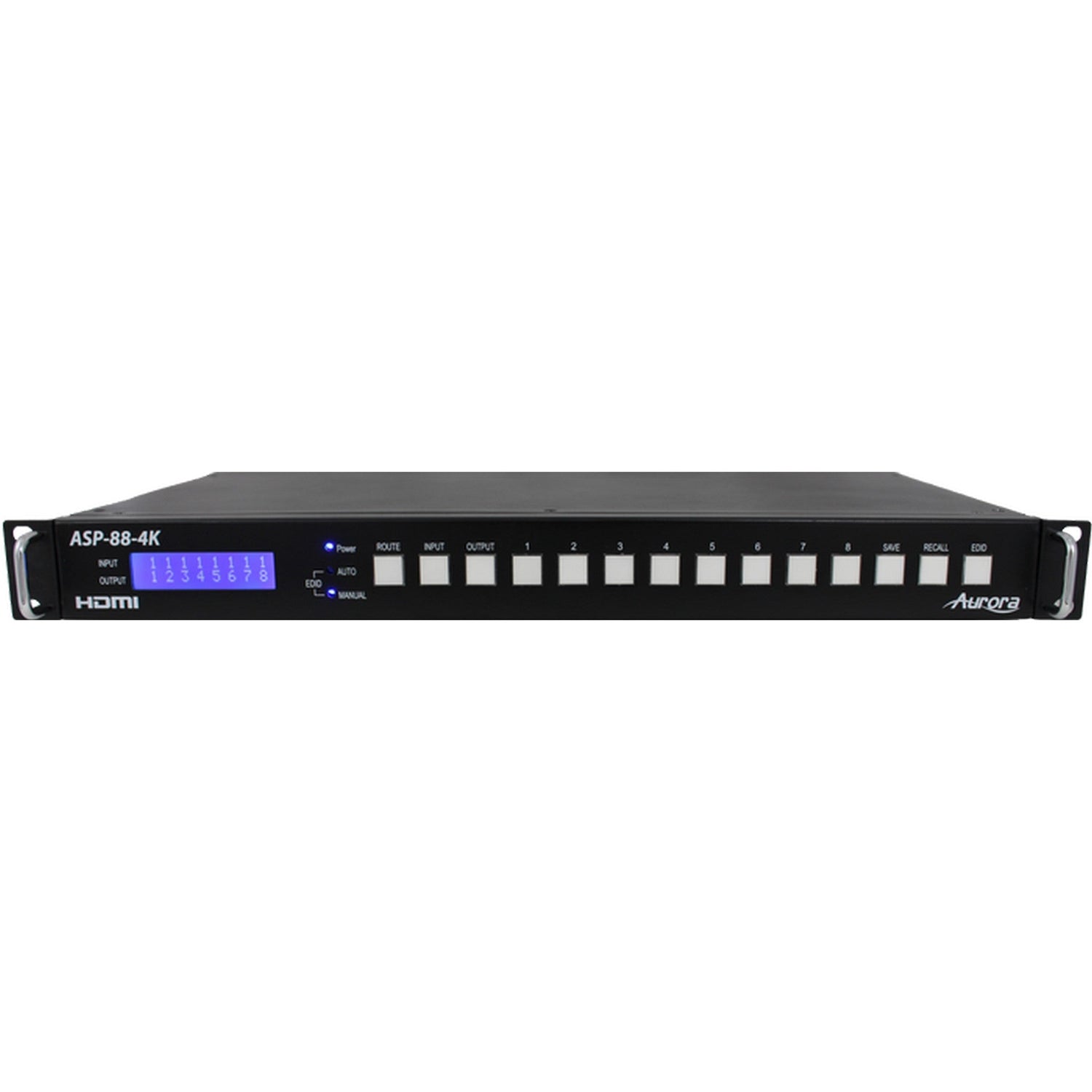

The ASP-88-4K is an 8x8 4K HDMI Matrix offering the power and flexibility you need at a cost effective price. Route Ultra High Definition video sources and multi-channel digital audio from any of the eight (8) HDMI inputs to the any of the eight (8) HDMI outputs at the same time. The front keypad and LCD display is designed for easy operation and quick status of routing while the integrated web control pages allow for remote control from any device with a web browser (Tablets, Computers, Smartphones, etc.). LAN and RS-232 ports have advanced protocols allowing hot plug detection, signal detection, EDID table loading/recalling, presets, and more.
The advanced protocol features and integrated web control make the ASP-88-4K perfect for commercial applications with auto switching, digital signage with device detection, or residential systems with home automation.
Key Features
- Resolutions up to 4K2K @ 30Hz
- HDMI 3D compliant
- HDCP compliant
- Allows any source to be displayed on multiple displays at the same time
- Allows any HDMI display to view any HDMI source at any time
- Supports 7.1 channel digital audio
- Advanced EDID Functions
- Built in Web Control Pages for seamless operation with Tablets, Computers, Smart Phones, and more
- Easy installation with rack-mounting
- Fast response time - 2~5 seconds for channel switch
Technical Specifications
Video Input / Output
Bandwidth: Single-link 340MHz
Resolution: 480i / 480p / 720p / 1080i / 1080p60 8-12 bit color / 3840x2160 @ 30Hz / 4Kx2K @ 30Hz

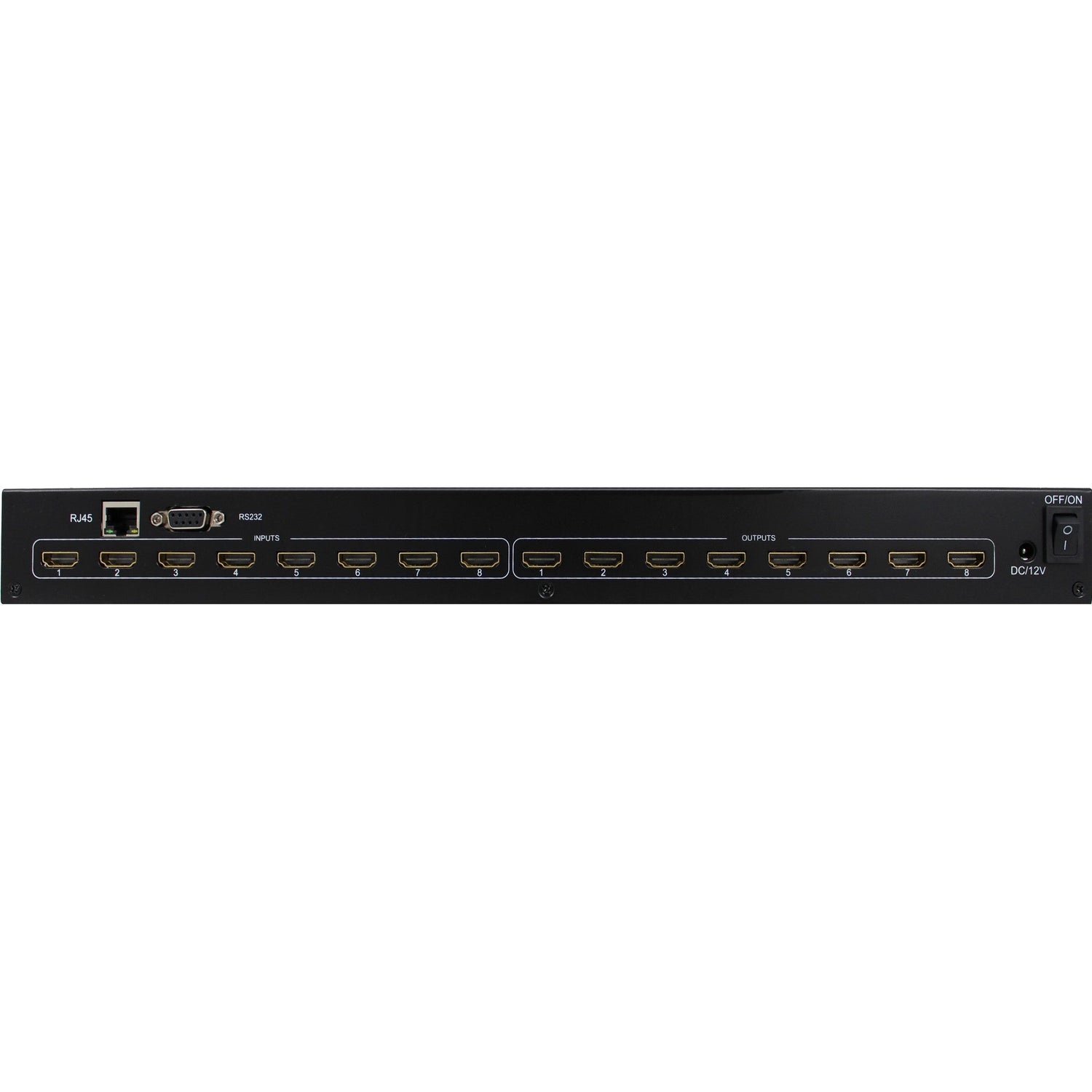

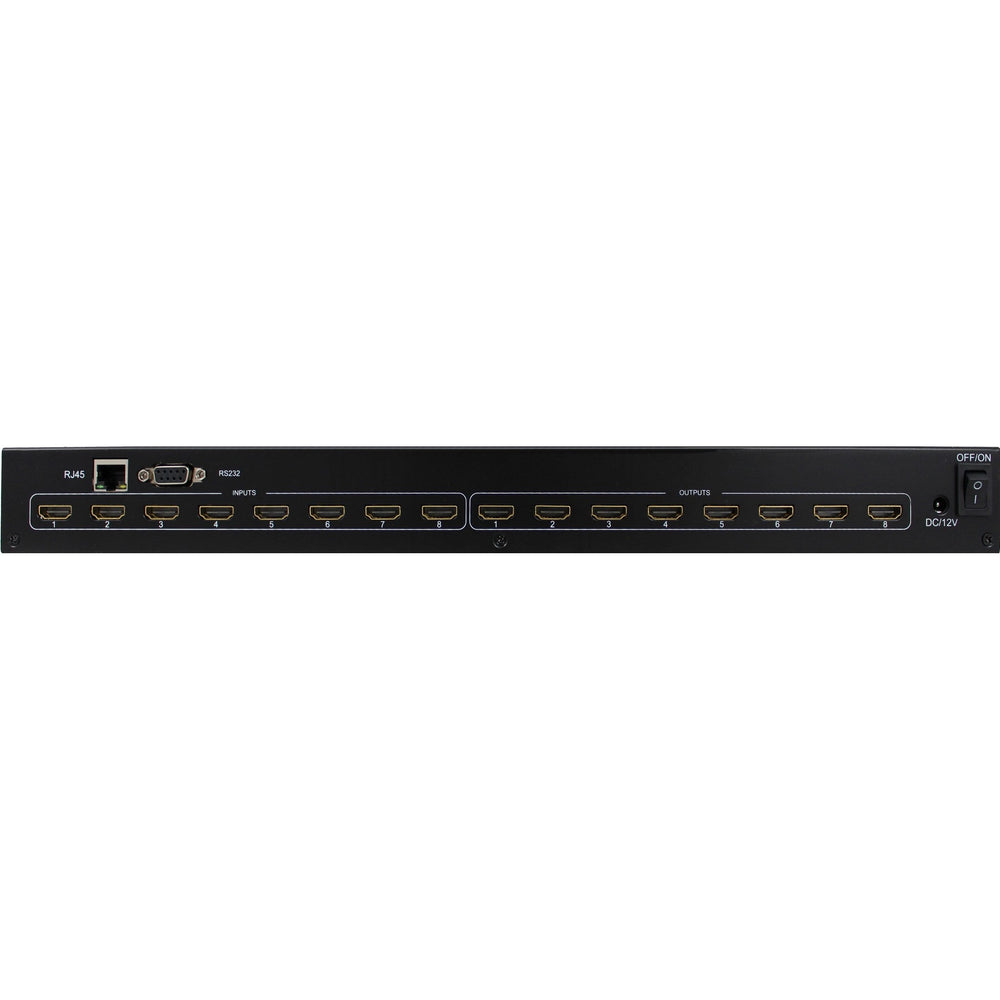

Connectors: Type A <19-pin female>, RS-232 DE-9 <9-pin D-sub female>, RJ-45
HDCP Compliant: Yes
HDMI Output Distance: 1080p up to 20m, 4K up to 10m (Note: Cable quality may impact distance)
Control
Communication: RS-232 / Ethernet
Power
Power Supply: AC Power 100-240V wall supply 12V DC 3A
Power Consumption: 20Watts
Physical
Operating Temperature & Humidity: 32~104 degrees F <0~40 degrees C>, 20~90% RH
Dimensions (LxWxH): 8.66" x 17" x 1.7" <220 x 430 x 44mm>
Weight: 7.2 lbs <3.25kg>
