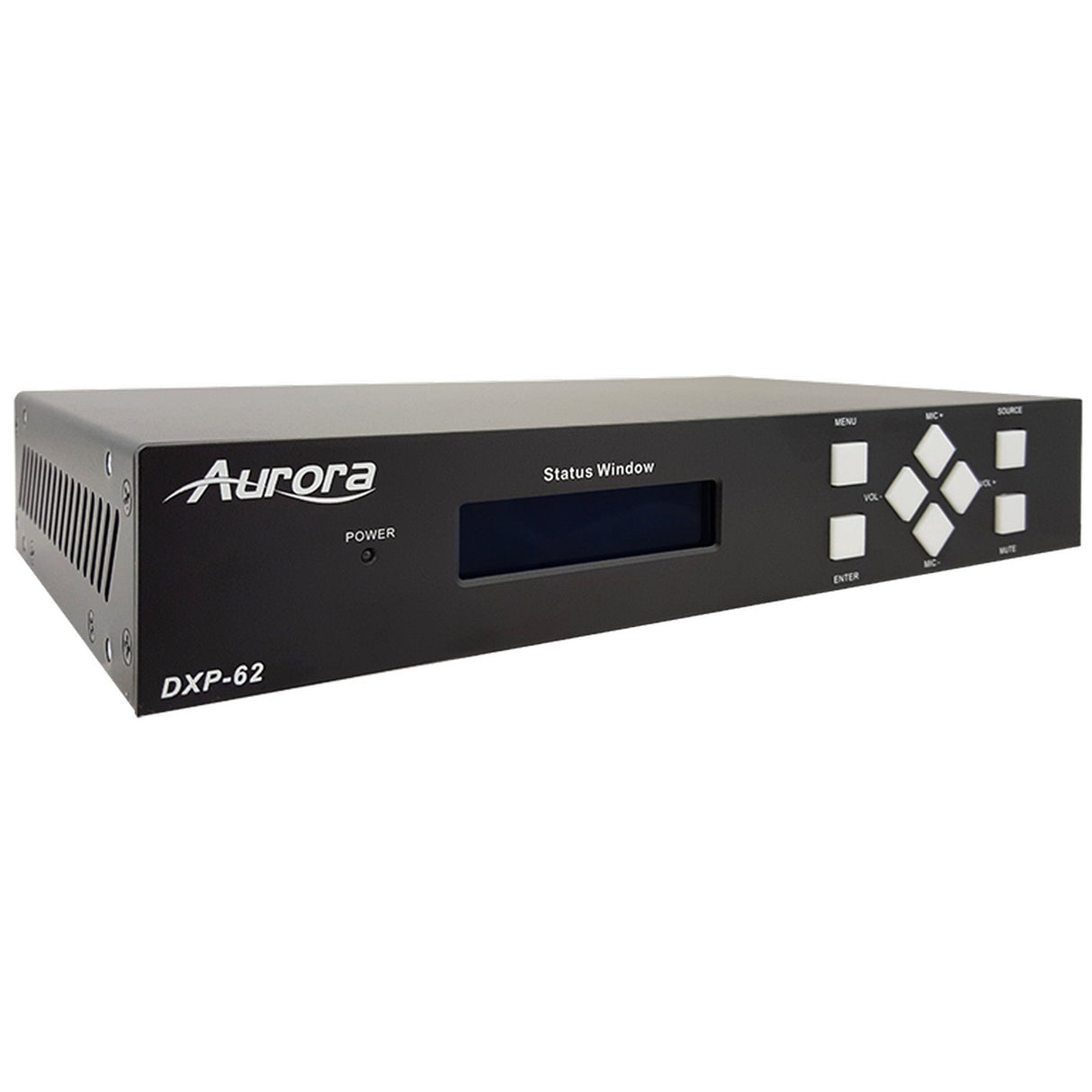

Aurora DXP-62K-3 HDMI Presentation Switcher Scaler with HDBaseT Receiver

The DXP-62 is a presentation scaler/switcher designed for multi-signal processing of HDMI, VGA, Component (YPbPr) and Composite inputs scaling all up to 1900 - 1200 HD resolution output. It accepts up to four (4) HDMI inputs and two (2) VGA/YPbPr/Composite inputs and scales all to the on-board HDMI and HDBaseT simultaneous outputs. Leveraging One Room One Cable features, the HDBaseT output will pass PoH power to the included HDBaseT Receiver as well as RS232 and IR control for the display. With the addition of four (4) external audio inputs, additional MIC input with independent volume control, de-embedding line level stereo output and auto sensing/switching video inputs, the DXP-62 is perfect for Classrooms, Conference Rooms and AV Cart applications. 1RU rack-mount hardware included.

Key Features

• 4 HDMI Inputs
• 2 VGA/YPbPr/Composite Inputs
• 4 Analog Audio Stereo Inputs
• 1 Microphone Input
• 1 HDMI Output
• 1 HDBaseT Output 230ft (70m) CAT 5e/6
• Power over HDBaseT (PoH)
• IR, and RS-232 over HDBaseT
• Scales input up to 1080p
• Auto Switching Feature

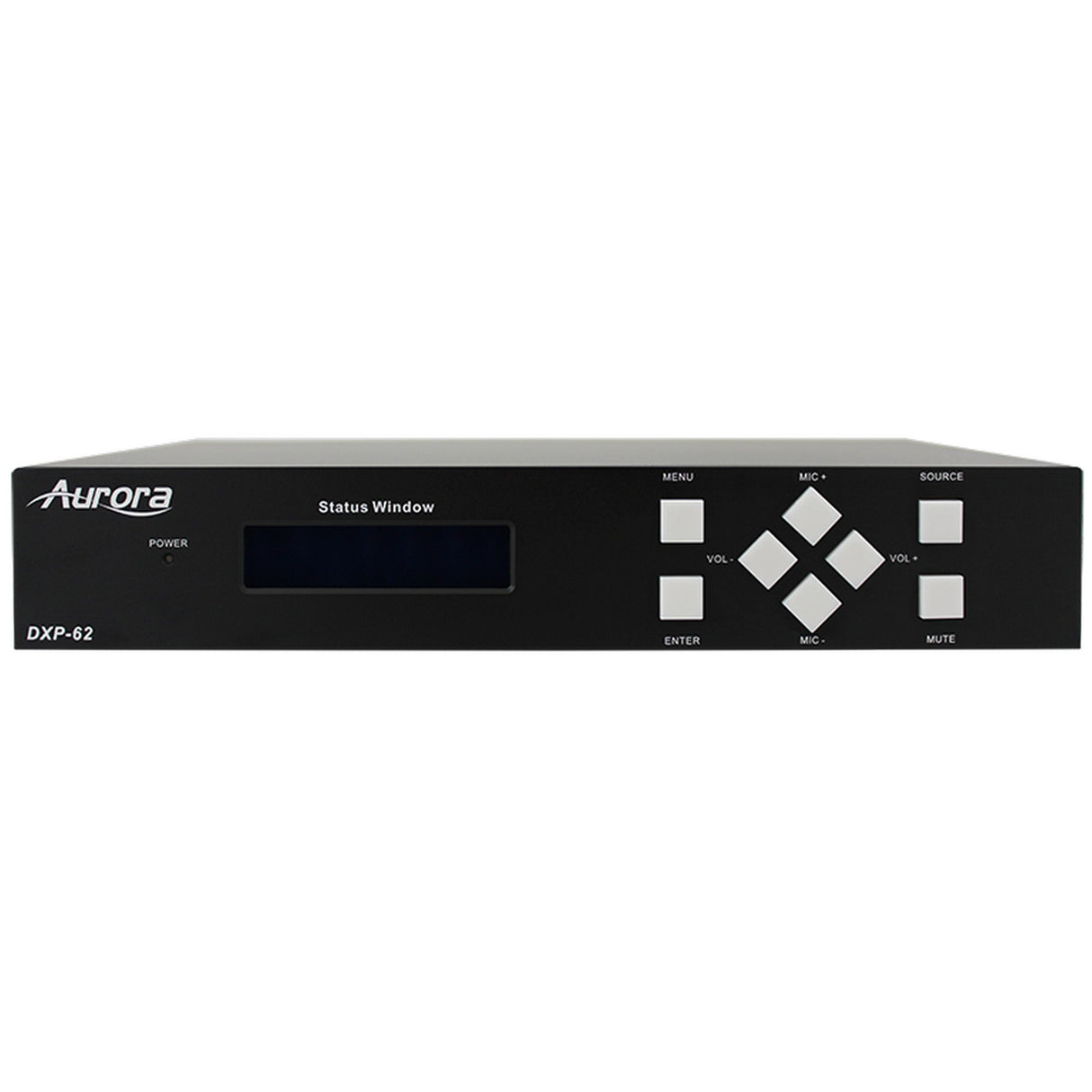

• Front Panel Button Control
• Front Panel LCD Display
• OSD (On Screen Display)
• RS-232 and IR Control (LAN/WEB control when ordered as DXP-62K-3)
• USB for Firmware Updating

Technical Specifications

Video
Max HDBT Distance: 230ft (70m)
Max Resolution: 1920x1200 @60Hz
Color Depth: 36bit
Bandwidth: HDMI: 1.65Gbps per color C-Video:150MHz YPbPr: 170MHz VGA: 375MHz
Audio
Audio Bandwidth: 20Hz - 20KHz

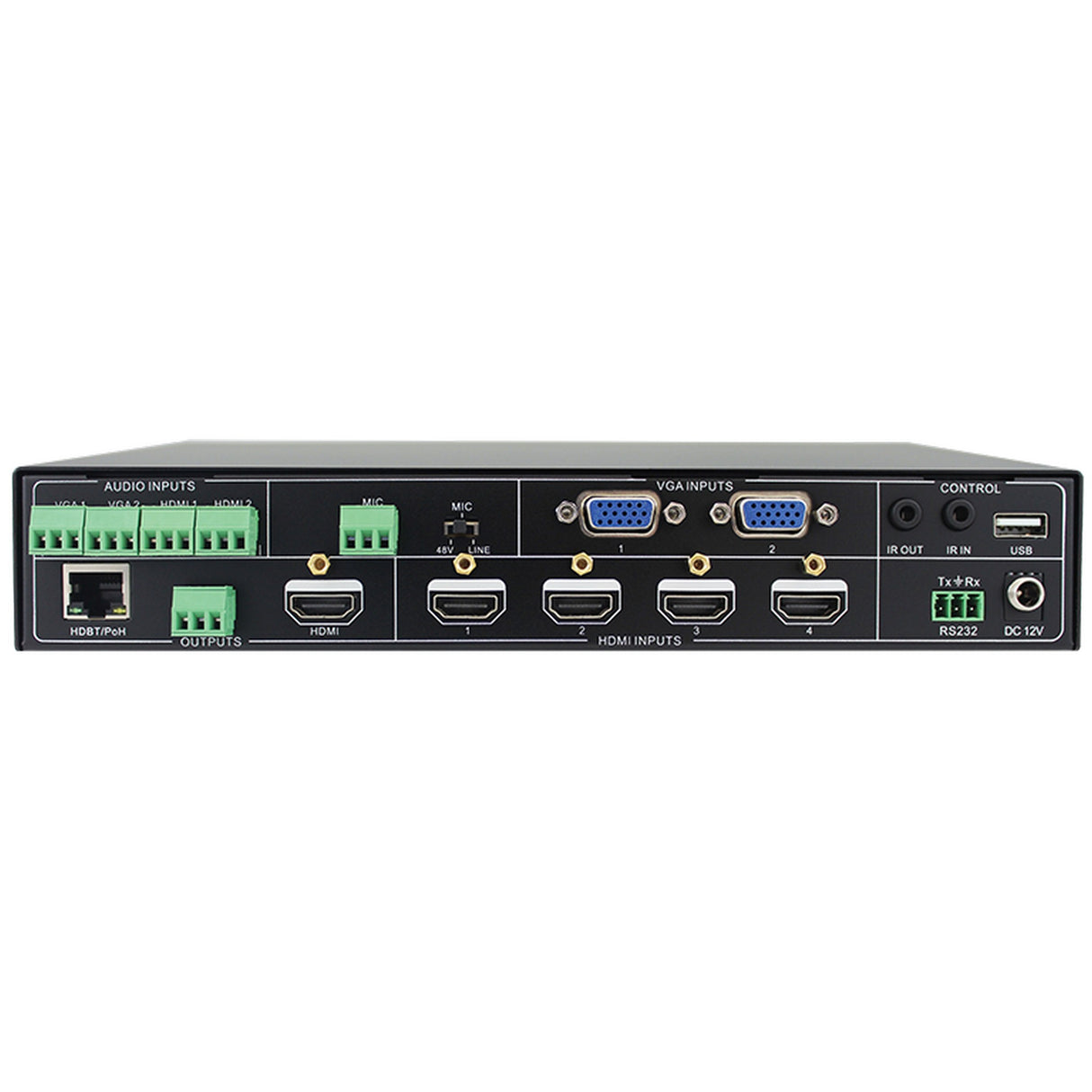

Connectors
RS-232: Max 115kbps
HDMI Inputs: 4
VGA/YPbPr/Video Inputs: 2
HDMI Outputs: 1
HDBaseT Outputs: 1 PoH (Video, RS-232, IR)
Audio Inputs: 4 Stereo 3 pin 3.81mm Euro / 1 Mic 3 pin 3.81mm Euro
Audio Outputs: 1 Stereo 3 pin 3.81mm Euro / 0db Gain.
RS-232 Ports: 1
IR Input Ports: 1
IR Output Ports: 1
IR Frequency Range: 20KHz - 60KHz
HDBaseT Connector: RJ-45 WE/SS 8P8C
RS-232 Connector: Euro Style 3.81mm
IR Connector: 3.5mm TRS
HDMI Connector: Type A 19 pin
Power Connector: IEC Male
Mechanical
Housing: Black Aluminum Enclosure
Dimensions : 8.66” x 5.83” x 1.75” (220 x 148 x 44mm)
Weight: 1.477lbs (.67kg)
Mounting: 1 RU Rack Mounting (Hardware Included)
Power supply: 12v 16Watt
Operation temperature: 0~40C <32~104F>
