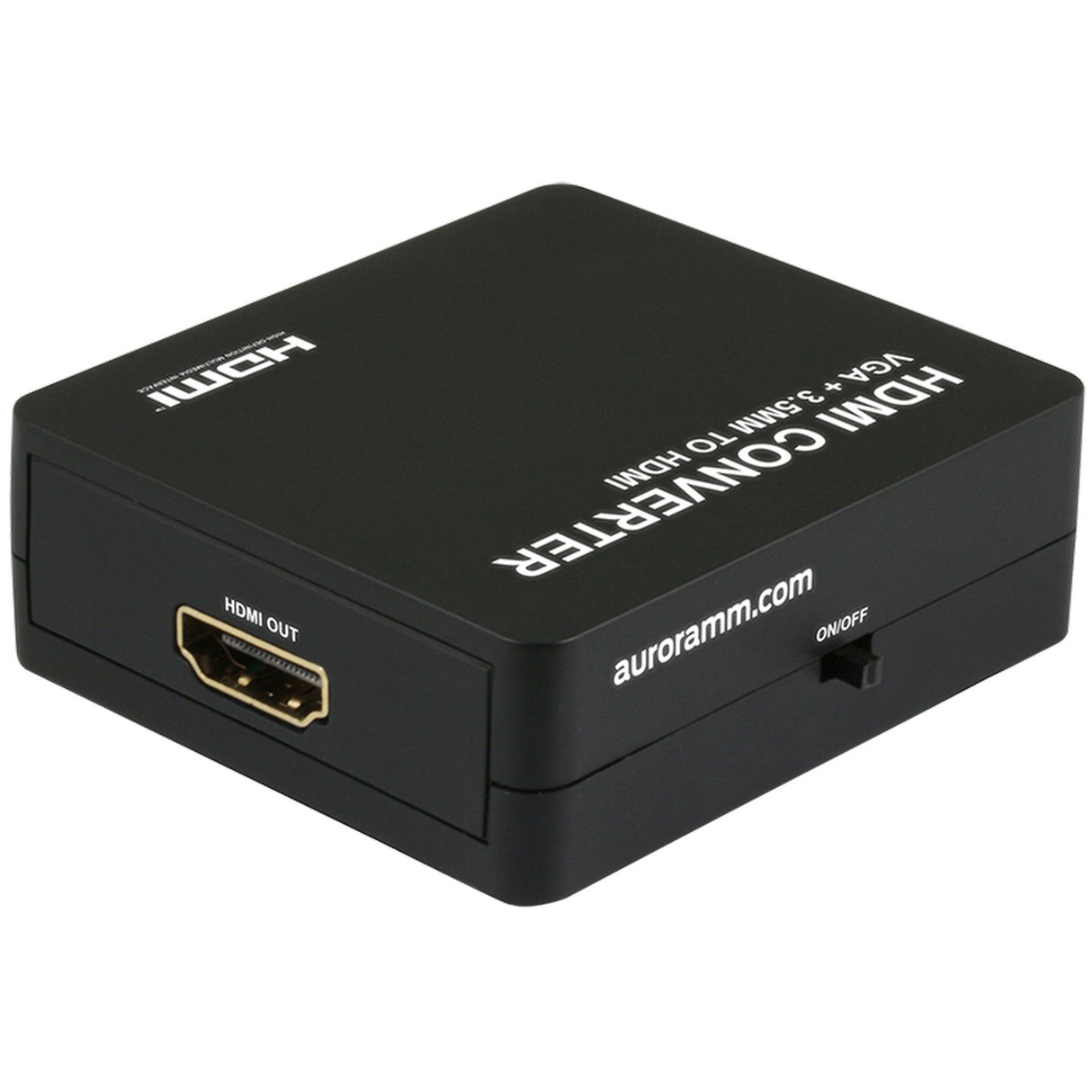

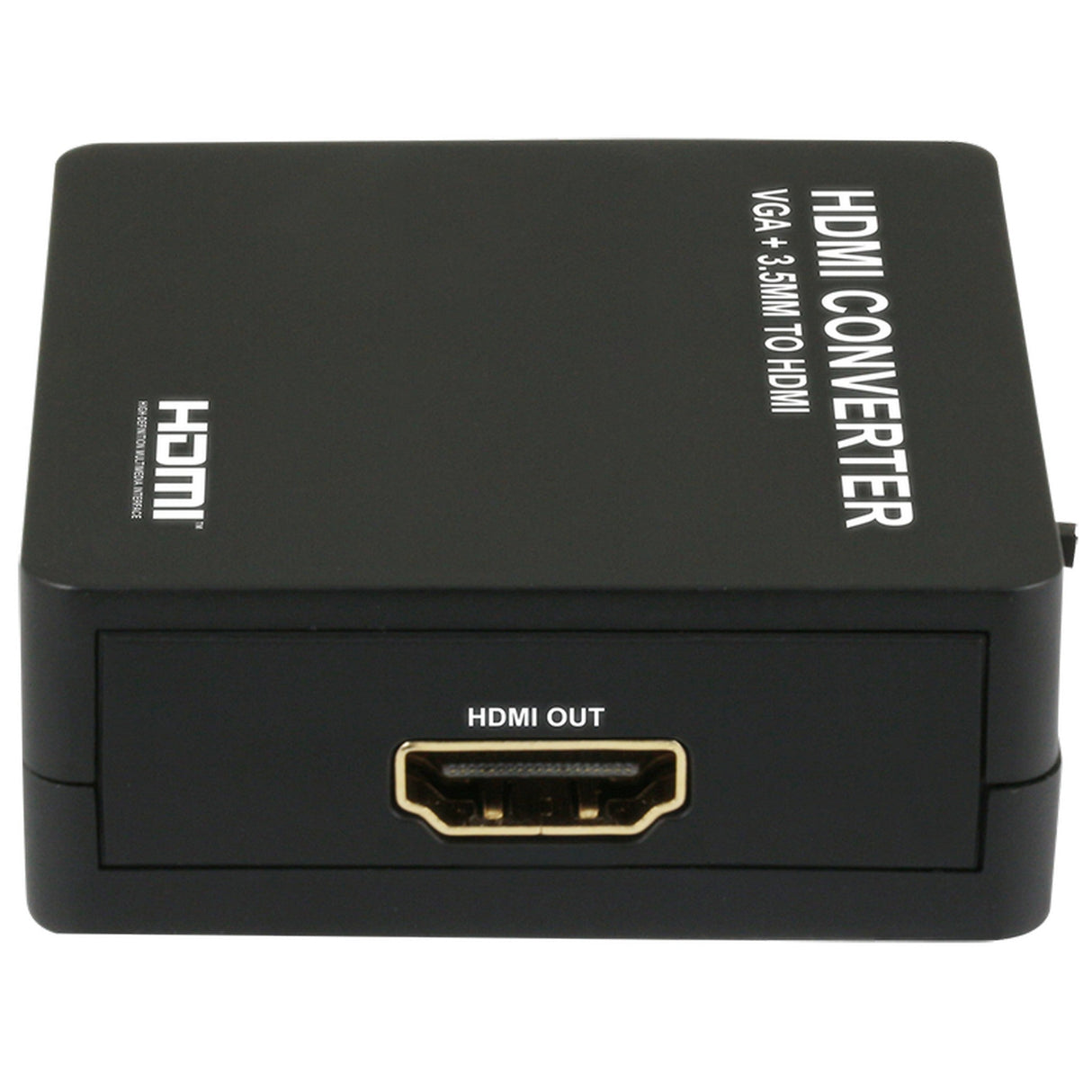

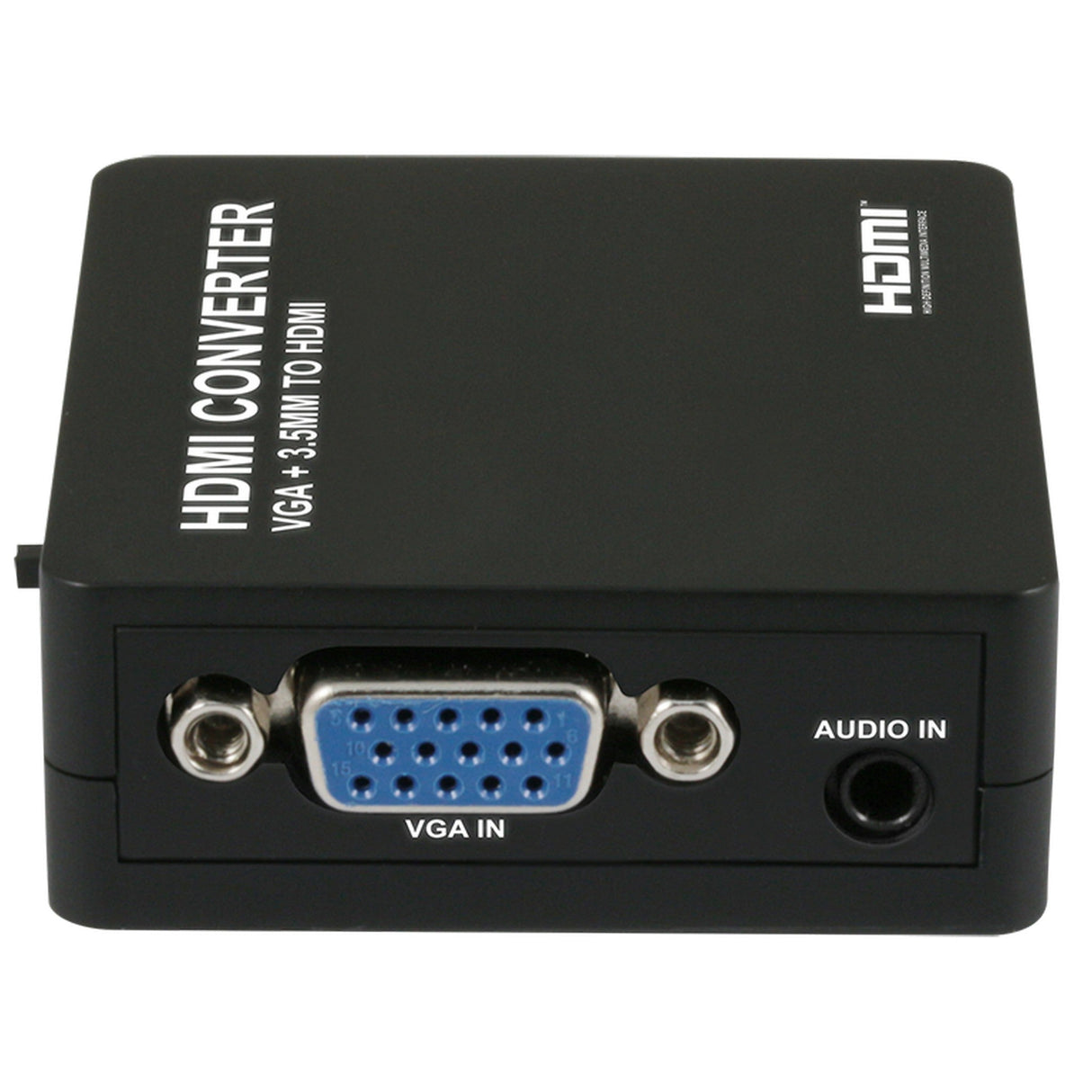

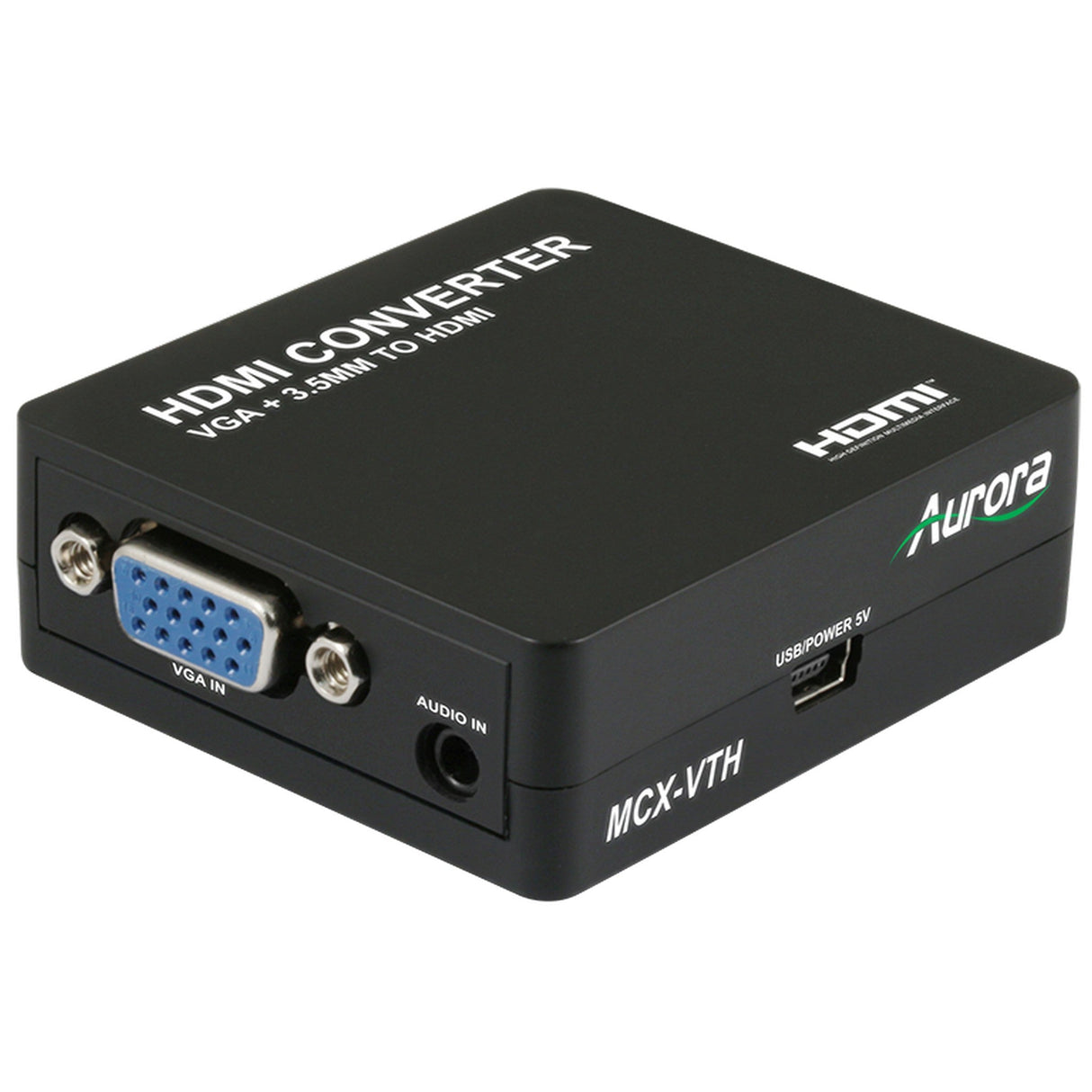

Aurora MCX-VTH VGA to HDM Audio Video Converter
The MCX-VTH is a VGA to HDMI converter capable of converting resolutions up to 1080p. Power can be supplied from the included wall supply or a USB port allowing cleaner cabling and installation.
Key Features
- VGA with Stereo Audio to HDMI Conversion
- Resolution up to 1080p
- Support 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth
- Support 12bit per channel (36bit all channel) deep color
- Support uncompressed 2 channel audio such as LPCM
Technical Specifications
Technical
Signal Input: VGA Signal
Input Video Signal: 0.5-1.0 volts p-p
Output Video: HDMI signal
DTV/HDTV (50/60Hz): 480i/576i/480p/576p/720p/1080i/1080p
PC Resolutions: 1920 X 1080@60Hz, 1680 X 1050@60Hz, 1600 X 1200@60Hz, 1600 X 900@60Hz, 1440 X 900@60Hz, 1366 X 768@60Hz, 1360 X 768@60Hz,1280X 1024@75Hz. 1280 X 800@60Hz, 1280 X 960@60Hz,1280 X 800@75Hz, 1380 X 800@60Hz 1280 X 768@60Hz,1280 X 720@60Hz, 1280 X 600@60Hz 1152X 864@75Hz, 1152 X 864@60Hz, 1024 X 768@75Hz, 1024 X 768@60Hz, 800 X 600@75Hz, 800 X 600@60Hz, 640 X 480@75Hz, 640 X 480@60Hz
Video Amplifier Bandwidth: 2.25Gbps/225MHz
Vertical Frequency Range: 50/60Hz
Mechanical
Housing: Plastic
Dimensions
Weight: 42g <1.48 oz>
Power supply: 5V 2A DC
Power consumption: 5 Watts
Operation temperature: 0~70C <32~158F>
Storage temperature: -10~80C <14~170F>
Relative humidity: 5~90% RH
