Aurora SKR-22T-XFR 2 x 2-Foot Flat Ceiling Tile Mounted Speaker
Description
Description

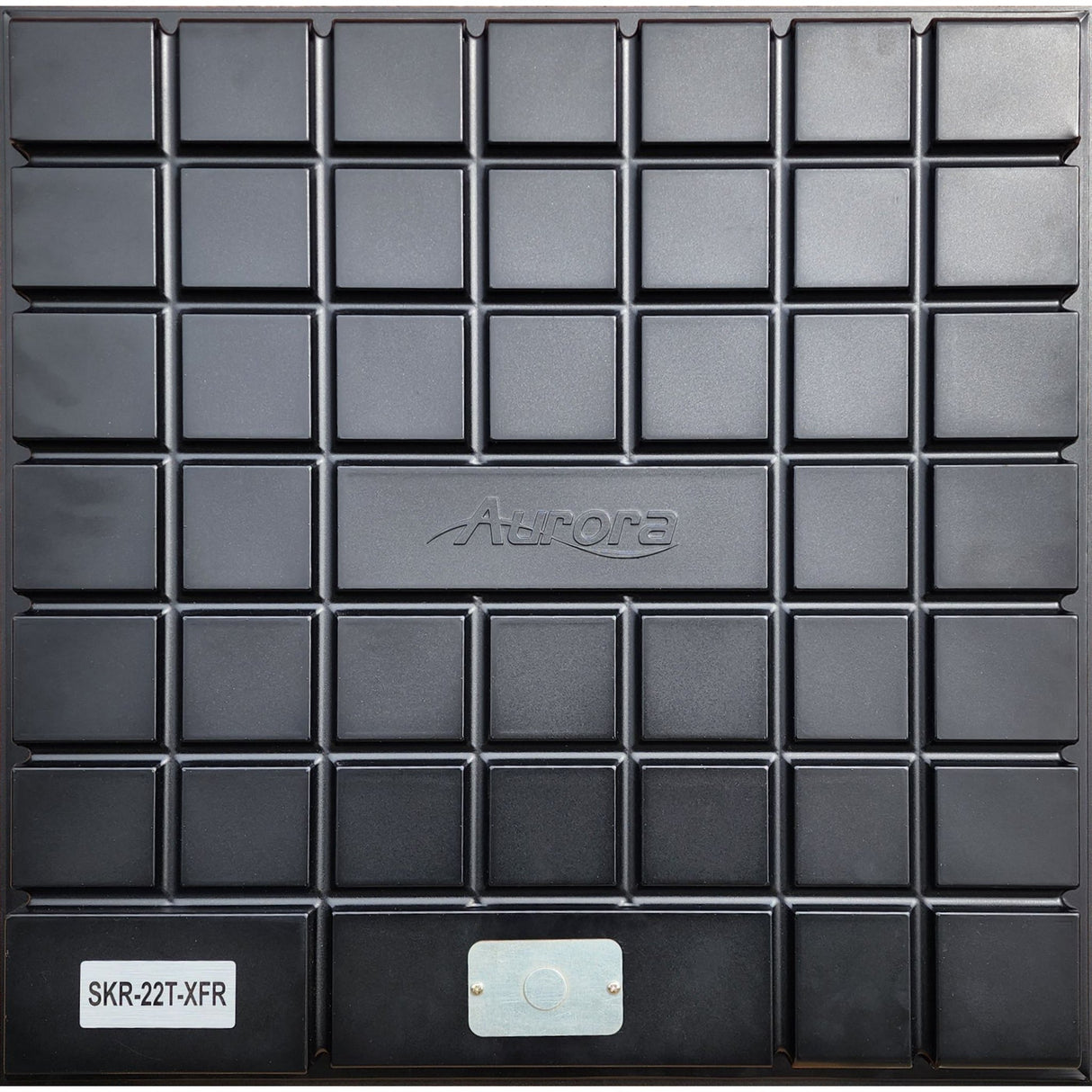

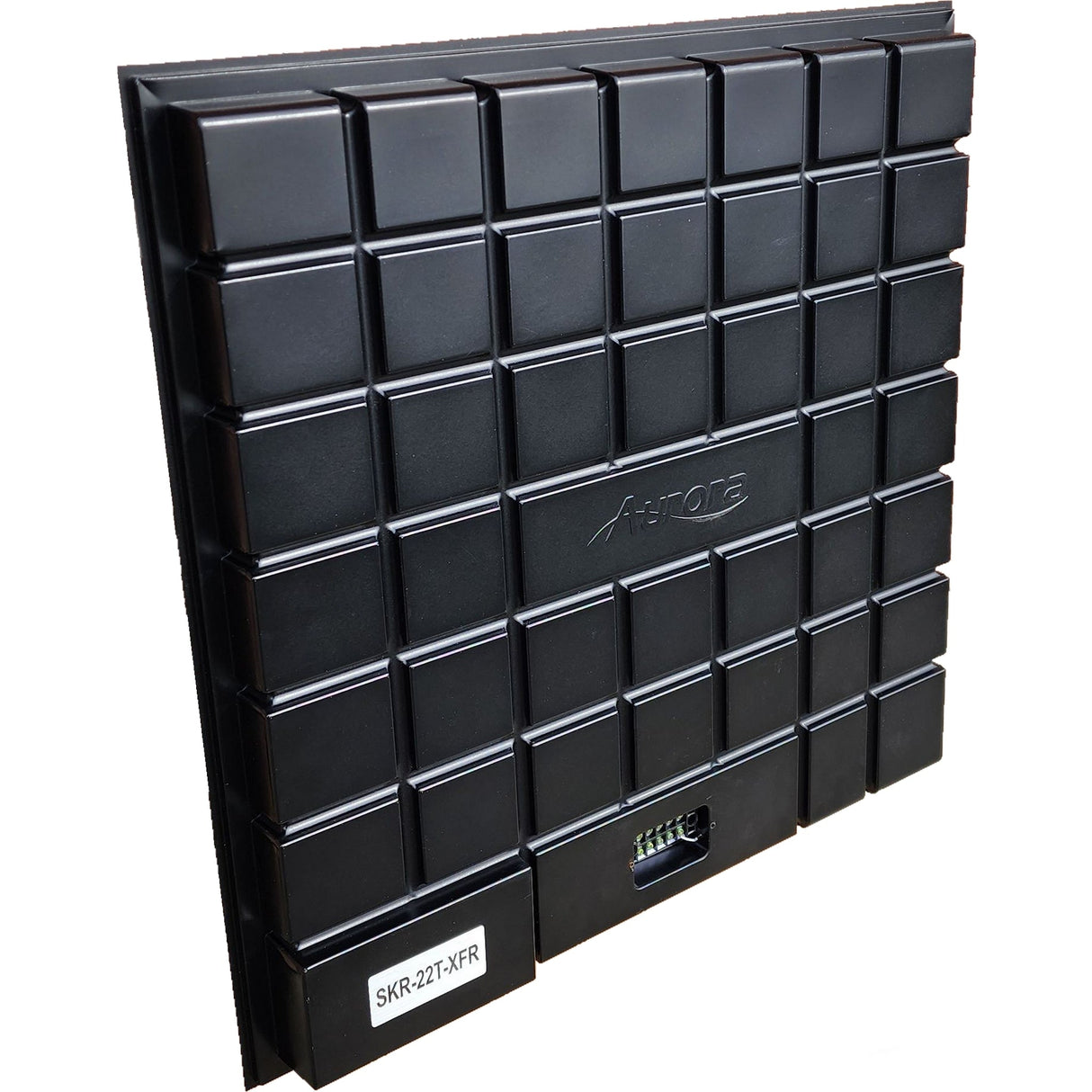

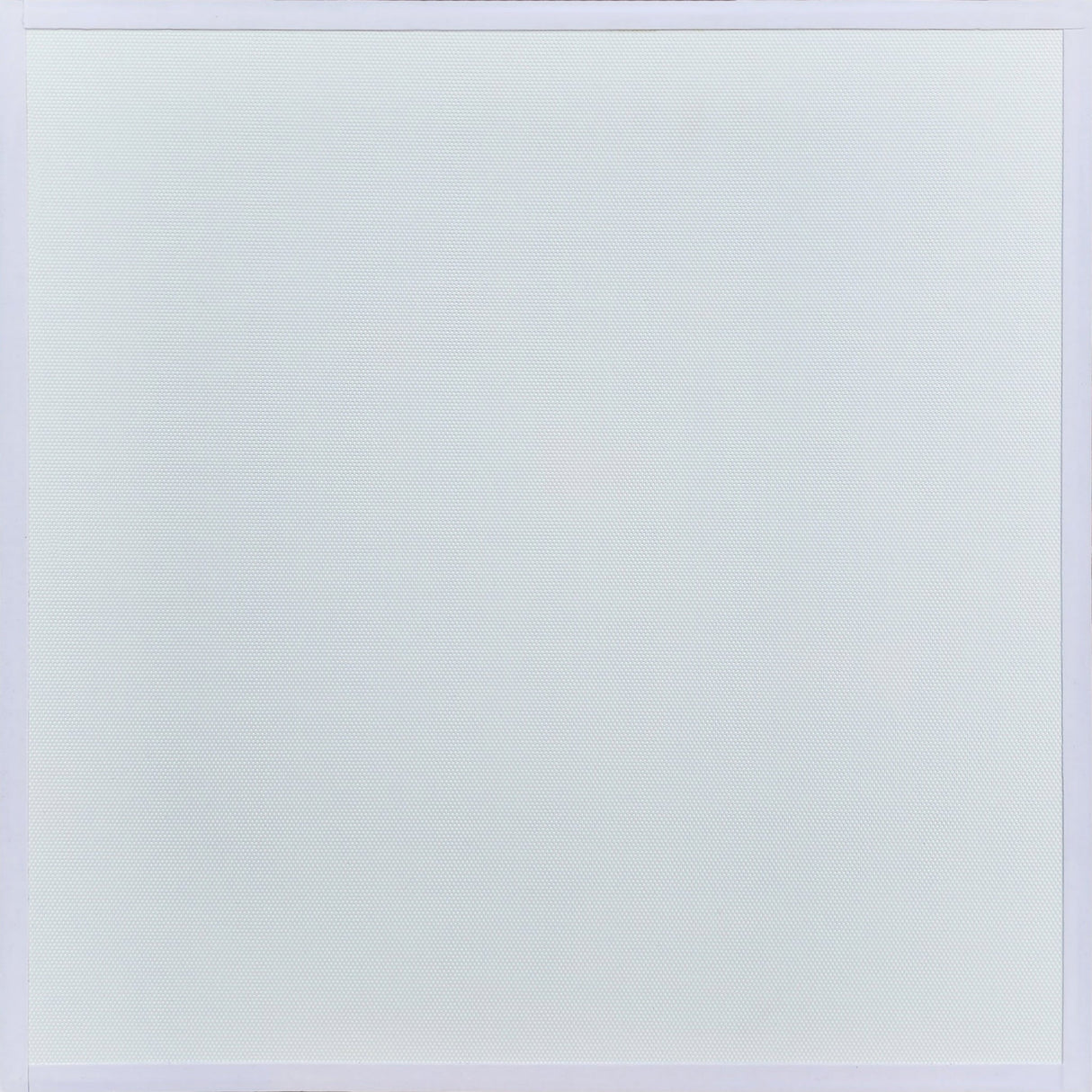

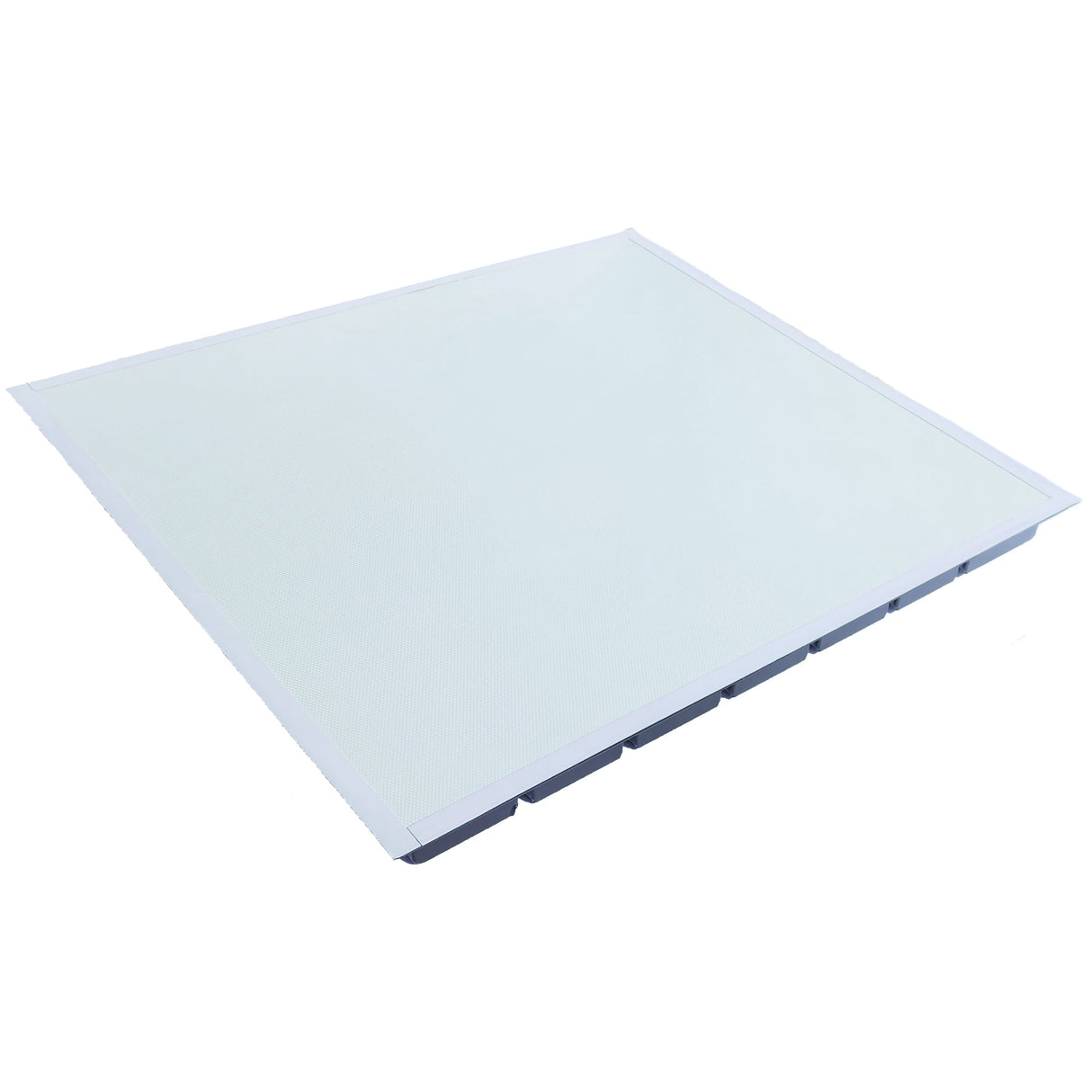

Introducing the Aurora SKR-22T-XFR 2 x 2-Foot Flat Ceiling Tile Mounted Speaker
The latest innovation from Aurora is the SKR-22T-XFR speaker, known for its lightweight design and exceptional sound quality, offering unmatched fidelity compared to standard ceiling speakers. This speaker can produce a 180-degree sound field and operate solo for mono sound in a room. Installation is quick, cost-effective, and neat, as it doesn't necessitate cutting ceiling tiles or back boxes for mounting. Simply position the speaker in a 2x2 ceiling grid, connect the speaker wire, and you're ready to go. For 4x2 ceiling grids, cutting the tile in half and adding a standard ceiling divider suffices.
This speaker delivers a complete audio range, ensuring clear presenter sound and comprehensive delivery of presentation content, unlike traditional 5” to 6” round ceiling speakers. To enrich the room's audio setup, think about including a 25-watt PoE+ Dante amplifier like the Aurora DTX-AMP25-M. This amplifier can also support Line for analog systems.
Key Features
- Aurora's latest release is the SKR-22T-XFR speaker, renowned for its lightweight construction and exceptional audio quality, providing superior fidelity when compared to regular ceiling speakers.
- The speaker is capable of delivering a 180-degree sound field and can function independently to produce mono sound within a room.
- Installation of the SKR-22T-XFR speaker is swift, cost-efficient, and tidy, eliminating the need to cut ceiling tiles or back boxes for mounting.
- To install, simply place the speaker in a 2x2 ceiling grid, connect the speaker wire, and it is good to go.
- For 4x2 ceiling grids, cutting the tile in half and adding a standard ceiling divider is sufficient for installation.
- Power output of 25 Watts RMS.
- Designed to fit in a standard 2’ x 2’ drop ceiling grid.
- Offers a frequency response of 50Hz 15KHz +/-10dB.

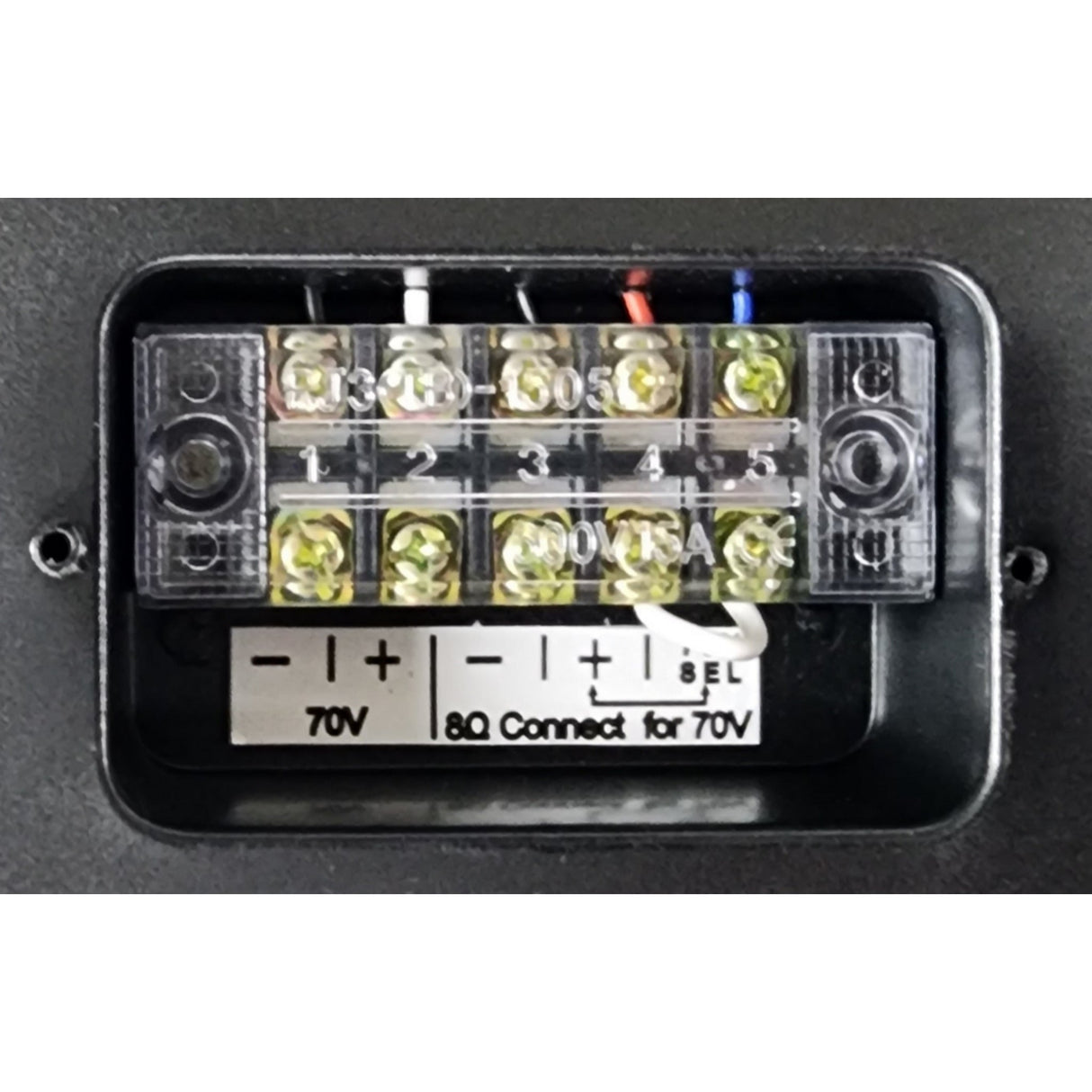

- Compatible with 8 Ohm & 70v/100v systems.
Constructed with UL94V-0 rated materials, featuring patented technology and internal auto resettable fuse protection for added safety.
Technical Specifications
Dimensions
23-3/4 x 23-3/4 x 2-3/32 (60.3 x 60.3 x 5.3)
Weight
3lb 6.4oz(1.54kg)
Nominal Size
23-3/4 x 23-3/4 x 2-3/32 (60.3 x 60.3 x 5.3)
Normal Impedance
8 Ω + 15%
Resonant Frequency
F0:60Hz+20%
Output SPL
90dB@1W/1M (At 400,500,1KHz)
Frequency Response
55Hz~20KHz ±6dB
Speaker Power
25W (RMS)
Load Test
IEC 268-5 8.94V/Channel 24HR
Sound Dispersion
180o Vertical/360o Horizontal
Environmental Test
High Temperature
60o C + 2o C
Relative Humidity
60o C + 2o C
Humidity
90% 24 Hours
Low Temperature
-20o C + 2o C 24 Hours
Drop Test
600 ± 25mm 60° ± 5°
