Avenger C4465-1 Eye Coupler MP with Jr. Receiver, 42-52mm

Avenger C4465-1 Eye Coupler MP with Jr. Receiver, 42-52mm

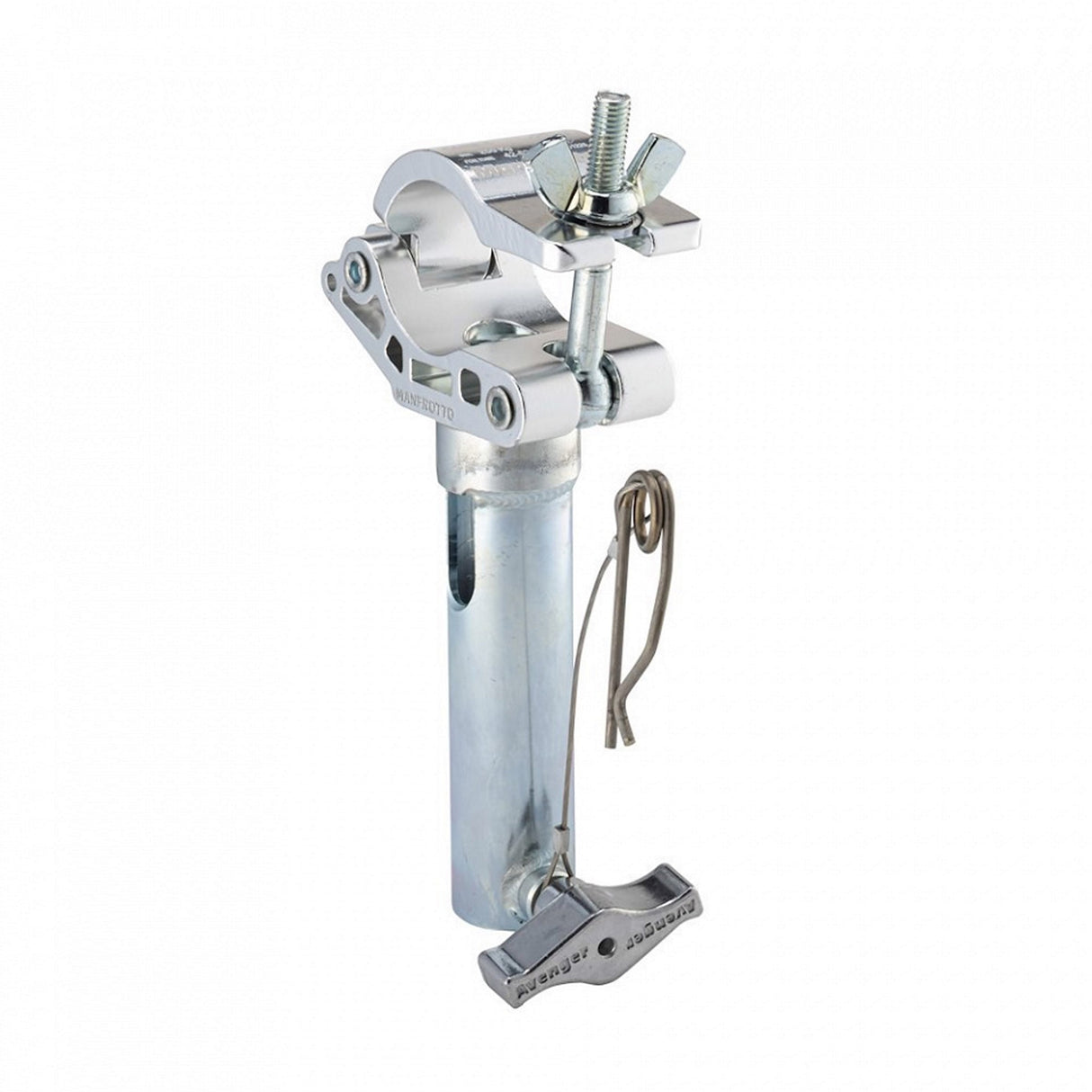

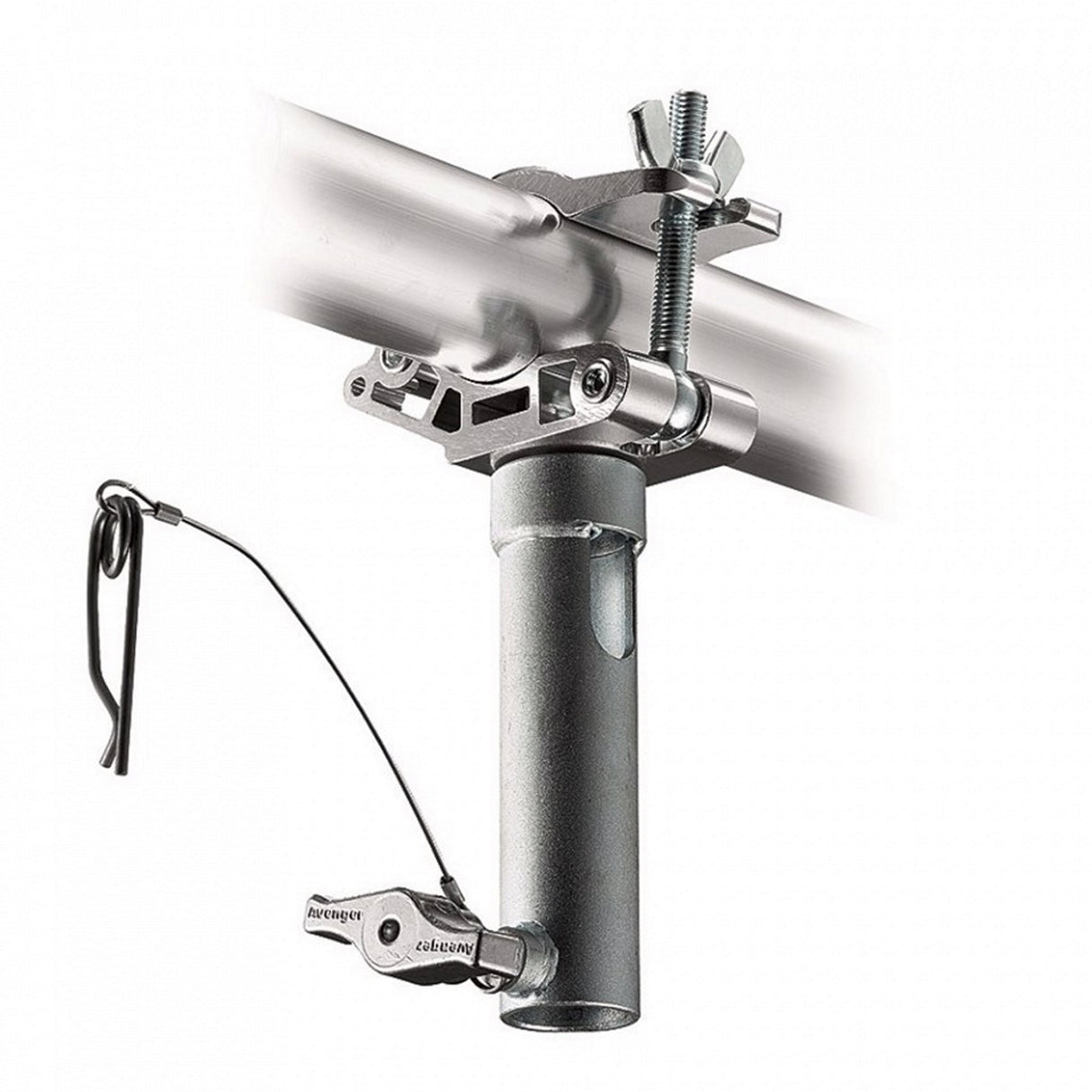

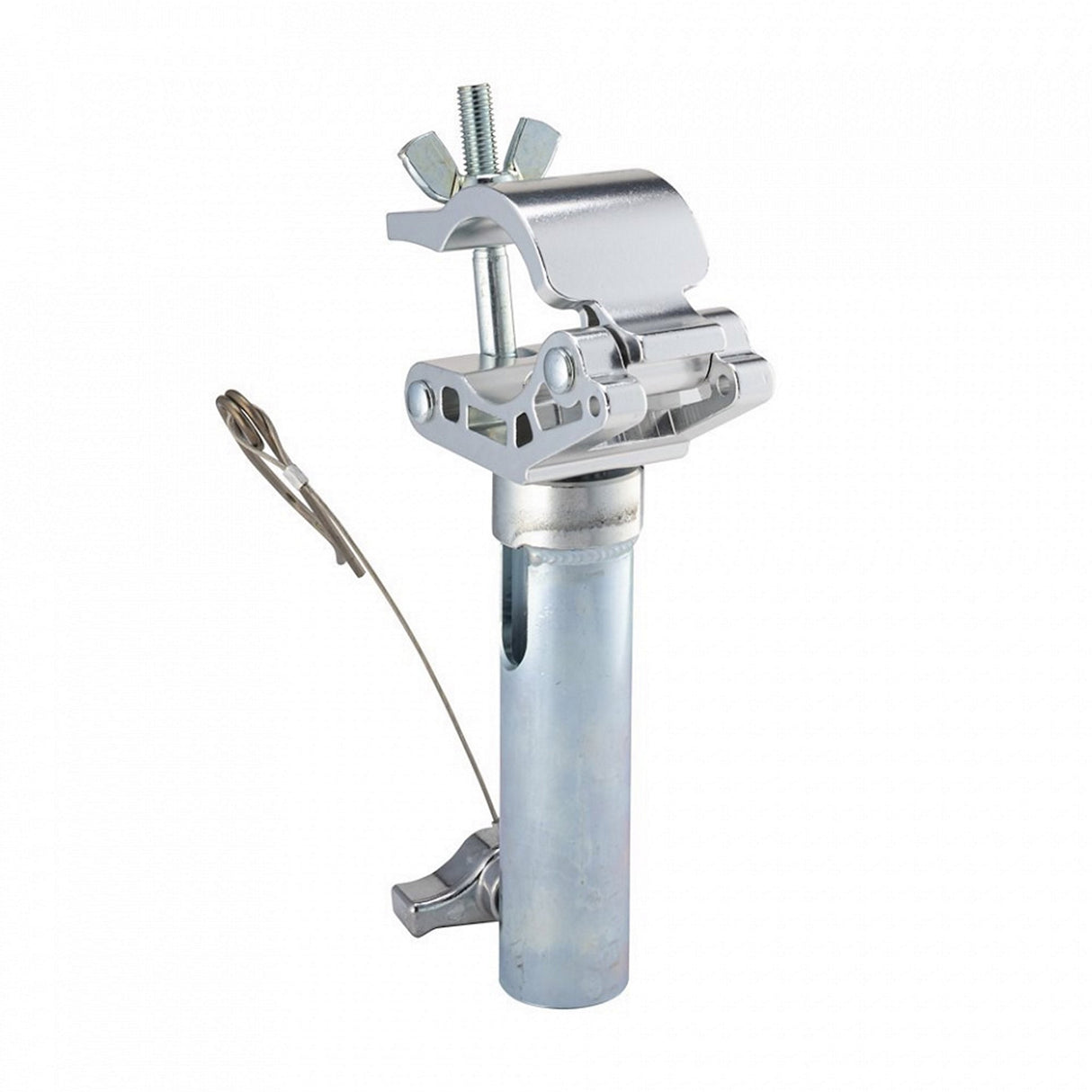

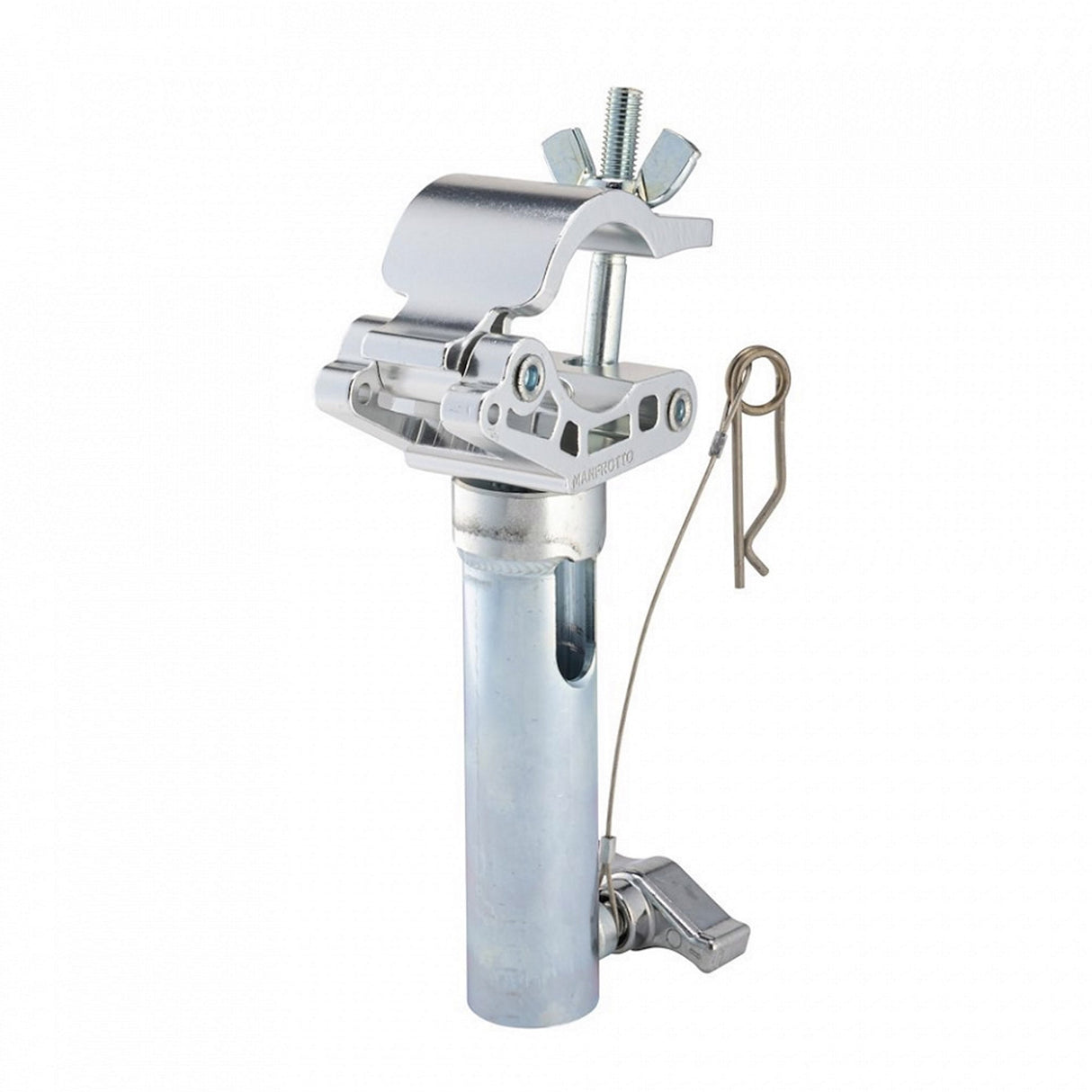

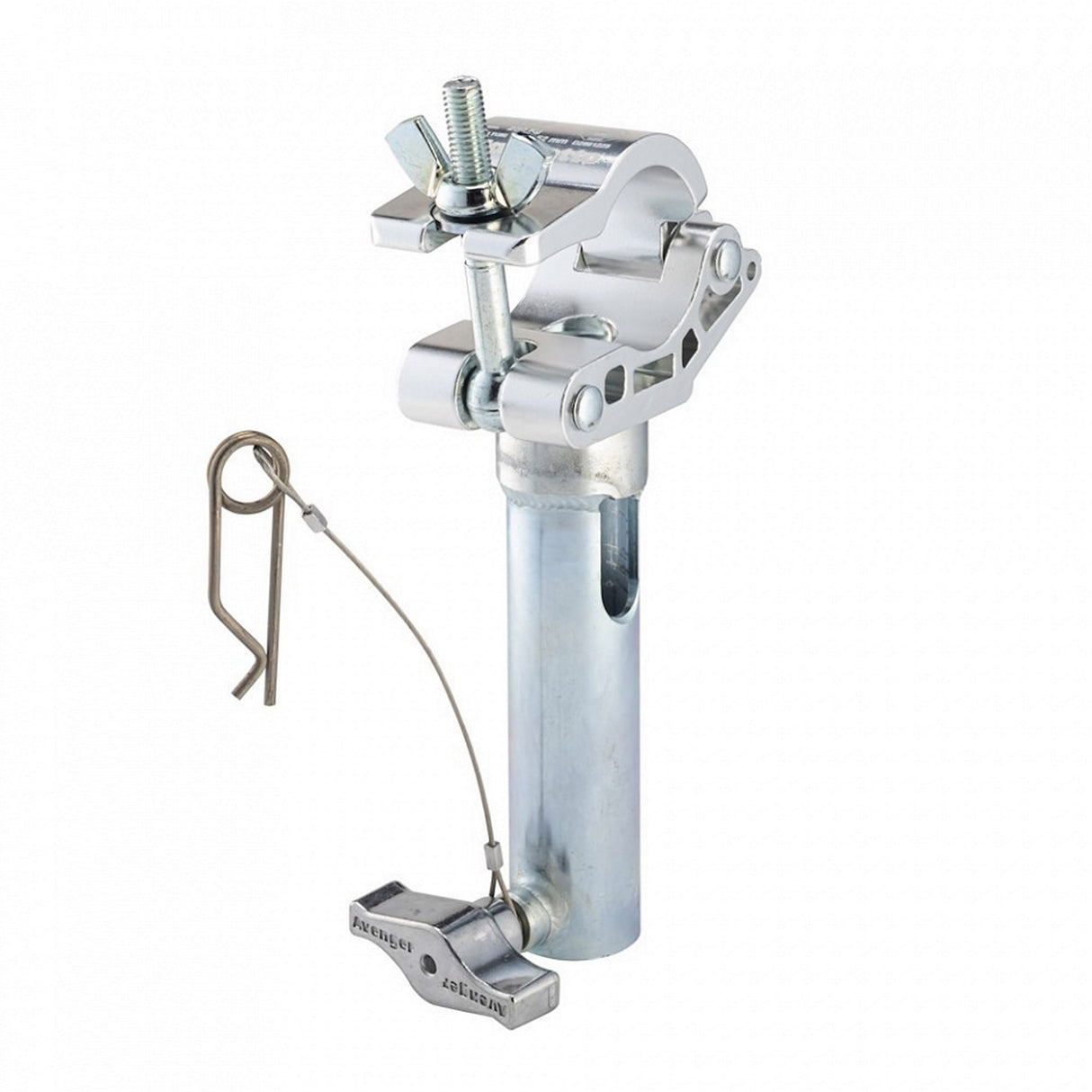

The Avenger C4465-1 MP Eye Coupler grid clamp comes supplied with a 28 mm (1 1/8”) junior receiver. This popular MP cheeseboro clamp has a wider clamp range than the LP clamp and is ideal for many rigging systems, truss and entertainment configurations. The lower jaw has a special flattened shape which helps in the sizing of this clamp and the increased flexibility to clamp down on different types of tubing. Capable of holding up to 300 kg/661.4 lb loads this clamp will perform in many demanding environments. The MP Eye Coupler uses a wing nut with washer locking design and is able to clamp down on round tubes, truss or grids ranging from 42 mm (1.65”) to 52 mm (2.04”) and is 50 mm (1.96”) wide. T?V and S?D certified.

Technical Specifications

Weight
0.87 kg
Payload
250 kg
Attachment 01
1 1/8 (28 mm) bushing not threaded
Length
50 cm
Certification
TUV
Clamp Range - Max. (Round Tube)
52 mm
Clamp Range Min Round Tube
42 mm
Color
Silver
Material
Aluminum
