Avenger C4560-1 Eye Coupler MP Clamp Slim Silver with 12.5mm Hole

Avenger C4560-1 Eye Coupler MP Clamp Slim Silver with 12.5mm Hole

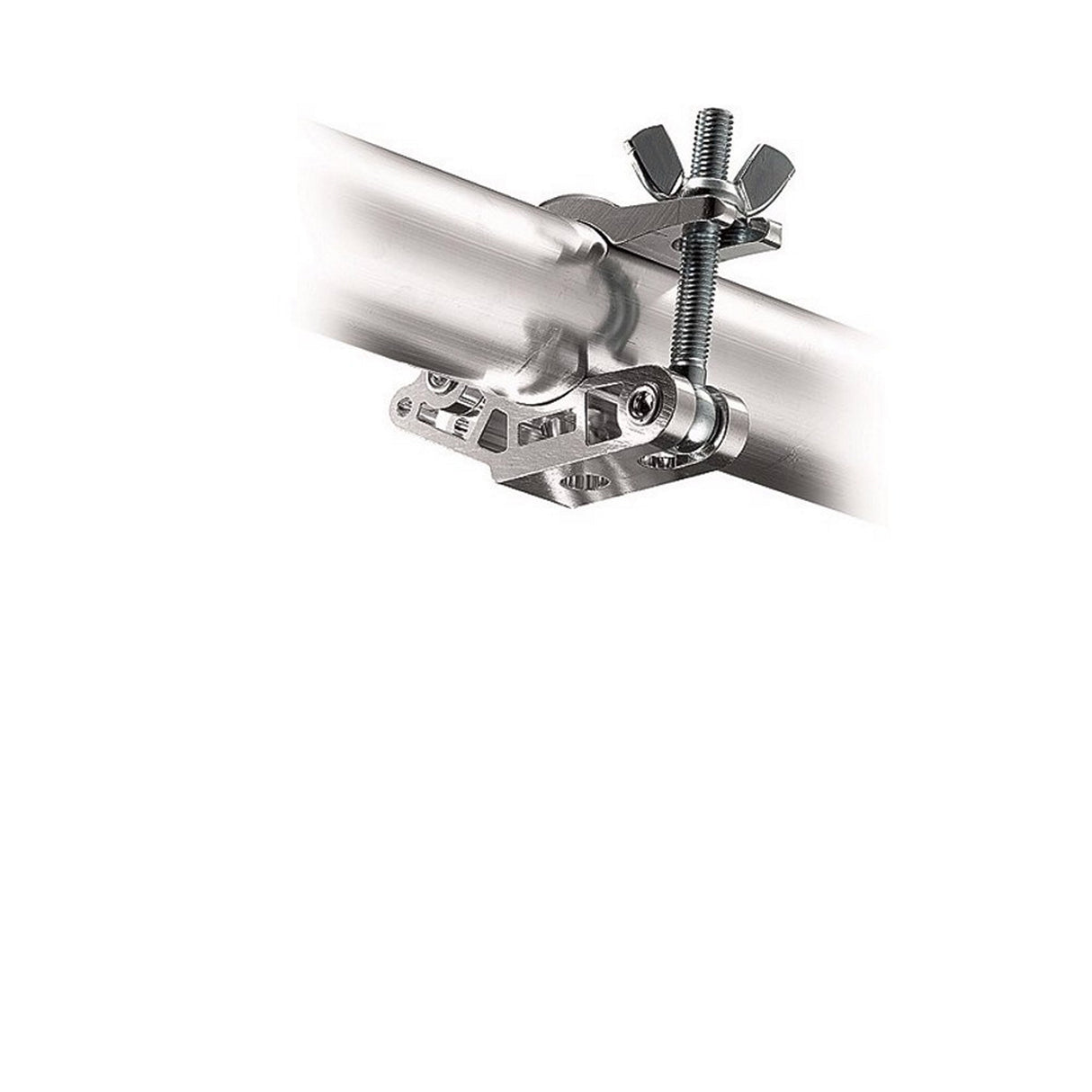

The Avenger C4560-1 MP Slim Eye Coupler grid clamp is a base model eye coupler designed for user customization. This slim version MP cheeseboro clamp has a wider clamp range than the LP clamp and is ideal for many rigging systems, truss and entertainment configurations. The lower jaw has a special flattened shape which helps in the sizing of this clamp and the increased flexibility to clamp down on different types of tubing. It offers the user complete customization and flexibility for any application where a grid clamp is needed. The MP Slim Eye Coupler uses a wing nut with washer locking design and is able to clamp down on round tubes, truss or grids ranging from 42 mm (1.65”) to 52 mm (2.04”) and is 30 mm (1.18”) wide. The attachment hole is 12.5 mm (.5”) and is located on the base of the clamp. Capable of holding up to 180 kg/396.8 lb loads this clamp will perform in many demanding environments. T?V and S?D certified.

Technical Specifications

Weight
0.277 kg
Payload
180 kg
Attachment 01
12,5mm Hole not threaded
Length
3 cm
Certification
TUV
Clamp Range - Max. (Round Tube)
52 mm
Clamp Range Min Round Tube
42 mm
Color
Silver
Material
Aluminum
