Aviom D800 A-Net Distributor with A-Net Bridge Input

Aviom D800 A-Net Distributor with A-Net Bridge Input

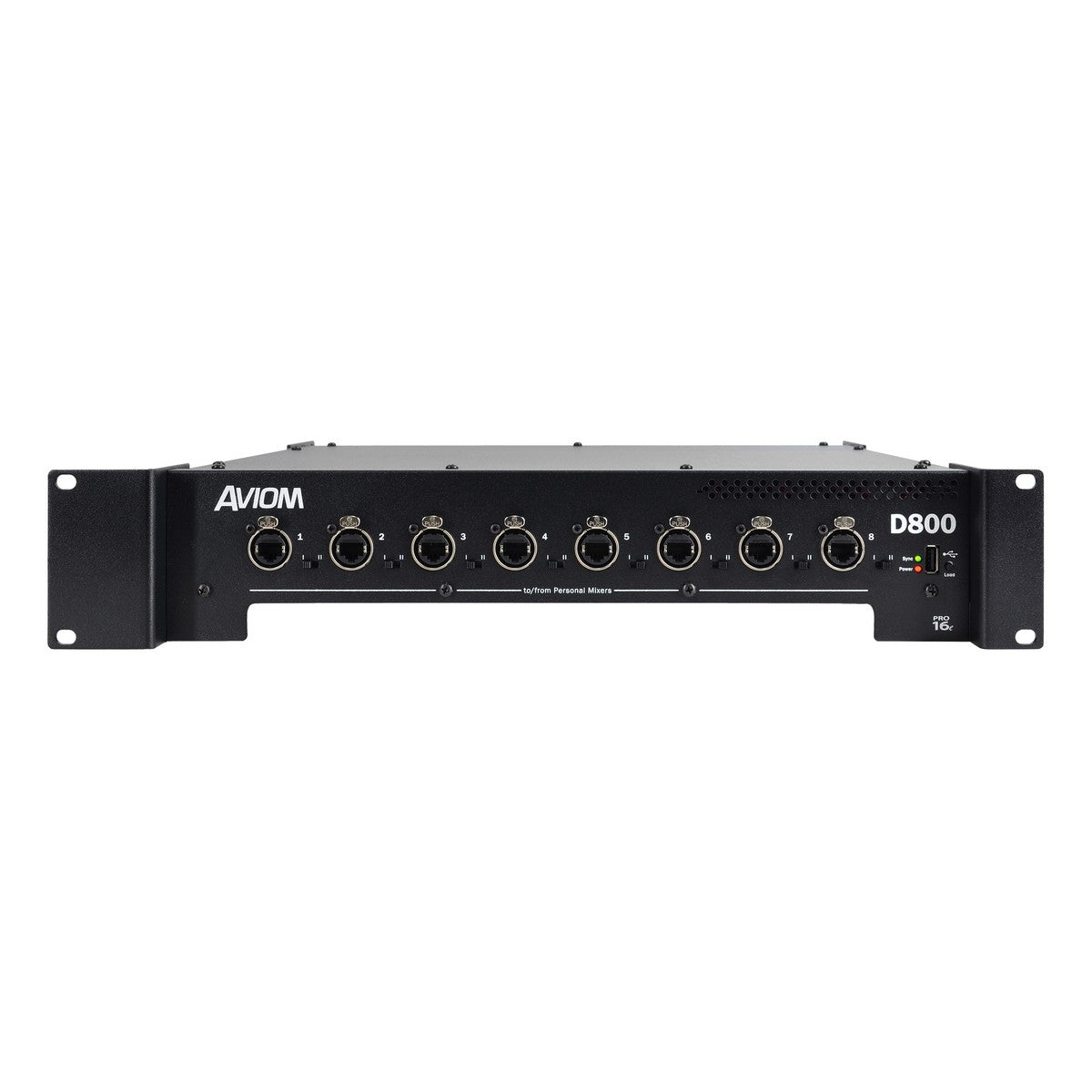

The Aviom D800 A-Net Distributor brings additional connectivity options and advanced features to your Aviom personal mixing system utilizing A360 Personal Mixers.

Like the A-16D and A-16D Pro A-Net Distributors, the D800 provides power and audio for up to eight Aviom Personal Mixers.

Up to 64 Channels Digitally

Used in conjunction with the SB4 System Bridge and Pro16 A-Net console cards, the D800 combines up to four synchronous Pro16 A-Net streams for sending up to 64 channels directly from your digital console to your A360 Personal Mixers. Mix channels can be individually selected for each A360 Personal Mixer, allowing each musician to control exactly what they need.

Network Mix Back for Streamlined Connections

Network Mix Back takes the stereo mix output from each connected A360 and creates a 16-channel A-Net digital stream. No setup or routing is required at the D800 or the A360. By connecting the Mixes Out port on the D800 to an AN-16/o v.4 Output Module, these stereo mixes can be connected to the transmitter units for the musicians' wireless in-ear monitors, eliminating the need for analog cables from the A360s to the transmitters. Network Mix Back streamlines audio connections, allows you to keep analog cabling to a minimum, and cleans up your on-stage setup.

Ethernet for iOS Devices

The D800 includes a rear-panel Ethernet port, which can be connected to a standard wifi router. By connecting an iOS deviceApple® iPhone®, iPod touch®, or iPad®to the wifi network, musicians can extend the user interface of their A360 onto their device's touchscreen.

Support for A360s and A-16IIs

Each front panel port on the D800 can be individually set to support an A-16II Personal Mixer or an A360 and its advanced features. Simply set the front-panel slide switch to || to activate the bidirectional data flow utilized by the A360.

Key Features

• Distributes power and audio to up to eight A-16II, A-16R, and A360 Personal Mixers
• One Pro16e A-Net In supports A-Net Bridge input from up to four synchronous Pro16 A-Net streams
• Network Mix Back for streamlined connections to wireless IEM transmitters
• Ethernet support for iOS devices over Wi-Fi
• One Pro16e A-Net Out for thru connections
• Heavy-duty locking connectors for all audio connections

Technical Specifications

A-Net to/from Personal Mixers (front panel)
Eight locking RJ45 connectors, powered; 2-position switch (I/II) accommodates A-16II (I) and the bidirectional A360 Personal Mixer (II)
A-Net In or A-Net Bridge In
Accepts Pro16 or Pro16e A-Net; One locking RJ45 connector

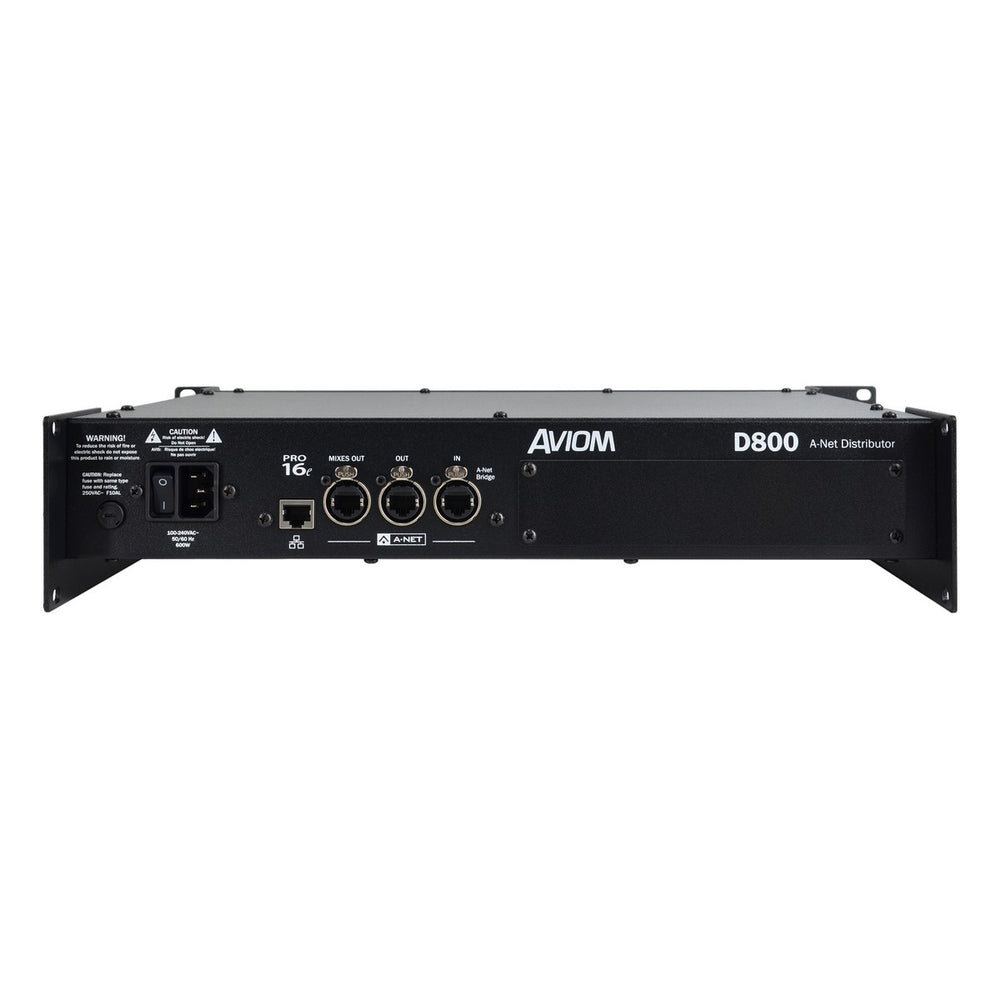

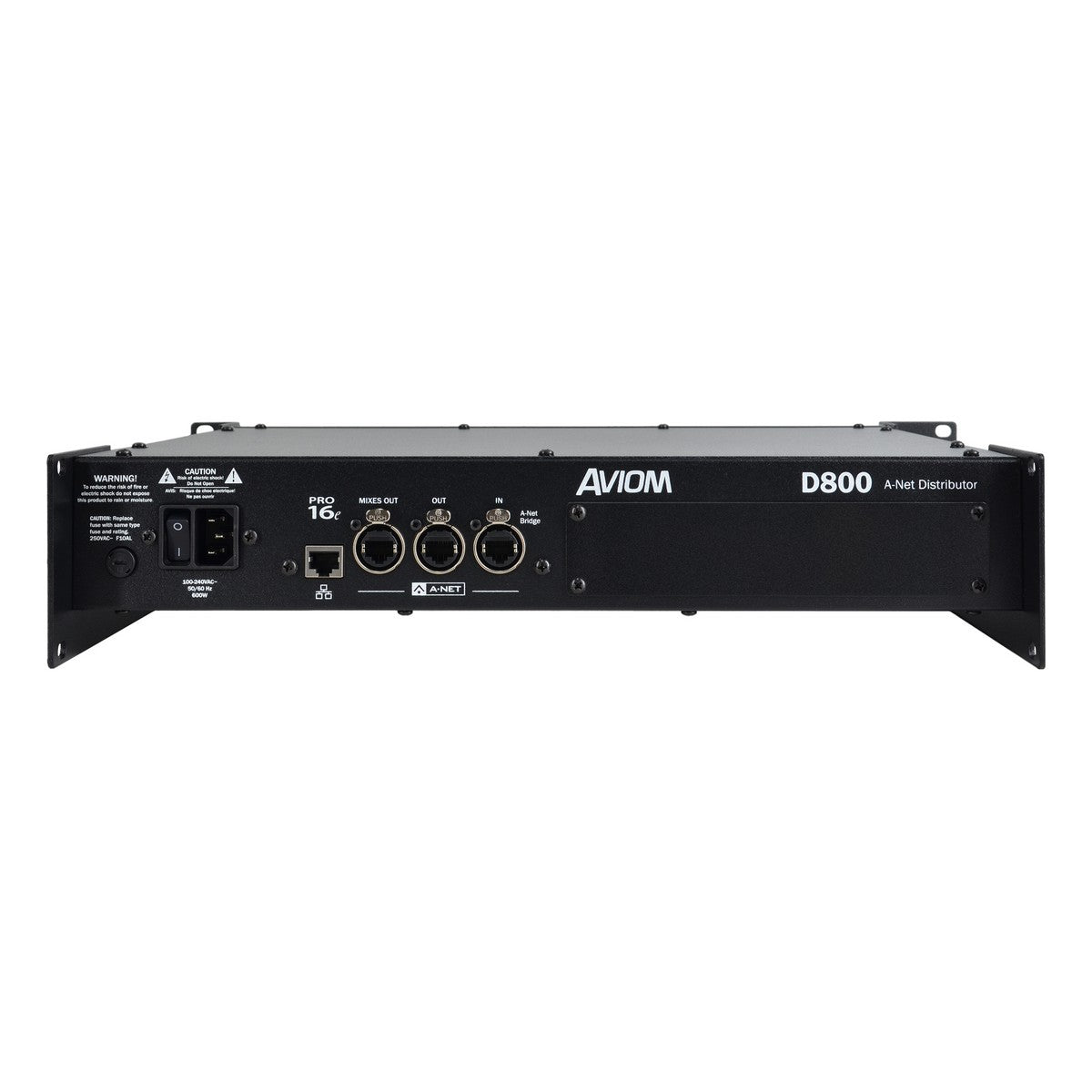

A-Net Out (rear panel)
Pro16e A-Net; One locking RJ45 connector, unpowered
A-Net Mixes Out
Pro16e A-Net; One locking RJ45 connector, unpowered; Provides up to 16 channels of Network Mix Back data from up to eight A360 Personal Mixers
Ethernet
One RJ45 connector
LEDs
Power On (red); Sync (green)
USB
Used for firmware updates
Pro16e A-Net Support
Transmits 16 channels of digital audio to A-16II and A-16R Personal Mixers
A-Net Cables
Front Panel Connections: Shielded Cat-5e (or better) cable must be used to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits.
Unshielded Cat-5e cable may be used on all rear panel connections
Output Voltage for Personal Mixers
- 24VDC, 0.5 amp
- Transmitted over the Cat-5e cable
Power Supply
Internal, universal switching type, IEC connector
Input Voltage
- 100-240VAC, 50-60Hz, 300W
- Fuse - 250VAC~ T4AL
Dimensions
19 " (wide) x 14.25" (deep); 2U x 3.5" (high) / 482.6 mm x 362 mm x 88.9 mm
Weight
12.0 lbs (5.44 kg)
