Aviom D800-Dante A-Net Distributor with A-Net Bridge input & Dante Interface

Aviom D800-Dante A-Net Distributor with A-Net Bridge input & Dante Interface

The Aviom D800-Dante A-Net Distributor includes all of the advanced features of the D800 plus connectivity to a Dante digital audio network.

The D800-Dante is ideal for connecting Aviom Personal Mixers to a Yamaha CL Series console with Rio I/O racks. The D800-Dante provides power and audio for up to eight Aviom Personal Mixers.

Product Details

The D800-Dante A-Net Distributor includes all of the advanced features of the D800 plus connectivity to a Dante digital audio network. The D800-Dante is ideal for connecting Aviom Personal Mixers to a Yamaha CL Series console with Rio I/O racks. The D800-Dante provides power and audio for up to eight Aviom Personal Mixers.

Seamless Integration to Dante Audio Networks

The D800-Dante's network interface connects directly to an existing Dante audio network. Sixty-four channels from Dante are routed to the Aviom Personal Mixers, and each A360 can select its own mix channels from that network. (Note that A-16II and A-16R Personal Mixers can use only channels 1-16.)

Extending the System

The D800-Dante includes a standard Pro16e output, which outputs a 64-channel A-Net stream comprised of the audio channels from the Dante network. This stream can be passed to any Pro16 or Pro16e device (standard Pro16 devices can utilize only channels 1-16), including a standard D800, which can be used for connecting additional Aviom Personal Mixers.

Advanced Features

Like the standard D800, the D800-Dante includes support for Network Mix Back, Ethernet for iOS devices, and seamless integration of both A360 and A-16II Personal Mixers. For more information on these features, refer to the D800 A-Net Distributor.

Key Features

• Direct connectivity to a Dante audio network
• Support for up to 64 Dante network channels
• Distributes power and audio to up to eight A-16II, A-16R, and A360 Personal Mixers
• One Pro16e A-Net In supports A-Net Bridge input from up to four synchronous Pro16 A-Net streams
• Network Mix Back for streamlined connections to wireless IEM transmitters
• Ethernet support for iOS devices over Wi-Fi
• One Pro16e A-Net Out for thru connections
• Heavy-duty locking connectors for all audio connections

Technical Specifications

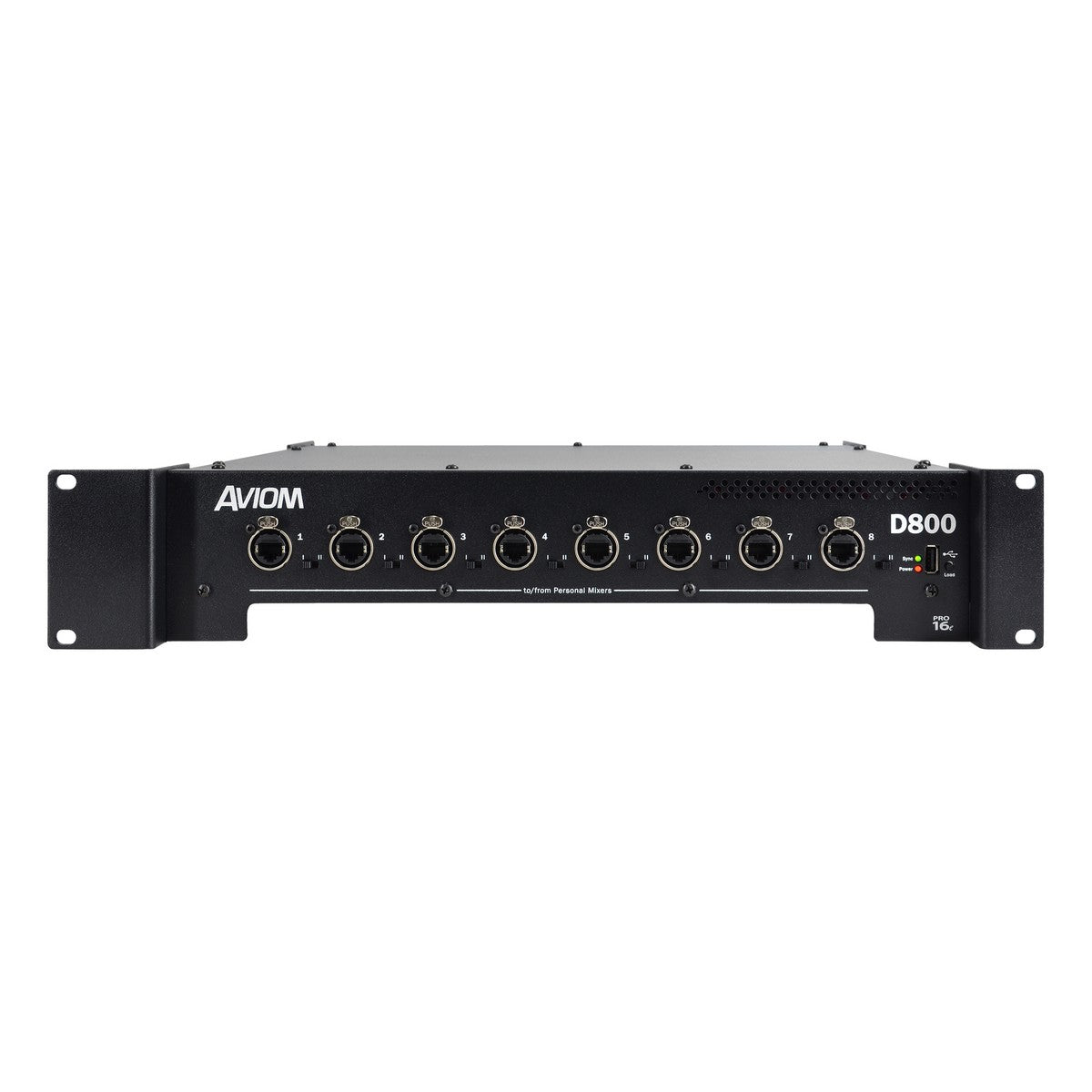

A-Net to/from Personal Mixers (front panel)
Eight locking RJ45 connectors, powered; 2-position switch (I/II) accommodates A-16II (I) and the bidirectional A360 Personal Mixer (II)
A-Net In or A-Net Bridge In
Accepts Pro16 or Pro16e A-Net; One locking RJ45 connector

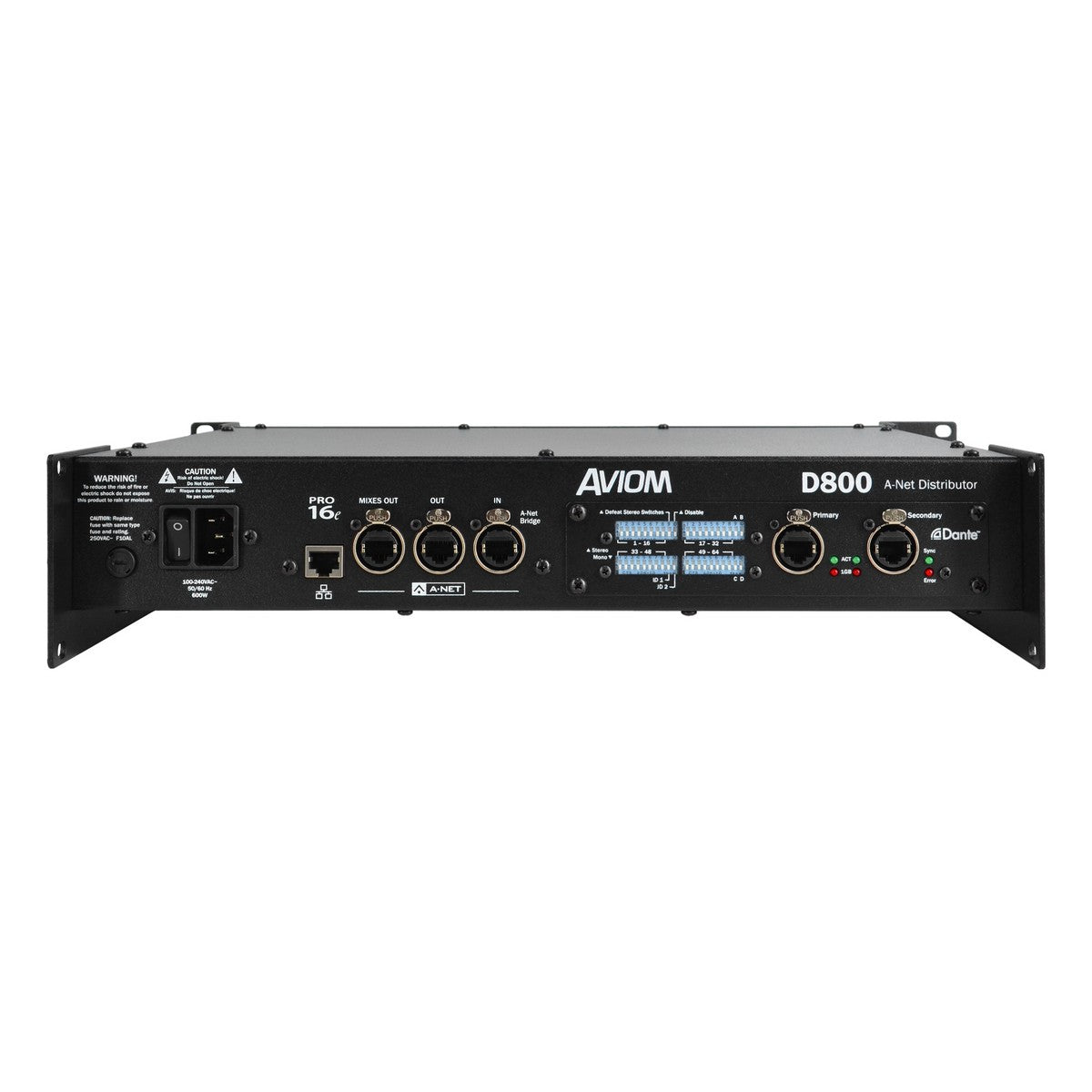

A-Net Out (rear panel)
Pro16e A-Net; One locking RJ45 connector, unpowered
A-Net Mixes Out
Pro16e A-Net; One locking RJ45 connector, unpowered; Provides up to 16 channels of Network Mix Back data from up to eight A360 Personal Mixers
Ethernet
One RJ45 connector
LEDs
Power On (red); Sync (green)
USB
Used for firmware updates
Pro16e A-Net Support
Transmits 16 channels of digital audio to A-16II and A-16R Personal Mixers
A-Net Cables
Front Panel Connections: Shielded Cat-5e (or better) cable must be used to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits.
Unshielded Cat-5e cable may be used on all rear panel connections
Output Voltage for Personal Mixers
- 24VDC, 0.5 amp
- Transmitted over the Cat-5e cable
Power Supply
Internal, universal switching type, IEC connector
Input Voltage
- 100-240VAC, 50-60Hz, 300W
- Fuse - 250VAC~ T4AL
Dimensions
19 " (wide) x 14.25" (deep); 2U x 3.5" (high) / 482.6 mm x 362 mm x 88.9 mm
Weight
12.0 lbs (5.44 kg)
