Azden 330LH | UHF Dual-Channel Wireless System
Description
Description
Azden 330LH UHF Dual-Channel Wireless System

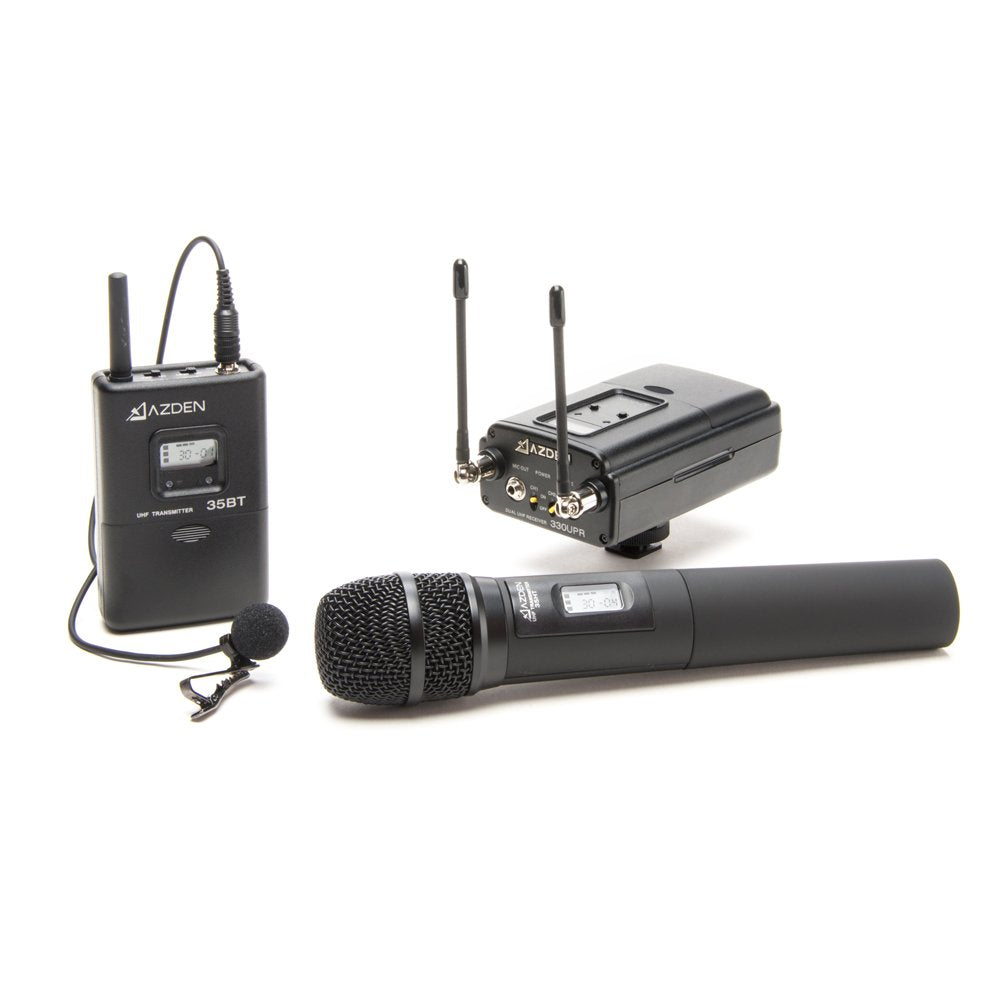

The Azden 330LH UHF dual wireless system is a powerful dual-channel UHF wireless microphone system for camera-mount applications. The system consists of an Azden 35BT body-pack transmitters, EX-503L lavalier microphone, 35HT handheld microphone/transmitter and the 330UPR portable dual-channel receiver. The inclusion of both the body-pack and handheld transmitters allows users to the flexibility to use the right microphones for the right job.
With a feature set that includes 188 user selectable UHF frequencies, pivoting high-gain diversity antennas, and LCD digital display, the 330LH is guaranteed to meet the demands of consumer and professional video applications alike. The 330UPR receiver features main and headphone monitor outputs, and a removable shoe-mount adapter. Both the transmitter and receiver operate on standard AA alkaline batteries (not included).
Key Features
- 188 Selectable UHF Frequencies
- Wireless lavalier and handheld transmitter combo
- New, Pivoting diversity High-Gain Antenna
- Digital LCD Display w/ Multi-function Readout
- Mini-Jack Out w/Supplied 24" Mini-to-XLR Cable
- Headphone Output on Receiver
- Attached/Removable Shoe-Mount
- Powered by 2 “AA” batteries
Technical Specifications
330UPR Receiver
Frequency Range
UHF 188 Frequencies (566.125-589.875MHz)
Type of Reception
FM
Oscillator
PLL Synthesized
RF Squelch Level
-95dBm
Frequency Response
50Hz - 15kHz
S/N Ratio
>84dB (100% Deviation)
Audio Out
MIC Level Unbalanced - 3.5mm Mini-Jack
-28 dBm (100% Deviation Mic Level)
Batteries
2 “AA” Alkaline (2 x 1.5V) - 5-6 hours runtime
2 “AA” rechargeable Ni-MH (2 x 1.2V)
Dimen.
2.87”W x 4.45”H x 1.59”D (73 x 113 x 40.5 mm)
Weight Approx.
10.2 oz (290g) w/batteries
35HT
Frequency Range
UHF 188 Selectable Frequencies (566.125-589.875MHz)
Oscillator
PLL Synthesized
RF Power
25mW
Frequency Response
50Hz - 15kHz
Max Deviation
± 40kHz @ 1kHz Modulation, MIC input - 65dBm (dev ± 5kHz)
Mic Element
Cardioid Electret Condensor
Batteries
2 “AA” Alkaline (2 x 1.5V), 6-8 hours runtime
2 “AA” Rechargeable Ni-MH (2 x 1.2V)
Dimensions
1 7/8” x 9 9/16”L (48 x 234.5mm)
Weight
Approx. 9.6oz (270g) w/ batteries
35BT Transmitter
Freq. Range
UHF 188 Selec. Freq. (566.125-589.875MHz)
Oscillator
PLL Synthesized
RF Power
25mW
Frequency Response
50Hz - 15kHz
Max. Deviation
±40kHz @ 1kHz Mod., MIC Input - 11dBm
Batteries
2 “AA” Alkaline (2 x 1.5V) - 6-8 hours runtime
2 “AA” rechargeable Ni-MH (2 x 1.2V)
Dimen
2.52”W x 3.93”H x 1.16”D (64 x 100 x 27 mm)
Weight
Approx. 6oz (170g) w/batteries
In the box
330UPR receiver
Shoe mount
Mounting strips
MX-2 dual XLR output cable
3.5mm stereo output cable
35BT body-pack transmitters
EX-503L omni-directional lapel microphones
35HT handheld transmitter
Manual
Hard shell carrying case
