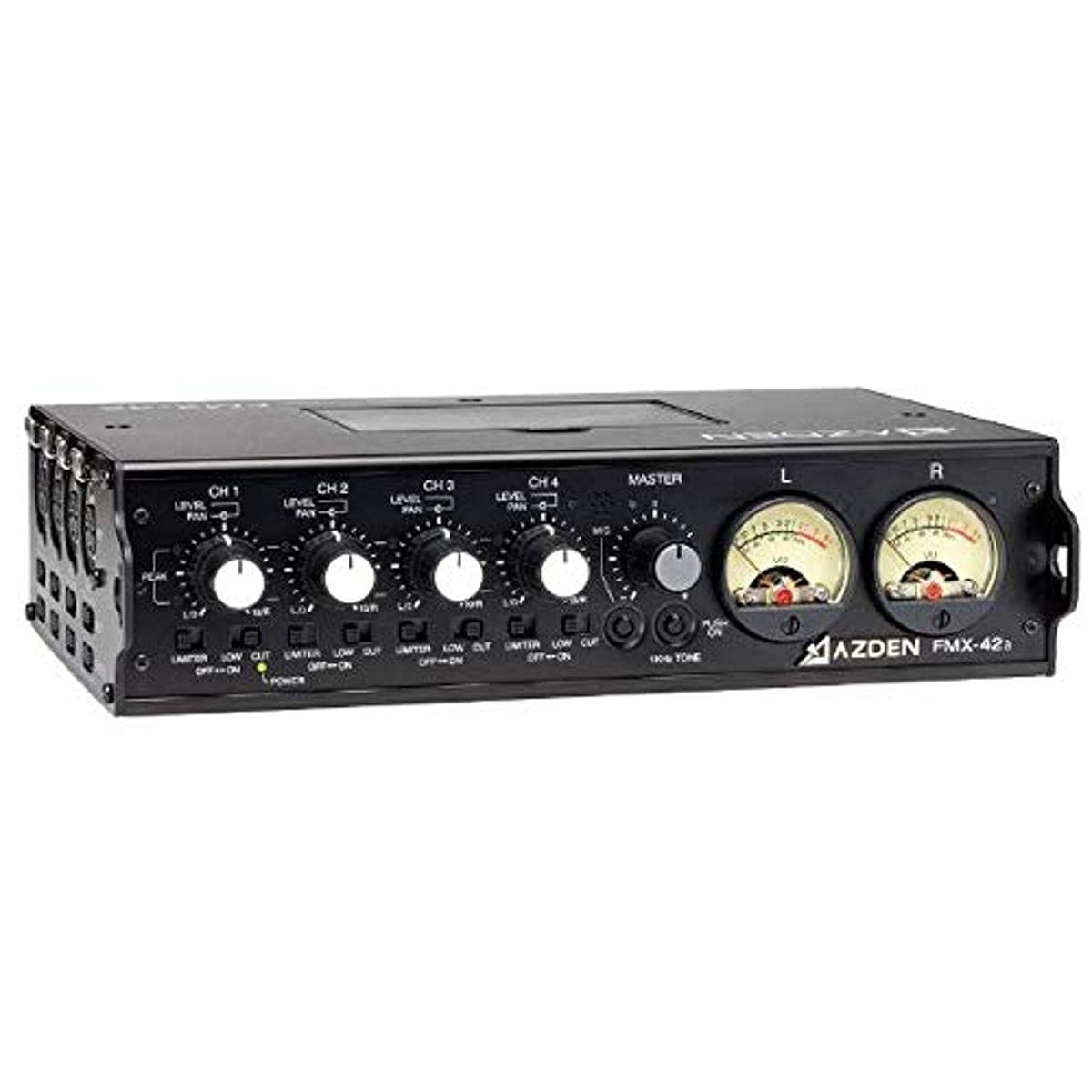

Azden FMX-42a 4 Channel Portable Mixer with 10-Pin Output
Having 4 balanced XLR line/mic inputs with individual level and pan controls, the FMX-42a provides switchable (per channel) 48V phantom power and limiting, professional quality VU meters for accurate level setting, master level control, 1k tone generator, 2 balanced XLR outputs (line/mic switchable), stereo mini-jack output for DV cameras, 10-pin Camera Return, mini-jack Camera Return and a headphone monitor with level control.
Key Features
- 4 balanced XLR line/mic inputs and pan controls
- Switchable 48V phantom power and limiting
- Professional quality VU meters
- 2 balanced XLR outputs (line/mic switchable)
- Stereo mini-jack output for DV cameras
- 10-pin & mini-jack Camera Return & headphone out with level control
- 6x AA battery powered
Technical Specifications
FREQUENCY RESPONSE
Balanced or Unbalanced Output
20 Hz - 30 kHz (+0/-1.5 dB)
Monitor Output
30 Hz - 30 kHz (+0/-2 dB)
CURRENT DRAIN
164mA (Meter Illum & Phantom OFF @ 9V)
192mA (Meter Illum OFF, Phantom ON w/1 MIC @ 9V)
125mA (Meter Illum & Phantom OFF @ 15V)
INPUT
Balanced Input
XLR 3-pin Female x 4 (CH1, 2, 3 & 4)
Level +4 dBu (LINE) Standard
+4 dBu (electronically balanced)
Maximum
greater than +26 dBu
Impedance
20k
-30 dBu (MIC 1) Standard
-38 dBu (electronically balanced)
Maximum
+4 dBu
Impedance
2k
-55 dBu (MIC 2) Standard
-58 dBu (electronically balanced)
Maximum
-15 dBu
Impedance
2k
High Pass Filter (HPF)
100Hz - 6dB/oct
RETURN INPUTS
Hirose 10-pin Female for Hirose Plug Part #RM15TD-10P
3.5mm (1/8") Stereo Mini-Jack
Input Level
-20 dBu - +19 dBu (unbalanced)
Impedance
11k
OUTPUT
Balanced Outputs
XLR 3-pin Male x 2 (Output L & R)
Hirose 10-pin Female for Hirose Plug Part #RM15TD-10P
Unbalanced Output
3.5mm (1/8") Stereo Mini-Jack
Monitor Output
6.3mm (1/4") Stereo Jack
BALANCED OUTPUT LEVEL
+4 dBu Standard
+4 dBu (electronically balanced, greater than10k load)
Maximum
+20 dBu (electronically balanced, greater than 10k load)
Impedance
600
-36 dBu Standard
-36 dBu (electronically balanced, greater than 10k load)
Maximum
-20 dBu (electronically balanced, greater than 10k load)
Impedance
600
CURRENT DRAIN
164mA (Meter Illum & Phantom OFF @ 9V)
192mA (Meter Illum OFF, Phantom ON w/1 MIC @ 9V)
125mA (Meter Illum & Phantom OFF @ 15V)
UNBALANCED OUTPUT LEVEL
Standard
-36 dBu (electronically balanced, greater than 10k load)
Maximum
-20 dBu (electronically balanced, greater than 10k load)
Impedance
120
INPUT
Balanced Input
XLR 3-pin Female x 4 (CH1, 2, 3 & 4)
Level +4 dBu (LINE) Standard
+4 dBu (electronically balanced)
Maximum
greater than +26 dBu
Impedance
20k
-30 dBu (MIC 1) Standard
-38 dBu (electronically balanced)
Maximum
+4 dBu
Impedance
2k
-55 dBu (MIC 2) Standard
-58 dBu (electronically balanced)
Maximum
-15 dBu
Impedance
2k
High Pass Filter (HPF)
100Hz - 6dB/oct
MONITOR OUTPUT
Maximum
+1 dBu (32 load at 9V)
16-100 load recommended
Meters - Standard Output Level
0 VU (+4 dBu)
GENERAL
Signal-to-Noise Balanced Output
-120 dBu (A weighted, input equivalent level)
T.H.D. Balanced Output
less than 0.005% @ 1 kHz (at LINE position +19 dBu output)
Phantom Power Voltage
48V (-4V)
Sample Tone Frequency
1 kHz
Battery Requirement
6 Alkaline "AA"
Battery Runtime
Approx.10 hours (Meter Illum & Phantom Power OFF)
External Power
12V DC @ 200mA
Dimensions
220mmW x 160mmD x 56mmH (without protrusions)
9"W x 6 1/2" D x 2 1/4"H (without protrusions)
Weight
1,350 grams/3 lbs (without batteries)
