Barco ClickShare C‑5 Wireless Presentation System, 4th Generation, No Buttons

Barco ClickShare C‑5 Wireless Presentation System, 4th Generation, No Buttons

The ClickShare C-5 brings simple, wireless collaboration to small meeting rooms and huddle spaces. You and your guests can easily share content to the room display, with just one click in the ClickShare App, from any laptop or mobile device. It offers a full BYOD experience, including screen mirroring with Airplay, GoogleCast and Miracast.

Key Features

• Entry-level wireless presentation model
• Content sharing with the ClickShare App and native BYOD
• 100% secure, encrypted and cloud managed

Technical Specifications

ClickShare Base Unit dimensions
Dimensions (HxWxD)
34 mm x 135 mm x 135 mm
Power supply
Standard 110/220 V AC plug or USB-C (only Gen2)
Power consumption
Operational: 5-10W, 24W Max
Weight
900 gr
General
Operating system
Windows 10 and higher macOS 11 (BigSur) and higher
Android v9 and higher (ClickShare App) *
iOS 12 and higher (ClickShare App) *
Video outputs
4K UHD (3840*2160) @ 30Hz. HDMI 1.4b or USB-C DisplayPort 1.2 (only Gen2)
Audio output
HDMI
USB
1 X USB-A, 1 X USB-C
ClickShare App
Desktop & Mobile
Native protocols
Airplay, Google Cast, Miracast
Maximum number of simultaneous connections (with Buttons and/or App)
32
Noise Level
Max. 25dBA @ 0-30°C
Max. 30dBA @ 30-40°C
Authentication protocol
WPA2-PSK in standalone mode
WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
Wireless transmission protocol
IEEE 802.11 a/g/n/ac and IEEE 802.15.1
Reach
Adjustable with signal strength modulation; max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit
Frequency band 2.4 GHZ and 5 GHz
Frequency band
2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)
Connections

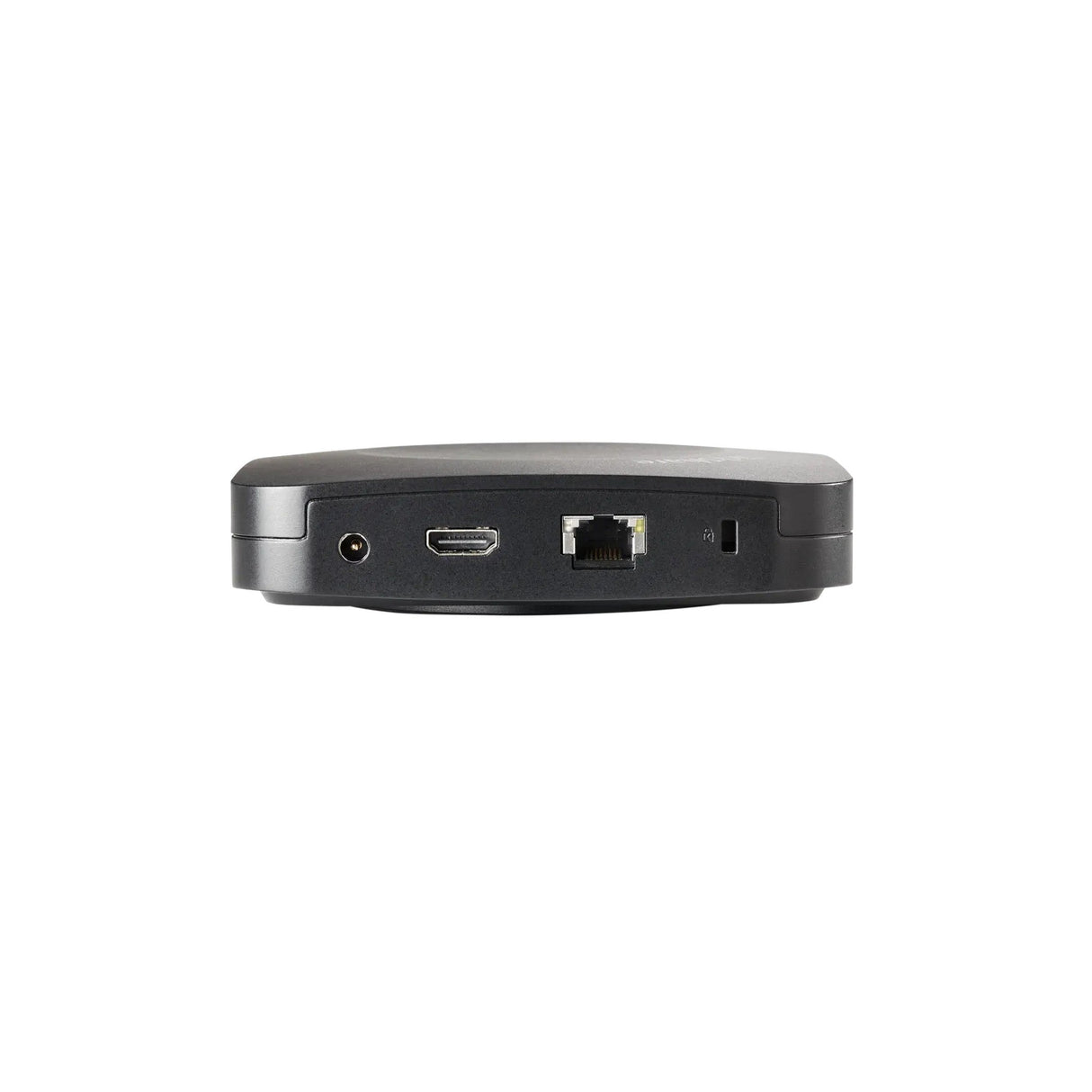

1x Ethernet LAN 1Gbi

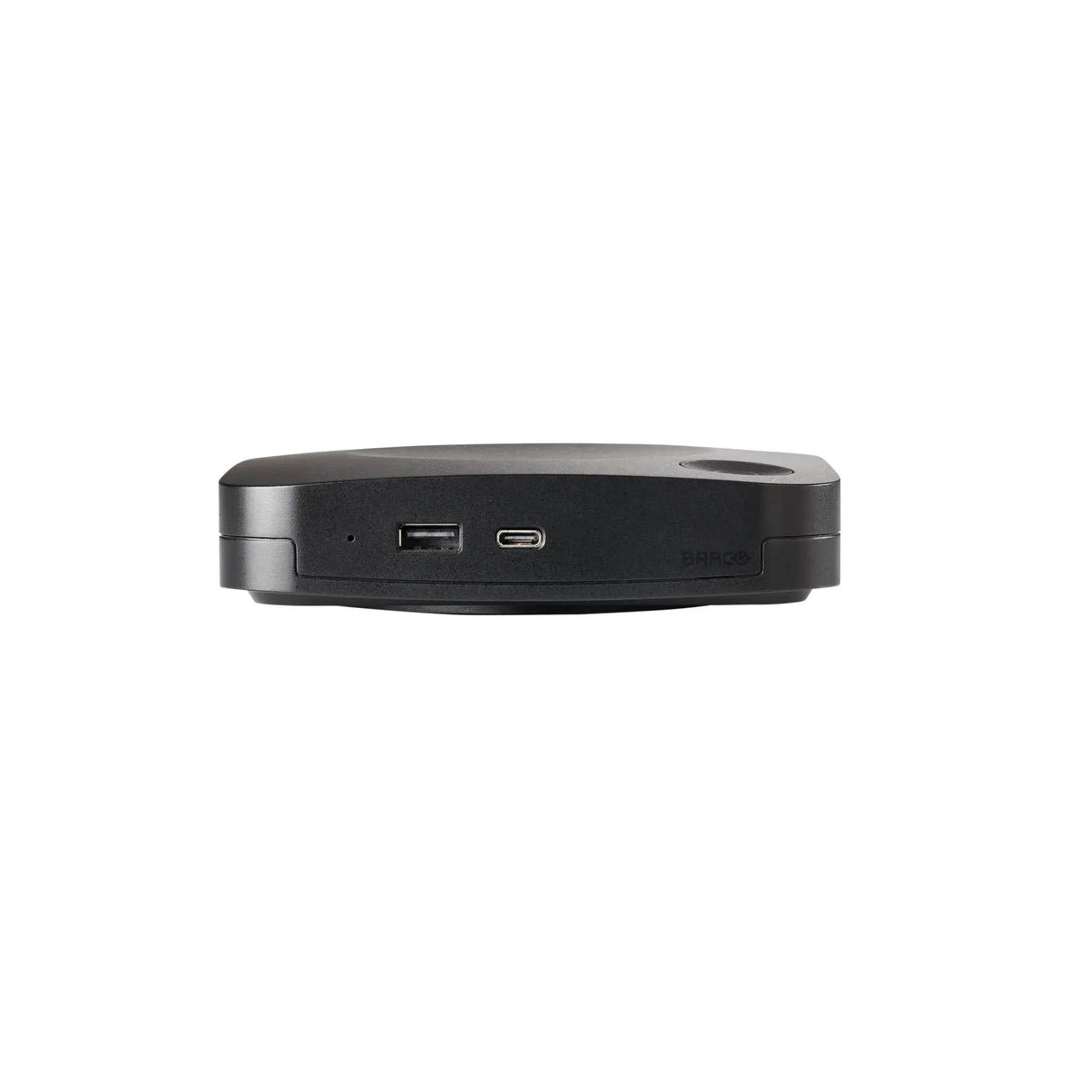

1x USB-C 2.0 (front); 1x USB-A 2.0 (front) - only Gen2: 1x USB-C 3.0 (front); 1x USB-A 3.0 (front)
Temperature range
Operating: 0 Degrees C to +40 Degrees C (+32 Degrees F to +104 Degrees F)
Max: 35 Degrees C (95 Degrees F) at 3000m
Storage: -20 Degrees C to +60 Degrees C (-4 Degrees F to +140 Degrees F)
Humidity
Storage: 0 to 90% relative humidity, non-condensing
Operation: 0 to 85% relative humidity, non-condensing
Anti-theft system
Kensington lock
Certifications
FCC/CE
Room Dock (peripheral support)
No
Local view
Local view of the room display only
Network connection
LAN & WiFi
Management and reporting
Yes
Warranty
1 year standard. 5 years coverage via SmartCare
*
* depends on configuration, available in future firmware updates
