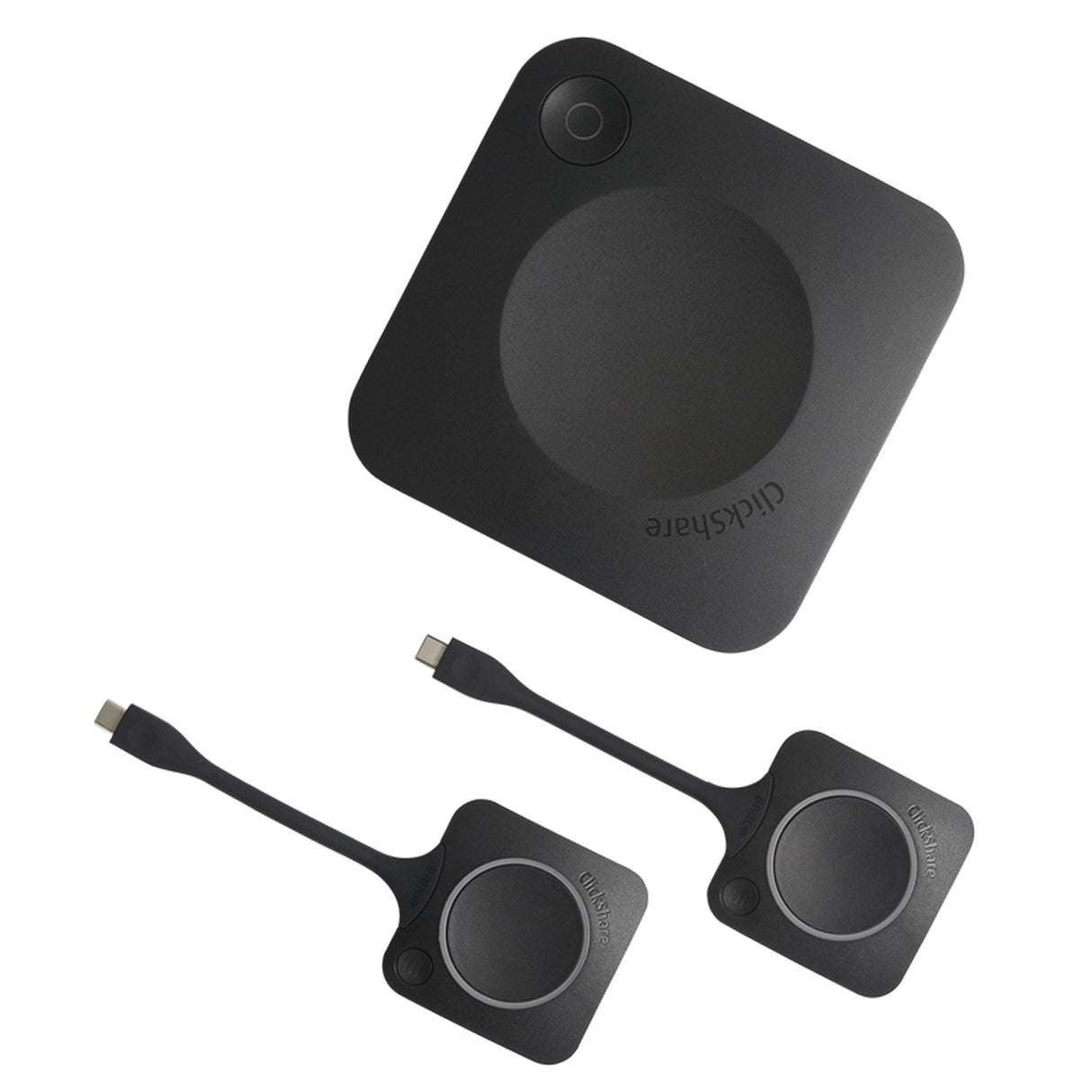

Barco ClickShare CX-30 Wireless Conferencing System for Medium-Sized Meeting Rooms

Barco ClickShare CX-30 Wireless Conferencing System for Medium-Sized Meeting Rooms

Interact, discuss, collaborate with remote participants enjoying interactive meetings with touch back, annotation and blackboarding.

Bring your own meeting
With ClickShare CX-30 you can start a meeting wherever you are with co-workers and stakeholders around the world. Complete with full Bring Your Own Device (BYOD) support, ClickShare CX-30 enables meeting participants to use whichever device they prefer, which makes remote collaboration a breeze when joining the meeting from another location, and when participating in the meeting from smaller meeting and huddle rooms where colleagues can use their laptops, tablets or even smartphones.

Start IT-friendly remote meetings
ClickShare CX-30 is a fully integrated, wireless conferencing system that can be up and running in less than seven seconds. The ClickShare Wireless Conferencing Button and the ClickShare Collaboration App help to make the whole process of sharing content quick and easyideal for when time is at a premiumwhile the triple agnostic nature of ClickShare helps to ensure it can be used by anyone, on any device with any peripherals.

ClickShare CX-30 is fully compatible with Windows, Mac, iOS and Android devices; and it can also be used alongside any unified communications (UC) technology and any brand of AV USB peripherals. Also, ClickShare CX-30 users can benefit from interactive features including moderation, local view of the room display, annotation, blackboarding and touch back support allows users to control the touchscreen in the room.

With ClickShare CX-30 users can connect from whichever device they like, as the ClickShare CX-30 wireless conference system offers IT-friendly features including enhanced enterprise-grade security and seamless integration to protect data and the wider company network, as well as an XMS Cloud Management platform for easy device management and even analytics to ensure that you get the most out of your system and your meetings.

Key Features

• Collaboration via the quick Button
  Access a set of collaborative features. Get a copy of the main screen on your laptop & easily view content in full detail. It also opens up a range of advanced functions.
• Triple agnostic
  ClickShare can be used on your laptop or desktop, connects instantly with your brand of peripherals and works with your conferencing platform (UC).
• ISO 27001 certified
  As first wireless collaboration technology to obtain ISO 27001 Certification, we commit to the right processes and structures for the highest international security standards.
• Management dashboard
  Managing ClickShare across your business is simple with our XMS (Cloud) Management Platform.
• SmartCare
  Includes five years of coverage and a license to the XMS insights module, as well as increased service levels.
• Network integration
  Whether you want to connect one unit to the network via ethernet or create a dedicated VLAN for all ClickShare units, you can integrate seamlessly within your network.

Technical Specifications

Dimensions (HxWxD)
34 mm x 135 mm x 135 mm
Power supply
Standard 110/220 V AC plug
Power consumption
Operational: 5-10W, 24W Max
Weight
900 gr
Operating system
Windows 8/8.1/10. macOS 10.13 and higher.
Android v9 and higher (ClickShare App)*
iOS 12 and higher (ClickShare App)*
Video outputs
4K UHD (3840*2160) @ 30Hz. HDMI 1.4b
Audio output
USB, HDMI
USB
1 X USB-A, 1 X USB-C
Clickshare Buttons
2
ClickShare App
Desktop & Mobile*
Native protocols
Airplay, Google Cast*, Miracast*
Noise Level
Max. 25dBA @ 0-30C
Max. 30dBA @ 30-40C
Authentication protocol
WPA2-PSK in stand alone mode
WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
Wireless transmission protocol
IEEE 802.11 a/g/n/ac and IEEE 802.15.1
Reach
Adjustable with signal strength modulation; max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit
Frequency band 2.4 GHZ and 5 GHz (DFS)
Frequency band
2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)
Connections
1x Ethernet LAN 1Gbit
1x USB Type-C 2.0 (front); 1x USB Type A 2.0 (front)
Temperature range
Operating: 0C to +40C (+32F to +104F)
Max: 35C (95F) at 3000m
Storage: -20C to +60C (-4F to +140F)
Humidity
Storage: 0 to 90% relative humidity, non-condensing
Operation: 0 to 85% relative humidity, non-condensing
Anti-theft system
Kensington lock
Certifications
FCC/CE
Touch screen support & Interactivity
Yes*
Room Dock (peripheral support)
Yes
Local view & moderation
Yes*
Network connection
LAN & WiFi *
Management and reporting
Yes
Warranty
1 year standard. 5 years coverage via SmartCare
* depends on configuration, available in future firmware updates
