Barco CSM-1 | ClickShare Wireless Presentation System Conference

Barco CSM-1 ClickShare Wireless Presentation System Conference

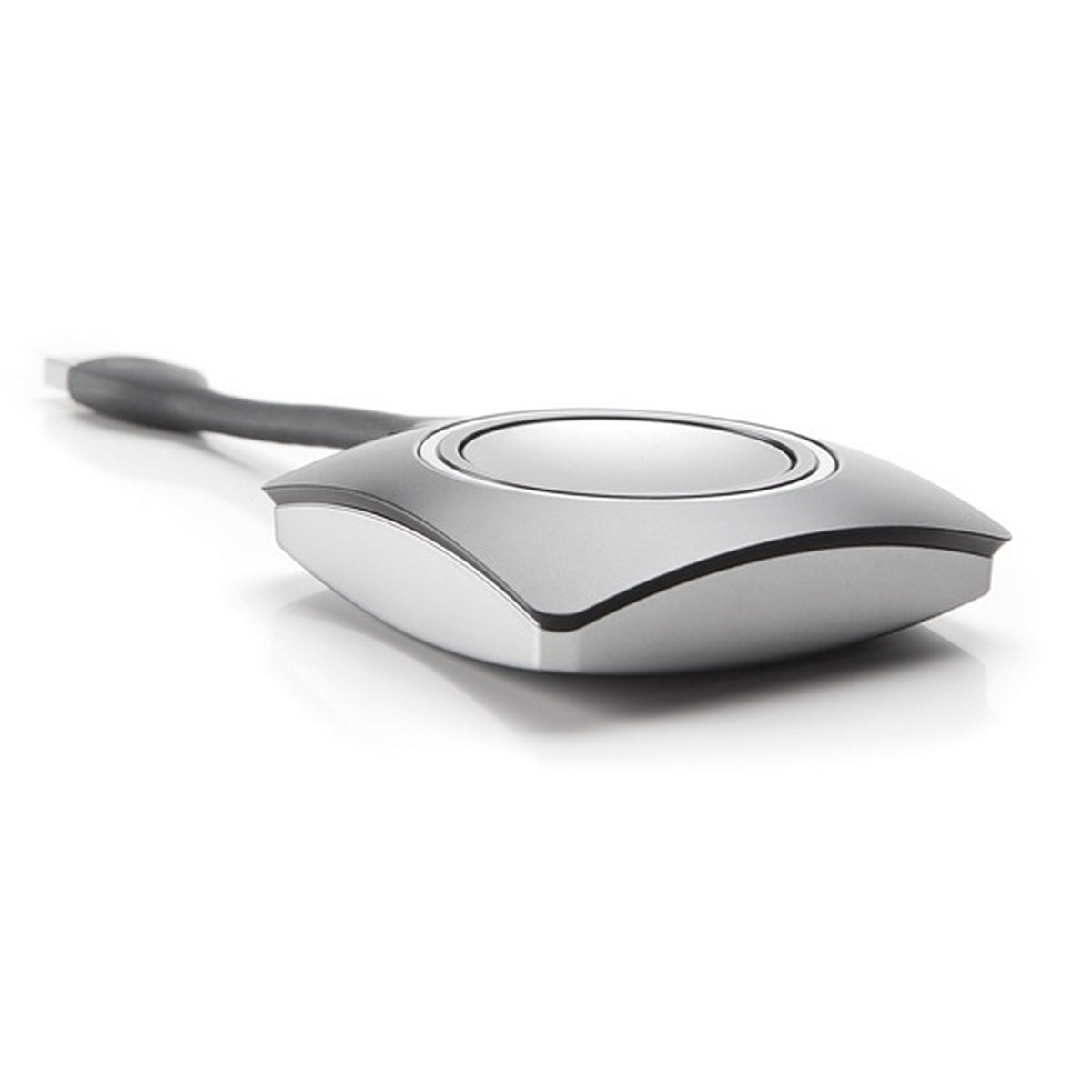

ClickShare makes connecting to the meeting room’s video system a matter of clicking a button. This one click wonder not only helps the presenter get the presentation on-screen in a second, but it also allows the other people in the meeting to participate more actively. This is done using the unique ClickShare Button, or by installing a simple app to share content from an Android or iOS smartphone or tablet. The result is enhanced meeting efficiency and better decision-making.

Key Features

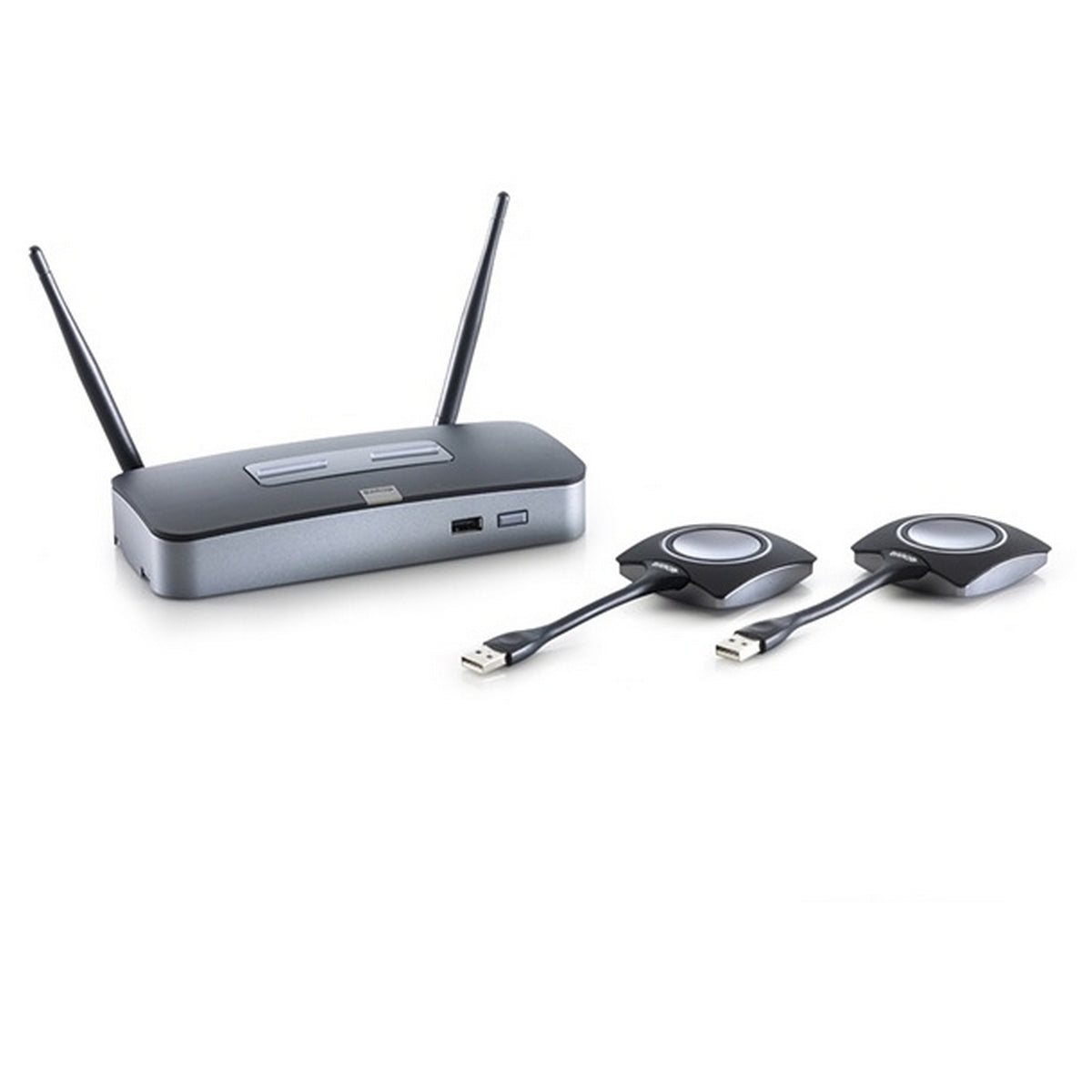

• A set consists of the CSM Base Unit and 2 ClickShare Buttons
• Click to show your laptop screen on the large meeting room display
• One user sharing on screen
• Connect up to 8 ClickShare Buttons to the CSM Base Unit simultaneously
• Latency video/sound <100 ms

Technical Specifications

Operating system
Windows XP/Vista/7/8/8.1 32 & 64 bit
Mac OSX 10.6/10.7/10.8/10.9Android 2.2 and later (ClickShare Presenter app)
iOS 5.0 and later (ClickShare Presenter app)
Video outputs
HDMI (video and audio), 15-pin VGA
Frame rate
Up to 30 fps depending on environment
Output resolution
HDMI: 1280x720 (720P), 1920x1080 (1080p)
VGA: SVGA (800x600) / XGA (1024x768) / WXGA(1280x768) / WXGA+(1280x800) / 1360 * 768 / 1440 * 900 / 1600 * 1200
Input Resolutions
Up to 2880x1800
Number of sources simultaneous on screen
1
Number of simultaneous connections
8
Audio
Radio quality 16bits 22KHz (no synchronization) via audio jack or HDMI
iPad, iPhone and Android compatibility
Available via ClickShare Presenter app for static content.
Authentication protocol
WPA2-PSK
Wireless transmission protocol
IEEE 802.11 a/b/g/n
Data rate wireless
Up to 300Mbps
Reach
Max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit
Band
2.4 GHZ and 5 GHz
Power
External Power adaptor 5V DC input 2.6A (included in set)
Connections
USB Host x 2
RJ-45 LAN Por
