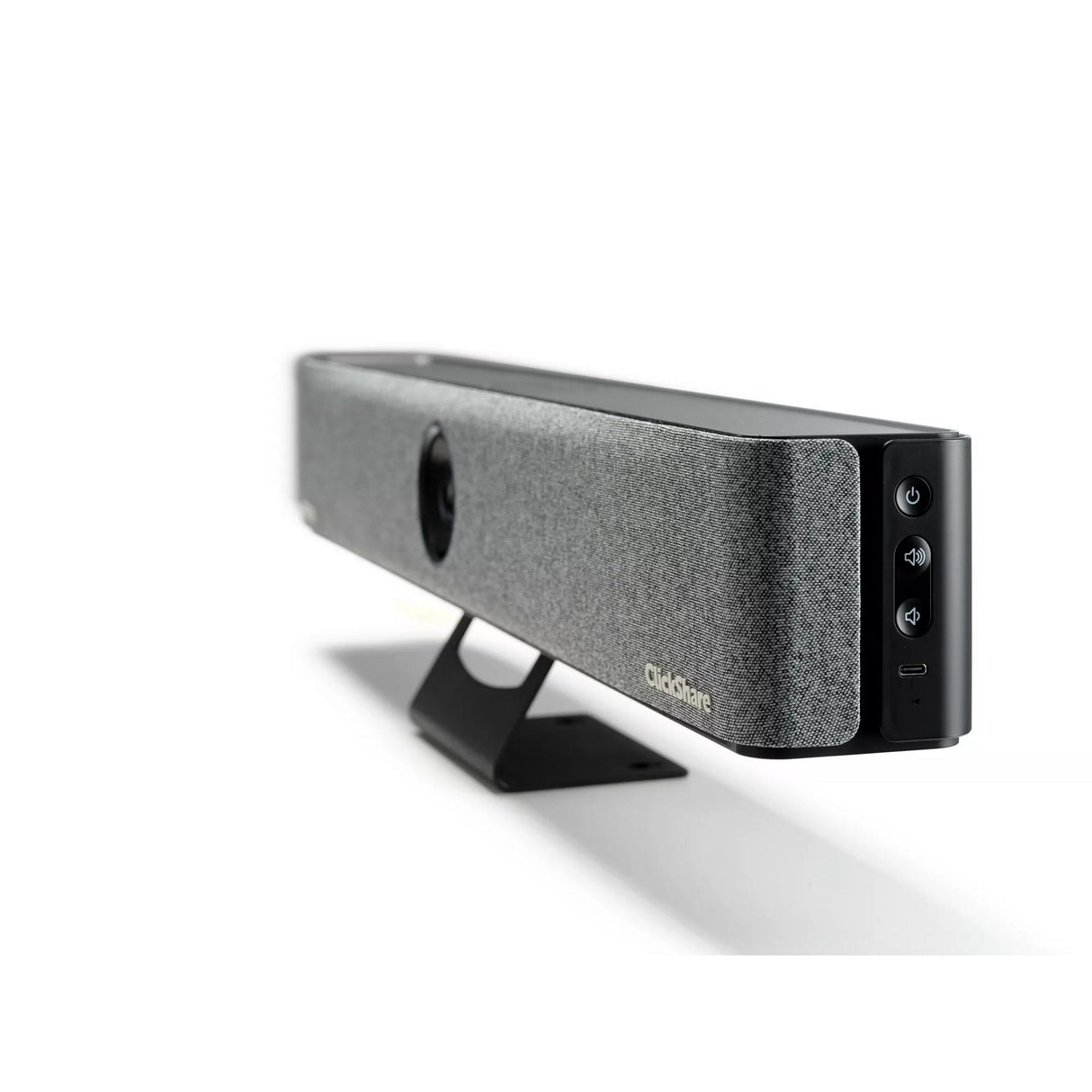

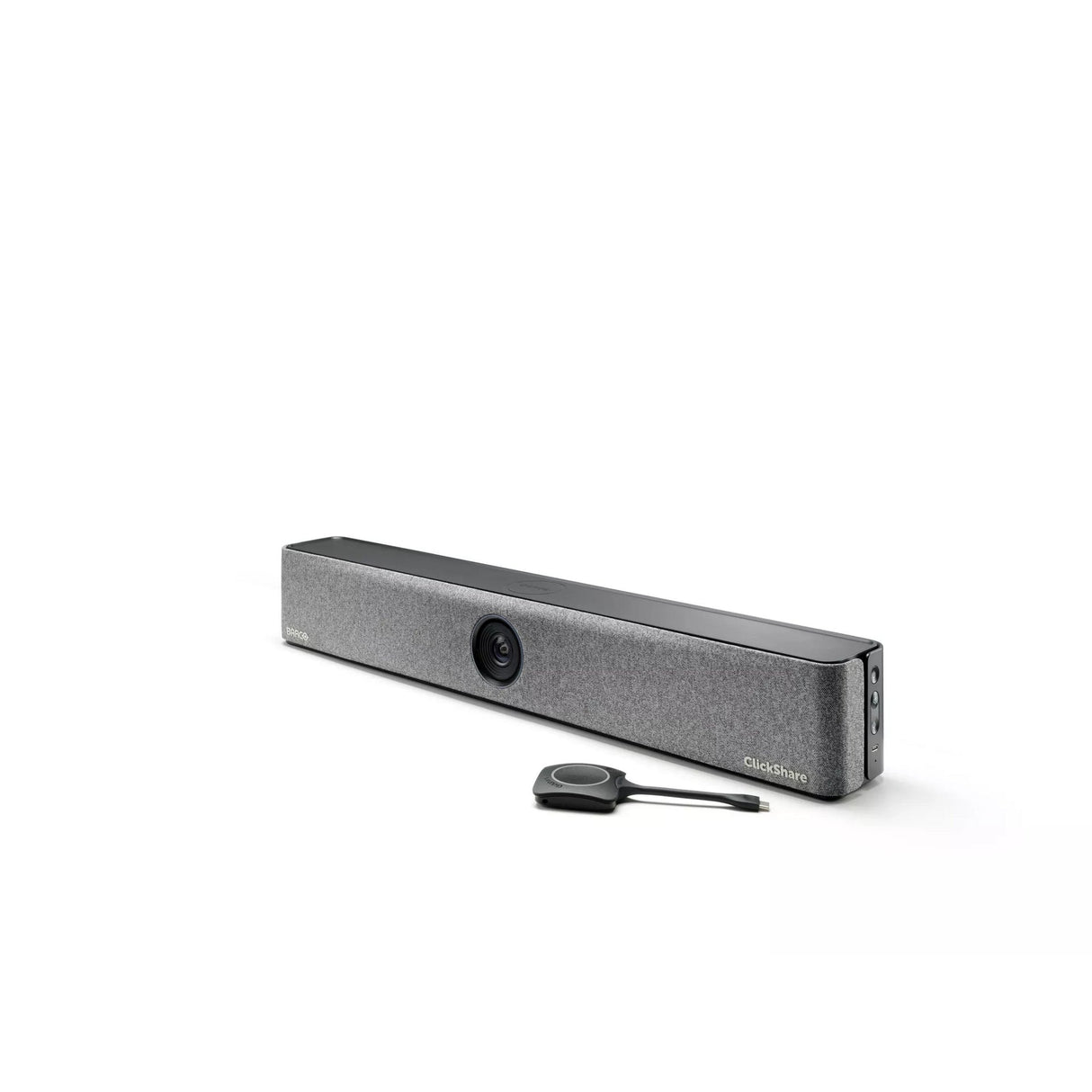

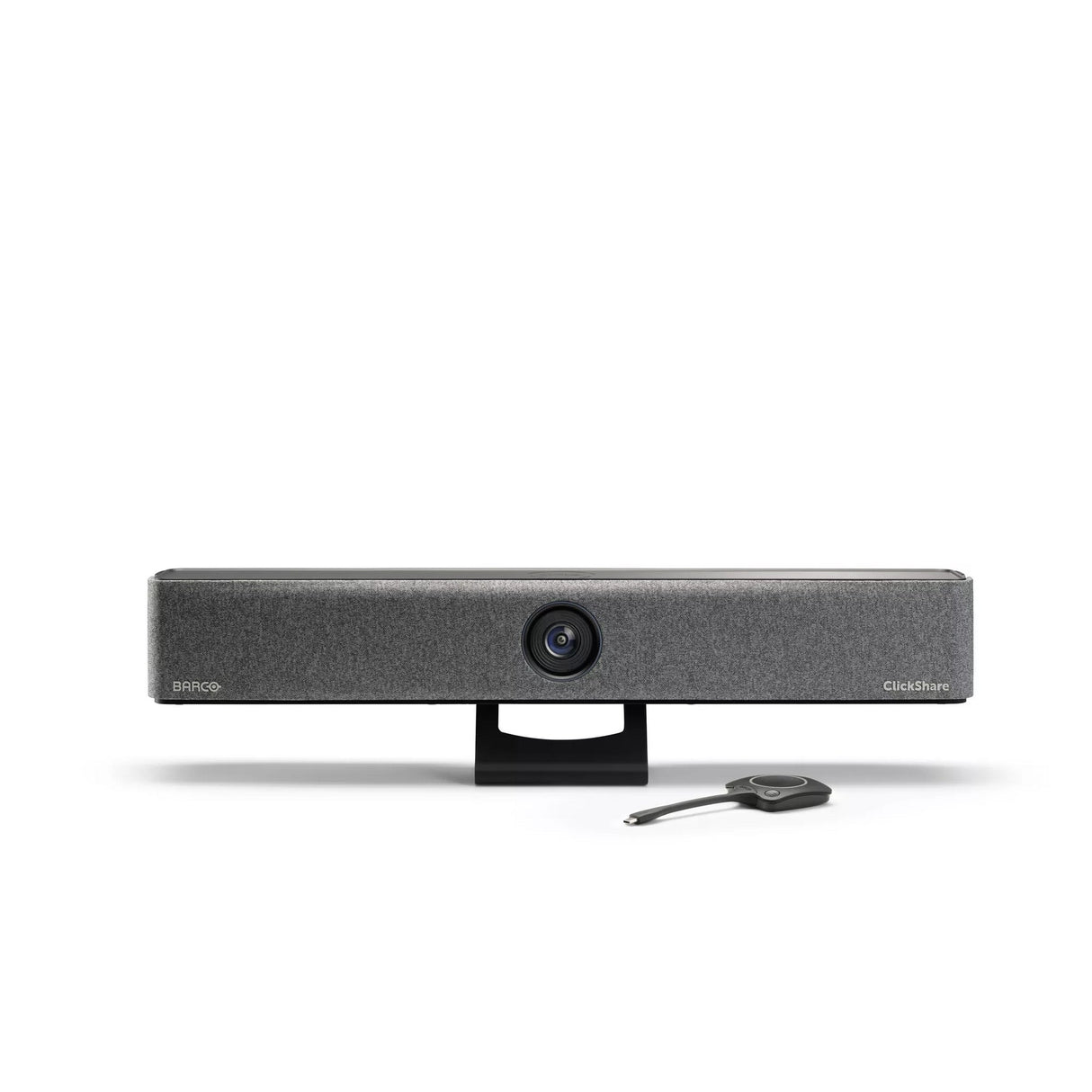

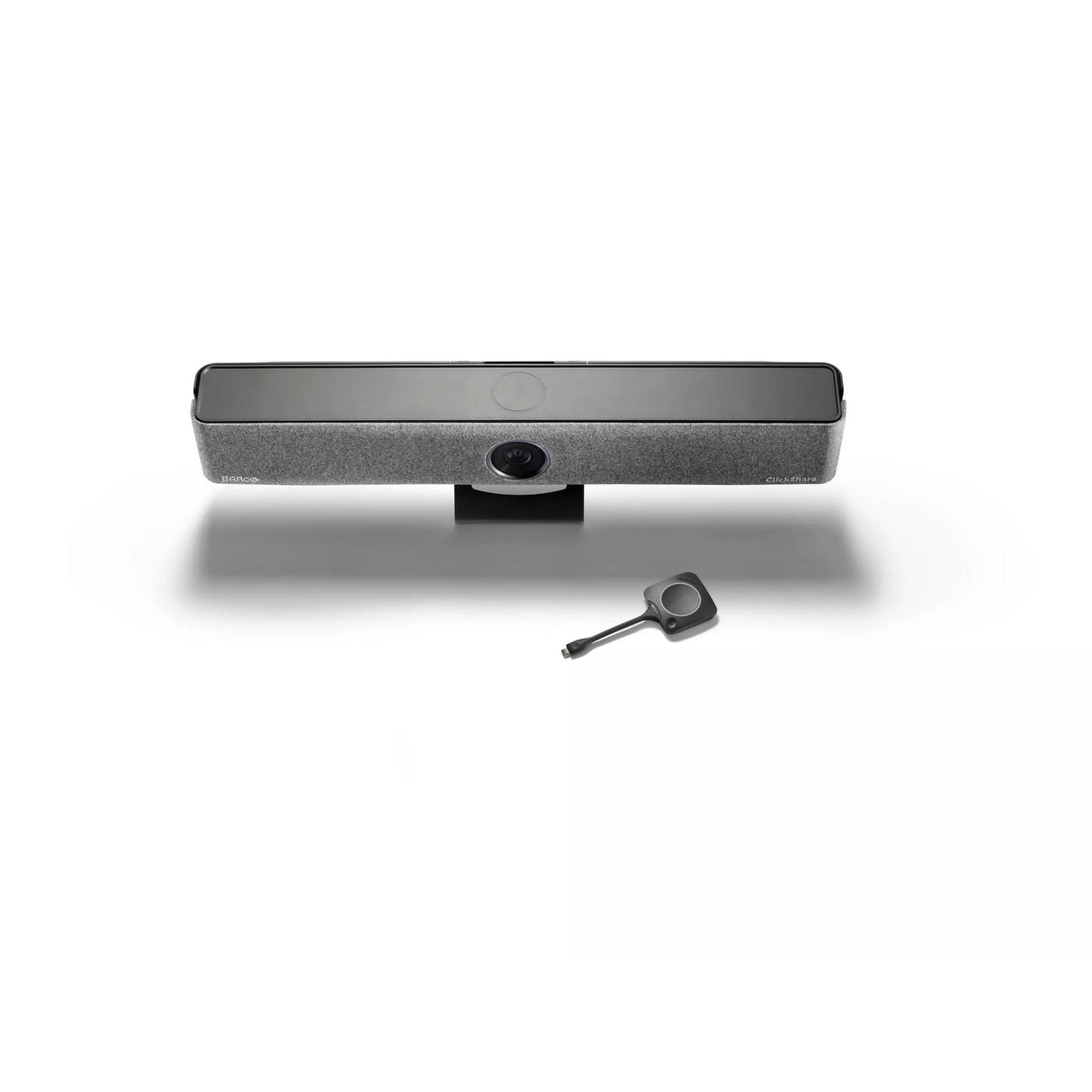

Barco ClickShare Bar Core Wireless Video Conferencing Bar (1 Button Included)

The ClickShare Bar Core Wireless Video Conferencing Bar is an eco-friendly video conferencing solution designed for small to medium-sized meeting rooms. It provides a seamless wireless conferencing experience with any videoconferencing platform, ensuring that all participants can engage effortlessly. With its carbon-neutral design, this video bar not only enhances communication but also reduces the environmental impact of meetings.

One of the key features of the ClickShare Bar Core is its high-quality AV capabilities, which guarantee crystal-clear views and audio during meetings. The stereo speakers, acoustic echo cancellation, and background noise cancellation ensure that all participants feel heard and seen, regardless of their location. This technology creates a natural and immersive communication experience, enhancing collaboration among team members.

Moreover, the ClickShare Bar Core offers a comprehensive view of the meeting room and participants with its 4K camera. The camera features a 120° field of view, group framing, and composition views, providing an extensive and sharp visual representation of the meeting space. This ensures that all participants are visible on-screen, promoting engagement and active participation during conferences. With simplified installation and reduced Total Cost of Ownership, the ClickShare Bar Core is a valuable addition to any modern meeting room.

Key Features

• Exceptional stereo audio quality with crystal-clear sound

• Cutting-edge 4K camera powered by advanced AI technology

• Easy and straightforward installation process

• A wise investment with reduced interventions, less downtime, and a platform that is future-proof

• Environmentally friendly product that is carbon-neutral

Technical Specifications

Operating System
Windows 10 and higher macOS 11 (Ventura) and higher Android v13 and higher (ClickShare App) iOS 16 and higher (ClickShare App)
System Requirements
For a smooth experience with Microsoft Teams or Zoom Minimum: Intel i3 dual-core processor / 8GB RAM / OS: Windows 10 latest build or Mac OS Ventura latest build Recommended: Intel i5 4-core processor / 8GB RAM / OS:Windows 11 latest build or Mac OS latest build
Video Outputs
4K UHD (3840*2160) @ 30Hz. HDMI 1.4b or USB-C DP ALT mode (DisplayPort 1.2)
Video Inputs
-
Camera

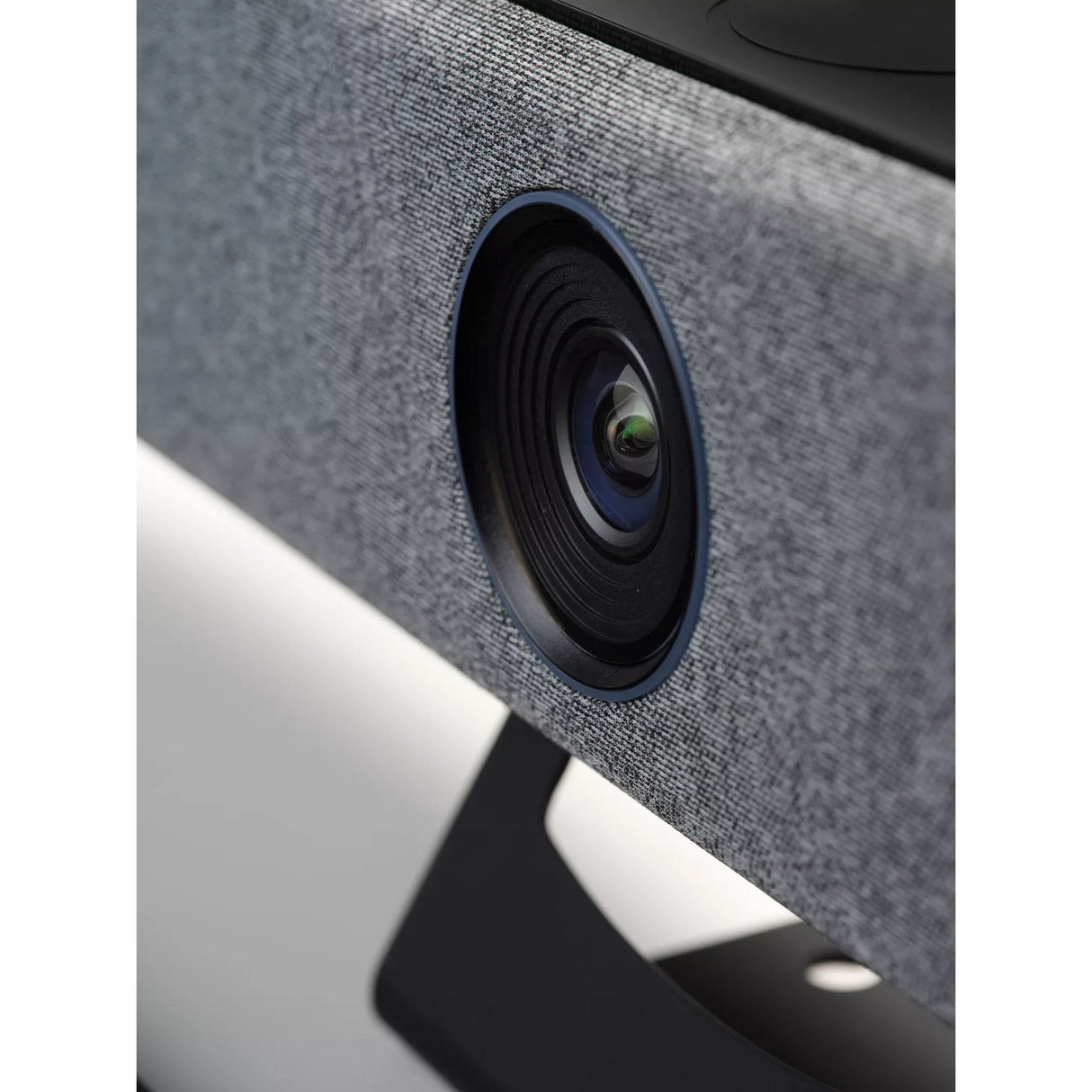

4K camera, 3x zoom/ePTZ, 120˚FOV
Camera AI
Group framing and composition mode with up to 4 people
Audio Output
2x 10W full duplex and stereo speakers, 8 Ohms impedance (available mid 2024)
Audio Pickup
6 beamforming MEMS microphones with echo and background noise cancellation. Pickup range up to 15 feet / 4.5 meters
ClickShare Buttons
1
ClickShare App
Desktop & Mobile
Native Protocols
Airplay, Google Cast, Miracast (available mid 2024)
Noise Level
Fanless
Authentication Protocol
WPA2-PSK in stand-alone mode WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
Wireless Transmission Protocol
IEEE 802.11 a/g/n/ac and IEEE 802.15.1
Reach
Max. 30m (100 ft) between ClickShare Button and ClickShare Bar
Frequency Band
2.4 GHZ and 5 GHz (DFS channels supported in select number of countries in network integration mode)
Connections
1x USB-C 3.1 (DP) to screen, 1x USB-A 2.0, 1x Ethernet LAN 1Gbit, 1x USB-C 2.0 (side)
Temperature Range
Operating: 0°C to +40°C (+32°F to +104°F) Max: 35°C (95°F) at 3000m Storage: -20°C to +60°C (-4°F to +140°F)
Humidity
Storage: 0 to 90% relative humidity, non-condensing Operation: 0 to 85% relative humidity, non-condensing
Anti-Theft System
Kensington lock (back and bottom)
Certifications
FCC/CE
Touch Screen Support & INTERACTIVITY
No
Wireless Conferencing
via App or Button
Local View
Yes
Network Connection
LAN & WiFi
Management and Reporting
Yes
Warranty
1 year standard. 5 years coverage upon registering via SmartCare
Dimensions (HxWxD)
98 mm x 640 mm x 101 mm
Power Consumption
Operational: 5-20W, 65W Max
Power Supply
Standard 110/220 V AC plug or USB-C (back)
Weight
2500 gr
