Belden 1694A 0101000 6G-SDI RG6 Digital Coaxial Video Cable 18AWG, Black, 1000-Feet
Belden 1694A 0101000 6G-SDI RG6 Digital Coaxial Video Cable 18AWG, Black, 1000-Feet is backordered. Please call for ETA 877-779-8964
Condition: New
Belden 1694A 0101000 6G-SDI RG6 Digital Coaxial Video Cable 18AWG, ...
Description
Description
Belden 1694A 0101000 6G-SDI RG6 Digital Coaxial Video Cable 18AWG, Black, 1000-Feet

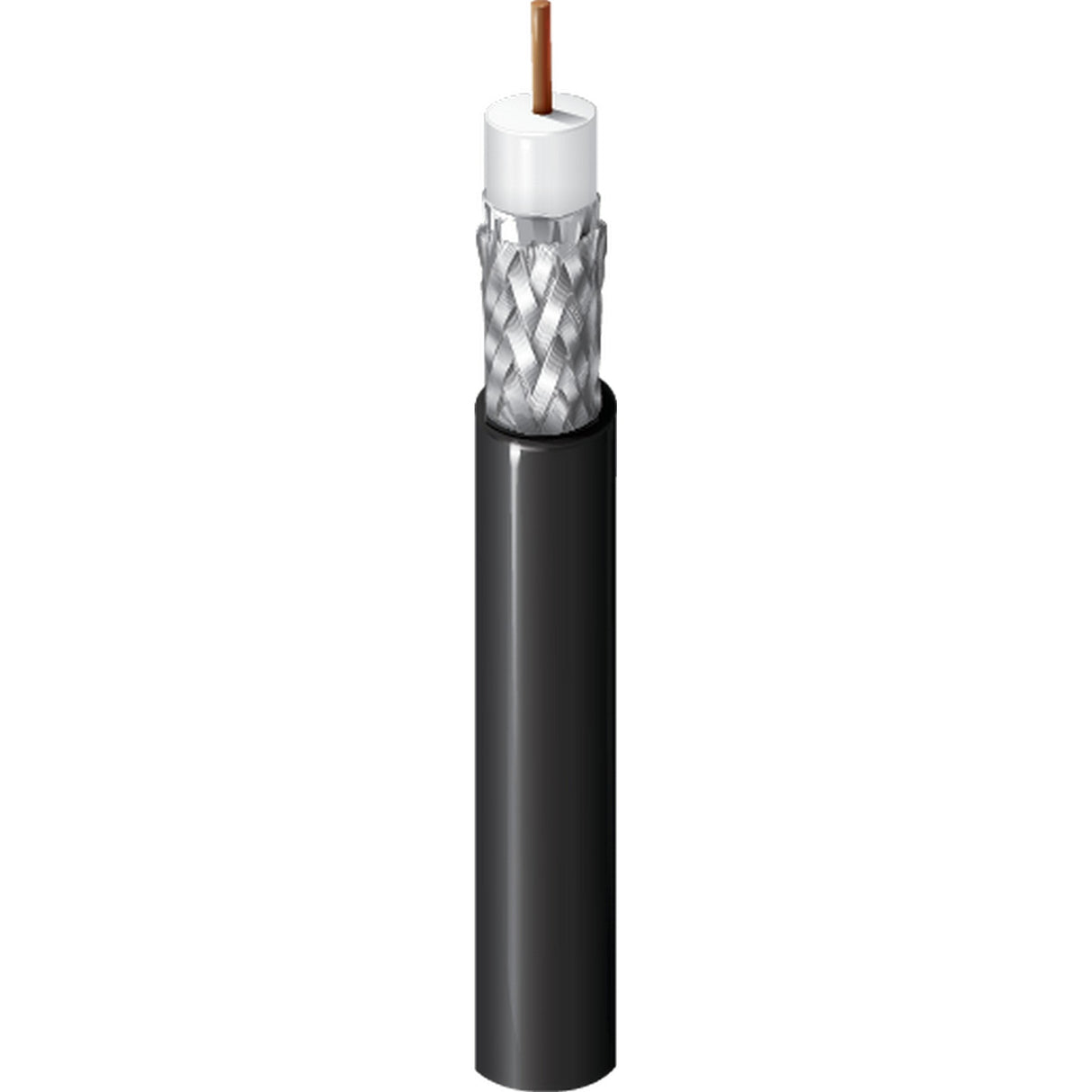

Belden's 1694A is a 75 Ohm RG-6, 18 AWG, HD-SDI, CMR rated Coaxial Cable with a Solid Bare Copper Conductor, PE Insulation, Foil and 95% Tinned Copper Braided Shield in a PVC Jacket.
Key Features
- Easy Pulling & Stripping: Belden's quality jacketing saves installation time and money
- Solid Construction: Features electrolytic tough pitch (ETP) virgin copper
- Easy Identification: Cable jackets feature footage room and zone markings
Technical Specifications
Number of Coax
1
RG Type
6
AWG
18
Stranding
Solid
Conductor Material
BC - Bare Copper
Conductor Nom. Diameter
0.040 in
Insulation Material
Gas-injected FHDPE - Foam High Density Polyethylene
Nom. Insulation Diameter
0.180 in (4.57 mm)
Outer Shield Material Trade Name
Duofoil
Outer Shield Material
Unshielded
Outer Jacket Material
PVC - Polyvinyl Chloride
Overall, Cable Diameter (Nominal)
0.274 (6.96mm)
Plenum (Y/N)
N
Nom. Characteristic Impedance
75 +/- 1.50
Plenum Number
BL-1695A
Environmental Suitability
Indoor/Outdoor, Indoor, UV Resistance
Item Includes
1694A 0101000 Digital Coaxial Cable 18AWG - Black - 1000 Foot
Warranty
Limited 10 Year Warranty
