Belden 1855A 6G-SDI Mini-RG59 Digital Coax Video Cable 23 AWG, Black, 1000-Feet

Belden 1855A 6G-SDI Mini-RG59 Digital Coax Video Cable 23 AWG, Black, 1000-Feet

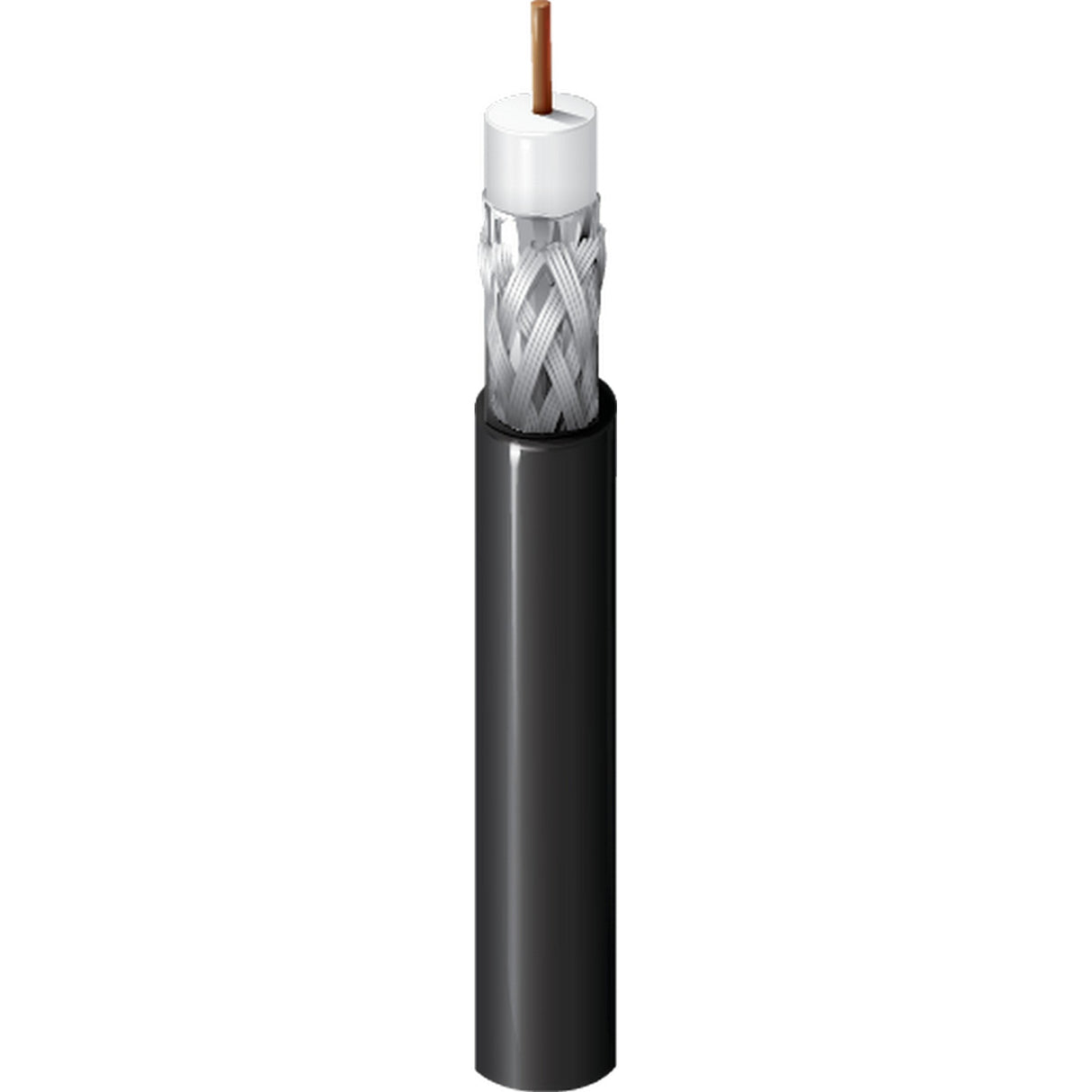

Belden 1855A is a 75 Ohm, 23 AWG Mini RG-59, 6G-SDI Precision Broadcast Video Coax Cable with a Solid Bare Copper Conductor, PE Insulation, Foil plus 95% Tinned Copper Braid Shield in a PVC Jacket that is CMR rated.

Belden’s premium multi-channel 6G-SDI coax cable meets the SMPTE ST-2081 6G-SDI Standards to support 6 Gbps and maximum resolutions for 4K video & audio applications up to 30Hz. This cable supports: 1080P (All formats to YUV 4:4:4), 10/12-bit 4Kx2K RAW, 10-bit 4Kx2K YUV 4:2:2.

Key Features

• Convenient Installation: Only one cable can be installed to send 10 Bit 4:2:2 4K at 30p or 24p & support 6 Gb/s of bandwidth for 6G-SDI
• Durable Materials: The flexible cable sleeve provides abrasion resistance & its high-quality connectors provide strain relief
• High Quality Signal Transmission: Professional quality 4K, 75-ohm BNC connectors for proper 6G performance

Technical Specifications

RG Type
Mini RG59
AWG
23
Conductor Stranding
Solid
Conductor Material
Bare Copper
Conductor Nominal Diameter
0.023 in
No. of Coax
1
Overall, Cable Diameter (Nominal)
0.159 in (4.04 mm)
Outer Jacket Material PVC
Polyvinyl Chloride
Outer Jacket Overall Diameter
0.159 in (4.04 mm)
Operating Temp Range
-30 Degrees C To +75 Degrees C
Environmental Suitability
Indoor/Outdoor, Indoor, UV Resistance
NEC / UL Compliance
CMR
CEC / C(UL) Compliance
CMG
Item Includes
Belden 1855A Digital Coax Video Cable 23 AWG - Black - 1000 Foot
Warranty
Limited 10 Year Warranty
