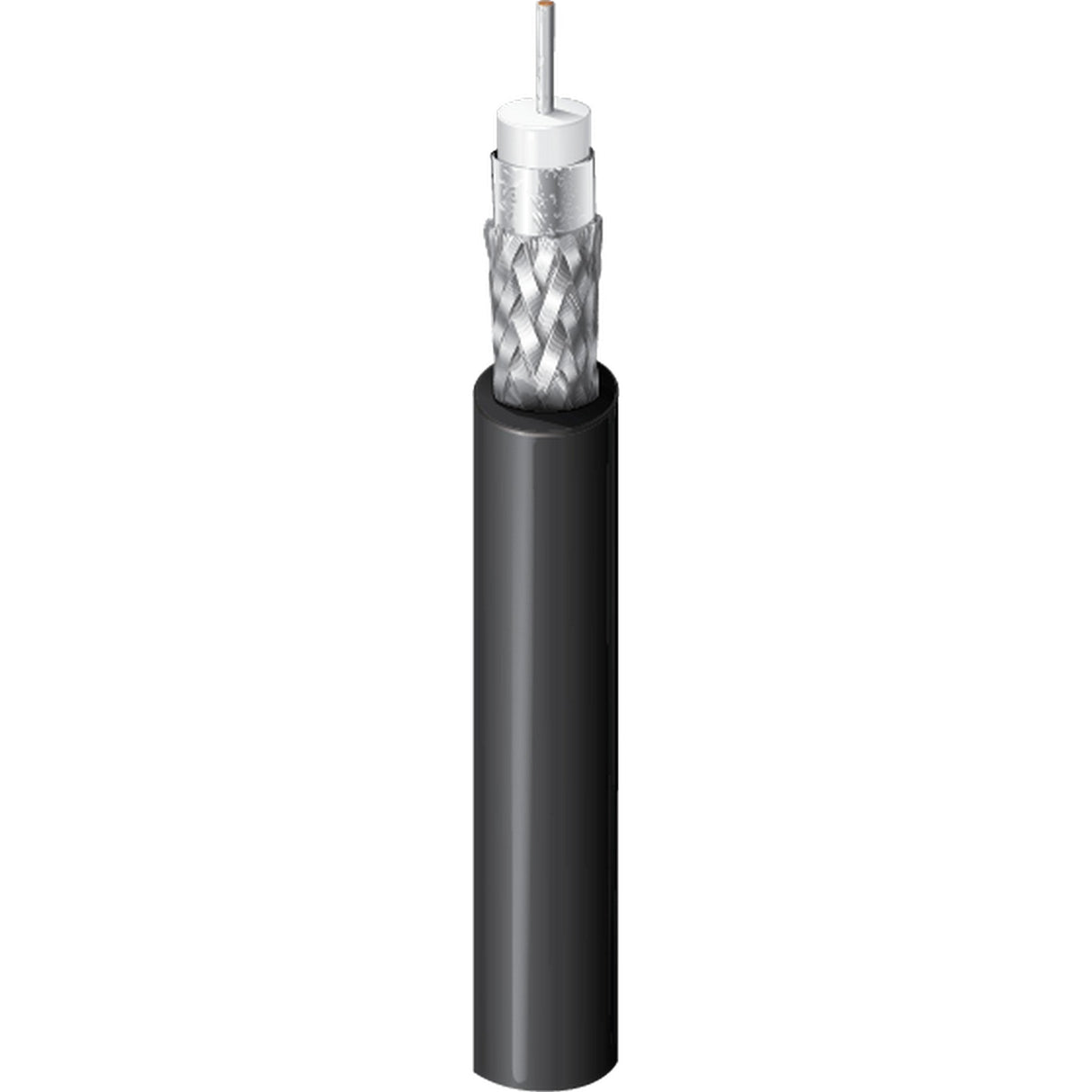

Belden's 4694R is a 4K UHD Coax for 12G-SDI. This RG-6, 75 Ohm SDI Coax is 18 AWG with a Solid Silvered Copper Conductor, PE Insulation, Foil plus 95% Tinned Copper Braid Shield, PVC Jacket and is CMR rated.

Belden 4K Ultra-High-Definition (UHD) Coax Cables for 12G-SDI coaxial solutions maximize 4K signal transmission distance on a single coax, minimizing weight and space utilization compared to dual- or quad-link configurations.

Key Features

• Faster Installation: Using Belden's single-link solution saves time and is significantly lighter than dual or quad-link configurations
• Optimized Design: On Belden 4K UHD Coax Cables for 12G-SDI, the inner foil is bonded to the core to eliminate bunching when installing 1-piece connectors. The outer foil is bonded to the jacket for a quicker, one-step stripping process
• Superior Performance: The 4K UHD coax cable for 12G-SDI are superior in performance and engineered to optimize transmission distance, the cables exceed the SMPTE Return Loss (RL) specifications for UHDTV
• Supports 12 GHz: Belden 4K UHD Coax Cables for 12G-SDI are capable of supporting 12 GHz bandwidth and enable a single-link configuration to transmit 4K

Technical Specifications

Type
RG6
# Coax
1
AWG
18
Stranding
Solid
Conductor Material
Silver Plated Copper
Conductor Dia. (in.)
0.040
Overall, Cable Diameter (Nominal)
0.274 in (6.96 mm)
Insulation Material
Gas-injected FHDPE - Foam High Density Polyethylene
Insulation Diameter (in.)
.180
Outer Jacket Material
PVC - Polyvinyl Chloride
Outer Jacket Overall Nominal Diameter
0.274 in.
Impedance (Ohm)
75
Inductance (µH/ft)
0.106
Capacitance (pF/ft)
15.900
Nominal Velocity of Propagation (%)
84.500
Nominal Delay (ns/ft)
1.200
Nom. Conductor DCR @ 20°C (Ohm/1000 ft)
6.4
Nominal Outer Shield DCR @ 20°C (Ohm/1000 ft)
2.800
Max. Operating Voltage - UL
300 V RMS
Operating Temperature Range
-30 Degrees C To +75 Degrees C
Bulk Cable Weight
41 lbs/1000 ft.
Max. Recommended Pulling Tension
69 lbs.
Min. Bend Radius/Minor Axis
2.750 in.
Item Includes
4694R - Black - 1000 Foot Reel
Warranty
Limited 10 Year Warranty
