Biamp Cambridge Qt X 600 6-Zone Sound Masking Control Generator

Biamp Cambridge Qt X 600 6-Zone Sound Masking Control Generator

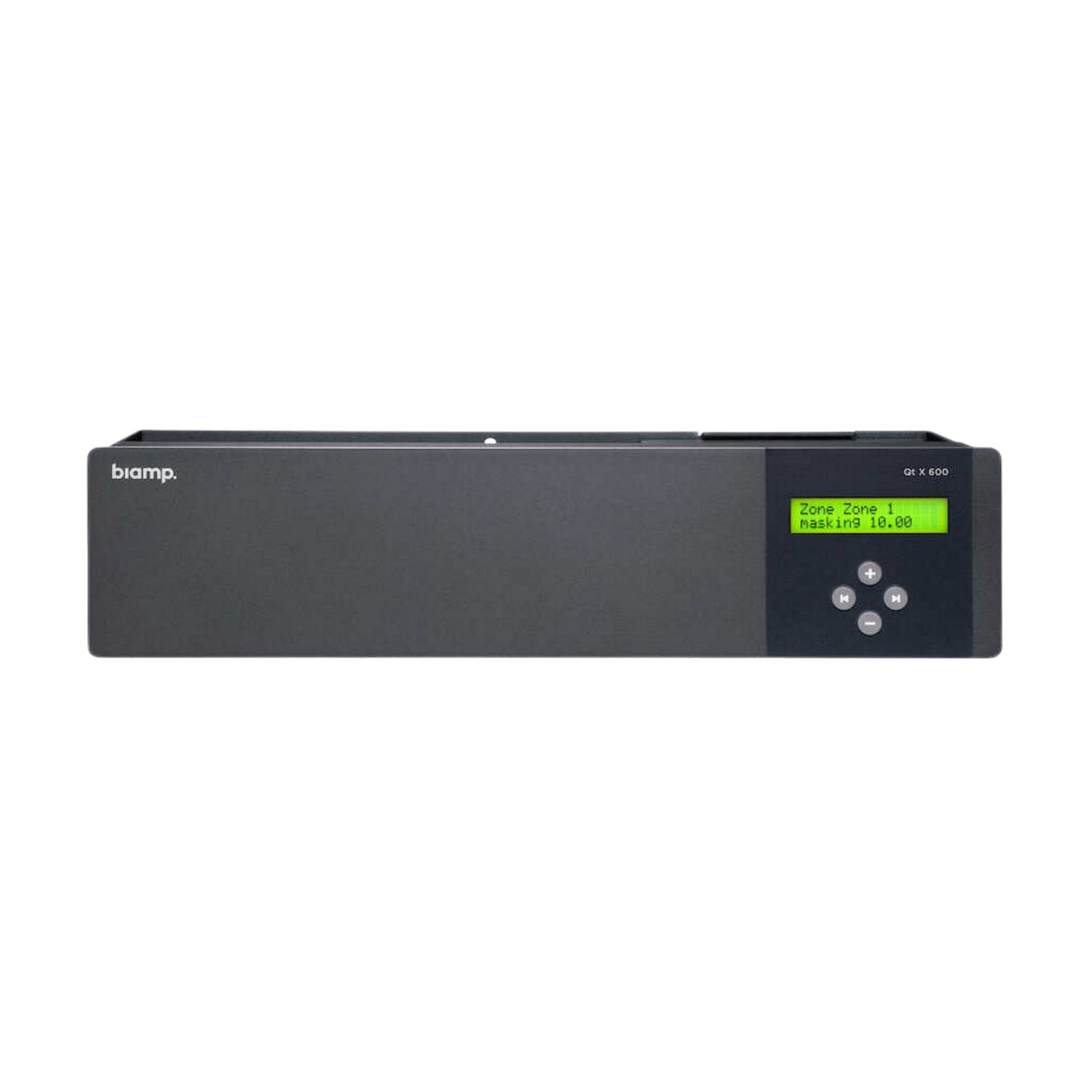

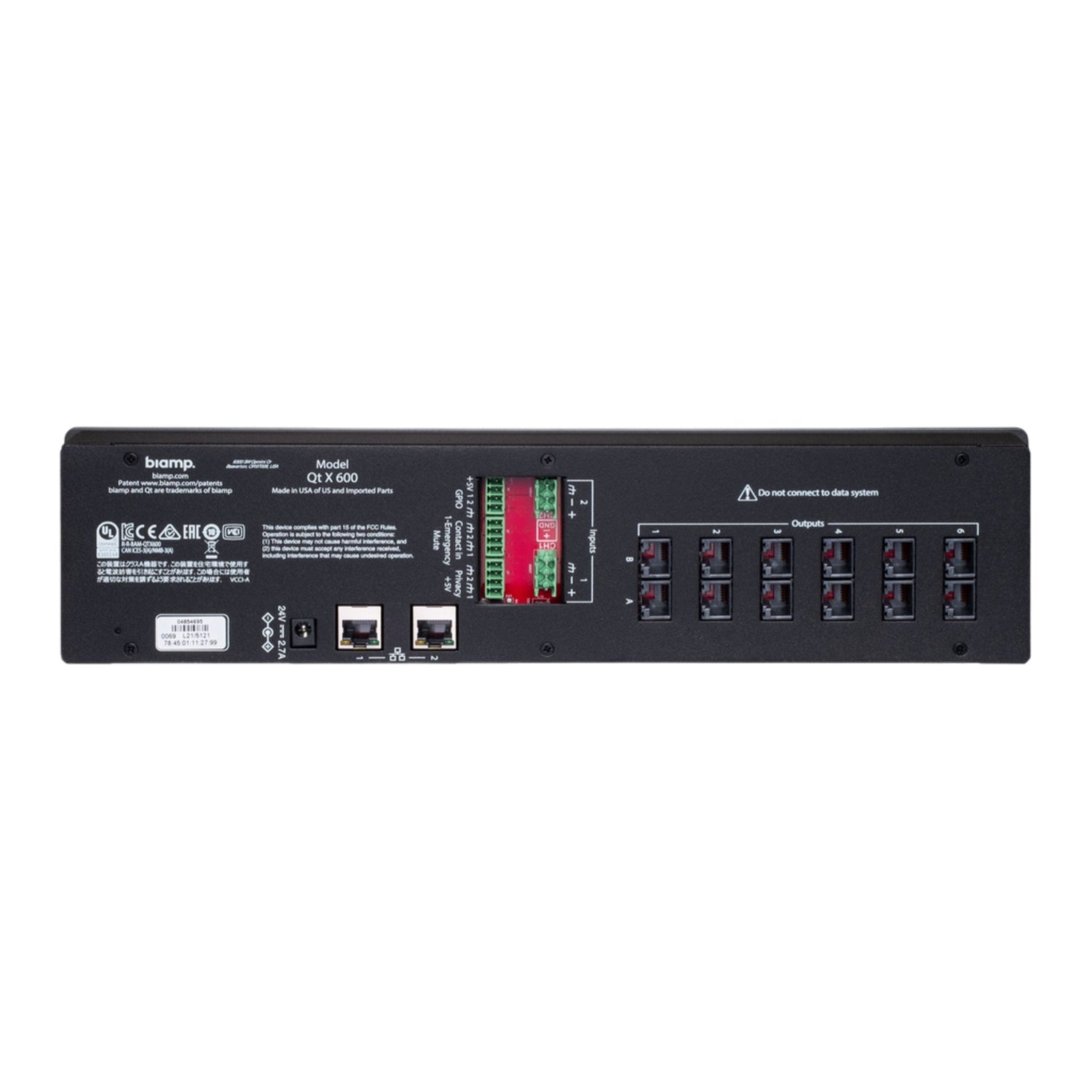

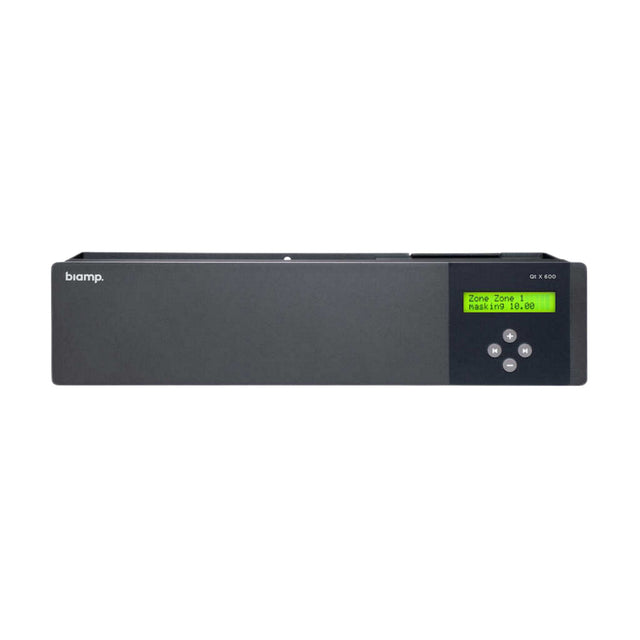

The Qt X 600/600D control module is a sound masking generator, controller, third-octave band equalizer and amplifier, with two auxiliary audio inputs to allow for distribution of audio from paging controllers and/or (background) music players.

The Qt X 600/600D controls up to six zones of Qt standard or active emitters. The Qt X 600/600D control module is a compact six-zone networkable controller suitable for installations of up to 72,000 square feet (6,690 m2). Each zone can be independently adjusted for masking and aux audio levels and spectra.

Both models feature full compatibility with Biamp’s SageVue system management software. When multiple controllers are included in a single system audio input can be shared across all controllers via AVB or Dante (600/D).

Key Features

• Compatible with Qt Standard emitters and Qt Active emitters.
• Supports up to 6 zones
• 2 audio inputs for paging and music
• Contact closure integrates with fire alarm systems
• Front panel with LCD
• Front Panel Lock (via software control)
• Auto ramping
• Event scheduling
• Adjustable equalizer for masking and audio inputs
• 4 non-correlated sound masking audio sources per zone
• Built-in clock with system NTP support
• Wall mount bracket included; optional rack mount bracket also available
• Dual network ports (media / control)
• Web interface control by any web-enabled device
• Third party control API/Ethernet
• CE marked, UL listed, and RoHS compliant
• Covered by Biamp Systems’ five-year warranty
• Manufactured in the U.S.A.
• TAA compliant
• GSA eligible
