Biamp DC220T 6.5-Inch Full-Range Drop-Ceiling Loudspeaker, Pair

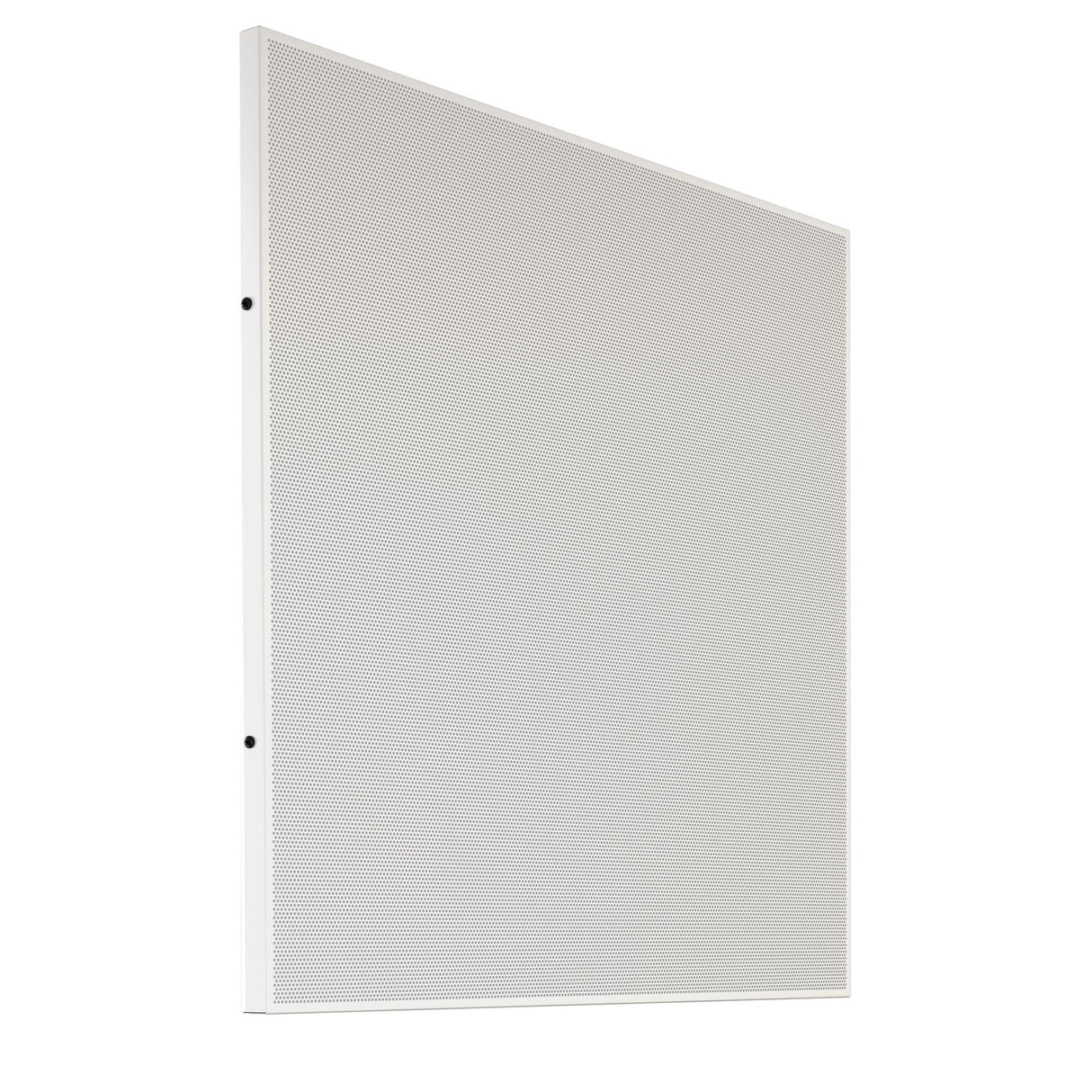

Biamp’s fastest installing ceiling loudspeaker, the DC220T is a drop-ceiling loudspeaker with a 6.5-inch full-range driver that delivers impressive audio performance while delivering a dispersion pattern 20% wider than competitors. Ideal for background music and crystal-clear paging across a variety of venues, it is engineered to provide exceptional performance when paired with Vocia voice communication system.
The preassembled construction allows for swift placement in standard 2' x 2' ceiling grids, significantly reducing installation labor time. Additionally, the DC220T can be used in larger 2' x 4' rectangular ceiling grids with the included cross-T rails. The included wire nuts facilitate easy 2-conductor connections.
UL1480A and UL2043 certified, the DC220T also meets the City of Chicago plenum space wiring requirements and comes with additional accessories for new construction installation and safety cable attachment.
The DC220T offers the flexibility of low impedance or 70 V/100 V operation while featuring a wattage selector switch for convenient adjustment of tap levels.
Key Features
- High sensitivity, wide coverage
- Designed for use with any Vocia paging system
- Low impedance or 70 V / 100 V operation
- Easy installation - drop in the grid and connect cabling - done!
- Low-profile, less than 102 mm (4”) total depth
- Conduit knock-outs on the input cover meet plenum air space handling requirements
Technical Specifications
Operating Mode
Passive with selectable low-impedance or 70 V/100 V operation
Operating Environment
Indoor
Operating Range (-10 dB)
2 100 Hz to 18.5 kHz
Nominal Beamwidth (H x V)
130°, (conical)
Transducer
Full Range 1 x 6.5” (165 mm) paper diaphragm driver
Sensitivity
@ 1 m
93 dB (2.83 V)
93 dB (1 W, 8 Ω)
Nominal Continuous Power Handling
Passive
9 V (10 W @ 8 Ω)
Nominal Maximum SPL5 (Processed)
@ 1 m
Continuous
102 dB
Peak
108 dB
Rated Continuous Voltage
9 V (19 dBV)
Rated Maximum SPL (Processed)
@ 1 m
Continuous
102 dB
Peak
114 dB
Transformer
70 V
10 W, 5 W, 2.5 W, 1.25 W, 0.625 W
100 V
10 W, 5 W, 2.5 W, 1.25 W
PHYSICAL
Input Connection
2-conductor pigtail
Controls
Wattage / low impedance selector switch
Mounting Provisions
Cross-T for use with larger 2' x 4' rectangular ceiling grids
Compliance
ETL listed to comply with UL1480, UL2043 and CSA62368-1
Suitable for use in air handling spaces per NFPA 70 and NFPA 90
Dimensions W x H x D
603 mm x 603 mm x 107 mm (23.75” x 23.75” x 4.22”)
Weight (loudspeaker only)
7.4 kg (16.3 lbs)
