Biamp Community R.5-94Z | Full-Range 2 Way 12 Inch Loudspeaker

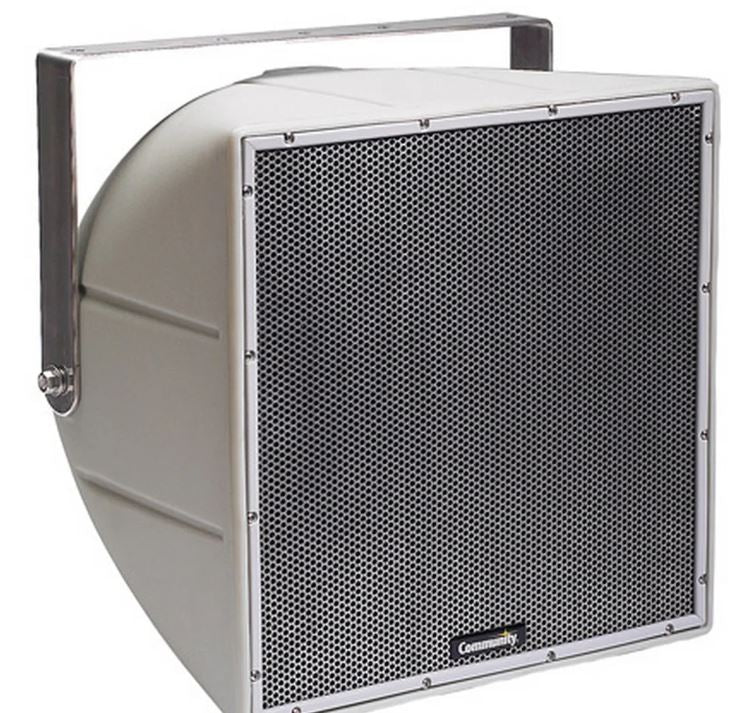

Biamp Community R.5-94Z Full-Range 2 Way 12 Inch Loudspeaker

The R.5-94Z two-way, full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensure both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion.

Key Features

• Weather-resistant, rotomolded UV enclosure
• Weather-treated drivers and crossovers
• Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
• Pattern control down to 630 Hz
• High efficiency
• Integral mounting points
• high-power passive crossover
• DYNA-TECH protection circuitry

Technical Specifications

Loudspeaker Type: 2-way, horn loaded coaxial, weather-resistant
Operating Range: 85 Hz to 16 kHz, 125 Hz to 10 kHz (±4 dB)
Max Input Ratings: 200W continuous, 500W program, 40 volts RMS, 89 volts momentary peak
Recommended Power Amplifier: 420W to 600W @ 8 ohms
Sensitivity (1W/1m): 101 dB SPL (125 Hz to 10 kHz 1/3 octave bands), 102 dB SPL (250 Hz to 4 kHz speech range)
Maximum Output: 124 dB SPL / 131 dB SPL (peak)
Nominal Impedance: 8 ohms
Minimum Impedance: 4.2 ohms @ 9.7 kHz
Nominal -6dB Beamwidth: 90° H (+1° / -46°, 1.6 kHz to 12.5 kHz), 40° V (+16° / +1°, 1.6 kHz to 12.5 kHz)
Axial Q / DI: 18.1 / 12.6, 1.6 kHz to 10 kHz
Crossover Frequency: 2 kHz
Recommended Signal Processing: 90 Hz high pass filter
Drivers: LF (1) 12” Ferrofluid-cooled, HF (1) 1” exit, titanium free, Ferrofluid-cooled
Driver Protection: DYNA-TECH
Input Connection: 12 foot (4 m) SJOW #16 gauge
Enclosure: Rotomolded LLDPE, light grey
Mounting/Rigging Provisions: (5) 3/8-16 rigging points
Grille: 3-layer WeatherStop, light grey
Required Accessories: 24 dB/Oct high pass filter
Supplied Accessories: (1) Yoke bracket, light grey, (1) Aiming strap
