BirdDog BDWPIN Wallplate Dual Input
Description
Description

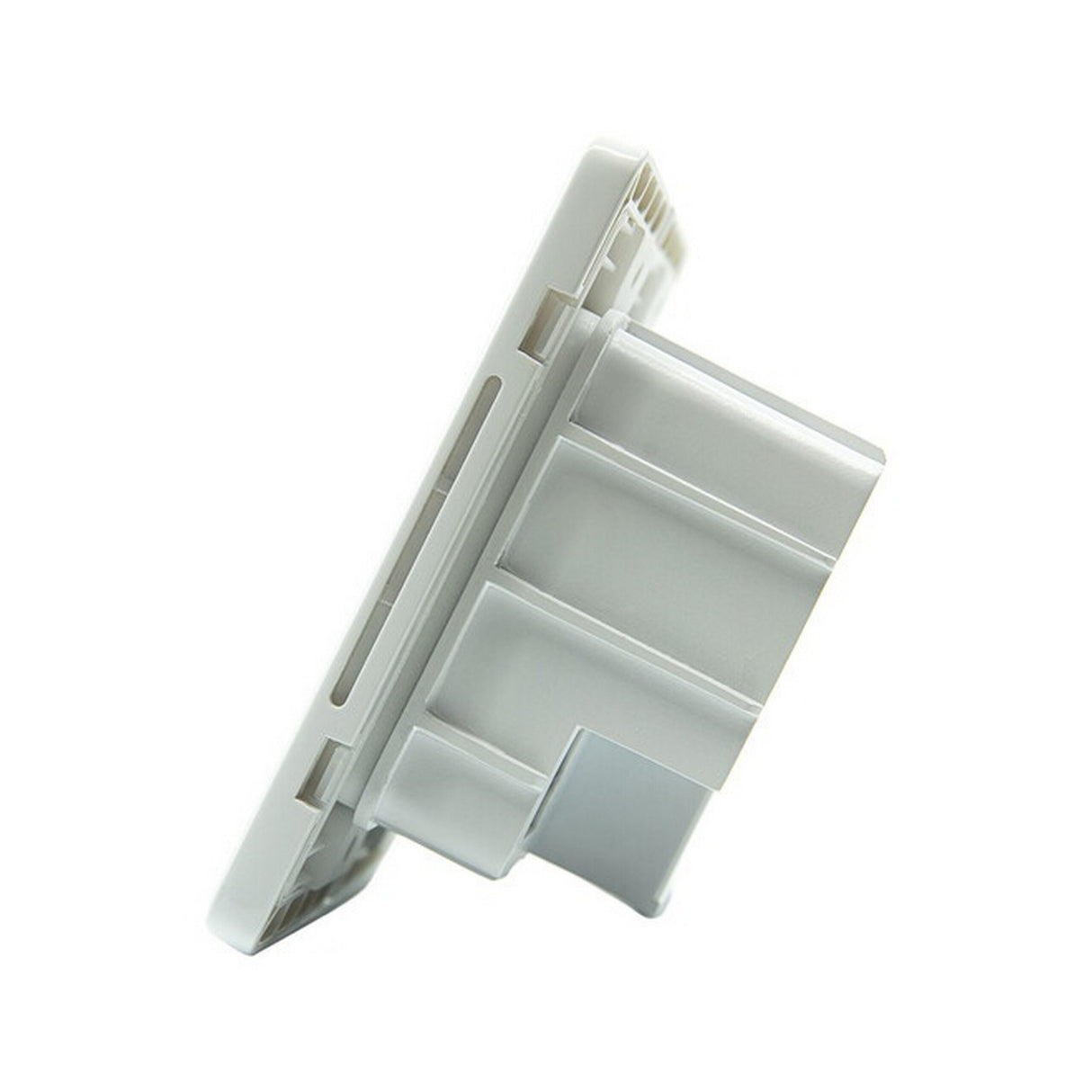

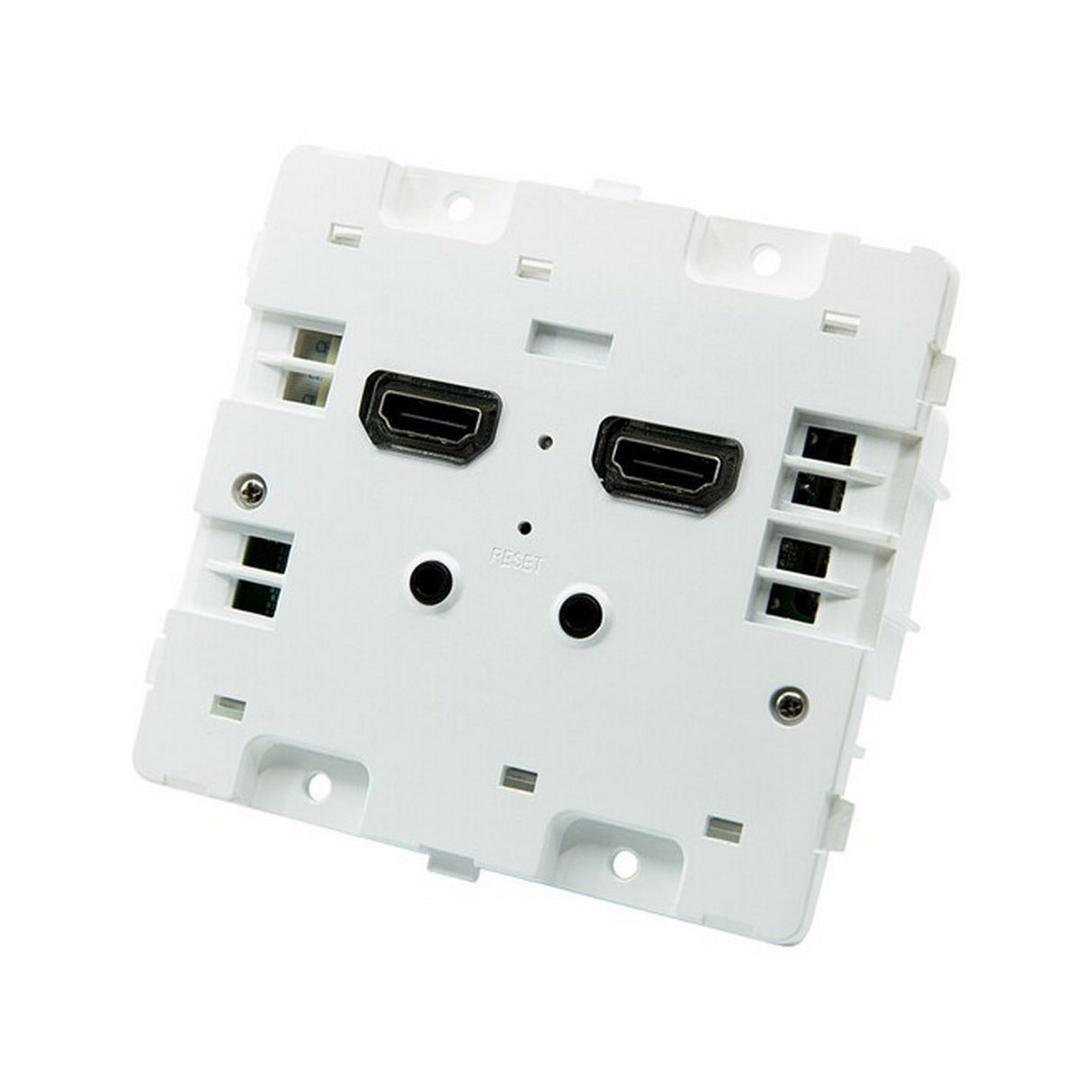

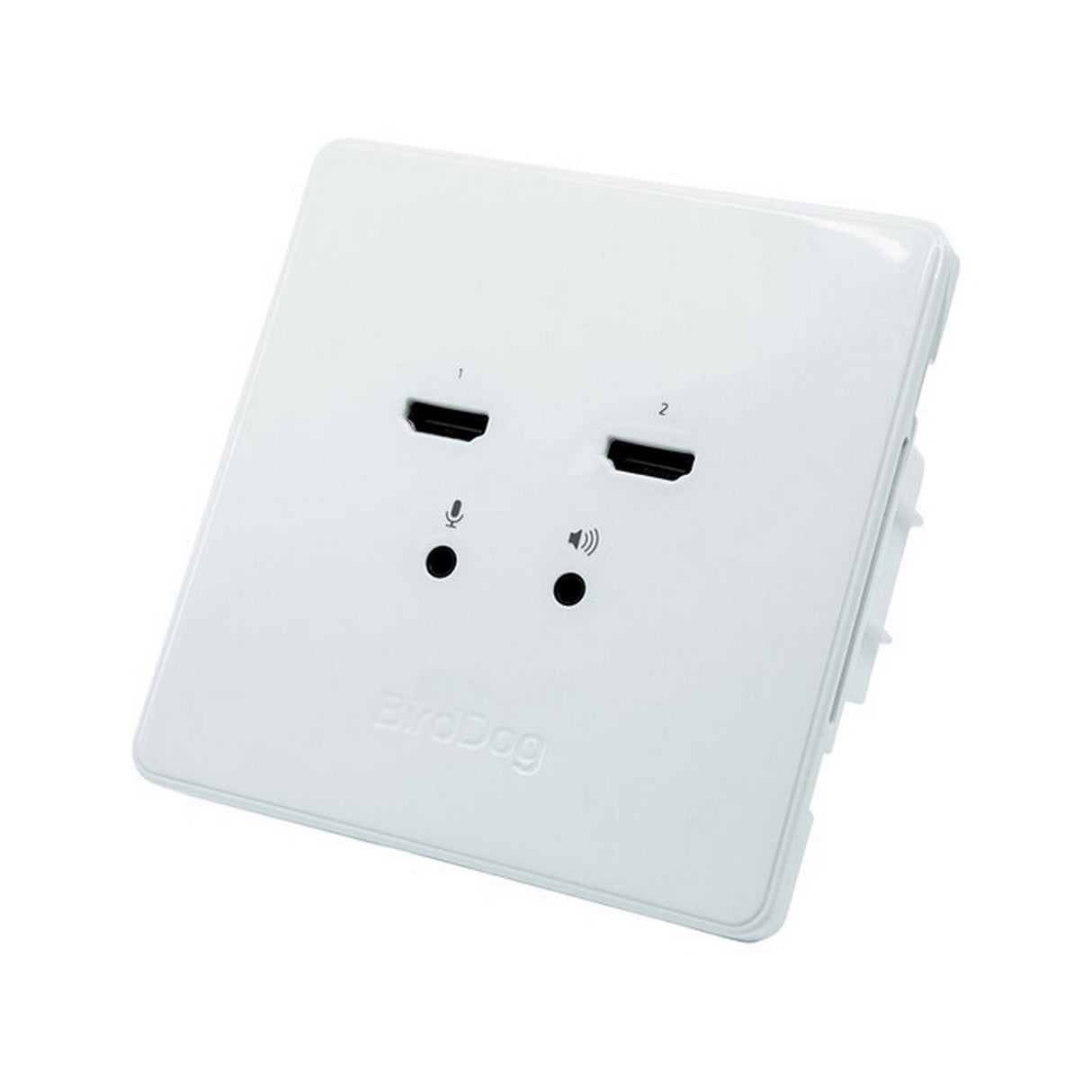

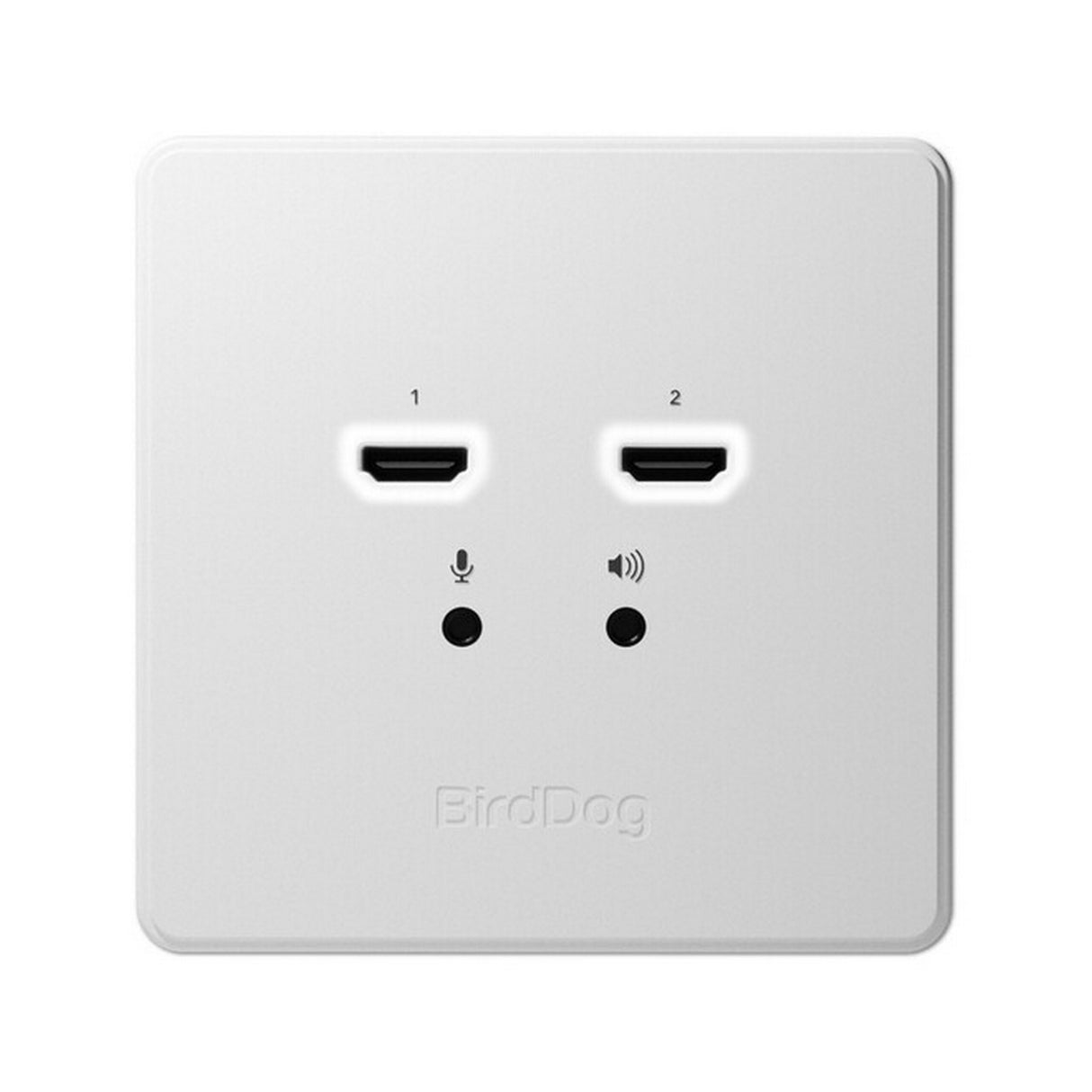

BirdDog BDWPIN Wallplate Dual Input
NDI Wallplates are the answer to elegant and permanent NDI installations. With two models to choose from, Dual Input or Dual Output, they have been designed to make boardroom setups a breeze. Install the Dual Output in the wall to drive content to the TV screens and install the Dual Input into the meeting table to take inputs from laptops and other devices using EDID. Wallplates are all built upon BirdDog’s custom NDI chip and can be completely automated via the programmable RESTful API, and also feature PoE for single Ethernet cable functionality, Mic Input, Speaker output, interchangeable faceplates, soft glow status indicators, and a easy to use web management console to change settings. Wallplate Input features two independent inputs, each with EDID, and is designed for connecting cameras, laptops, and other devices to convert them into the world of NDI. Perfect for installation into boardroom tables, meeting spaces, lecterns, stages, and anywhere you have sources that need to convert to NDI. There is also a Microphone input.
Key Features
- NDI Wallplates for Building the Ultimate AV Experience
- Wallplate Input
- HDMI Auto Detection with EDID
- RESTful API. DIY automation
- Flush Mounted
- One Cable for PoE, Video, Audio
- Extreme Speed. It’s all about the silicon
- Interchangeable Faceplates. Soft Glow Indicators
- Web Management Console
- Distribute NDI content everywhere
Technical Specifications
Video Format
(HD) 1080p 23.98, 25, 29.97, 50, 59.94
(HD) 1080i 50, 59.94
(HD) 720p 50, 59.94
Video Input
2 x HDMI Standard Type A connector HDMI v1.4a, RGB or YCbCr with EDID
Audio digital
2-Channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
Audio analog
3.5mm microphone input
3.5mm stereo output
Video Codec support
Realtime, ultra-low latency, full-bitrate NDI (i-frame)
Soft glow Indicators
User definable status indicators to show active/non-active connections.
Network Interface
10/100/1000 Ethernet (RJ-45) with PoE (Power over Ethernet) Embedded web configuration panel for control and firmware updates
Power
Power over Ethernet (PoE) 802.3af/at
