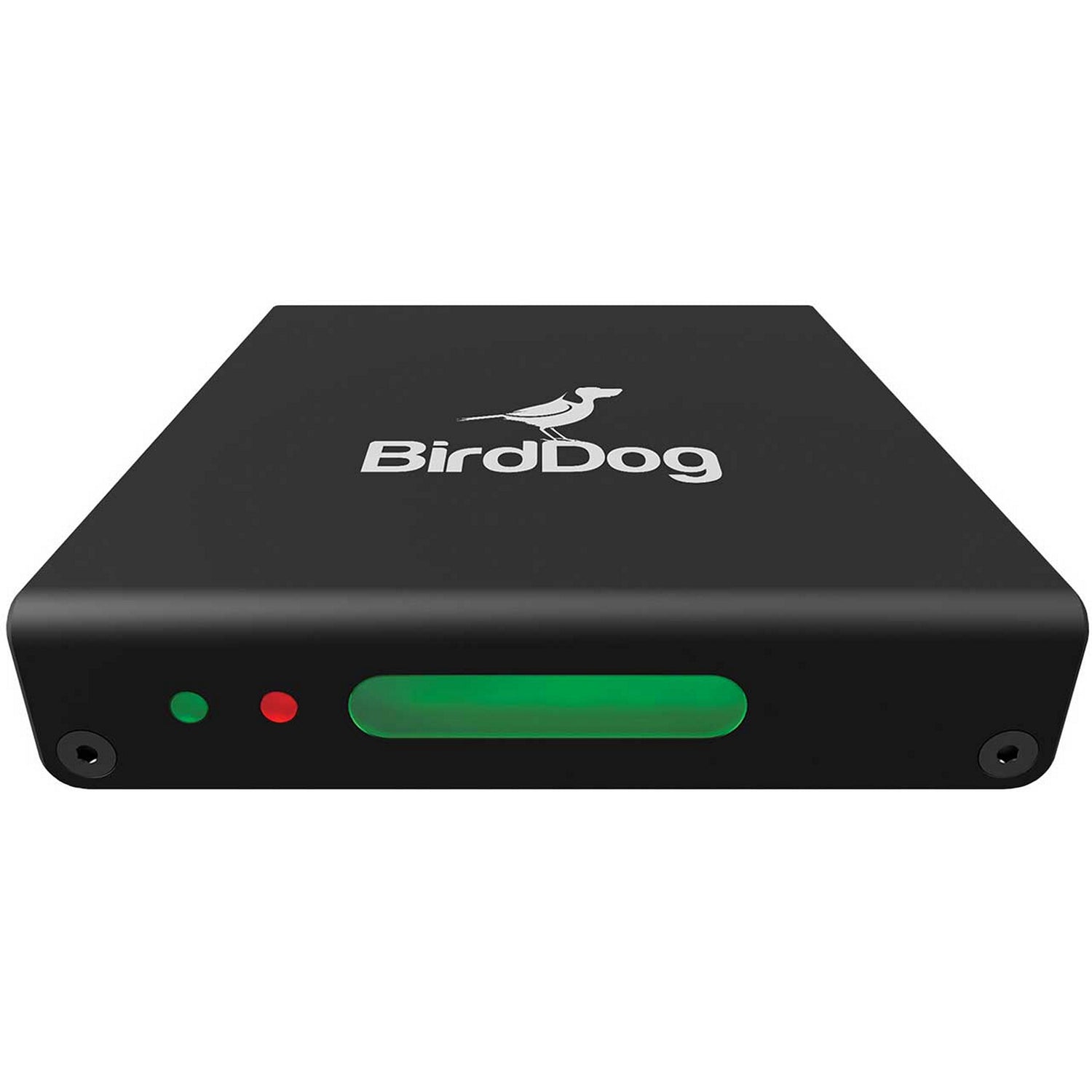

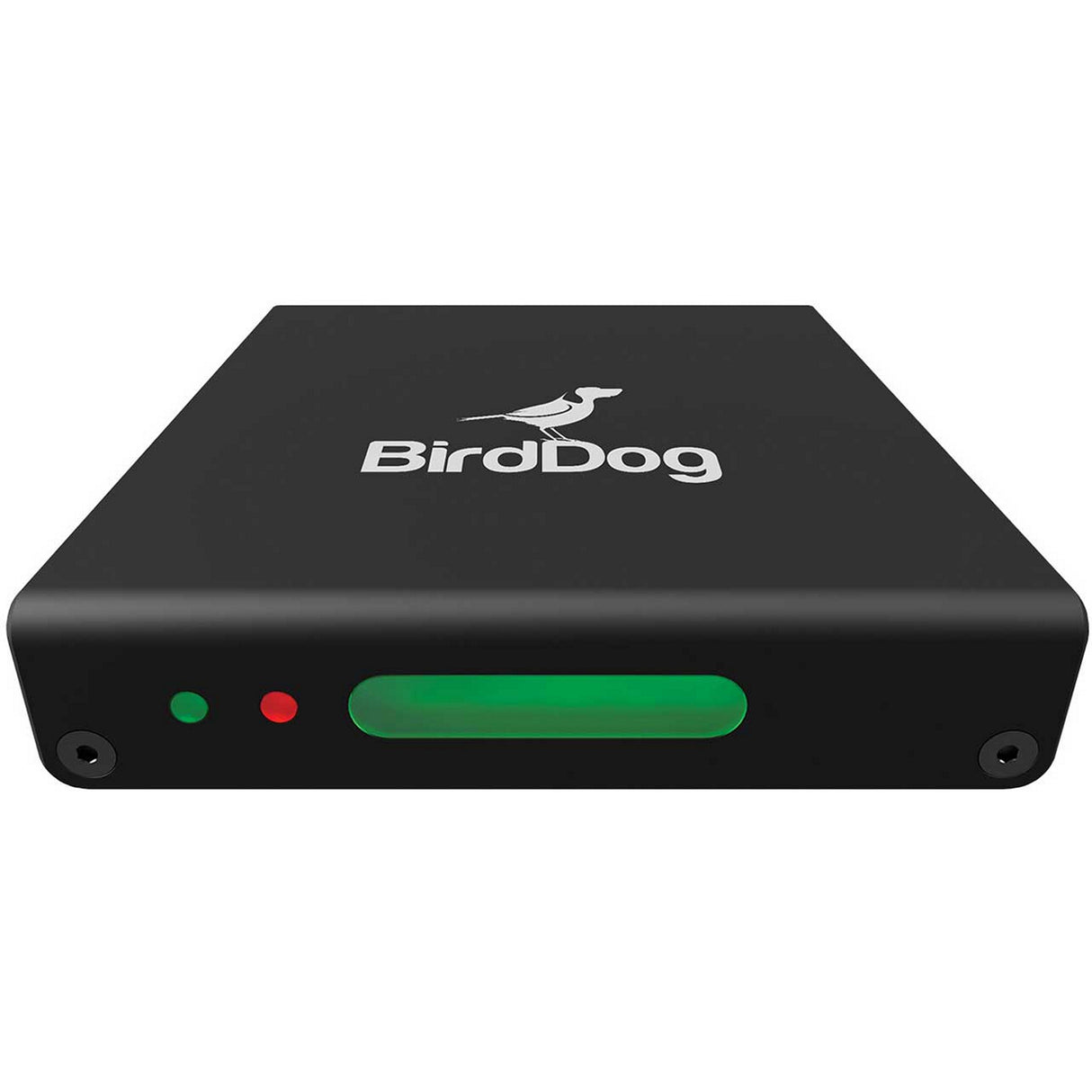

BirdDog Mini HDMI to NDI Encoder with Tally and PoE
BirdDog Mini is the only product in the world to offer full-bit rate1080 p 60 NDI Encoding, 1080p60 NDI Decoding (using BirdDog Link), Tally, Comms, and Power over Ethernet.

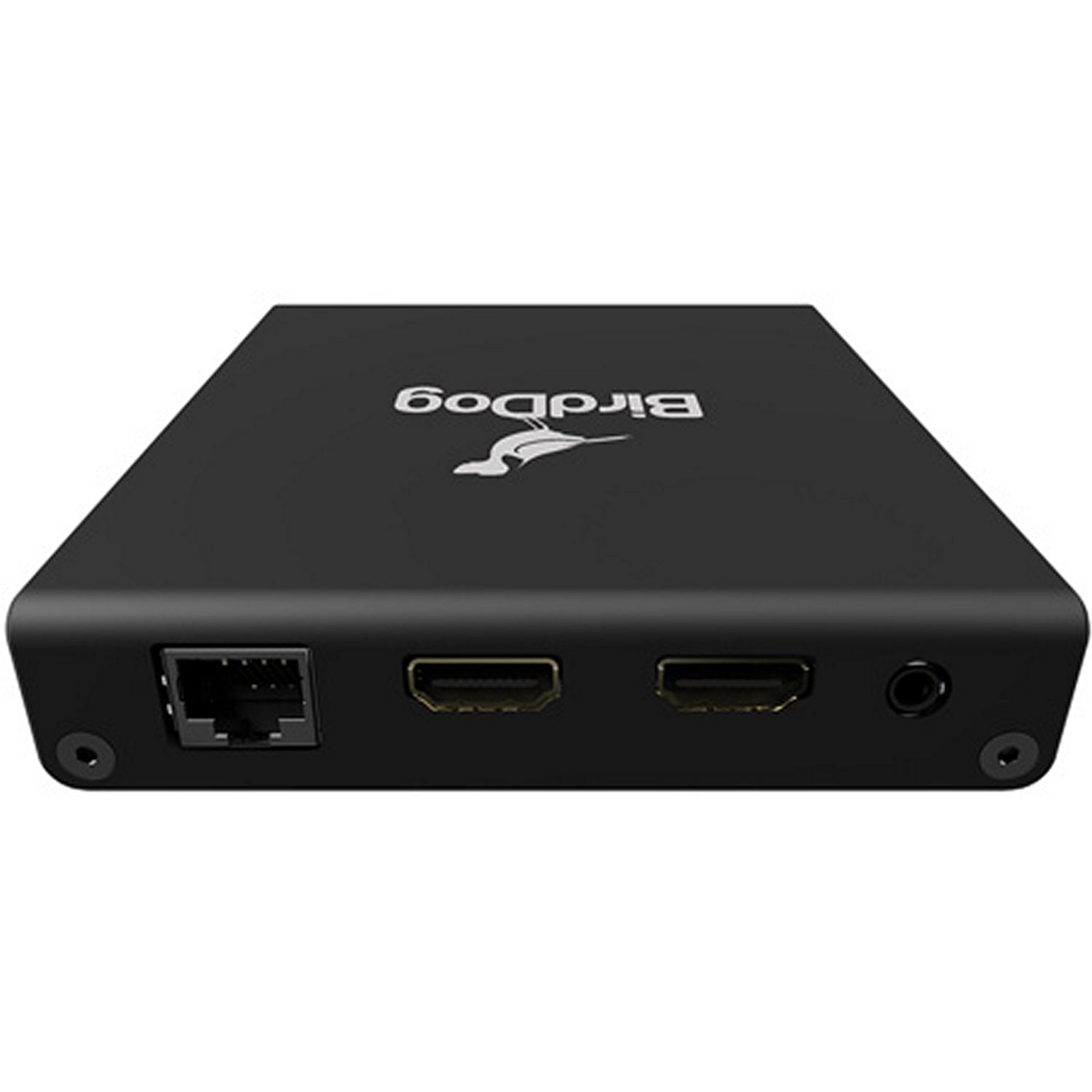

HDMI to NDI with loop out

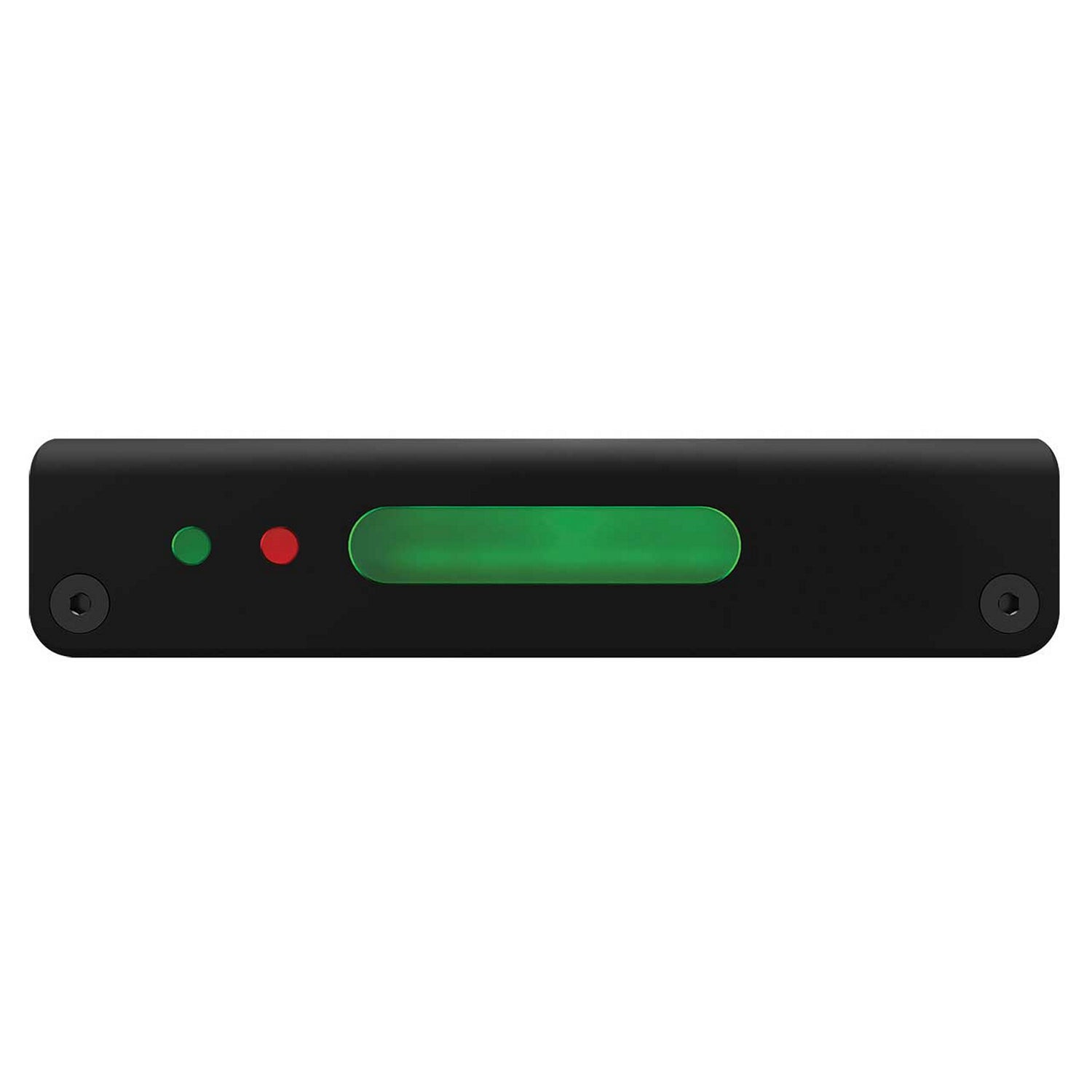

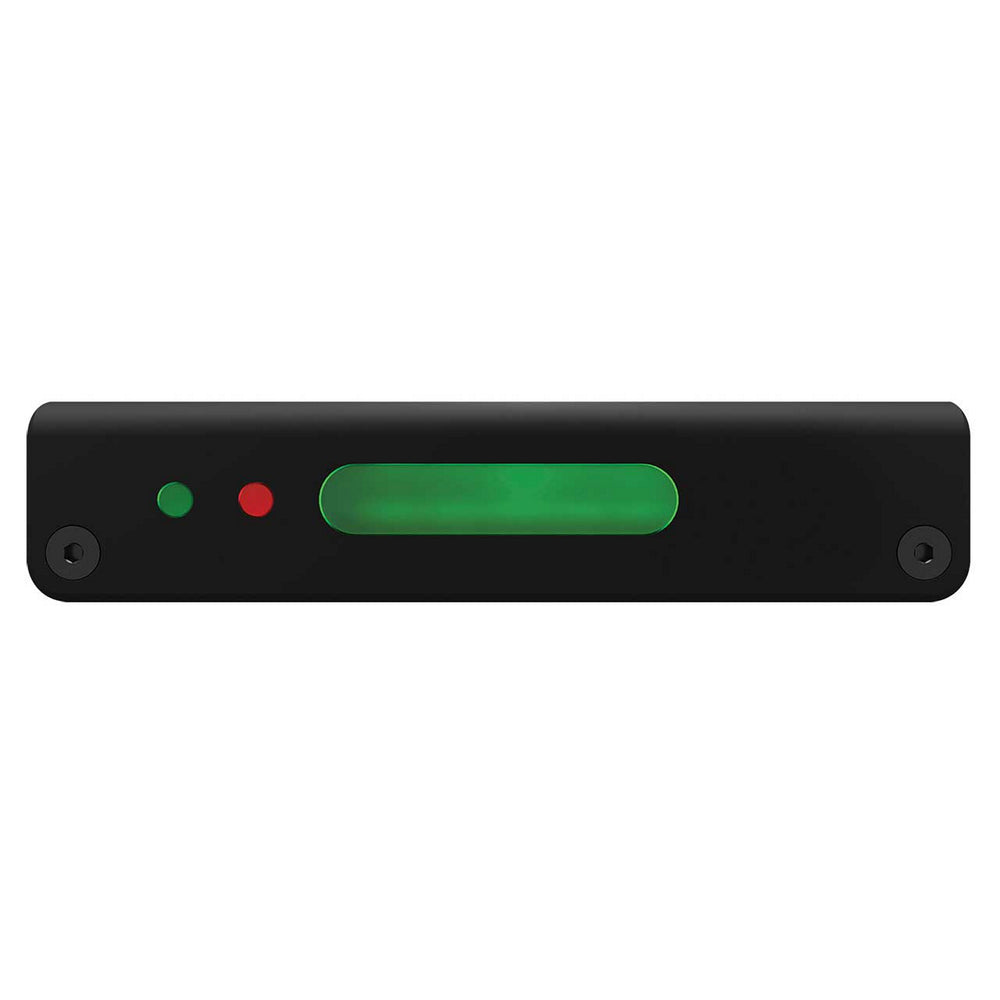

Bi-colour tally. Program & preview
DC and Power over Ethernet (PoE)
NDI made simple
Mini is the World’s smallest NDI encoder. Full bit-rate NDI encoding with no compromises.
1080P60
With support for all resolutions from SD right through to 1080p and frame rates up to 60p, Mini is designed for maximum flexibility..
Tally
Mini makes Tally easy. Zero configuration, built-in Tally display, selectable Tally borders on loop out, and an external Tally output.
Power from anywhere
Mini can be powered by Power over Ethernet (PoE) or D-Tap from your camera battery. No need for a power adapter, although there is one available should you you need it.
COMMS
Native support for the best and most intuitive Audio Intercom system on the planet; BirdDog Comms.
Link
Mini supports BirdDog Link. Encode from any BirdDog Studio NDI or Mini and play out to a TV or monitor.
Technical Specifications
Video Formats
(HD) 1080p 23.98, 25, 29.97, 50, 59.94
(HD) 1080i 25, 29.97
(HD) 720p 50, 59.94
(SD) 525i, 625i

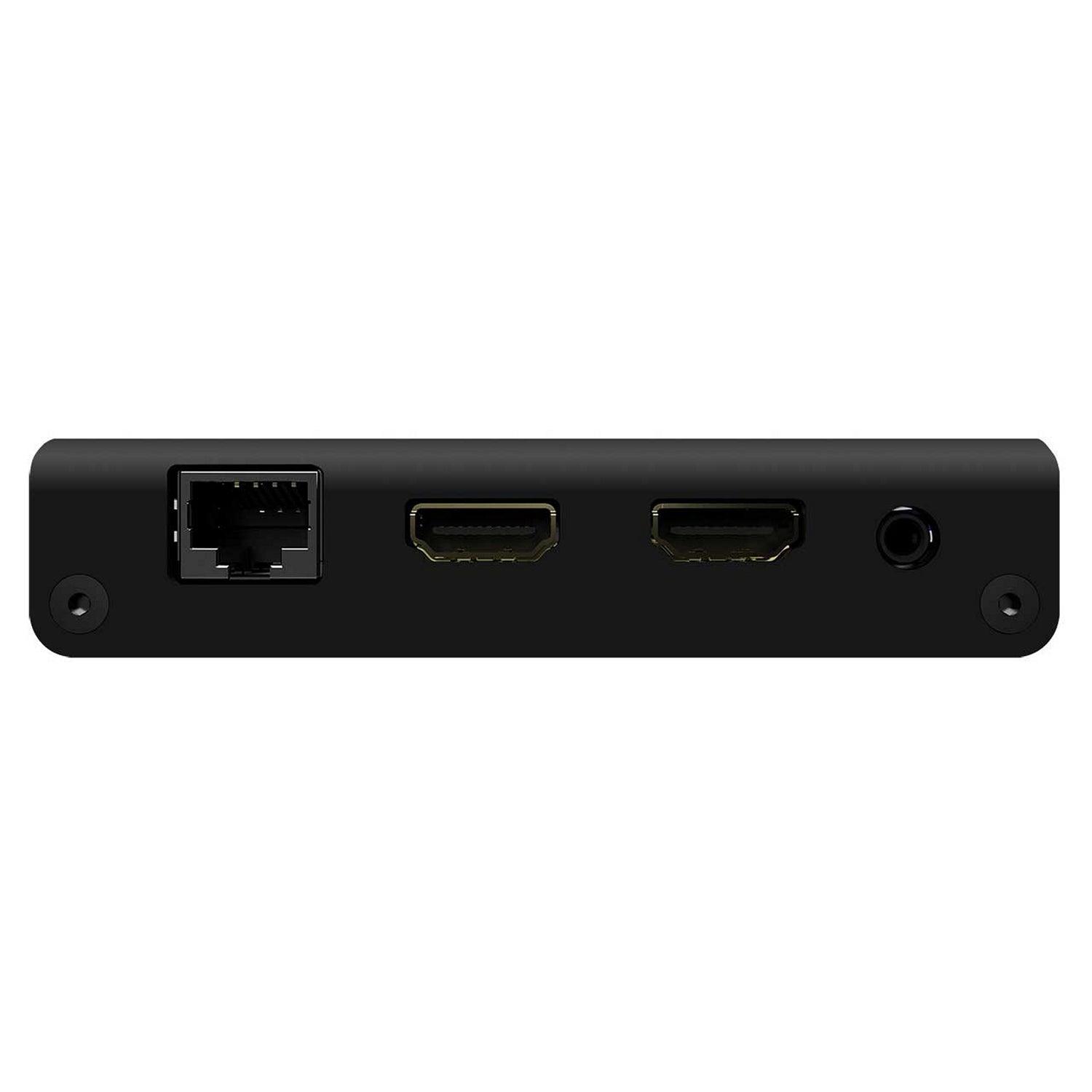

Video Input
1 x HDMI Standard Type A connector
HDMI v1.4a, RGB or YCbCr
Video Output
1 x HDMI Standard Type A connector
HDMI v1.4a, RGB or YCbCr
Audio Digital
2-Channel, 24-bit HDMI embedded audio,
48 kHz sample rate, synchronous
Audio Analog
2-Channel, 24-bit HDMI embedded audio,
48 kHz sample rate, synchronous
Video Codec Support
Realtime, ultra-low latency, full-bitrate NDI
(i-frame)
Display
Bicolor Tally (Red/Green)
Multicolour status information
Full status information on HDMI output (Selectable)
Network Interface
10/100/1000 Ethernet (RJ-45) with PoE
(Power over Ethernet)
Embedded web configuration panel for
control and firmware updates
User Interface Controls
Network settings
Video settings
Tally settings
Audio and Comms settings
Size (w x d x h)
98x110x22mm
Weight
200g
Power
100-240V, 50/60 Hz Universal Input, +5-18V DC7W Max
Power over Ethernet (PoE) 802.3af/at
