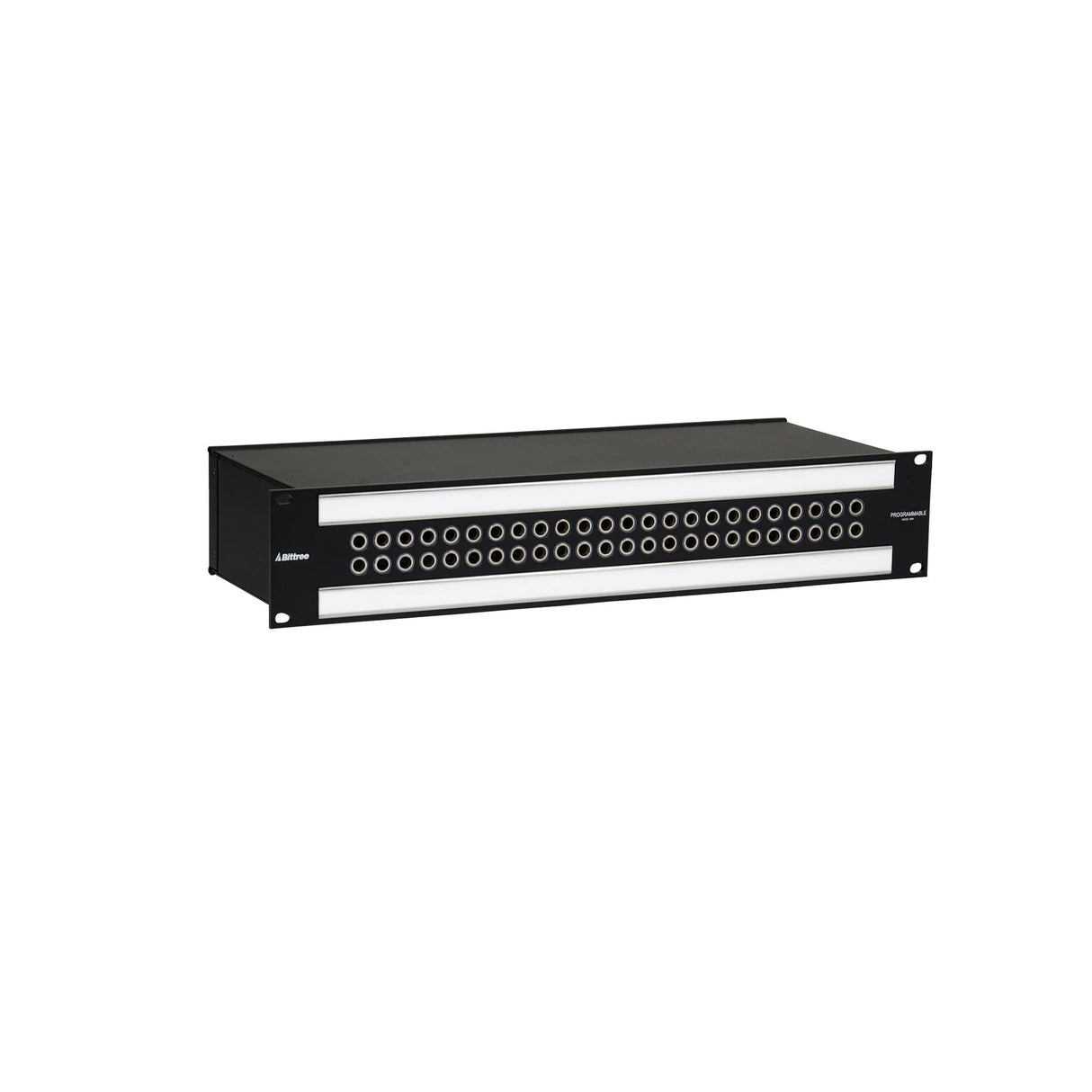

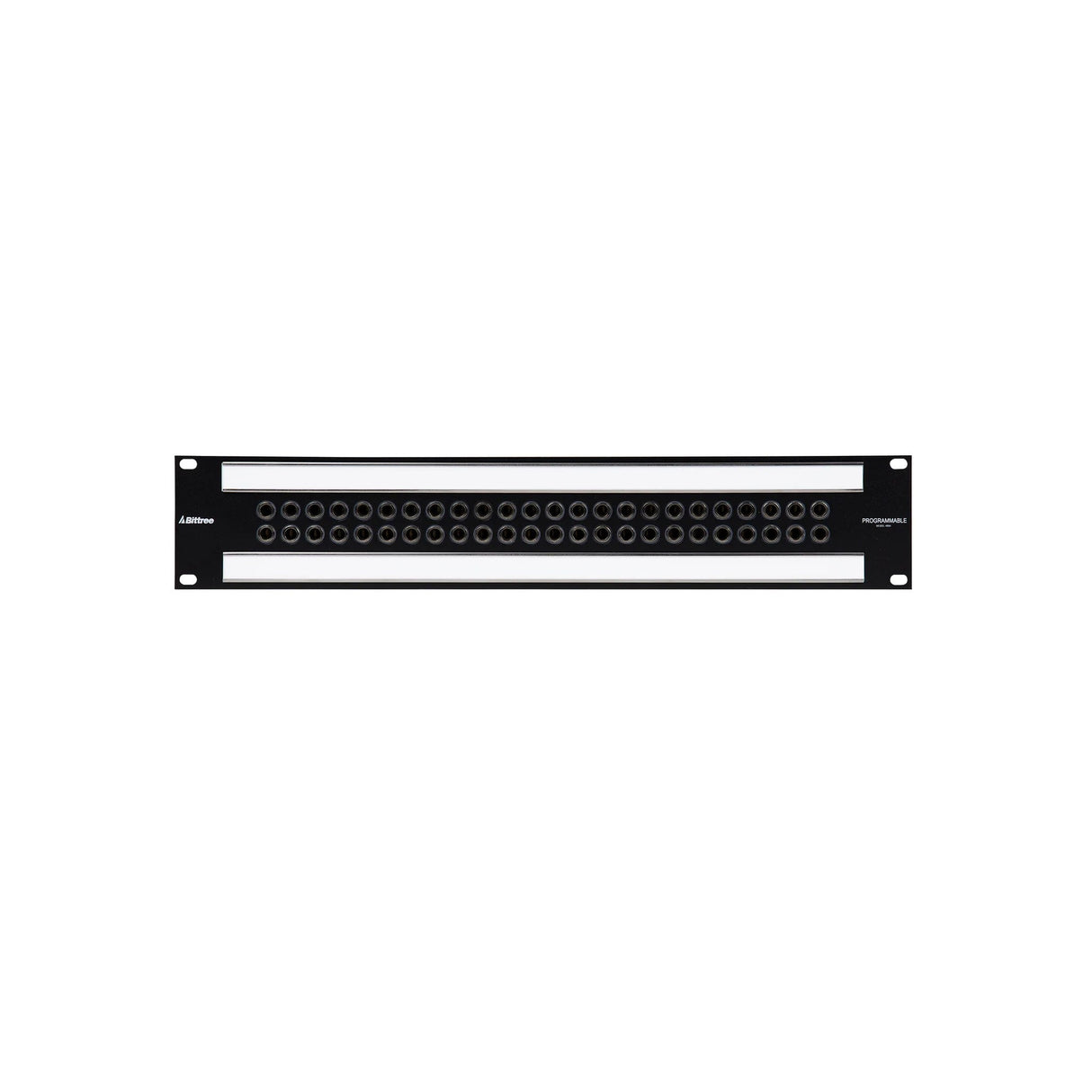

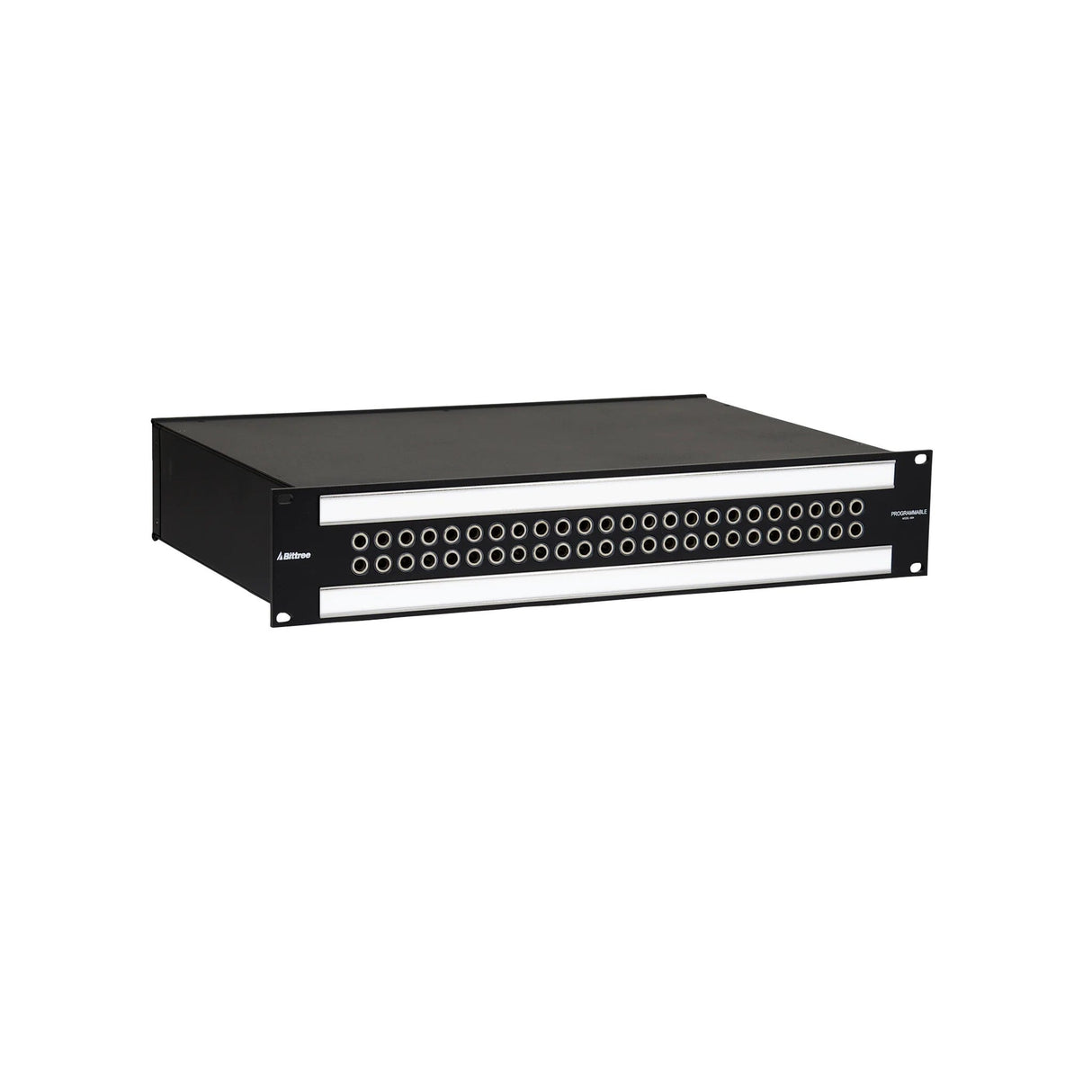

Bittree B48DC-FNSST/E3 M2OU12L E3 Full Norm Switched Ground Long-Frame Patchbay, 2RU 2 x 24

Bittree B48DC-FNSST/E3 M2OU12L E3 Full Norm Switched Ground Long-Frame Patchbay, 2RU 2 x 24

The Bittree B48DC-FNSST/E3 M2OU12L is a Front Selectable 1/4” Long-Frame 489s Series Audio Patchbay in 2RU in a spacious 2x24 jack configuration with mono (even) jack spacing. Selectable normalling and grounding: Circuits can be easily changed via shunts under both designation strips. It features 2 x DS800-10SA-ASSY designation strip assemblies, “Over/Under” orientation and has mating hardware and 6” (15.24 cm) deep rear lacing bar are both included.

The Bittree B48DC-FNSST/E3 M2OU12L is common replacement for the ADC Pro Patch (PPP) 1248 series patch bays.

Key Features

• Spacious 2x24 jack configuration with mono (even) jack spacing

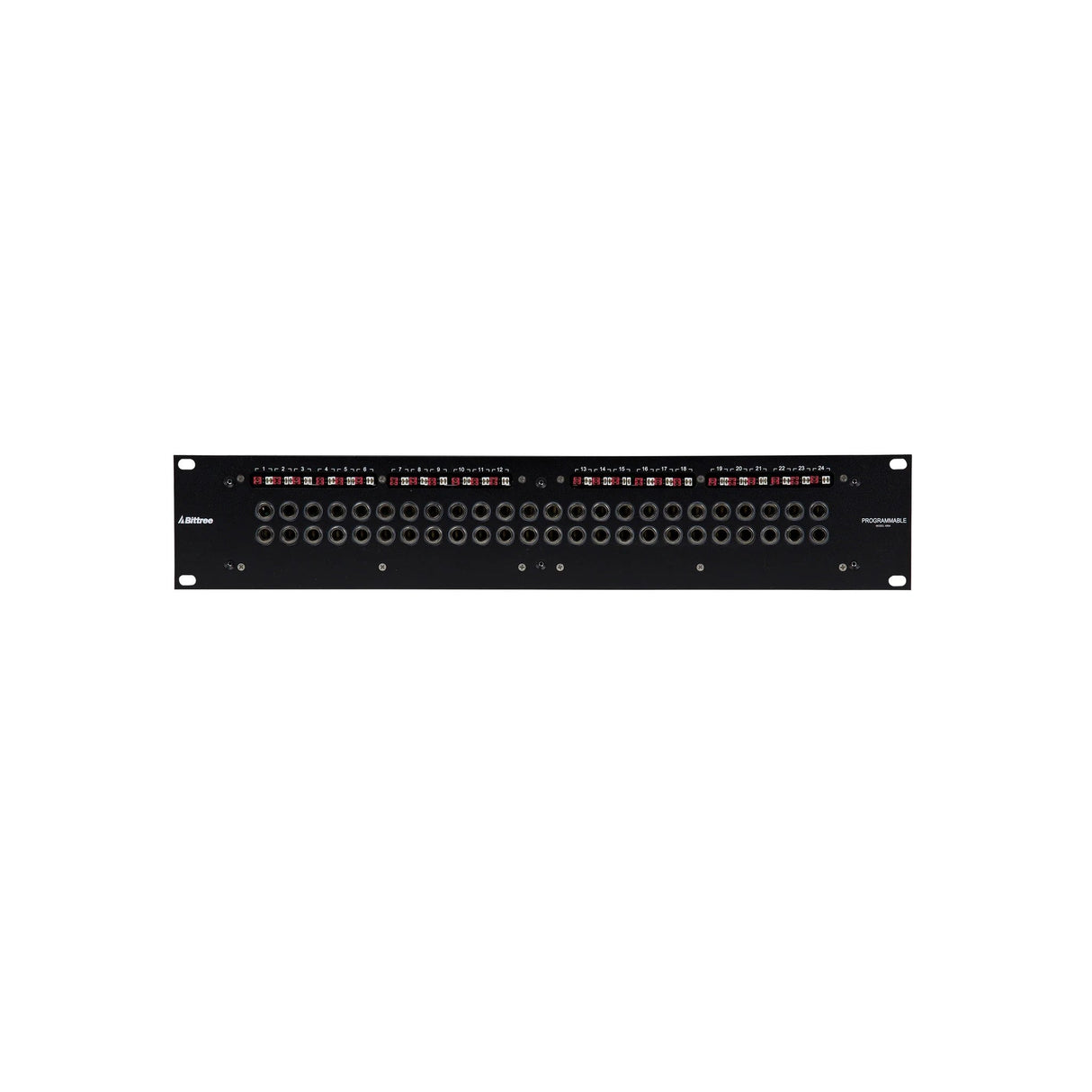

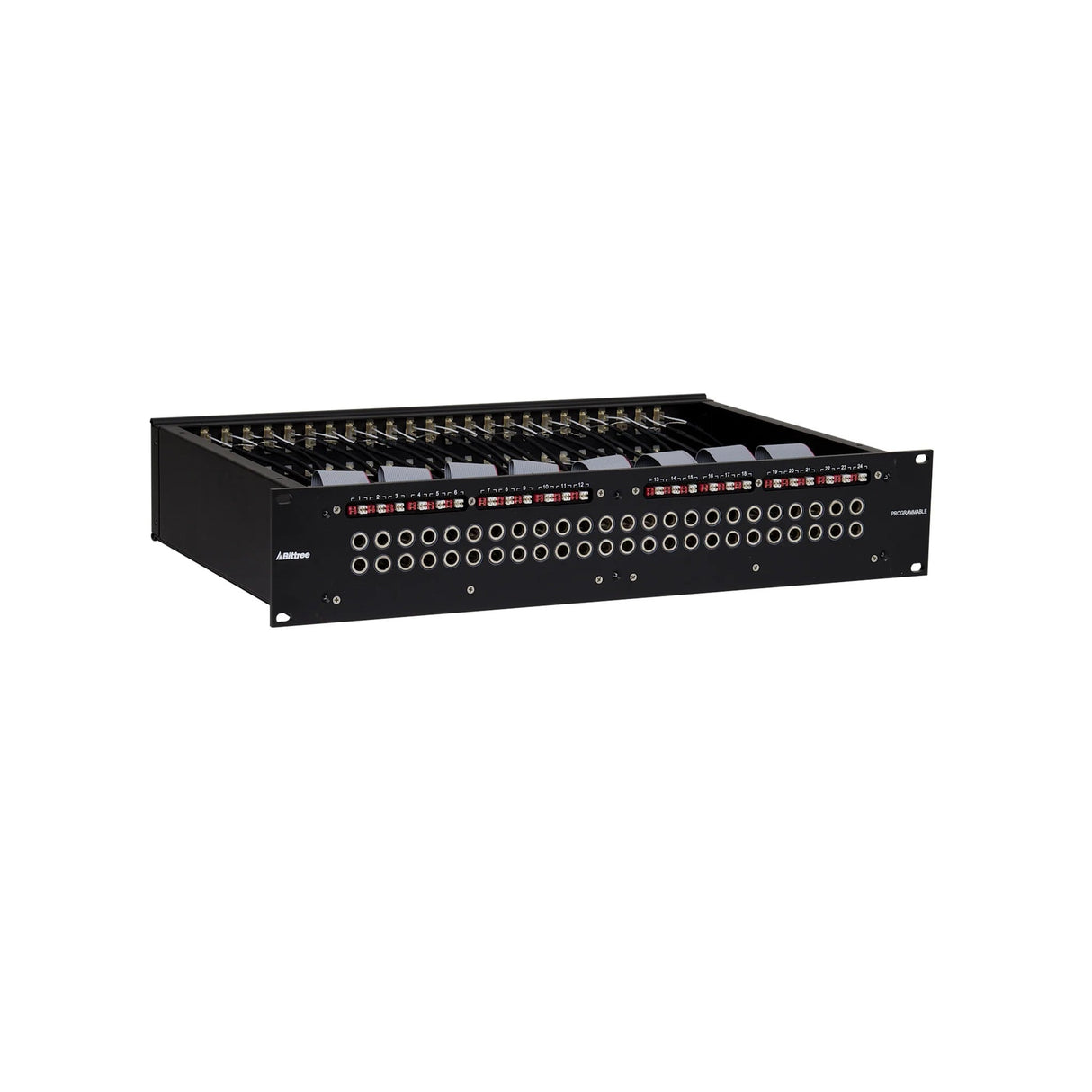

• Selectable normalling and grounding: Circuits can be easily changed via shunts under both designation strips
• Digital AES wire used for internal wiring
• 2 x DS800-10SA-ASSY designation strip assemblies, “Over/Under” orientation
• Mating hardware included with E3, E90, and ID (Punchdown) rear interfaces
• 6” (15.24 cm) deep rear lacing bar included with E3 and ID (Punchdown) rear interfaces: Alternative 3” (7.62 cm) deep lacing bar available
