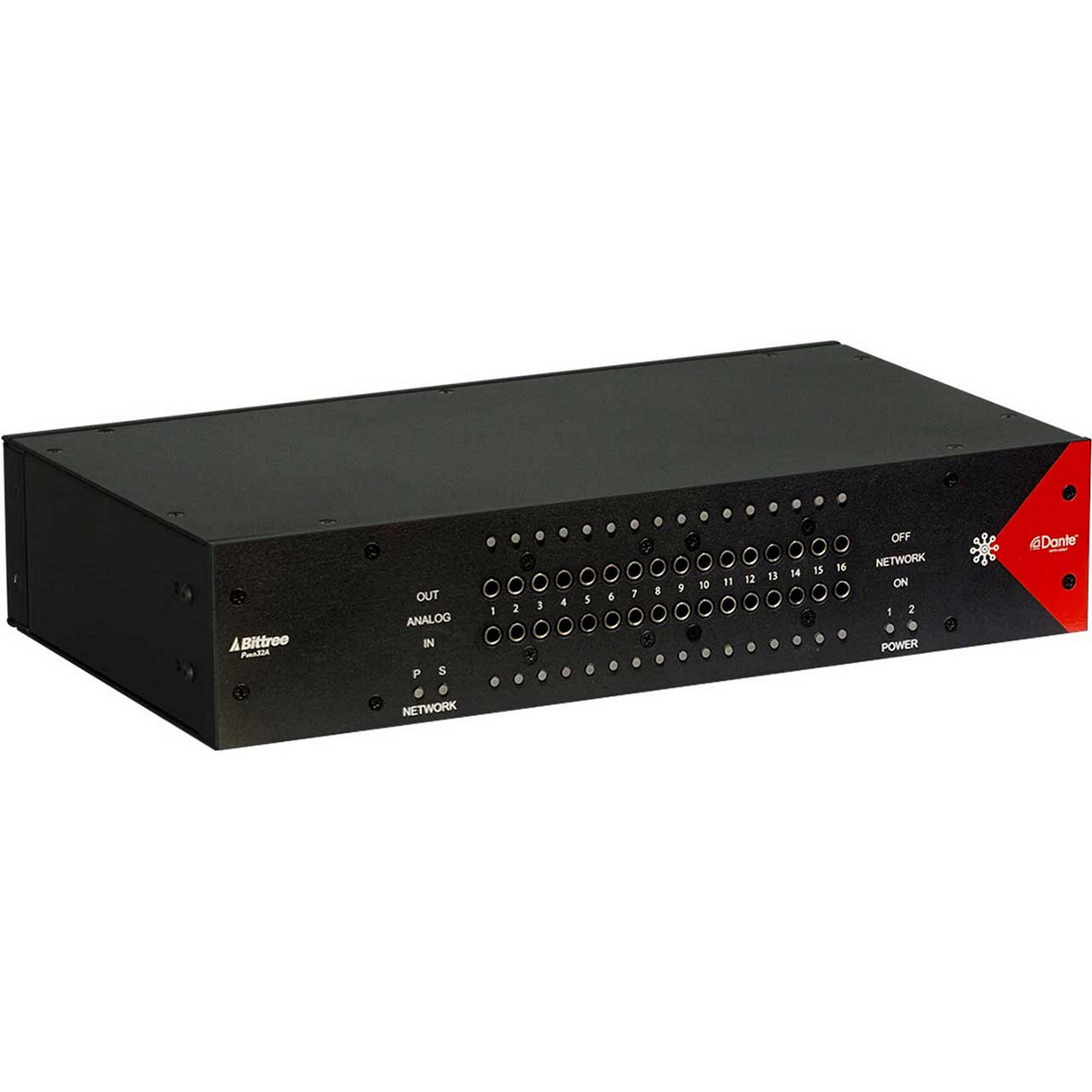

Bittree PATCH32A Dante 1.5RU 2X16 Analog TT Audio Patchbay
The Bittree Dante Patch32A is a networked audio patchbay that eliminates the hassle of analog and Dante audio patching in broadcast and professional AV infrastructures. The Dante Patch 32A provides a ramp to instantly move 16 channels of analog audio onto and off Dante networks, it's a perfect bridge between legacy audio equipment and IP-based systems. Using Audinate's popular Dante media networking technology, featuring recently added AES67 and SMPTE ST-2110 interoperability, the Dante Patch 32A minimizes cabling, conversion equipment and the costs that go with them.

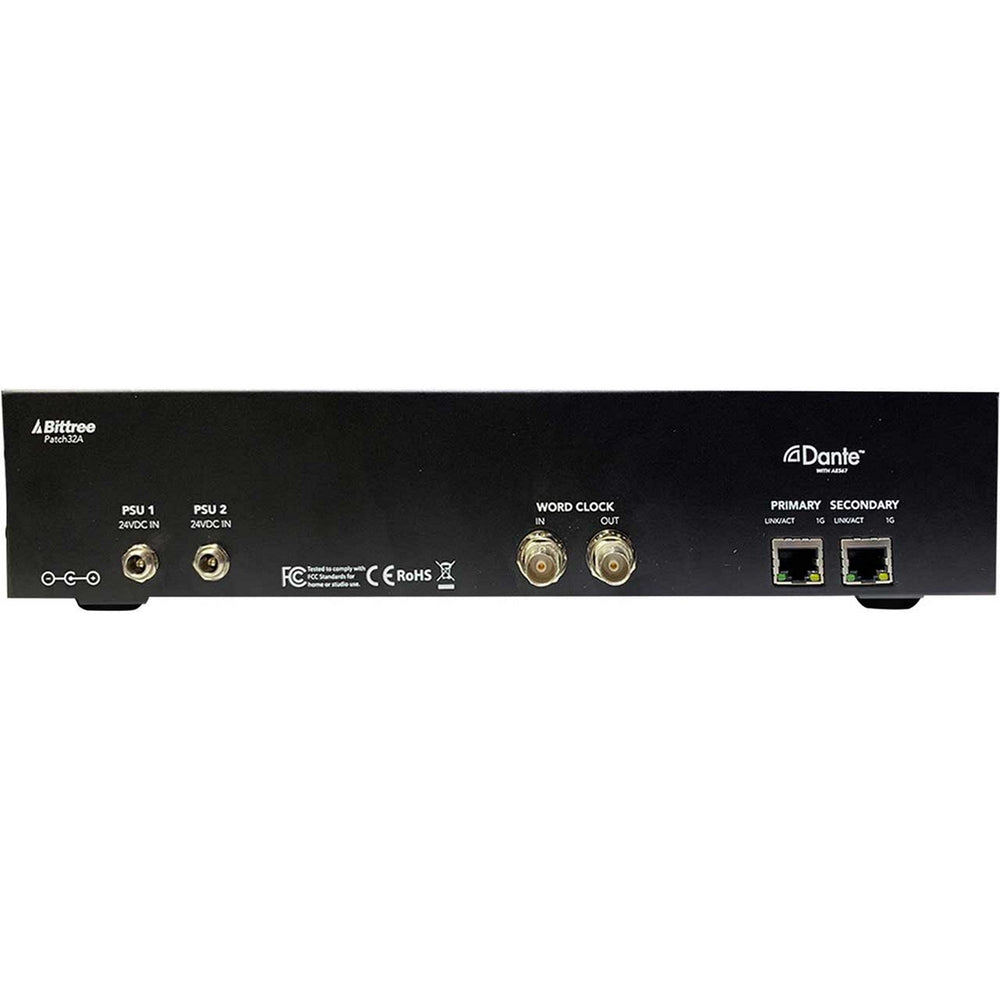

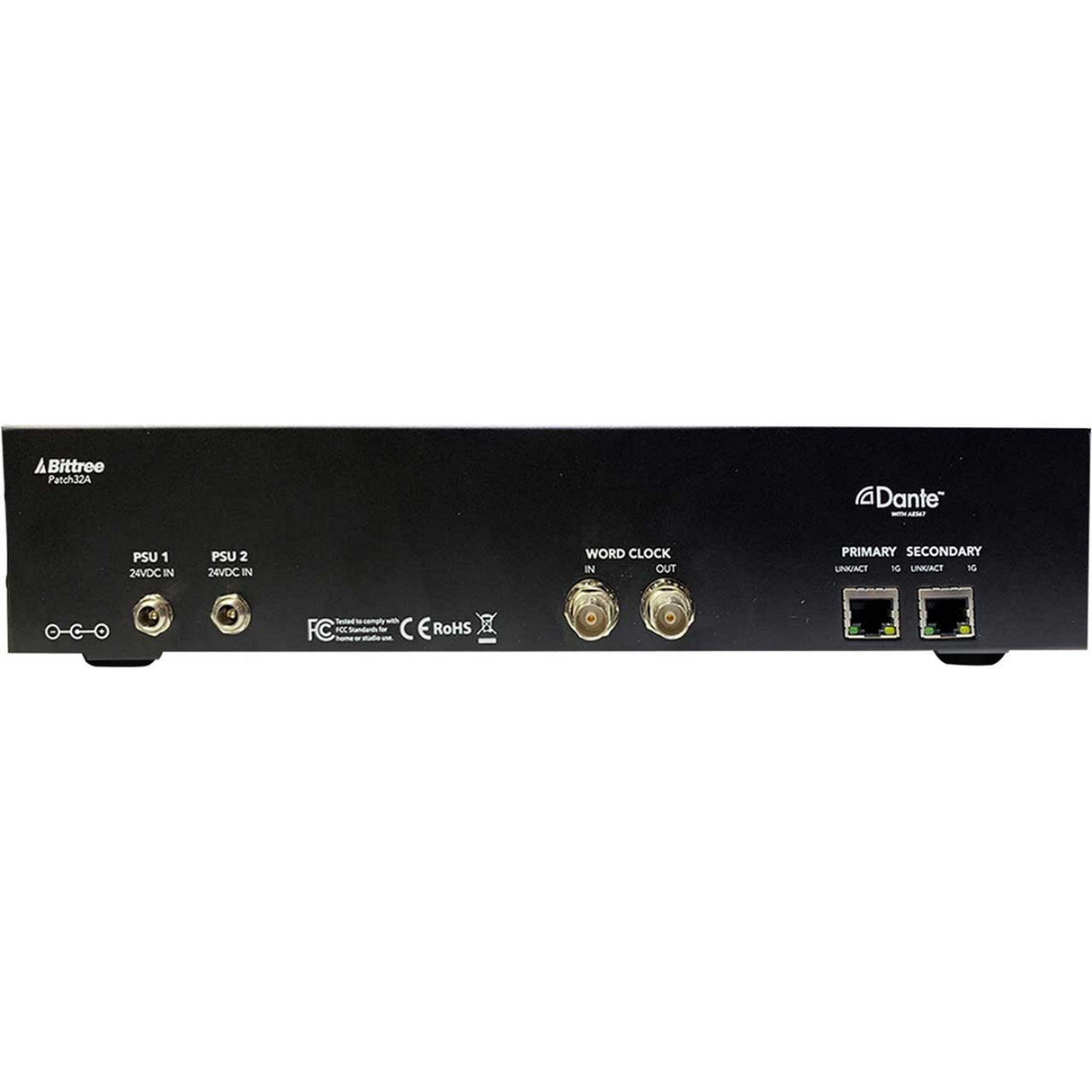

Perfect for broadcasters, recording studios, post-production and commercial av installations like houses of worship and corporate and educational campuses the Dante Patch 32A features TT patching connections for analog I/O (16x16), redundant DC power inputs, external word clock I/O, network status, and multi-level, LED audio VU metering. The patchbay supports 24-bit audio sampling at rates from 44.1 to 192 kHz, with high-quality analog-to-digital conversions that maximize signal integrity and audio fidelity. The unit can interface with Dante Virtual Soundcard, more than 1600 third-party Dante-enabled devices, and almost any analog component in the same system, including audio distribution equipment, digital audio workstations (DAWs), digital signal processors (DSPs), mixing consoles, multi-track recorders and video routers.
Key Features
- Stand-alone desktop Dante patchbay with 4 rubber feet
- 7 inch (17.78 cm) deep fully enclosed chassis
- Bitree's renown double full frame TT jacks
- 16 TT patchable inputs and outputs
- 16 input and 16 outputs to Dante network (AES67 ready)
- Redundant power inlets
- Redundant Dante network ports
- Supports 44.1 to 192K sample rate at 24-bit

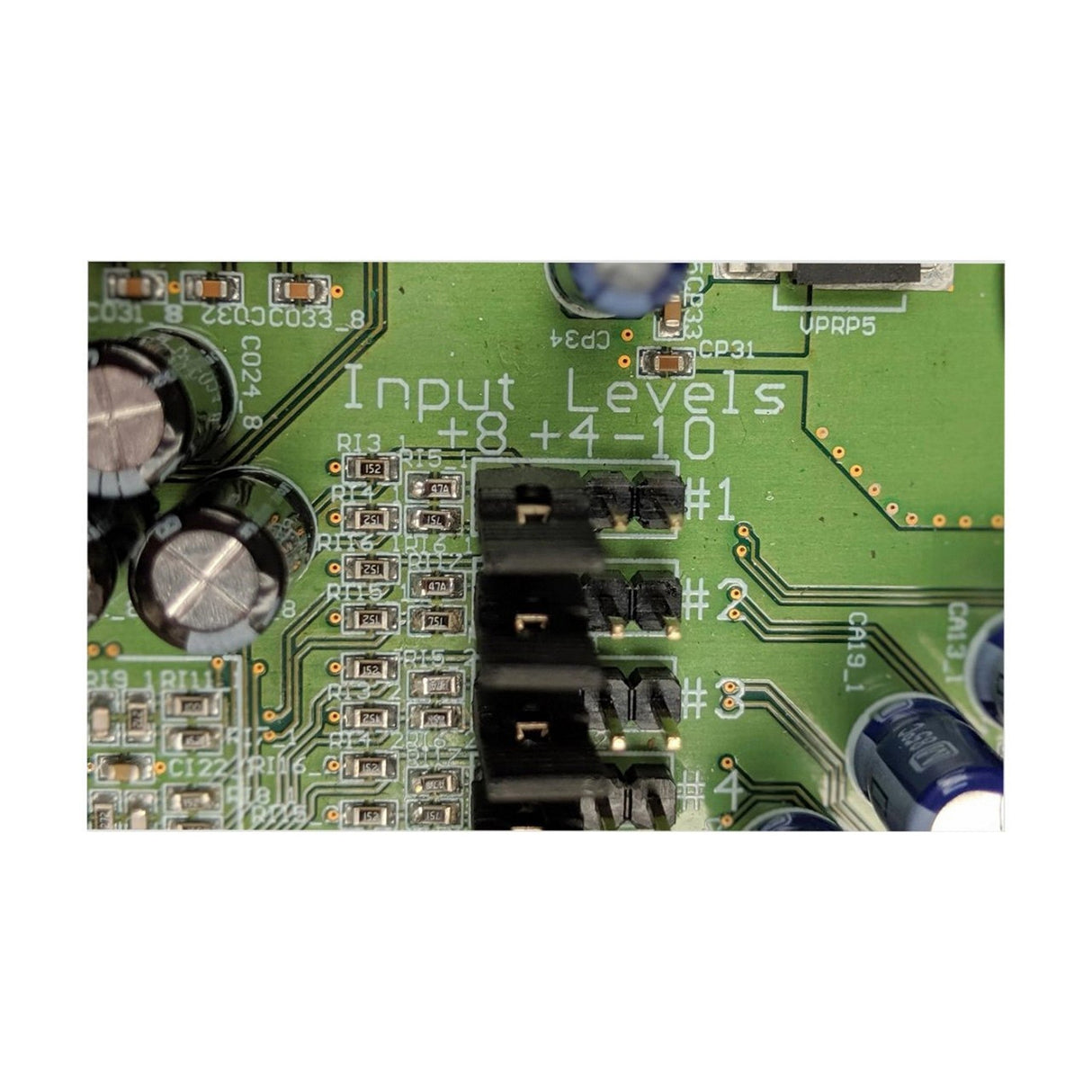

- Jumper selectable input and output levels (18dBu, 24dBu or 10dbV)

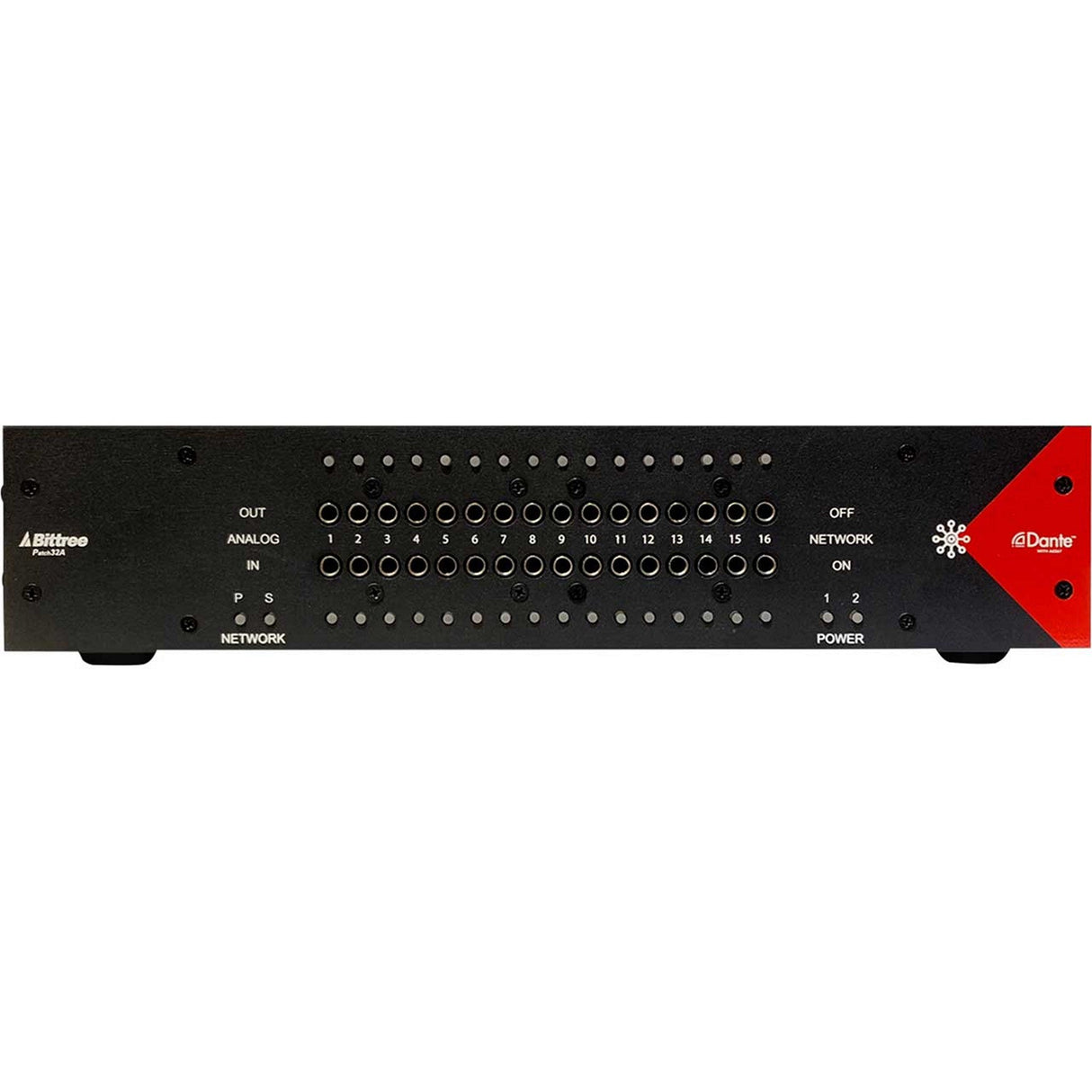

- Front panel VU and status indicators
Technical Specifications
Line Outputs
TT Jacks 16
0 DBFS Reference Levels 18dBu, 24dBu, -10dbV (jumper selectable)
Frequency Response
20Hz - 20 kHz +/- 0.25 dB
EIN -96dbU A-Weighted
SNR
120dB
Digital Specifications
Sample Rates
44.1, 48.8, 88.2, 96, 176.4, 192K at 24-bit
Clock Sources
Internal, External, Dante Network Mast
Compliance
RoHS Compliance
Size
1.5RU Height, 7-inch Depth
