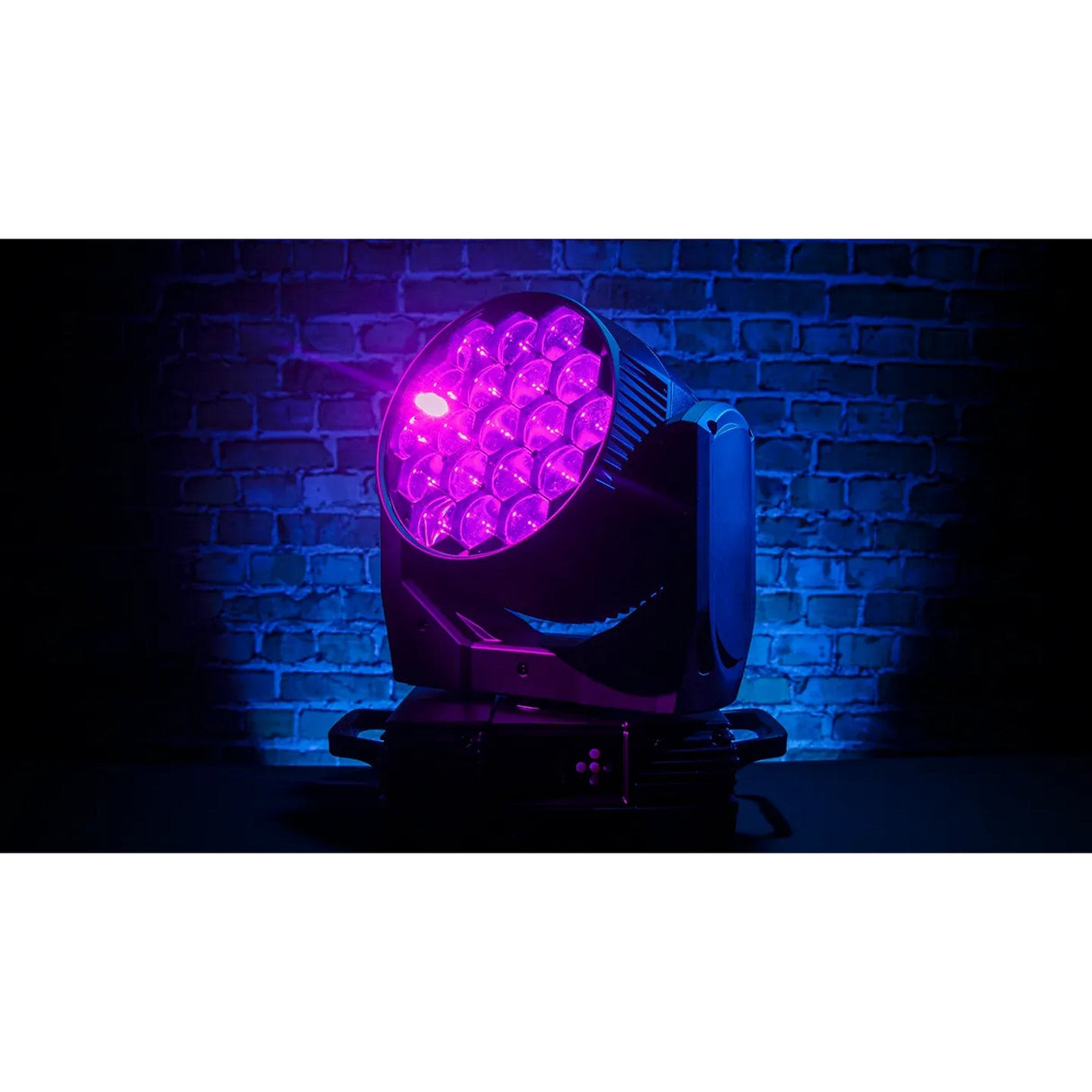

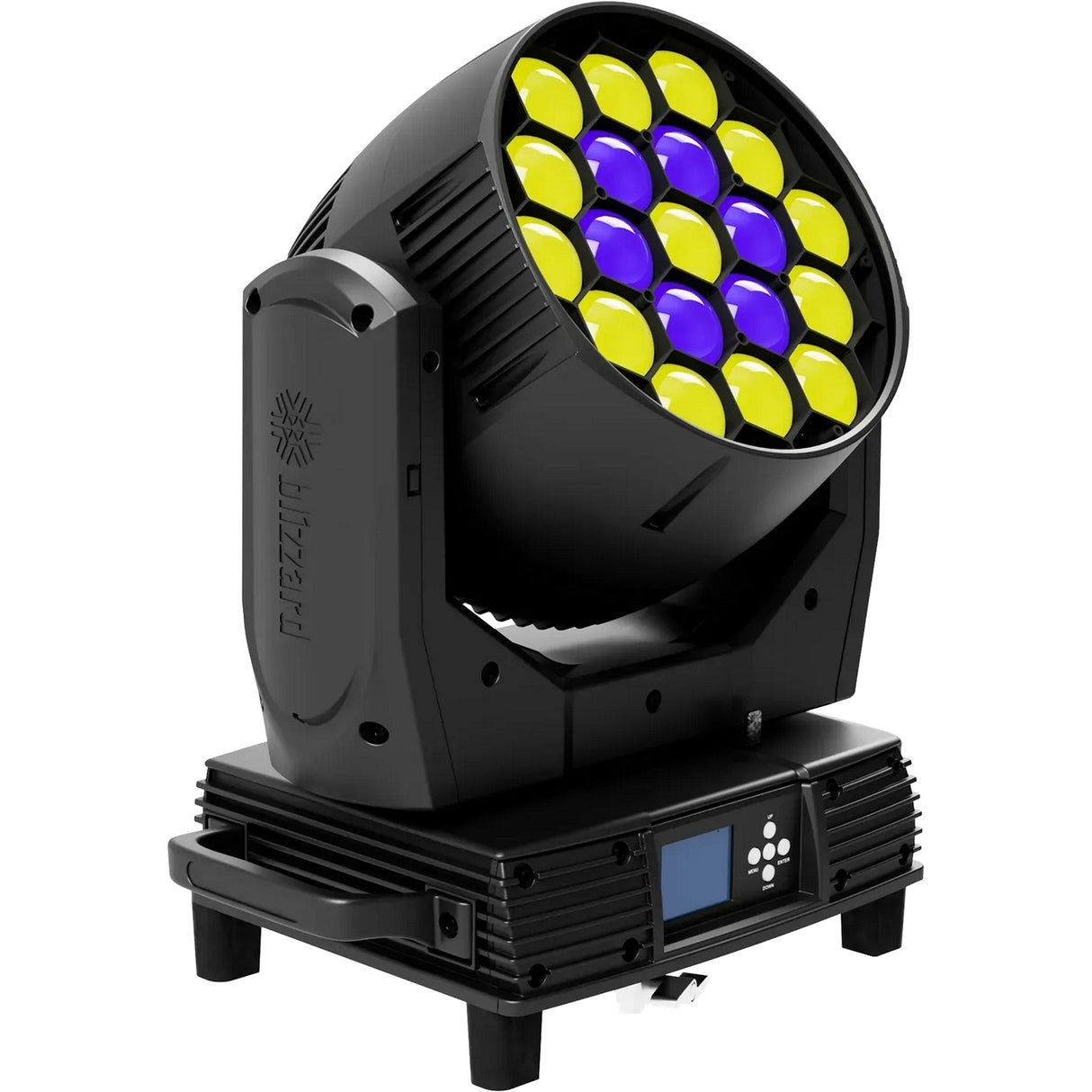

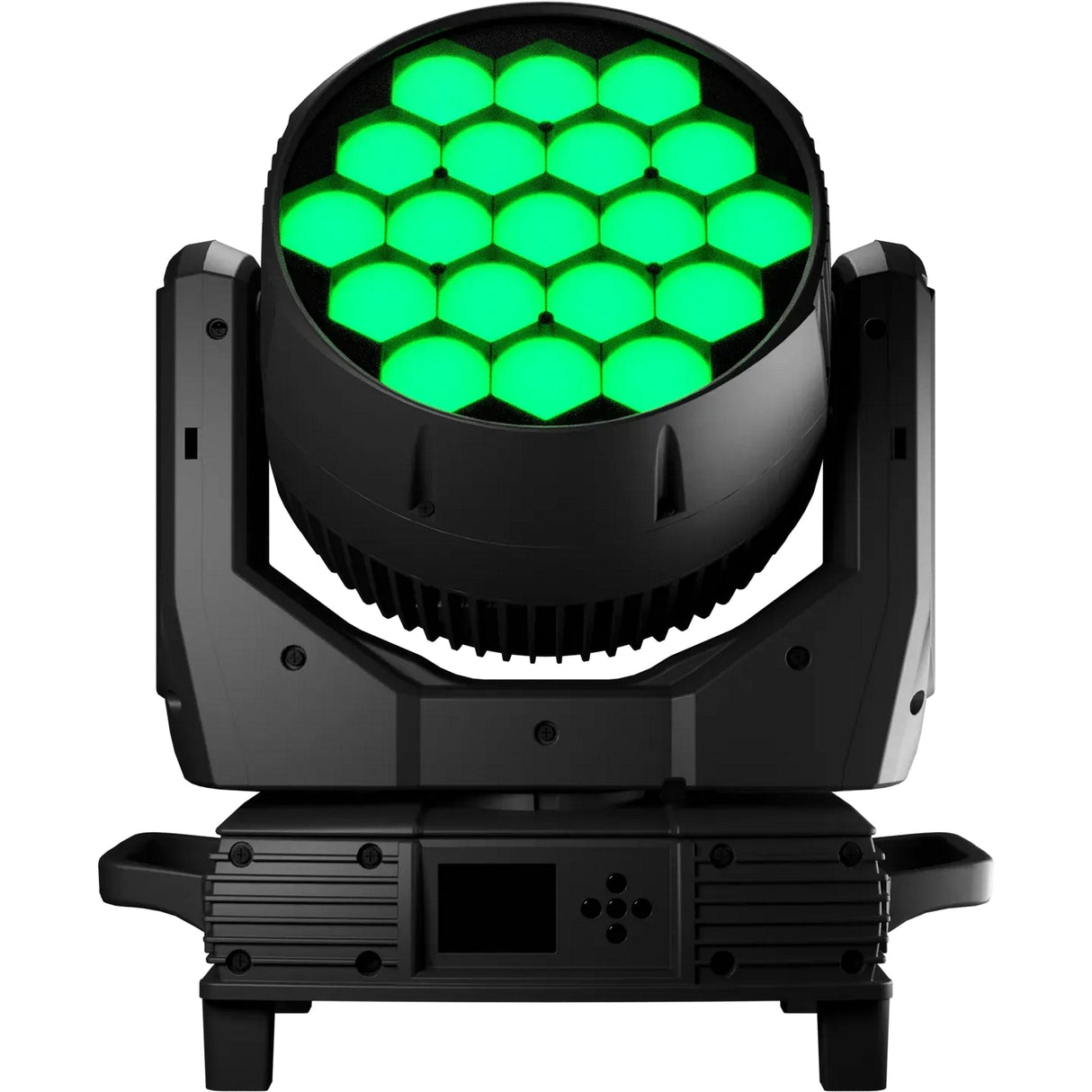

Blizzard Lighting Typhon IP Wash 19x 40W 4-In-1 RGBW IP66-Rated LED Moving Wash Fixture

Blizzard Lighting Typhon IP Wash 19x 40W 4-In-1 RGBW IP66-Rated LED Moving Wash Fixture

Impressive Optics

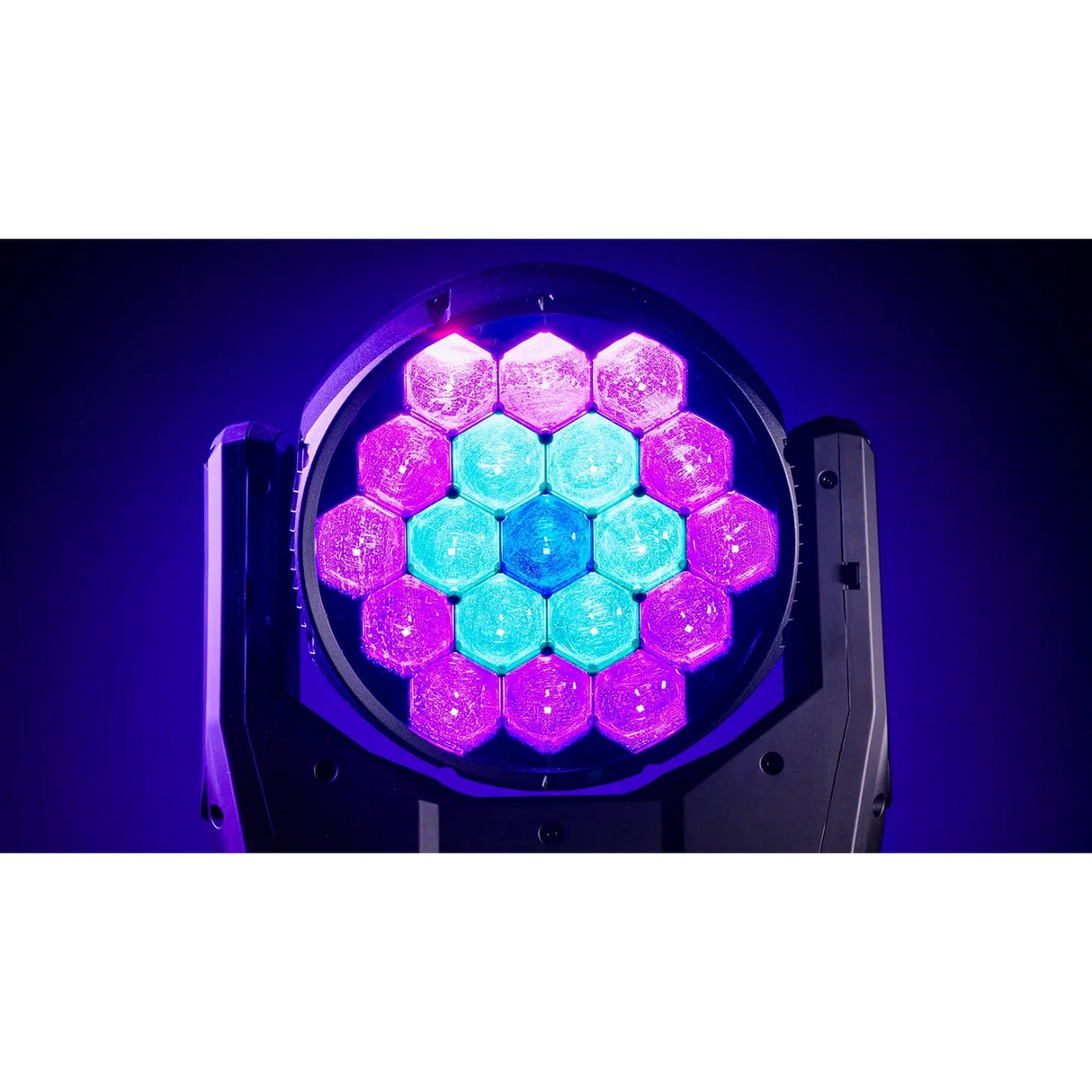

Typhon IP Wash is an outdoor-rated LED moving wash that offers full color and 3-zone LED ring effects. This feature-packed fixture comes with 15 color/patterns, 10 chase macros, and 21 built-in CCT color presets.

Performance in Any Climate

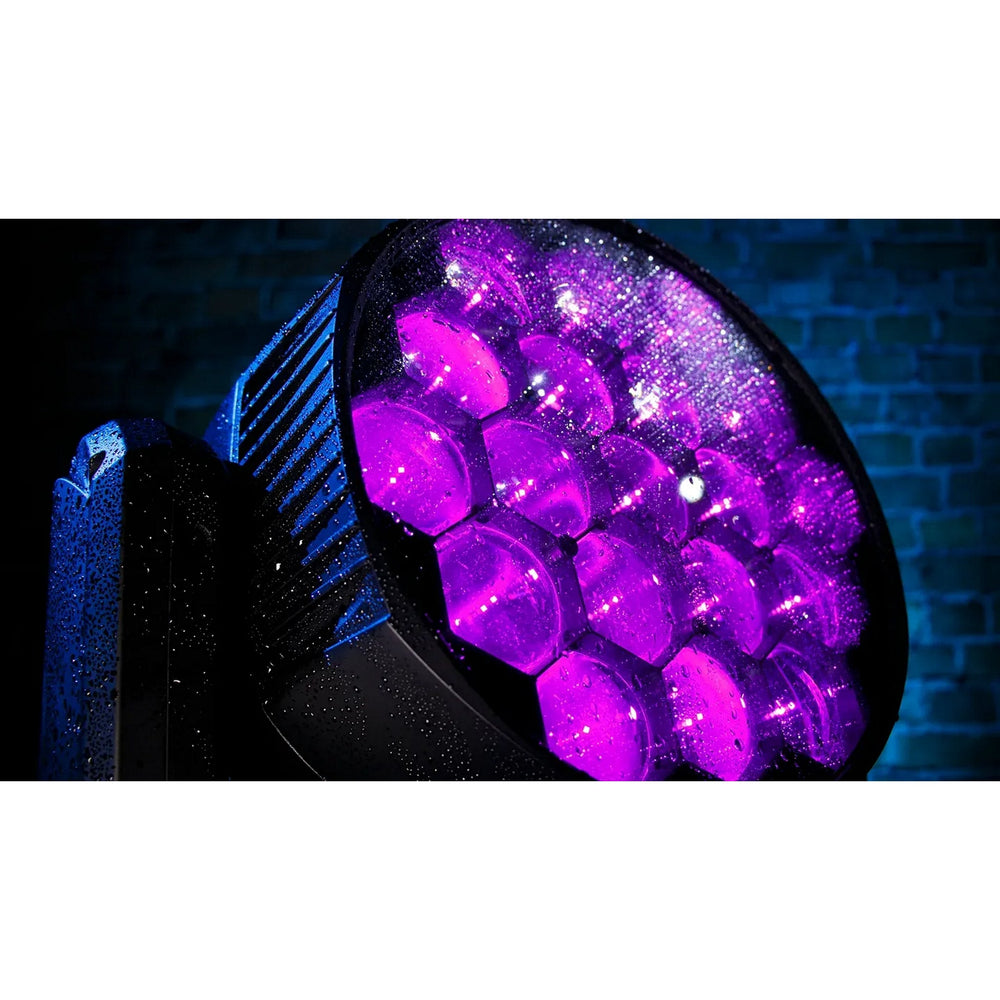

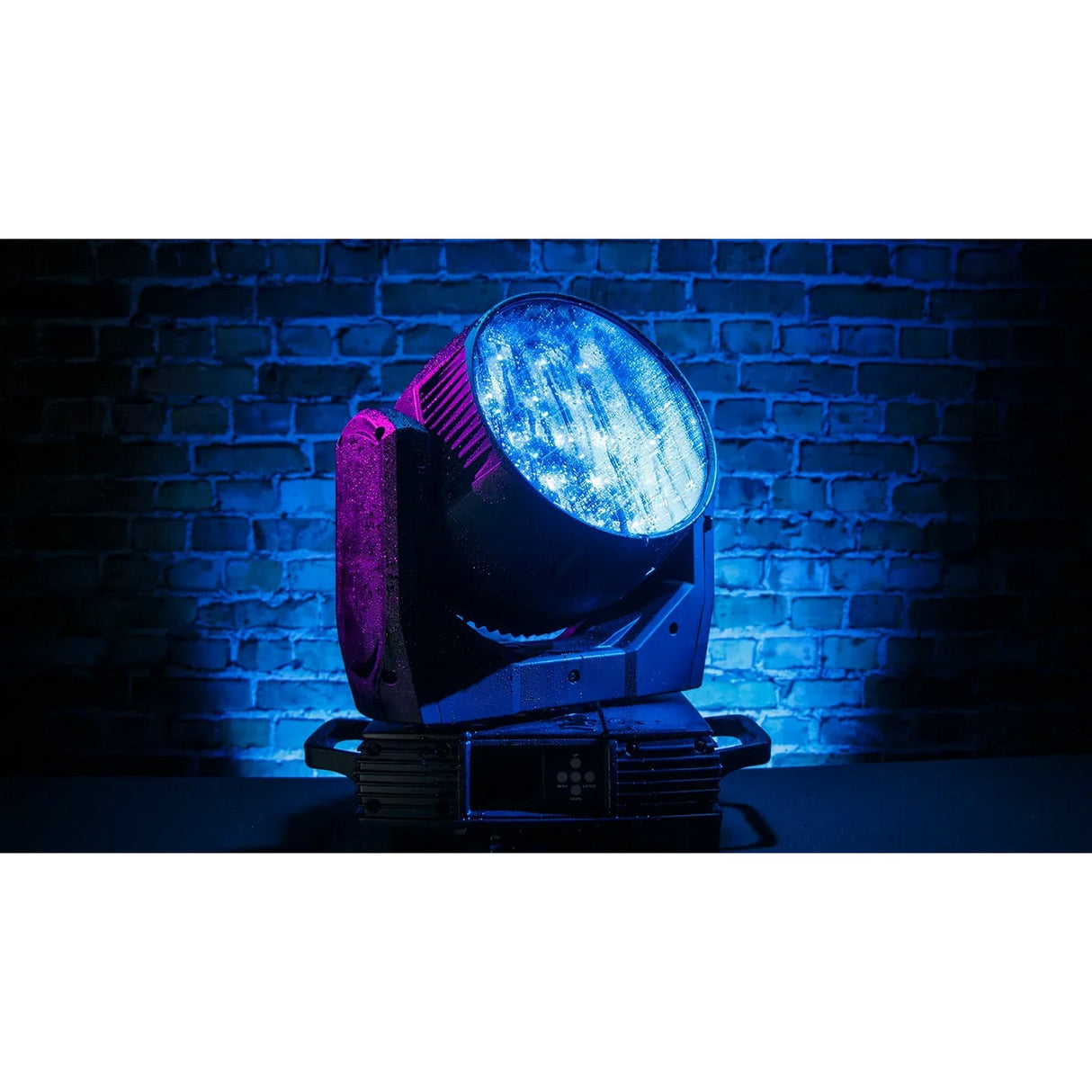

With its airtight design, Typhon IP Wash delivers top-notch performance, even in extreme temperatures and challenging environments, such as high altitude, desert, or coastal areas.

Outdoor Wash W/Zoom

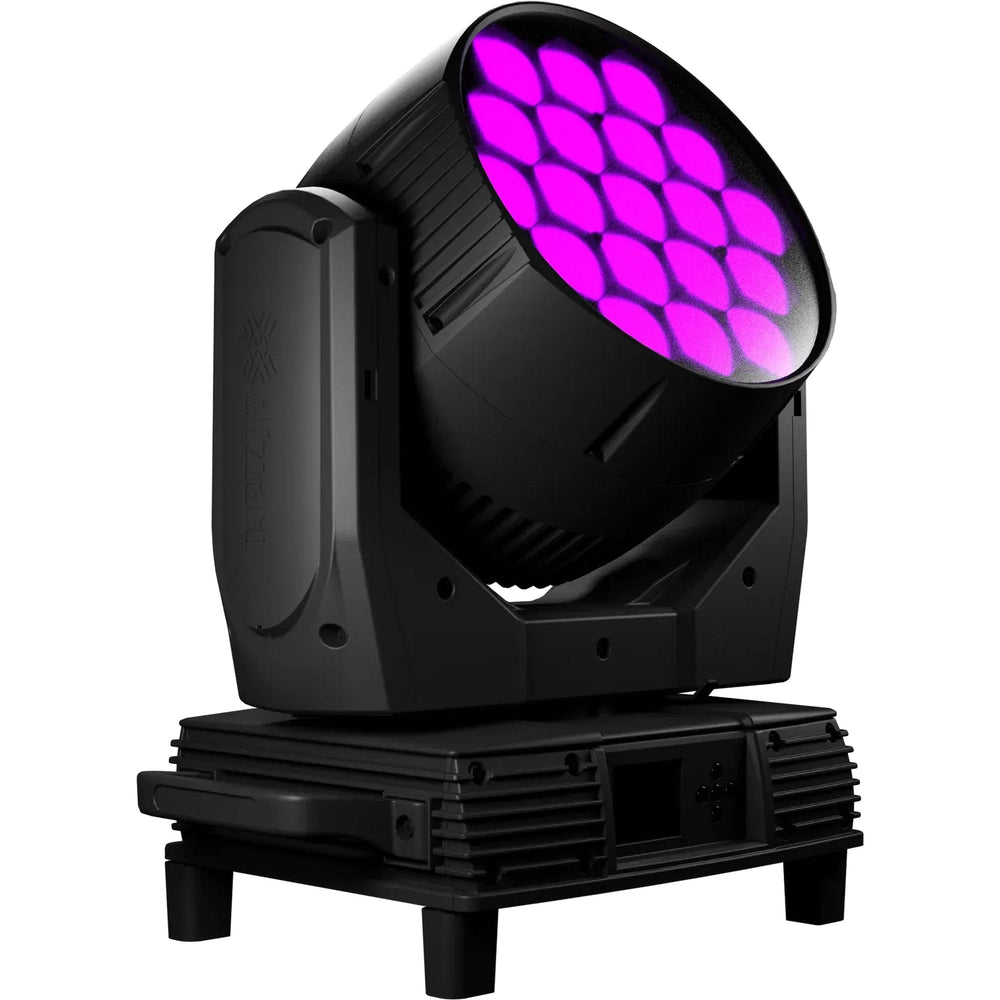

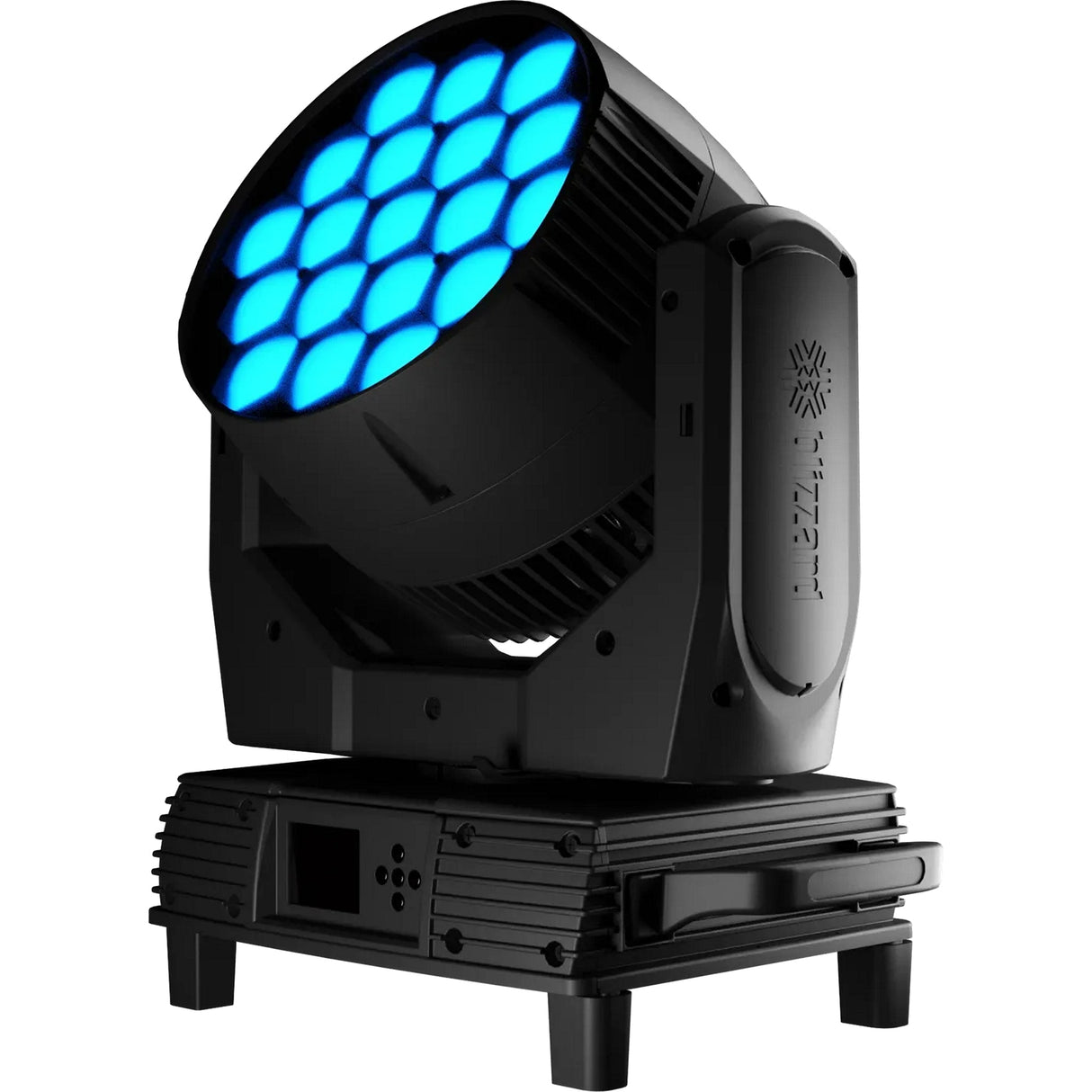

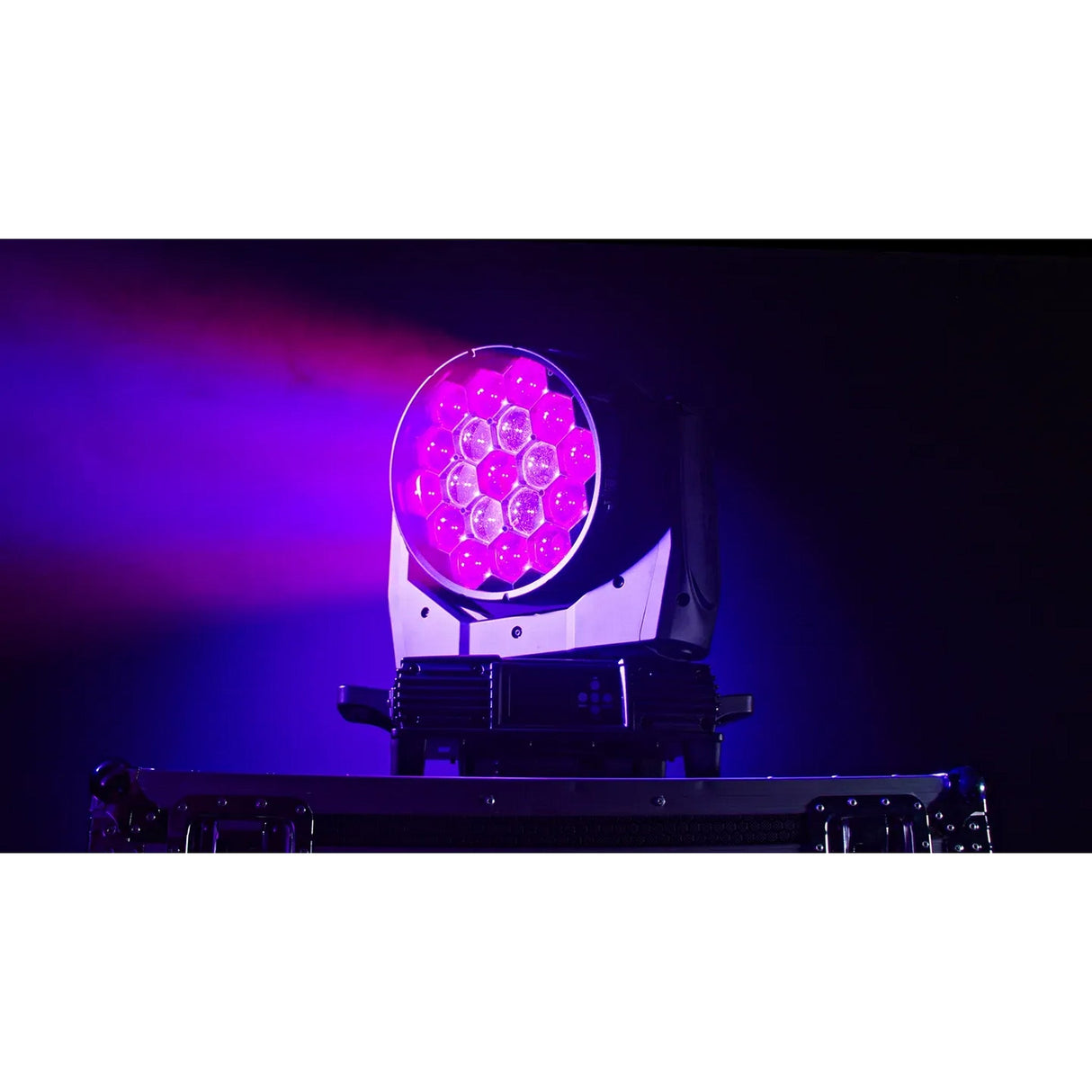

Typhon IP Wash is a professional, IP66-rated LED moving wash fixture, designed to deliver ultra-bright, vibrant colors in outdoor settings. It boasts 19x 40W 4-in-1 RGBW LEDs, offering a broad spectrum of colors and effects. The fixture features a motorized zoom from a focused 6° beam to a wide 55° field angle. Its speed-controllable pan (360/540°) and tilt (230°) movements are precise and fluid, providing enhanced control of individual effects.

Loaded With Features
The Typhon IP Wash is equipped with both 8-bit and fine 16-bit resolution, ensuring smooth dimming, color mixing, and control of individual effects. It has a range of features, including full-color and 3-zone LED ring effects, 16 color/pattern presets, 10 chase macros, and 21 built-in CCT color presets that range from warm white to cool white. Other features include 1-25Hz strobe with synchronized and pulse effects, and 4 user-selectable dimming curves for customized lighting control. The fixture also has integrated dual mounting clamps for easy rigging, and for reliable power and data connectivity, it has powerCON TRUE1-compatible power input and 5-pin DMX in/out connections.

Key Features

• The Typhon IP Wash is a top-quality LED moving wash product.
• Ultra-bright luminescence delivered by 19x 40W 4-in-1 OSRAM RGBW LEDs.
• Equipped with 360/540° Pan and 230° Tilt features.
• High resolution of 8-16 bits guarantees precision and detail.
• Allows variable adjustment of pan/tilt speed for optimal results.

Technical Specifications

Optical

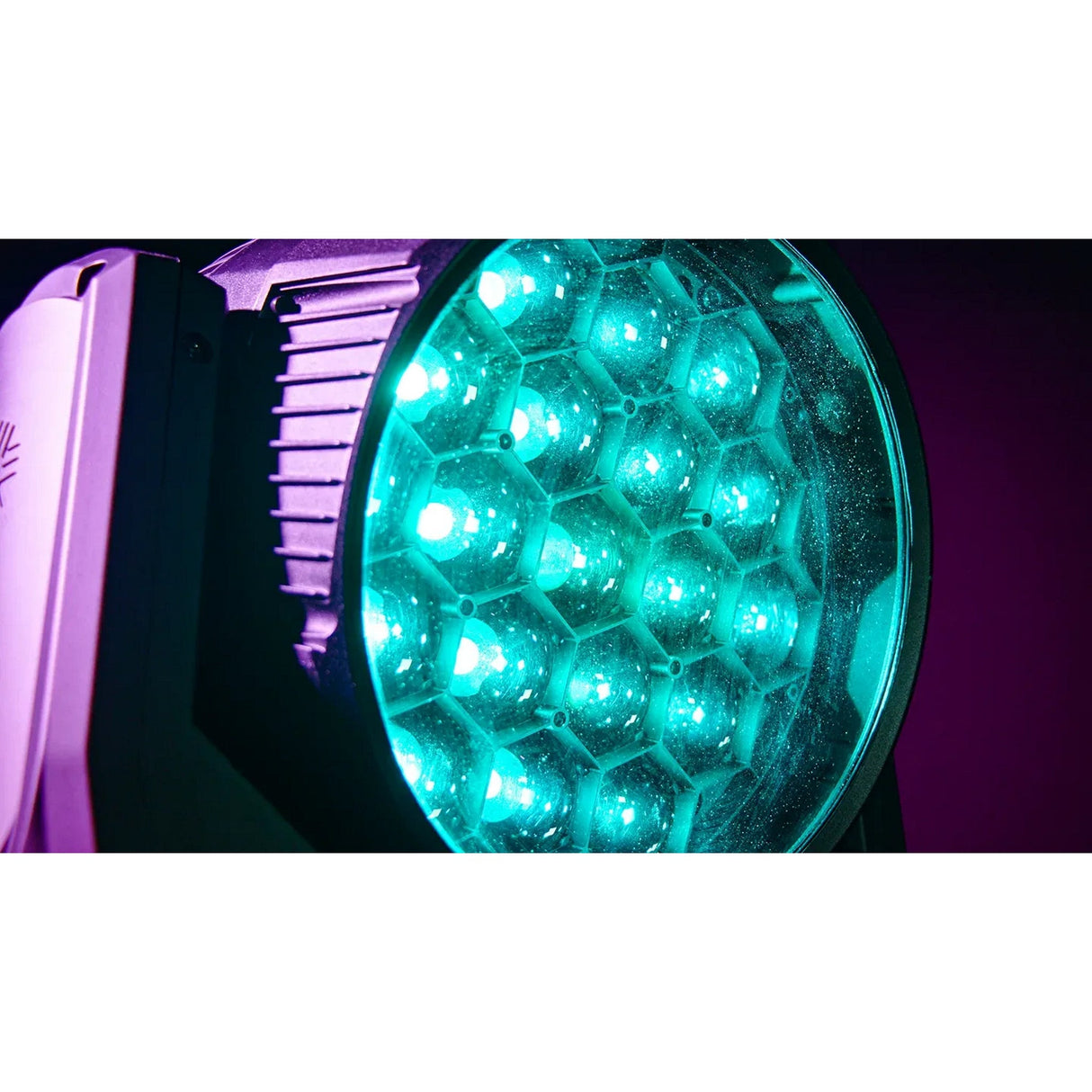

19x 40W high output 4-in-1 OSRAM RGBW LEDs
6°-33° beam angle, 9°-55° field angle
Luminous Intensity
12,500 Lux @ 7.5M (6°)
563 Lux @ 7.5M (33°)
7,070 Lux @ 10M (6°)
320 Lux @ 10M (33°)
Control
Protocol
USITT DMX-512, RDM
5-pin DMX in/out
23/15/39-channel DMX
5-button menu with LCD display
DMX512, M/S, auto mode
Power & Current
100-240VAC, 50-60 Hz
Consumption
965W, 10A, PF.: .96
Fuse
15A/250V
PowerCON TRUE1-compatible input
Dimensions
50.7lbs
