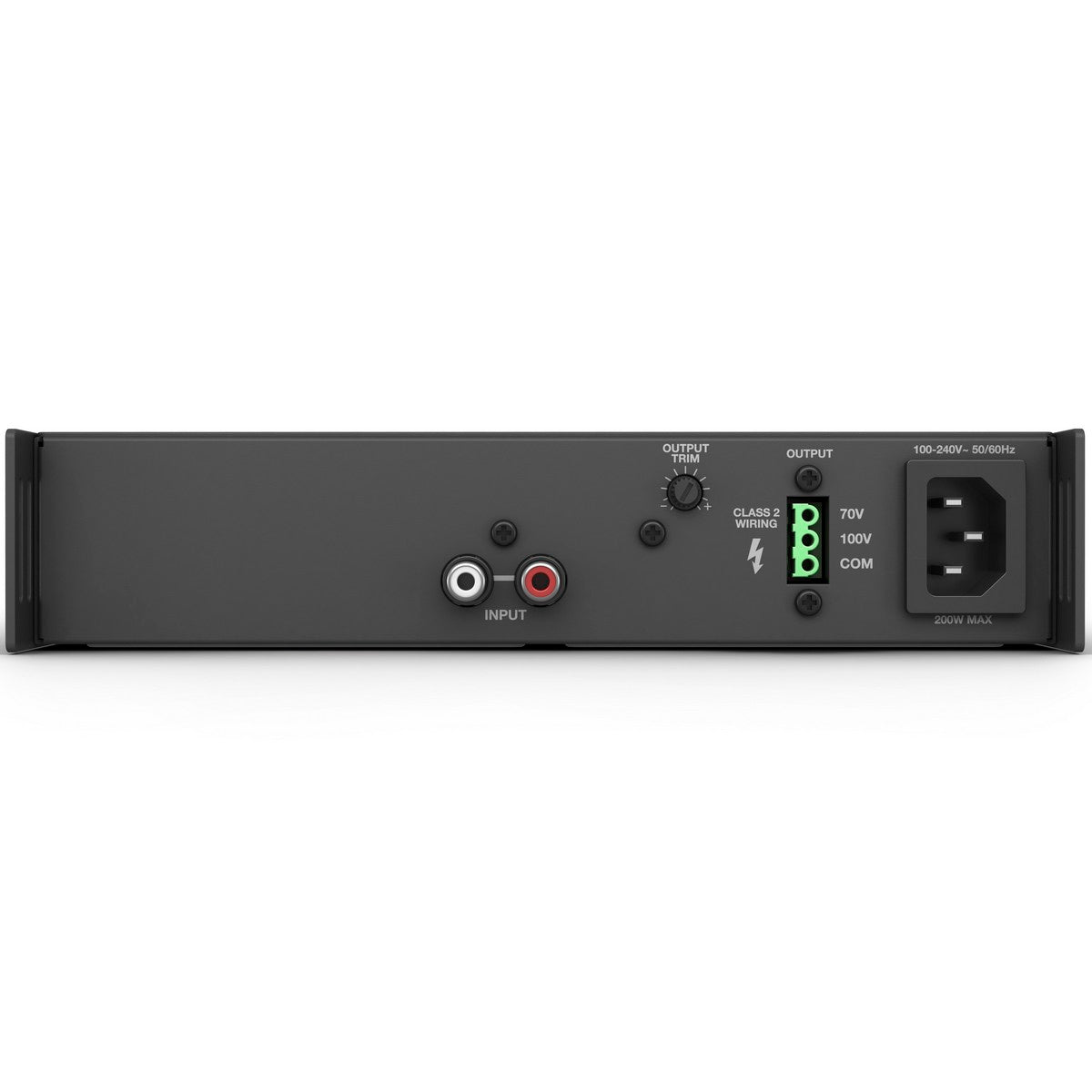

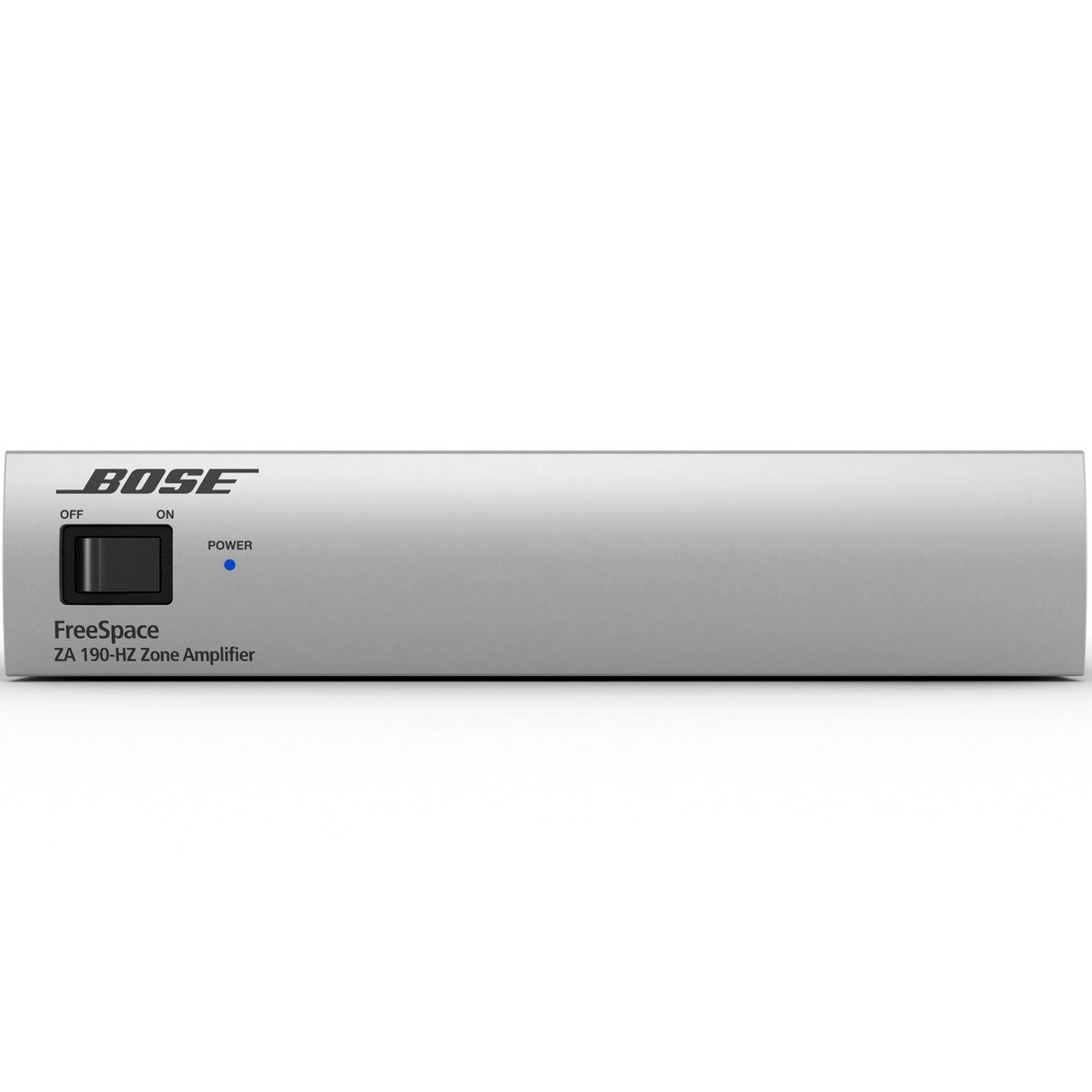

Bose FreeSpace ZA 190-HZ | 1 x 90 Watt Zone Amplifier 344872-1410

Bose FreeSpace ZA 190-HZ 1 x 90 Watt Zone Amplifier 344872-1410

Bose FreeSpace ZA 190-HZ zone amplifiers is designed to provide basic amplification and sound system expansion when using front-end signal processing from products such as the FreeSpace IZA 250-LZ / IZA 190-HZ integrated zone amplifiers, the FreeSpace 4400 business music system and ControlSpace engineered sound processors.

Key Features

• Premium sound quality from a reliable, high quality Class-D amplifier designed to expand sound systems for loudspeaker installations
• Expandable amplification allows for easy system expansion when coupled with a FreeSpace IZA 250-LZ or IZA 190-HZ integrated zone amplifier. The two amplifiers will function together as one system
• Compact, lightweight design enables the FreeSpace zone amplifier to be placed out of the way—on a table, desk, counter, shelf or in an equipment rack using the optional Rack Mount Kit accessory
• Two models available, 4/8 ohm or 70/100 V output, allow for better fit options for specific installations
• Applications: Retail stores, Restaurants and bars, Hospitality venues, Conference centers, Schools, Auxiliary zones

Technical Specifications

Amplifier Power
1 x 90 W @ 70/100 V
Frequency Response
60 Hz - 20 kHz (+0/-3 dB, @ 1 W reference 1 kHz)
THD+N
≤1 % (at full rated power)
Dynamic Range
88 dB
Input Channels
1 Unbalanced
Rack Space Units
1 RU high, half rack wide
Dimensions
1.8 H x 8.4 W x 11.9 D inches (45 mm x 214 mm x 302 mm)
Net Weight
6.7 lb (3.0 kg)
Cooling System
Natural convection
